Aeon Mira 7
NOTE: THIS MACHINE WAS PURCHASED USED AND IS ASSUMED TO BE A STOCK OFFERING FROM THE USA BASED EQUIPMENT RESELLER. WE WERE UNABLE TO ACQUIRE A MACHINE DIRECT SINCE THE USA BASED EQUIPMENT RESELLER DECLINED TO SELL ThunderLaserUSA A MACHINE EVEN AFTER WE SOLD THE USA BASED RESELLER A MACHINE. ANY ERRORS MADE BECAUSE OF END USER MODIFICATION WOULD NOT BE KNOWN BY ThunderLaserUSA.
Video Overview
Overview and description of the Aeon Mira 7

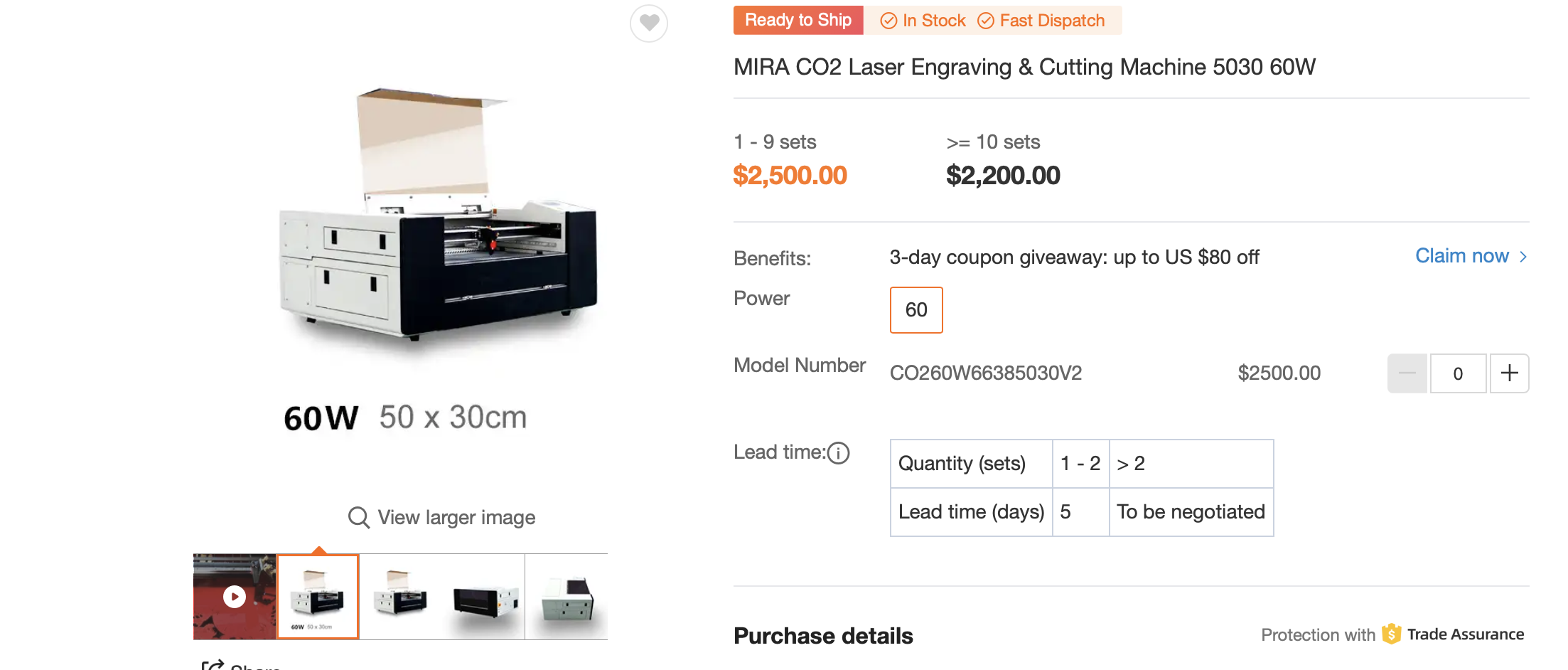

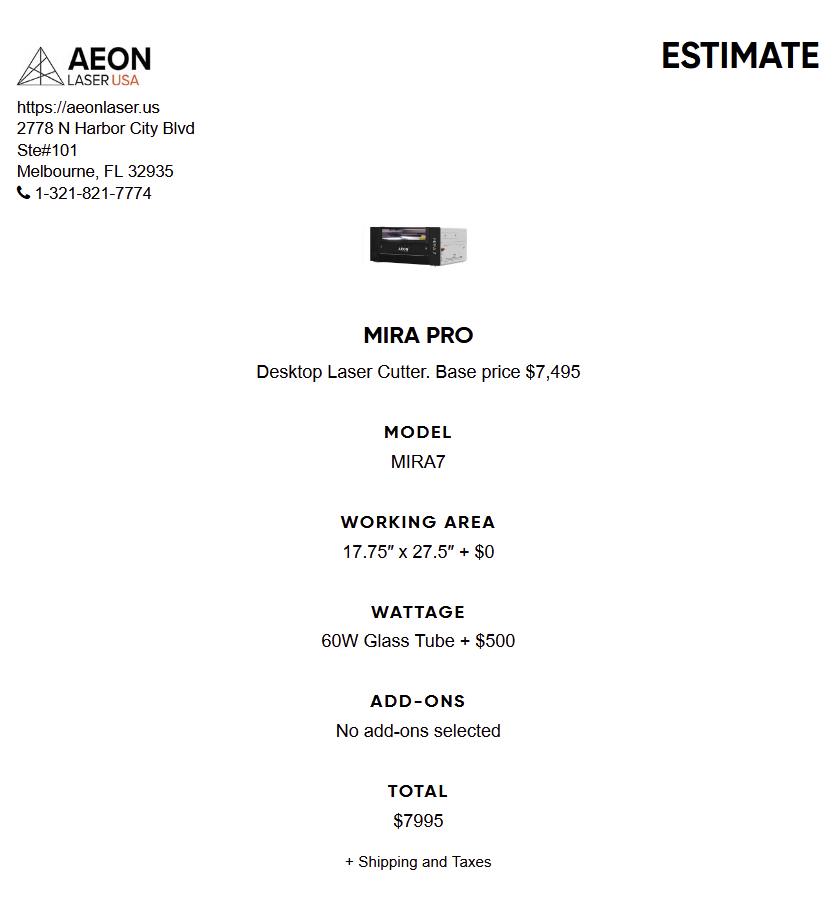

As configured this Mira 7 60w would cost you around $10,000 with shipping and taxes factored in. The US based distributor receives the lasers from the OEM, Un-crates, rewires, and tunes it up to make it better and suitable for the North American Market (Source Video) which is an added cost to the customer for no real added value since its mostly re-work and wasted time (Check out the current lead times). Per the source video, they can spend upwards 2 hours rewiring, 8 hours checking out and up to 6 hours aligning the tube for a total of up to 16hrs of labor costs which has to be absorbed somewhere which is in the price of the machine most likely.
Thunder Laser takes a different approach. Since they design and build their lasers in-house, Thunder Laser wires the 110v AC machines for the North American Market with excellent wiring harnesses and terminations, the proper gauge wire, etc... instead of the distributors having to spend all that overhead on workspace, employees, and time to re-do it. Thunder Laser can put that value back into the best quality components as well as things like dual-stage air assist and the other proprietary systems that set Thunder Laser apart from the rest. Additionally, we utilize proprietary circuit boards to automatically control peripheral devices like the exhaust fan and air pump as well as safety and machine interlocks, but use mostly off the shelf peripherals that are not rebranded and are able to be purchased easily through 3rd party channels.
This article is focused on build quality and functionality, not necessarily full capabilities etc. There are spec sheets and website images as well as videos to show what the machines can do, this is about what is behind the curtain that adds value to a machines longevity and build quality. It will cover things you may not know to look for or know why it is different or more important.
As you read through this article, look for the links to the Thunder Knowledge Base and compare it to what is available for all machines. Drawings, Tutorials, How-To's etc that can get you back running quickly. Open and available without having to make a phone call or submitting a ticket and waiting for a reply.

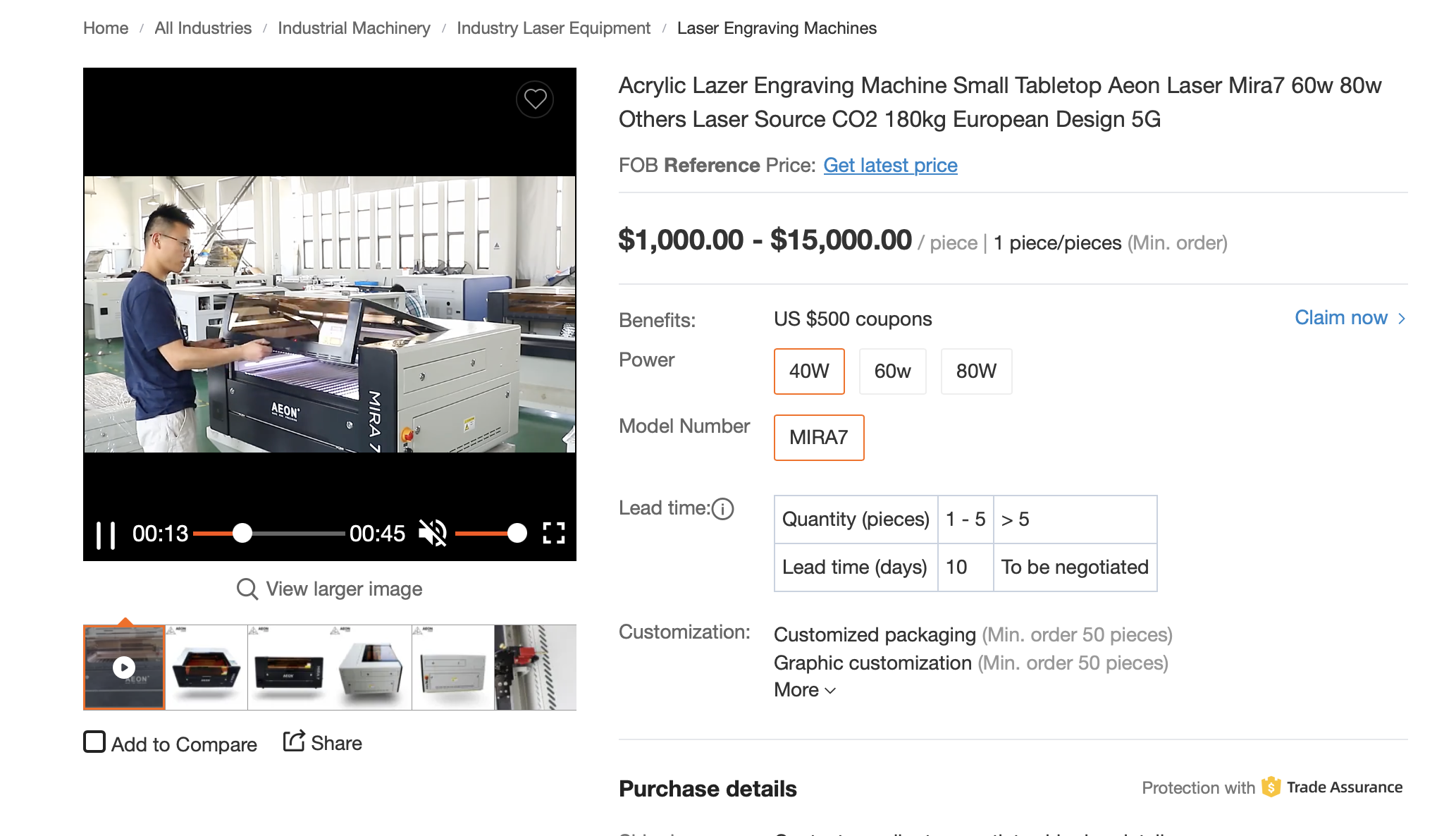

Seems these are made in a non branded form and Aeon brand, without the modifications done on Aeon Laser USA machines

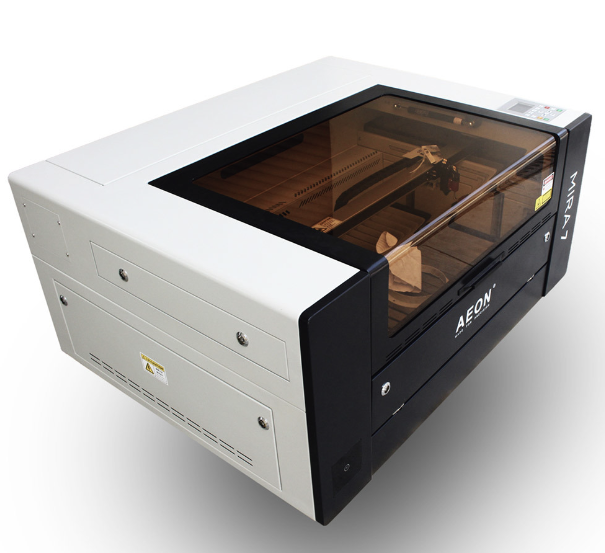

Mira 7 Front

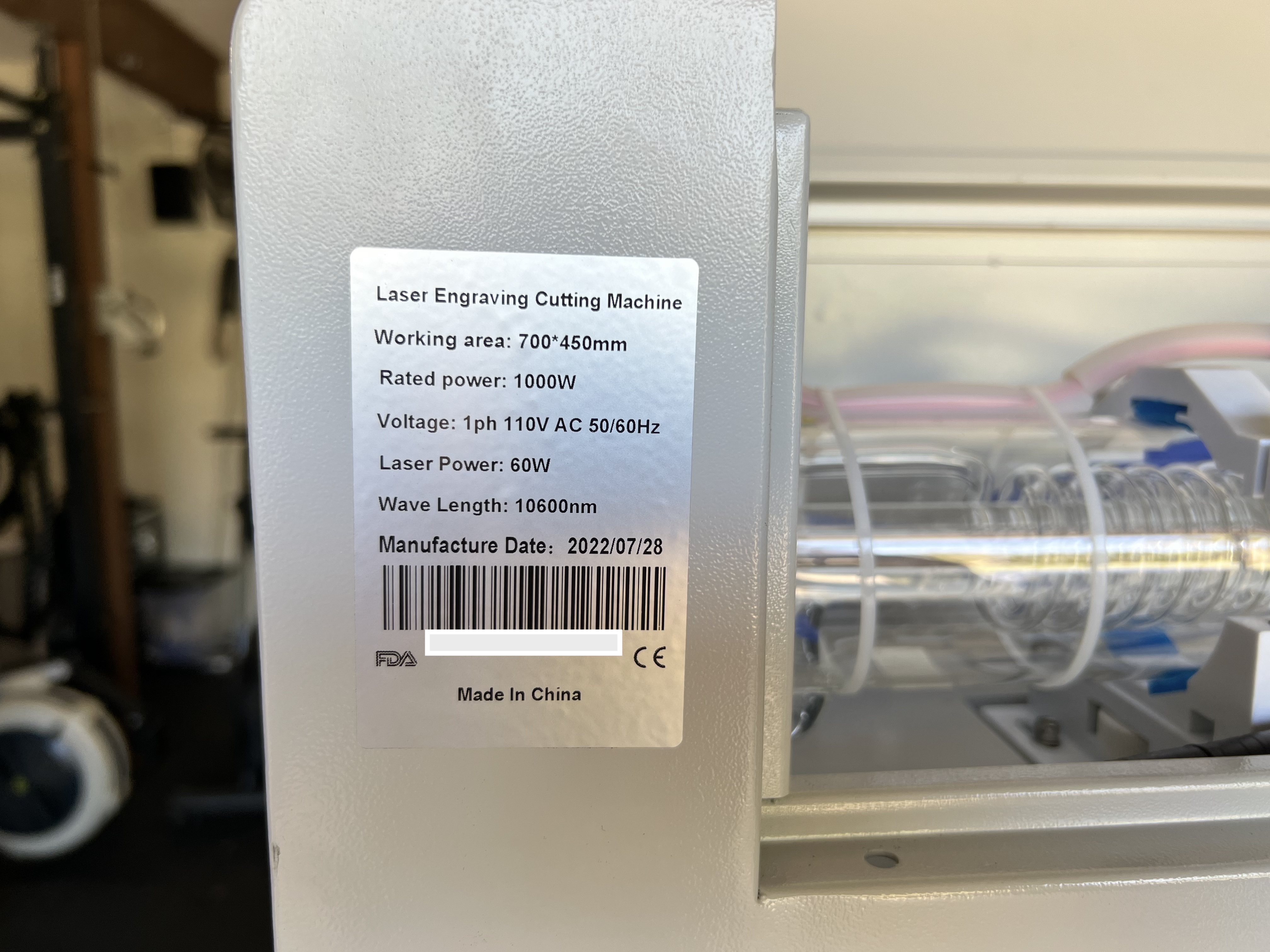

Mira 7 Manufacturers Label

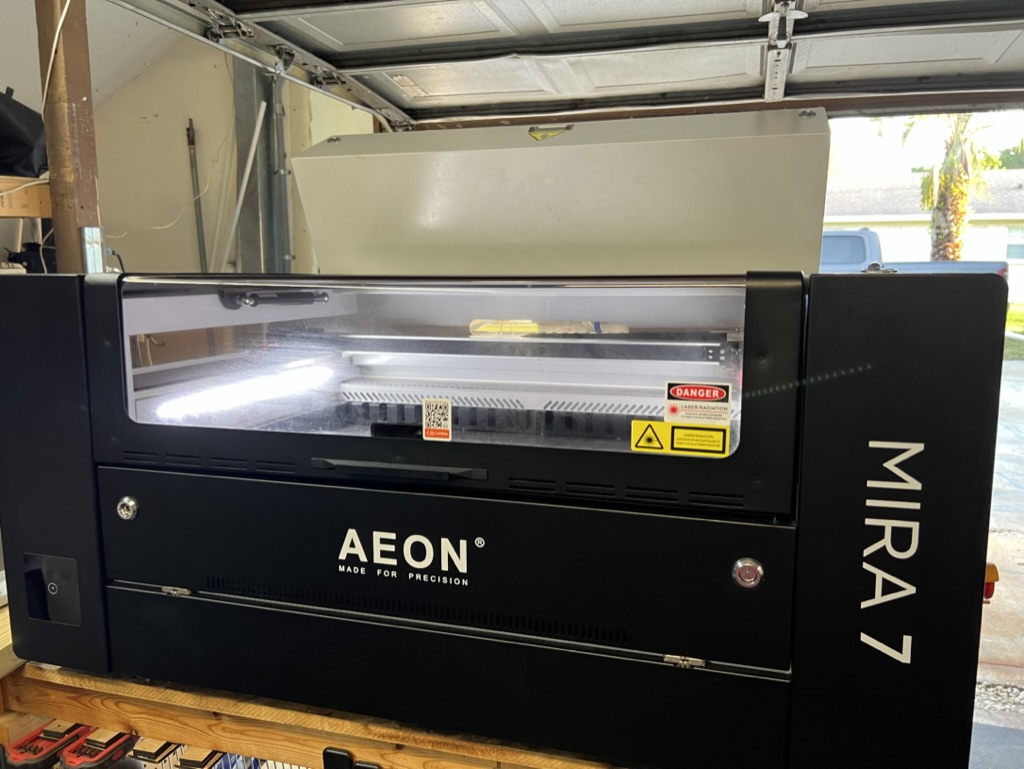

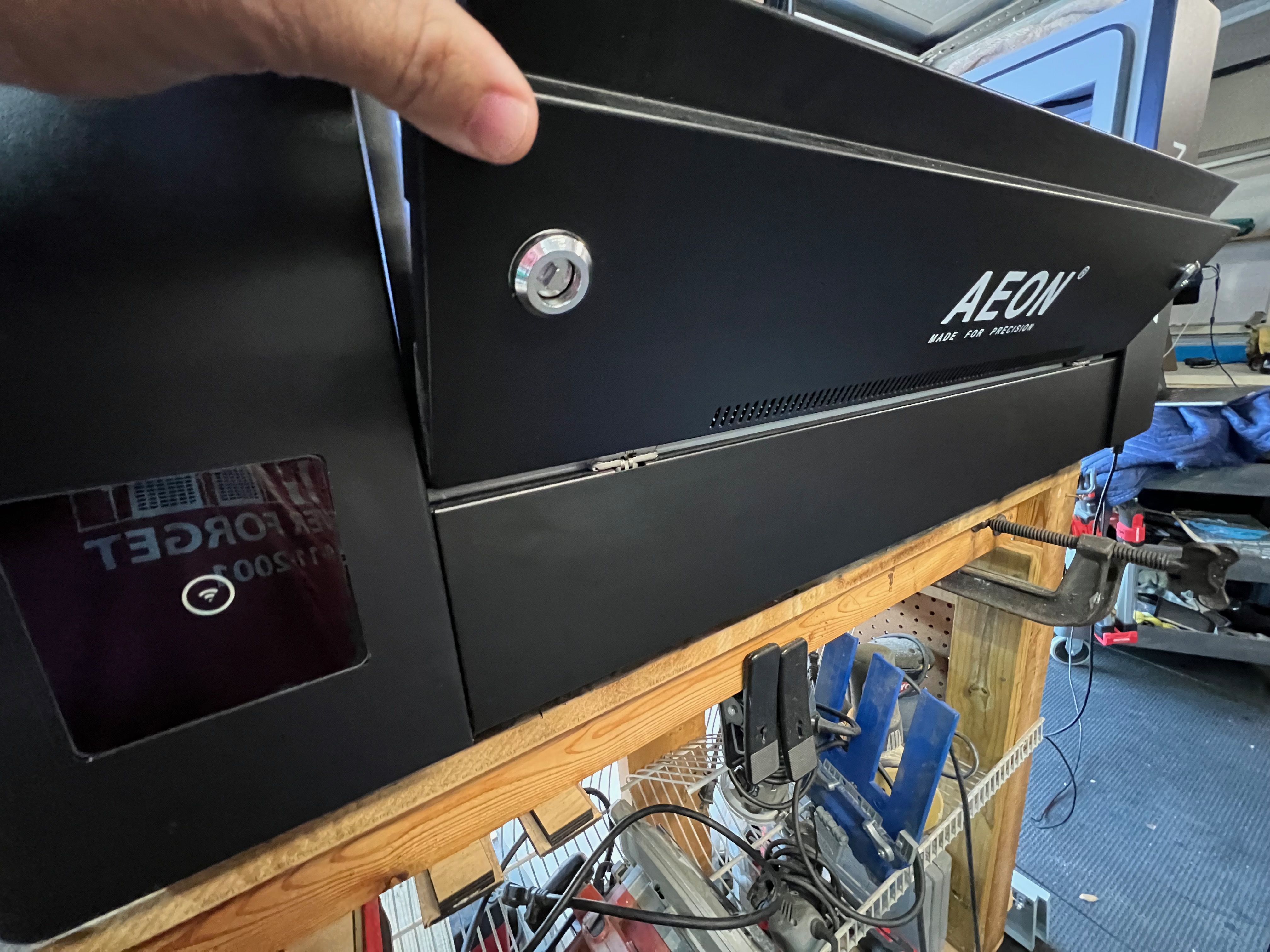

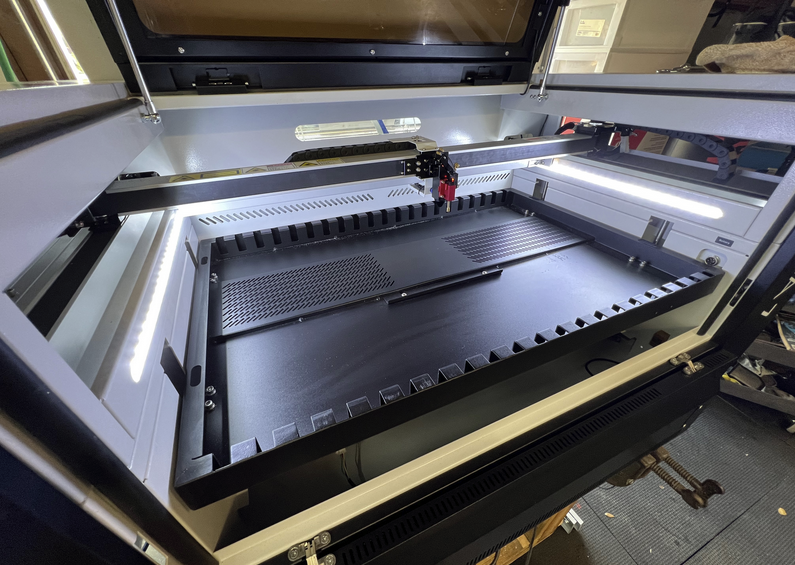

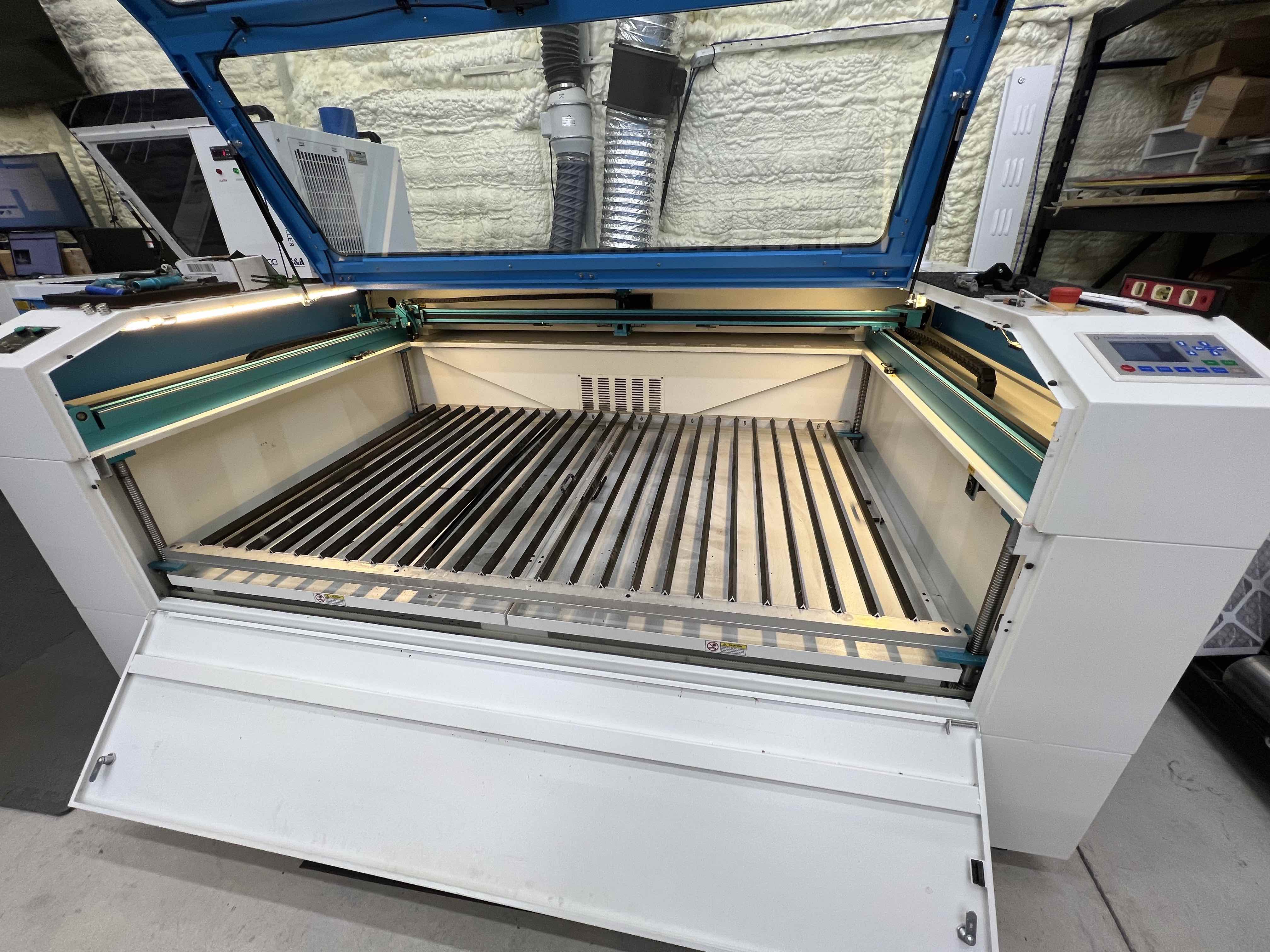

Front Hinged Pass through
One of a few things we do like, hinged pass through. That noted, NONE of their other doors are
hinged. They are pinned and locked.
Safety Considerations:
When you bring a laser machine into your space, you should consider the safety aspects of it.? | |

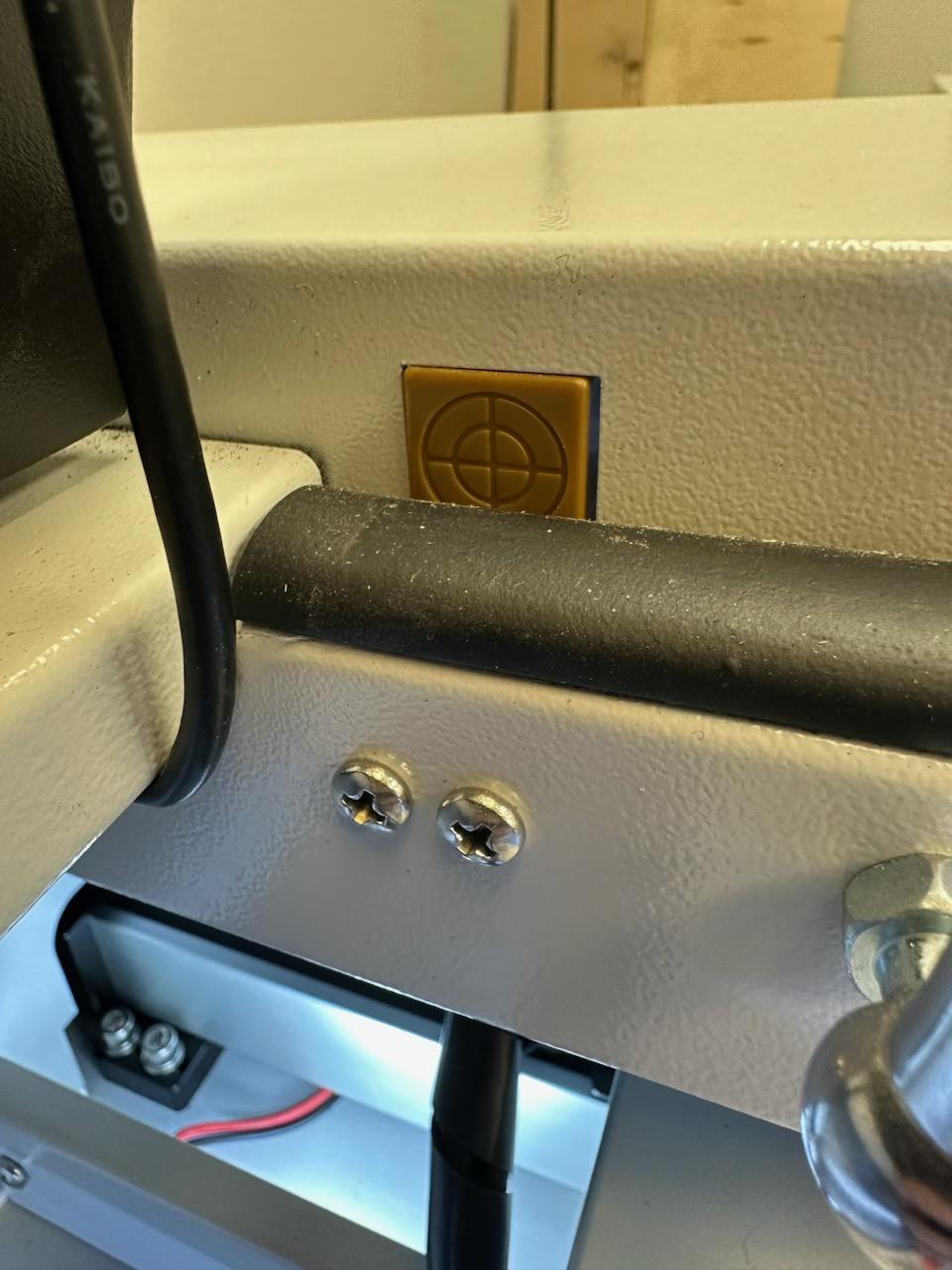

Aeon Mira 7 did not appear to have a heat sensor near the laser head | Thunder Nova and Odin Series utilize Heat Sensors to detect fires and shut down, alert the operator |

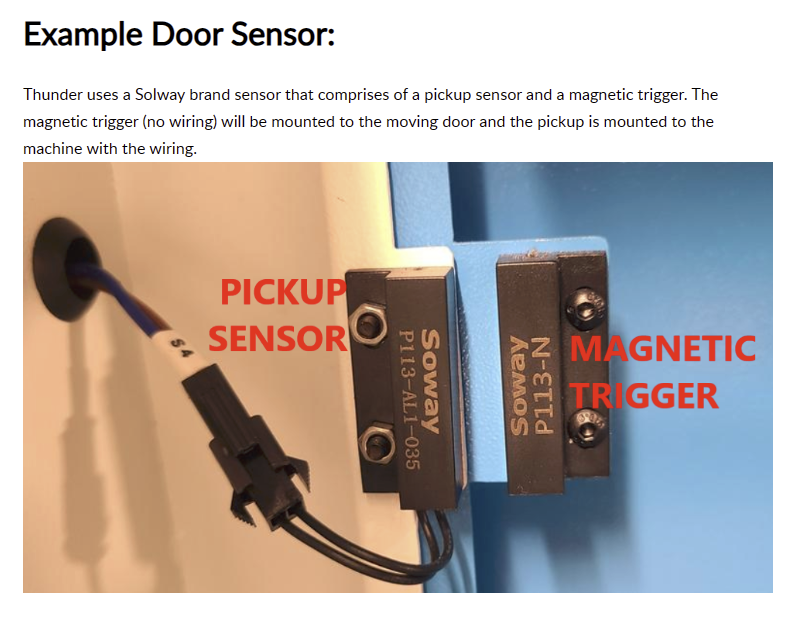

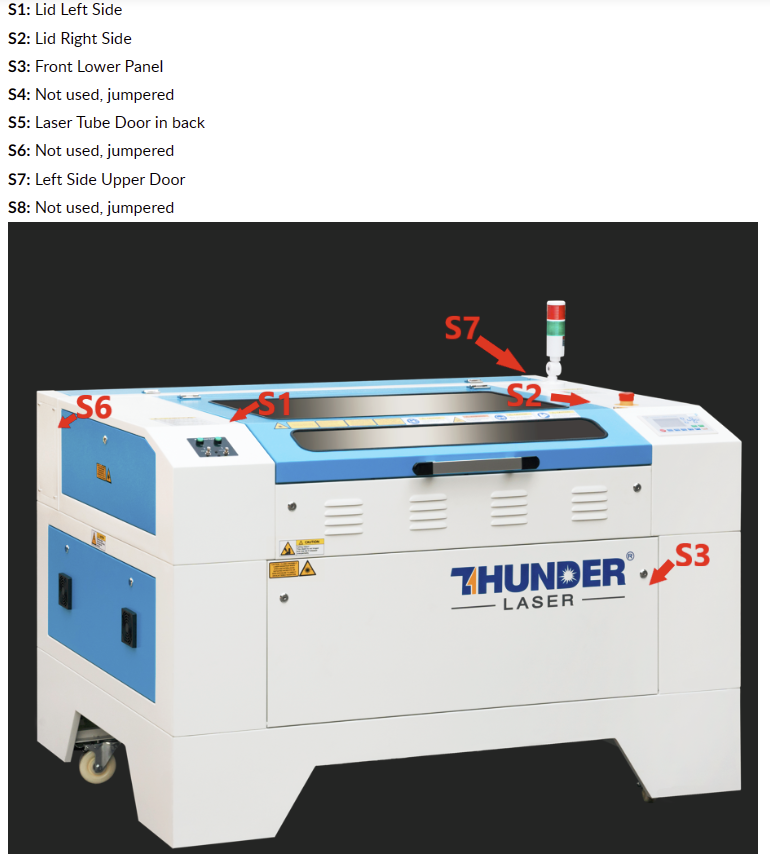

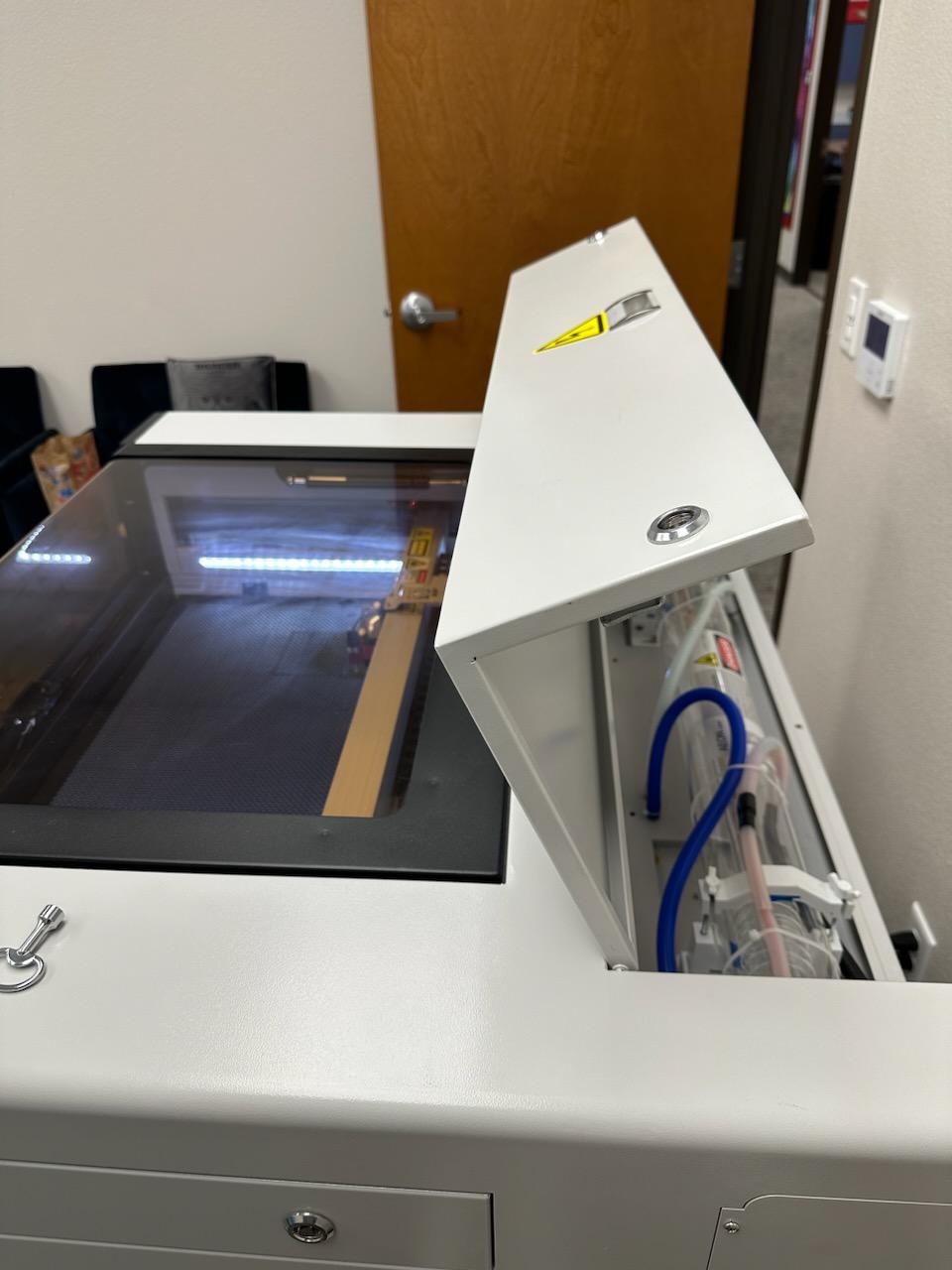

Thunder machines will stop the machine from firing if the tube door is opened under normal conditions. | |
The only interlock sensor we could find was for the Lid. Likely wired direct to DrProt on Ruida. You can run with the rear tube door open without even having to bypass interlocks.....just open the door. | Thunder Nova series utilizes multiple interlock switches on the main lid and single interlocks on the other doors that are not bolted shut from the inside. The Odin use double interlock sensors on the doors that allow access to the laser beam. More on the Thunder System here. |

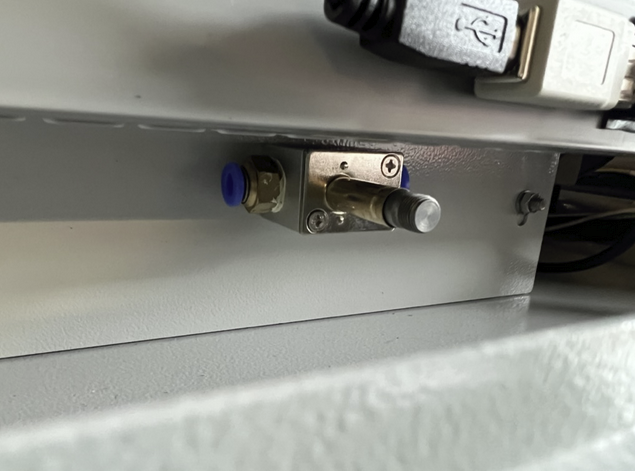

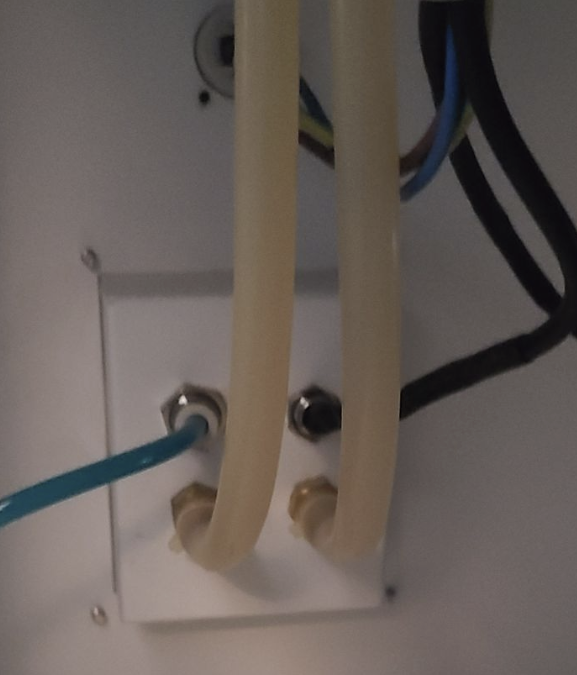

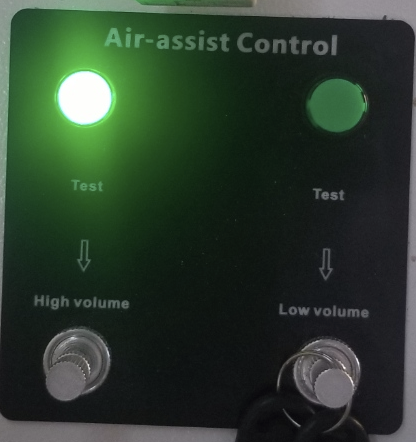

Air Assist Adjustments

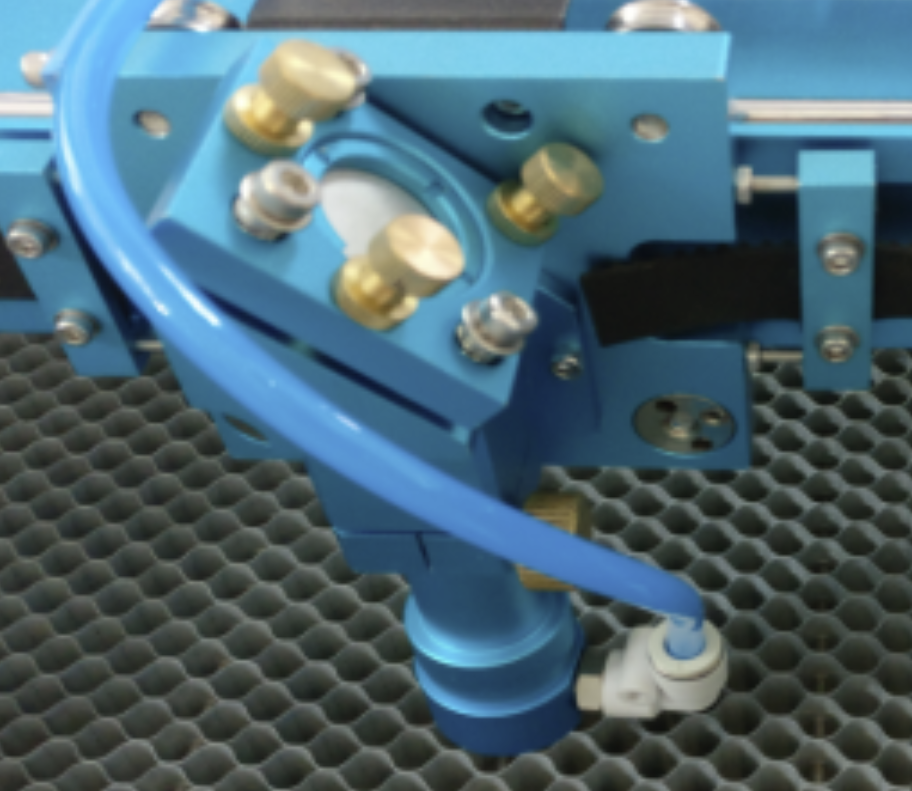

While a new valve and solenoid was installed, this was left behind. Not very clean or tidy. Also in a very odd location to begin with.
Motion Control

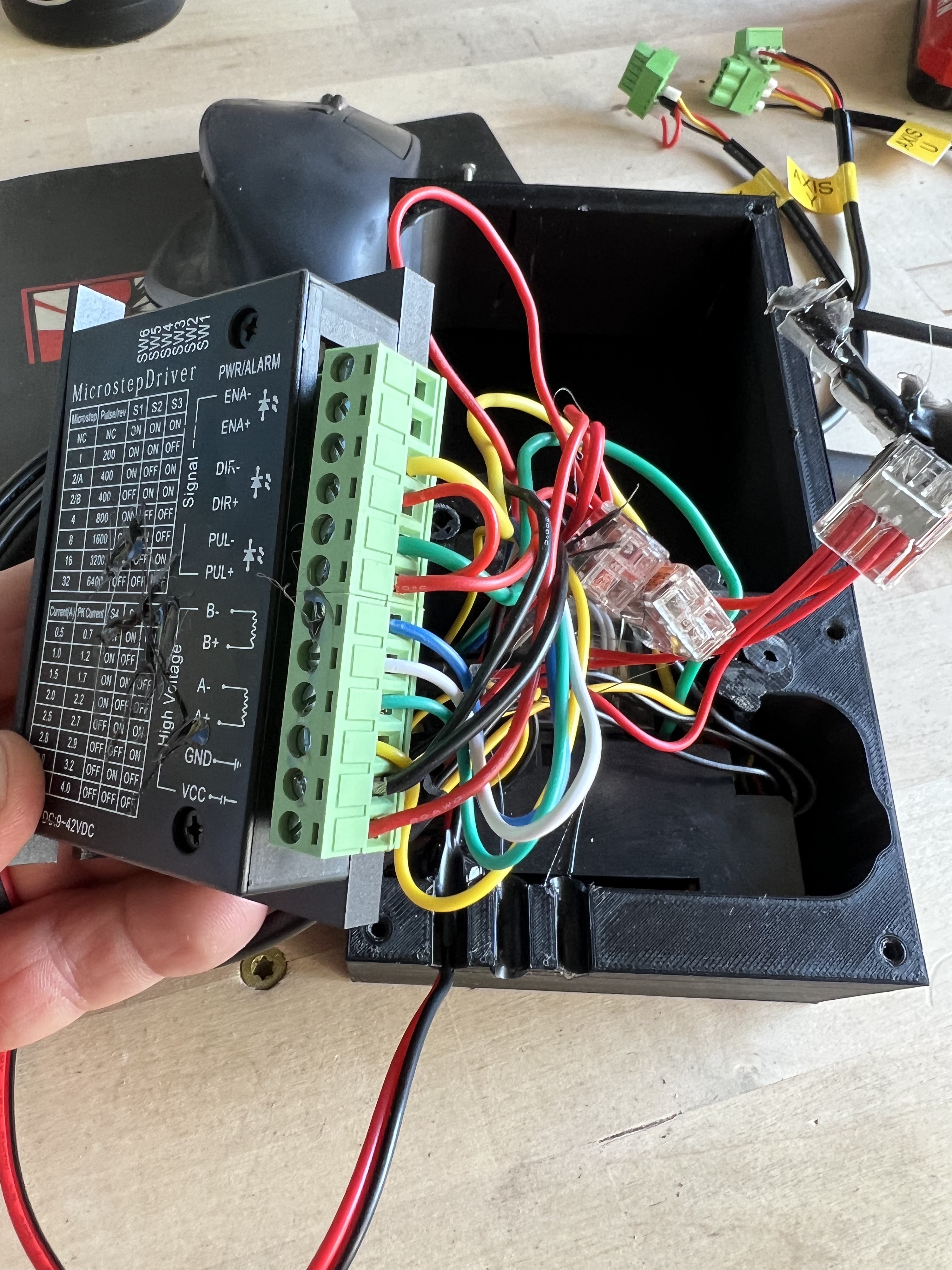

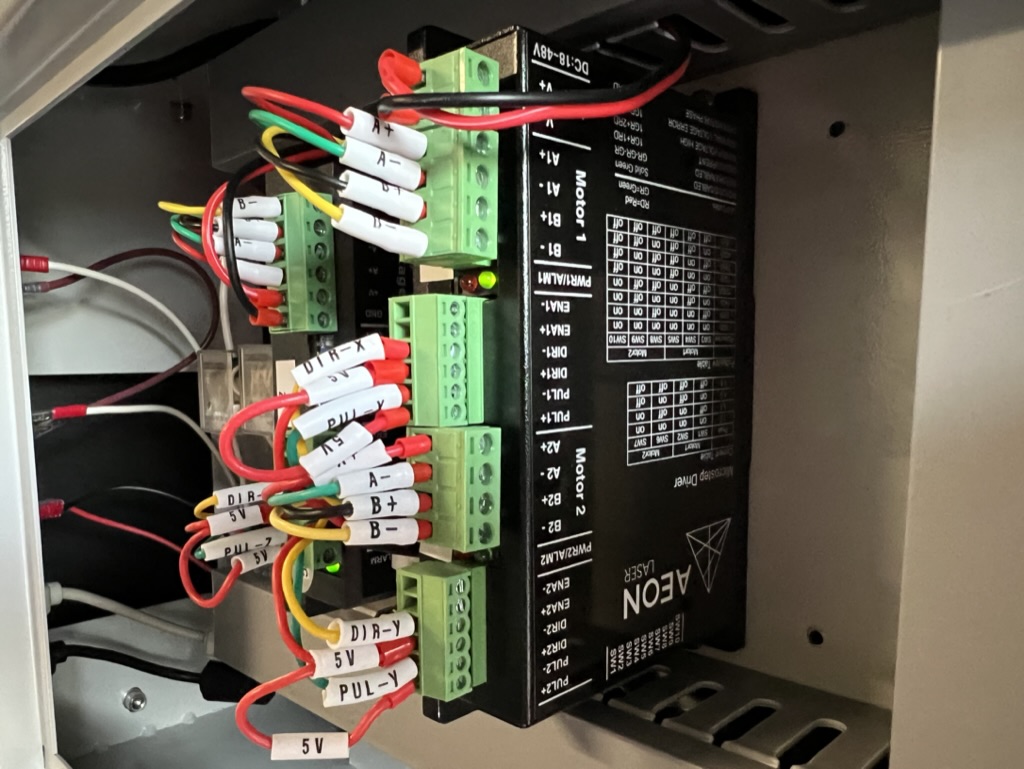

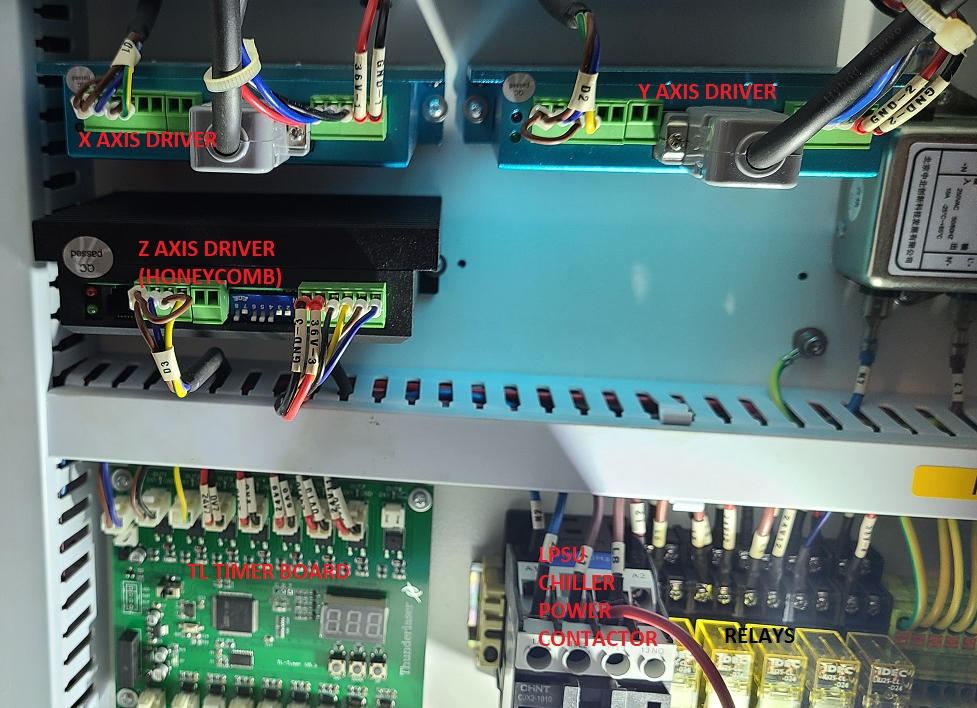

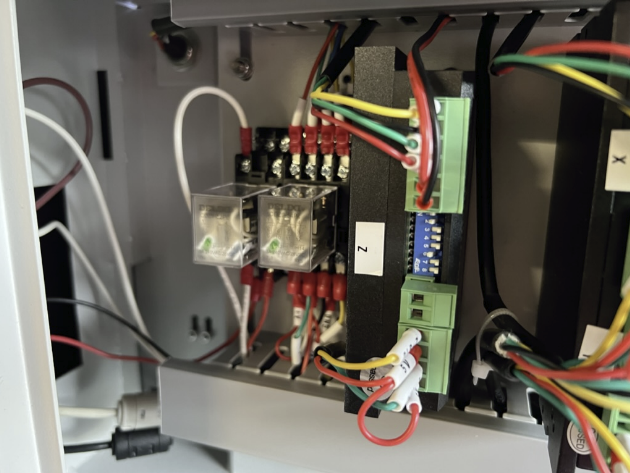

X, Y Driver
~$40 dual driver for x and y
No S/N or Model available, private labeled as AEON but available without
the markings. If one driver channel fails, the entire unit needs to be
replaced. Looks very similar to this other Rebranded Driver | As compared to the Leadshine drivers Thunder uses for the closed-loop hybrid motors. |

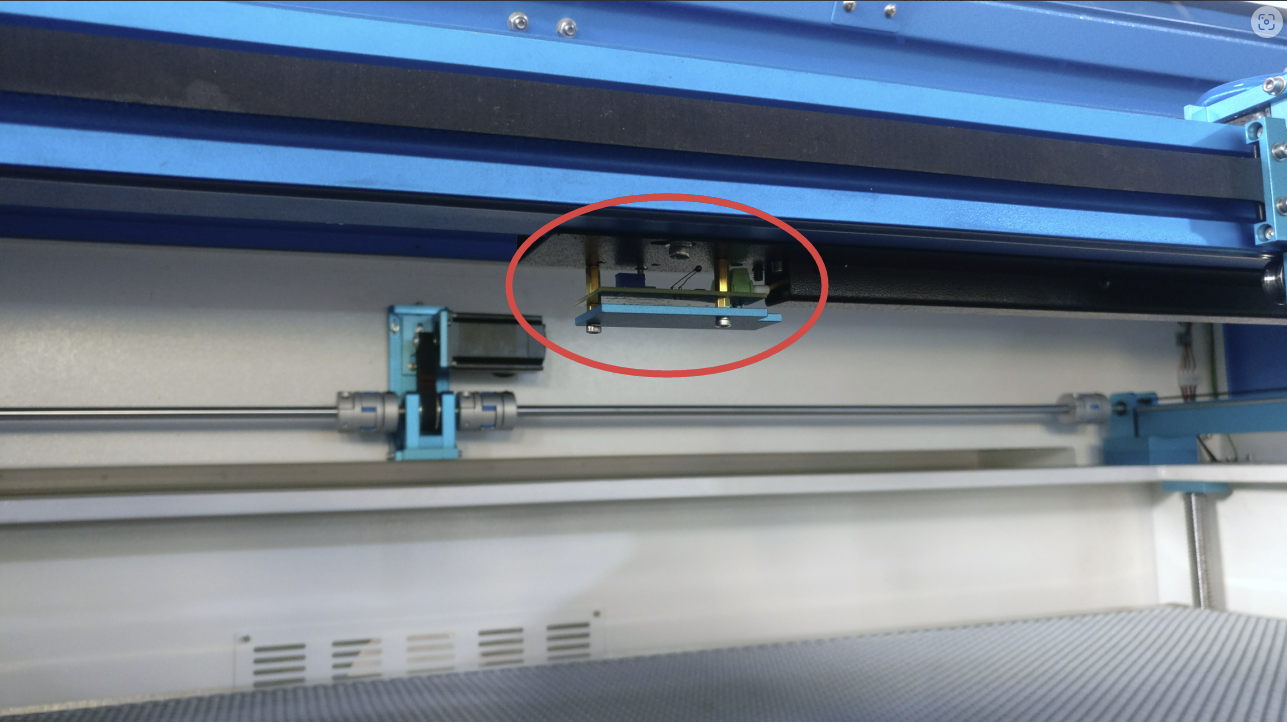

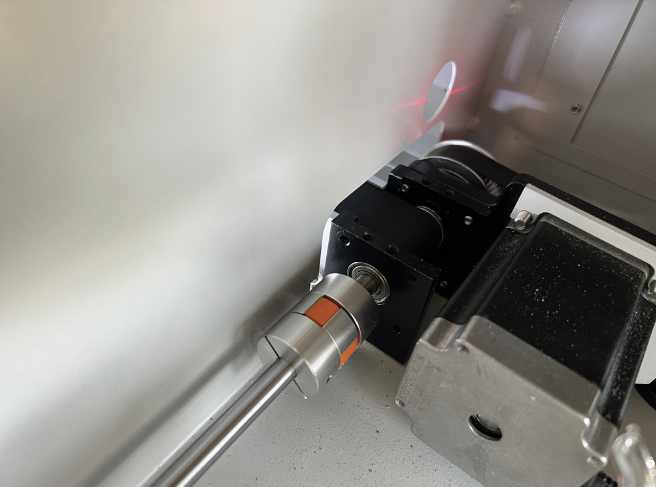

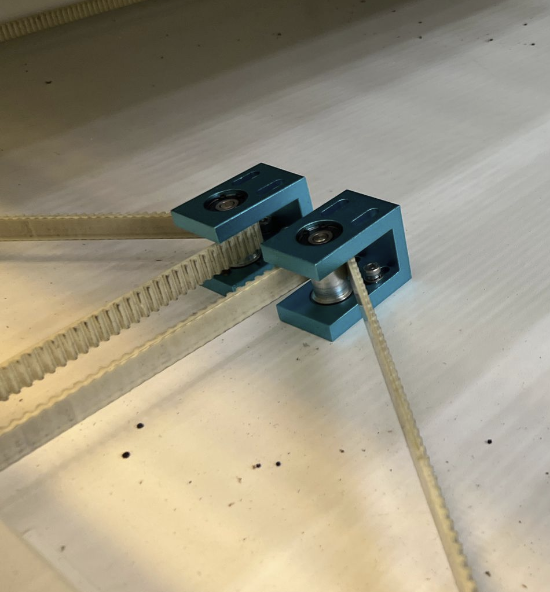

Motor/Belts In laser bay

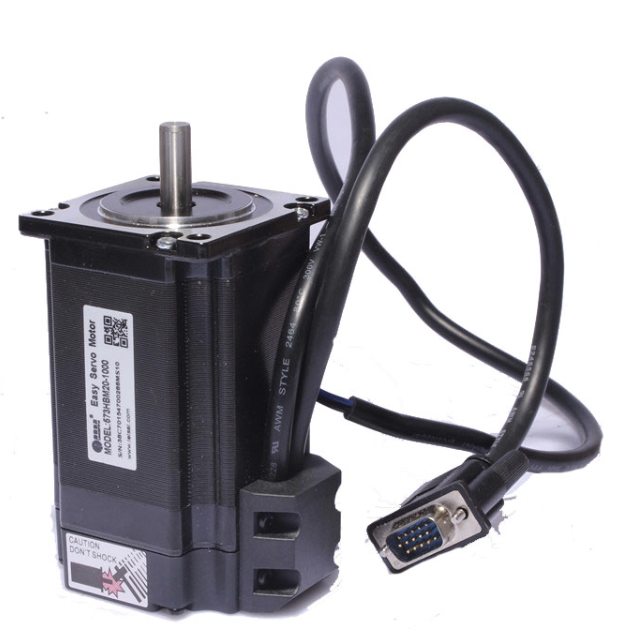

Open Loop 2 Phase Steppers vs Closed Loop Hybrid Stepper Motor
| Steppers can lose steps and without having a feedback loop, the driver will not know and just keep running. This can lead to a crash of the laser head and damage to the machine. |

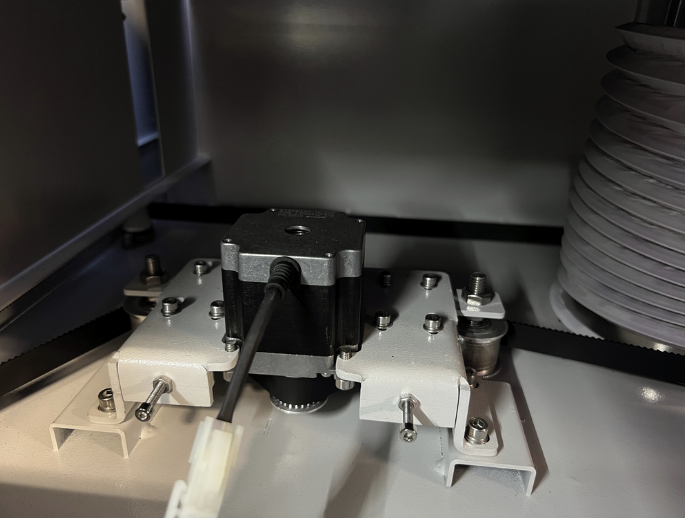

Z Motor Mounting and Adjustment
The mounting is in a decent location, no preferred. It is nice to see
that there are jack bolts to adjust the tension of the belt. Motor is
small so Z moves while running may run into some loss of position since
it is not closed loop. | Thunder does not use a jack bolt on the Nova series but instead it has slotted brackets for tension adjustment. The ODIN series does use a jack bolt setup. |
Electrical

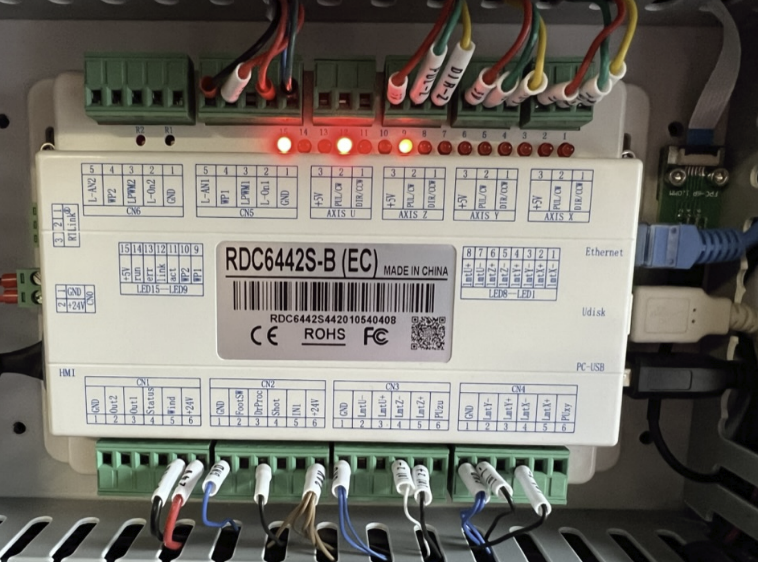

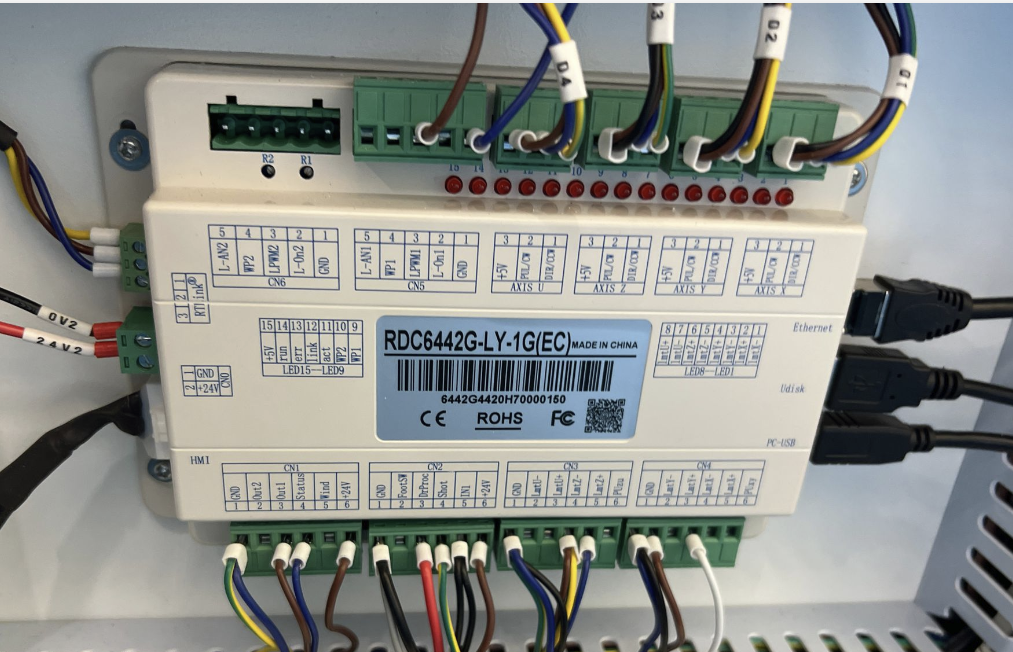

DSP Controller

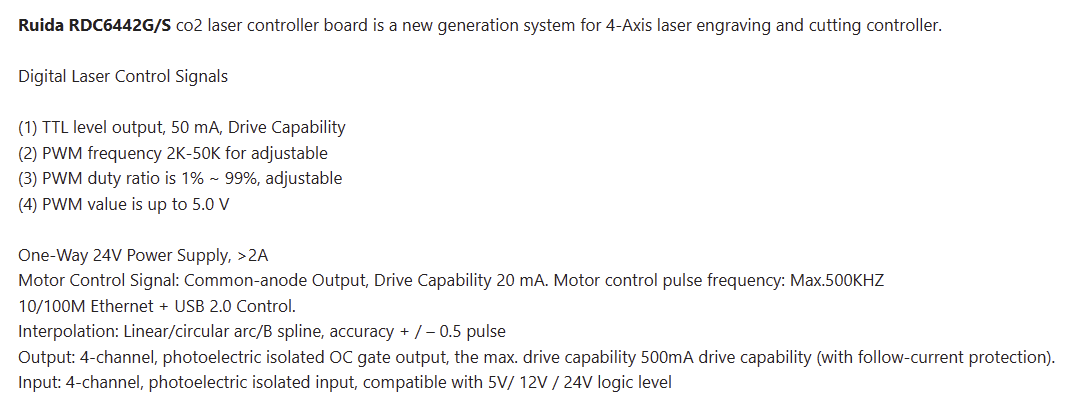

Uses Y Axis to control Rotary, requires a relay. U axis is available to use and is much simpler to implement. The rotary expansion box for the 6 cup turner apparently uses the U-axis with a supplied harness and box to install, more on that down below.
Note that there is not a wire on LPWM1 which is used to adjust power output to the Laser Tube Power Supply input signal, they decided to use L-AN1 which is older Analog signal. 256mb version | Thunder laser now offers a Ruida controller with 1gig of memory for larger file storage. |

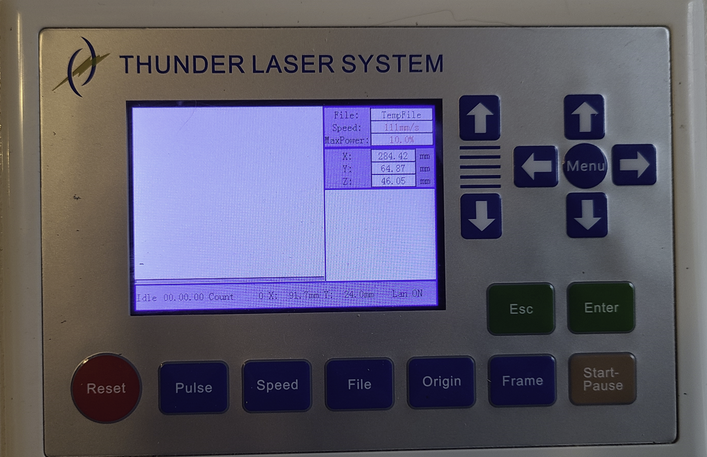

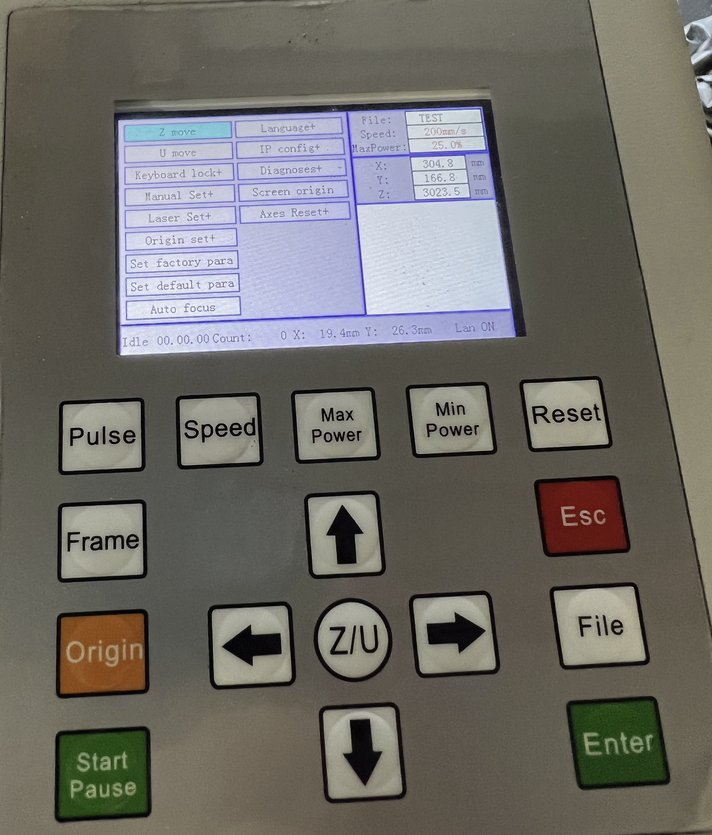

No z move buttons, Only available through the menu. Want to manually move the z.. you have to get into the menu to do so. | Thunder uses a HMI with Z Control and a custom skin. |

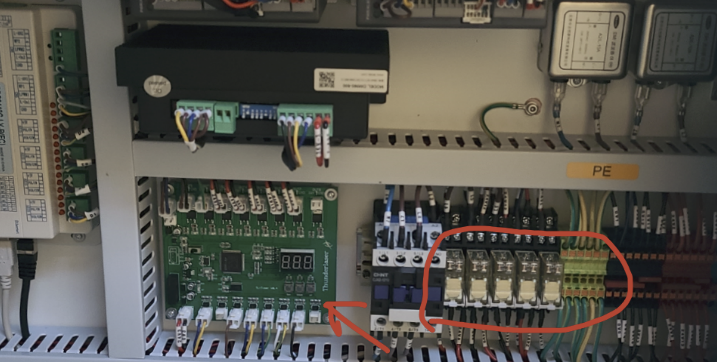

Fan and Rotary Relay
Exhaust fan activated by button only. Not on job start. Cannot take advantage of Start and End Delay from Lightburn for the exhaust fan? | As compared the the neat relay bank and TL Timer in the Thunder |

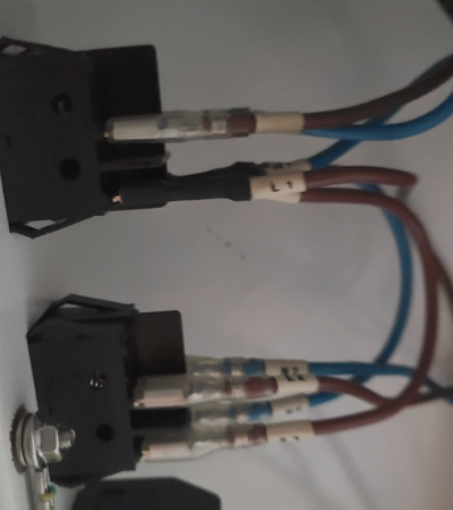

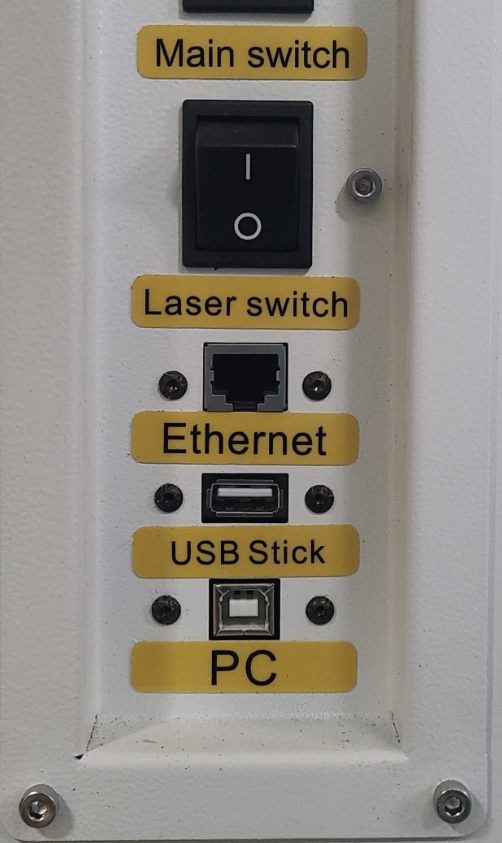

E-Stop, Main Power, & Fan Switches

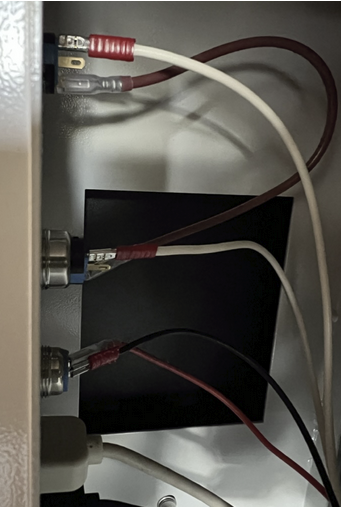

Notice the exposed terminals and non insulated connectors | As compared to the factory crimped insulated connectors in Thunder machines |

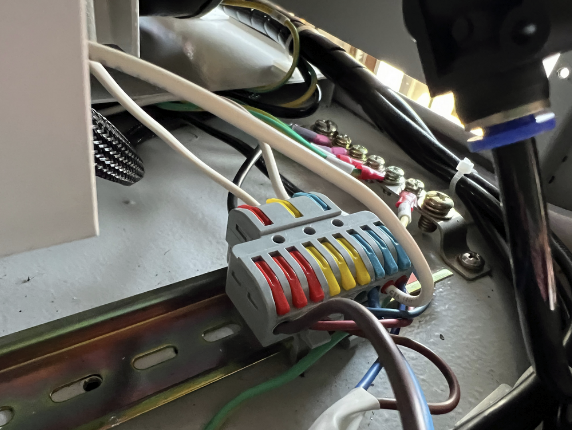

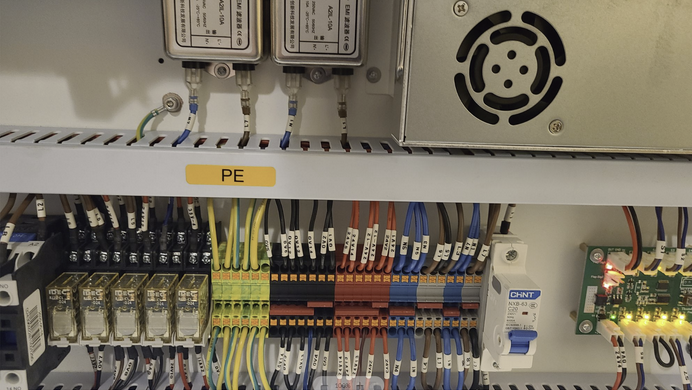

Main AC Power Distribution & Ground
Not very clean or tidy. Unlabeled wires. Main Power does not appear to have AC filters | As compared to Thunder's Filtered main power distribution (2 Power Filters on the AC lines) |

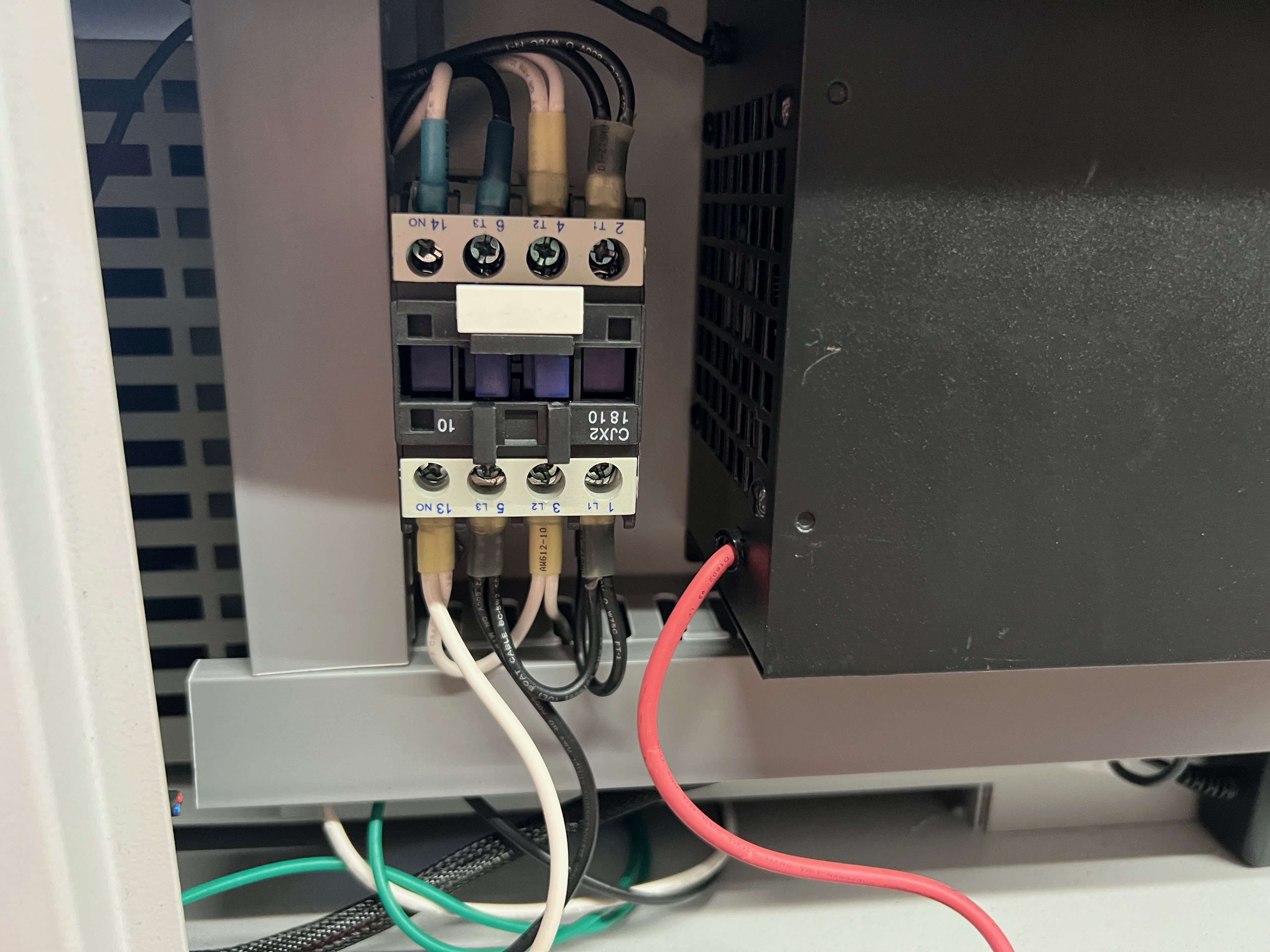

Main Power Contactor:

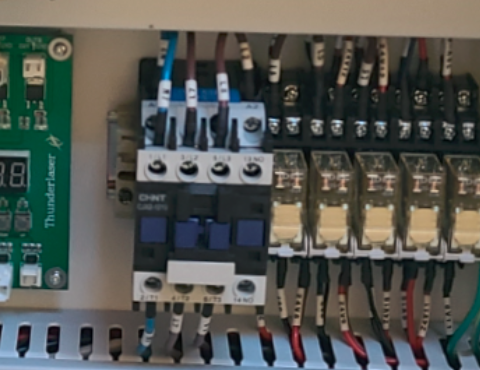

Likely replaced once in USA with a 120v Coil Contactor. Wiring is far from neat and tidy. | As compared to Thunder's
Contactor that only controls the laser power supply and chiller to
isolate noise, leakage, and draw from high energy components from the
rest of the machine. |

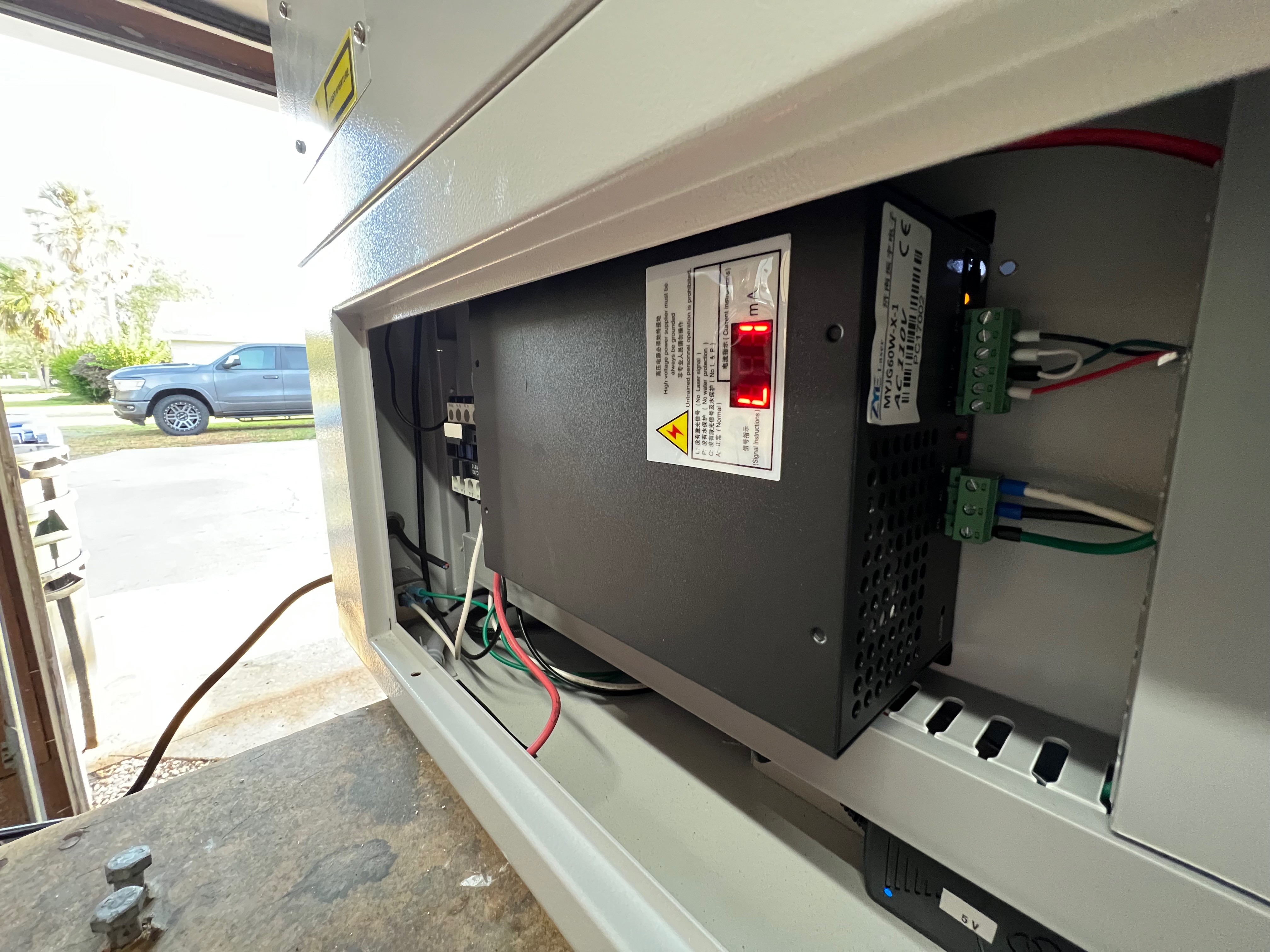

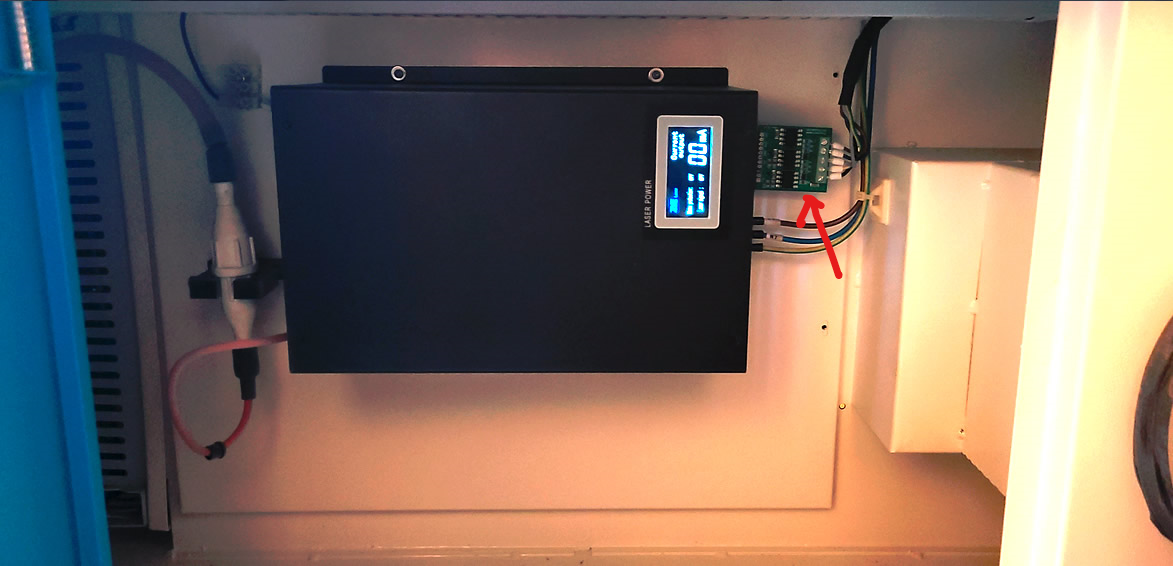

LPSU
Notice there is no opto-isolation on I/O | Thunder optically isolates the I/O on the LPSU to prevent high voltage leakage back to the DSP | Ruida does
provide Opto Isolation for the 4 discrete inputs and 4 discrete
outputs, does not appear to have OPTO isolation built in for the 2 Laser
Tube outputs. |

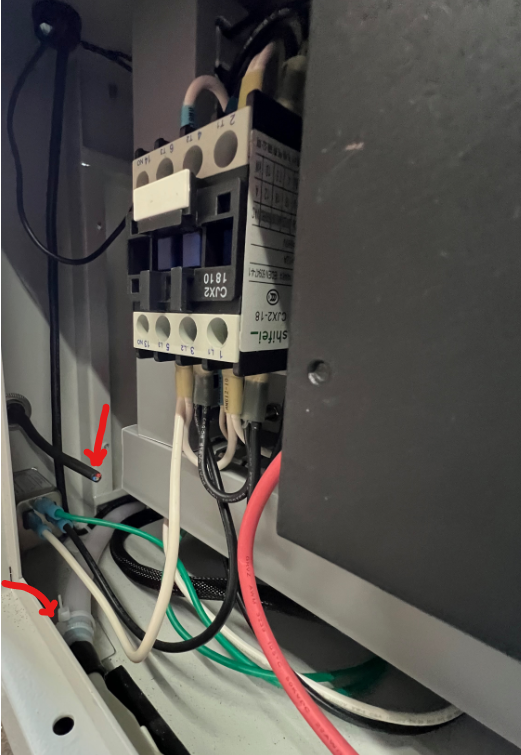

Cut and left alarm wire, new plug 110v to contactor
Possible external chiller alarm port, cut and left behind. HV tube wire
passing right under 110v supply. While it doesn't hurt anything, it is a
detriment to quality and cleanliness. | Thunder Supplies and 5000\5200 Active Chiller with all Nova 24 and larger machines with an alarm interconnect cable that is factory installed and is wired to the Ruida Constroller |
5v converter For Red Dot Pointer

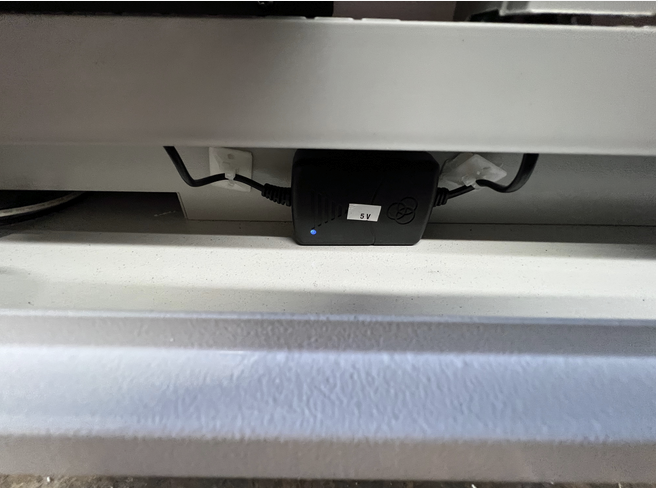

Separate AC to DC converter for the Red Dot Pointer is haphazardly placed in the machine. Not very neat or tidy.
Pin 9 on the TL timer provides the 5V for the Red Dot Pointer with a spare channel on Pin 10 |

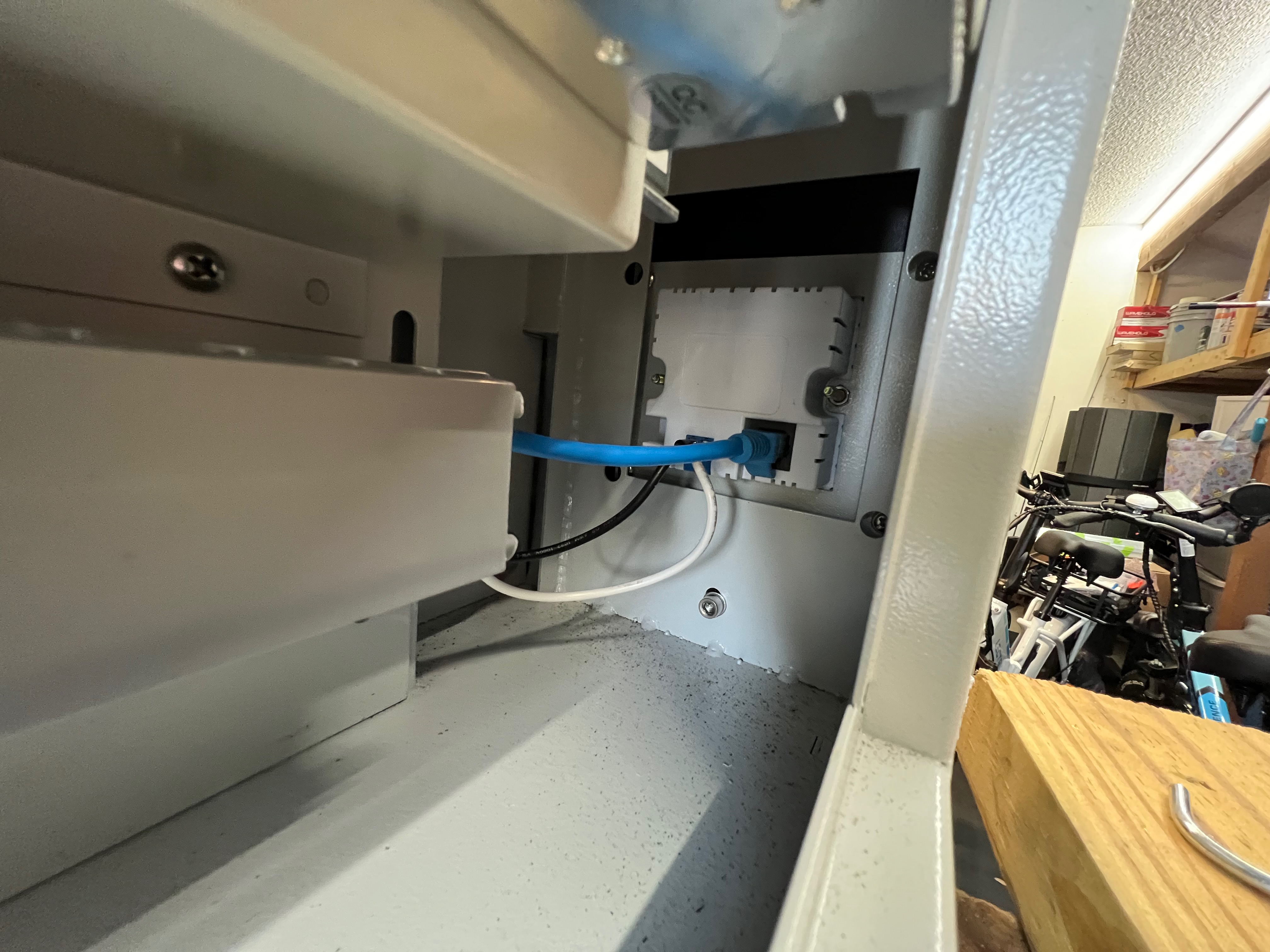

WiFi Module
Wifi has been shown to be a poor method of transferring the files from a computer to the Ruida Controller. The communication protocol used is UDP which limits error checking. File transfer errors are widely known. Since the machine has a WIFI module, does it need to have a FCC certification? https://www.fcc.gov/oet/ea/rfdevice. No information could be found on the wireless device or a statement of conformity on the machine. The statement may be present, but could not be located. | Thunder ships machines with Ethernet and USB cable connections only. Thunder does however have information on the knowlegebase about how to configure for WIFI or the Lightburn Bridge. |
Exhaust and Air Pump Compartment

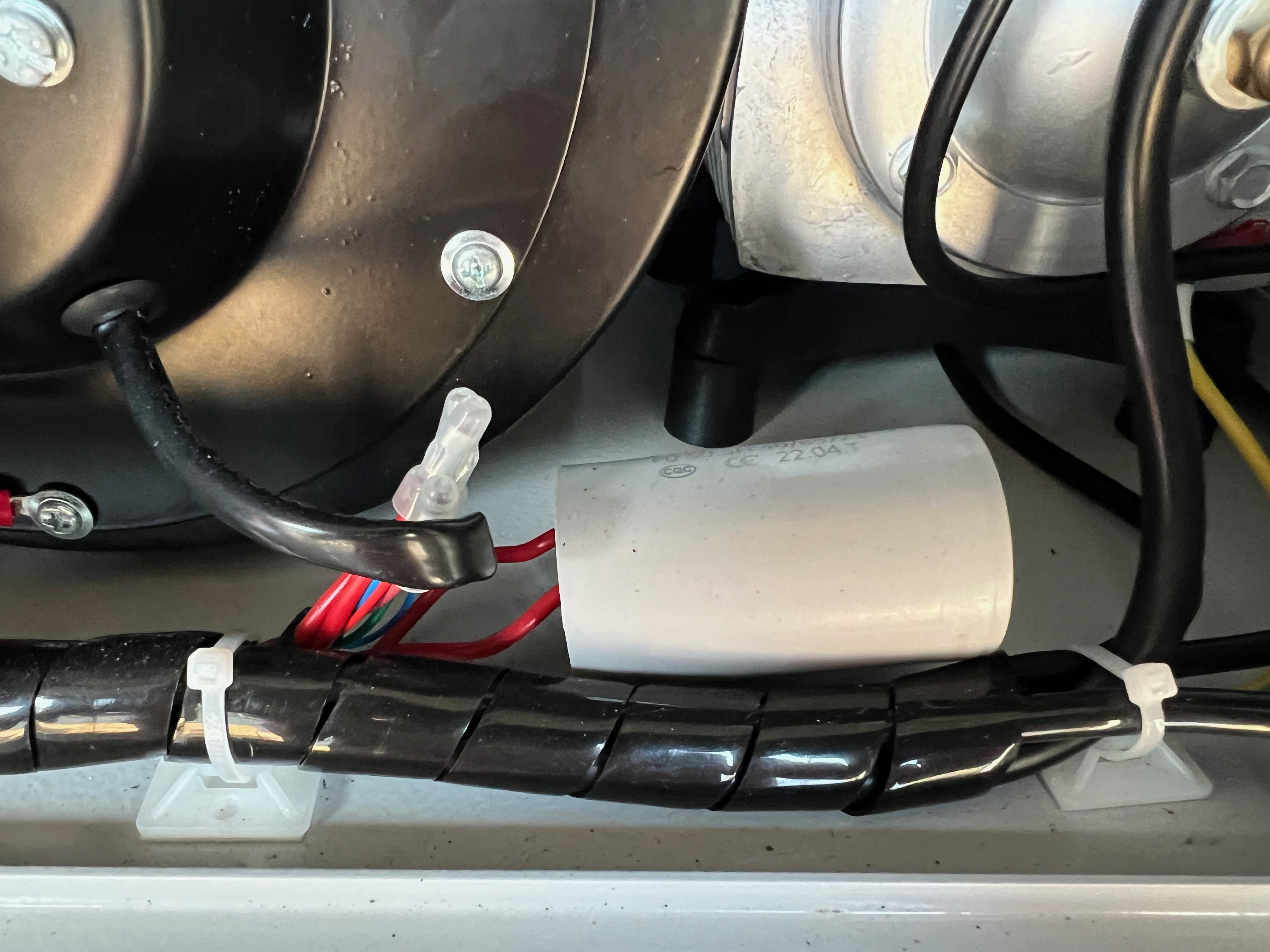

10lbs of potatoes in a 5lb sack comes to mind. Heat soak, noise, vibration and cramped location to work on. Why the small square inlet to the large duct? | Air flow across hot fan and pump to the chiller. Tight area to work in. | Notice the Soft Start Cap which is common to 120v motors but is also another failure point |

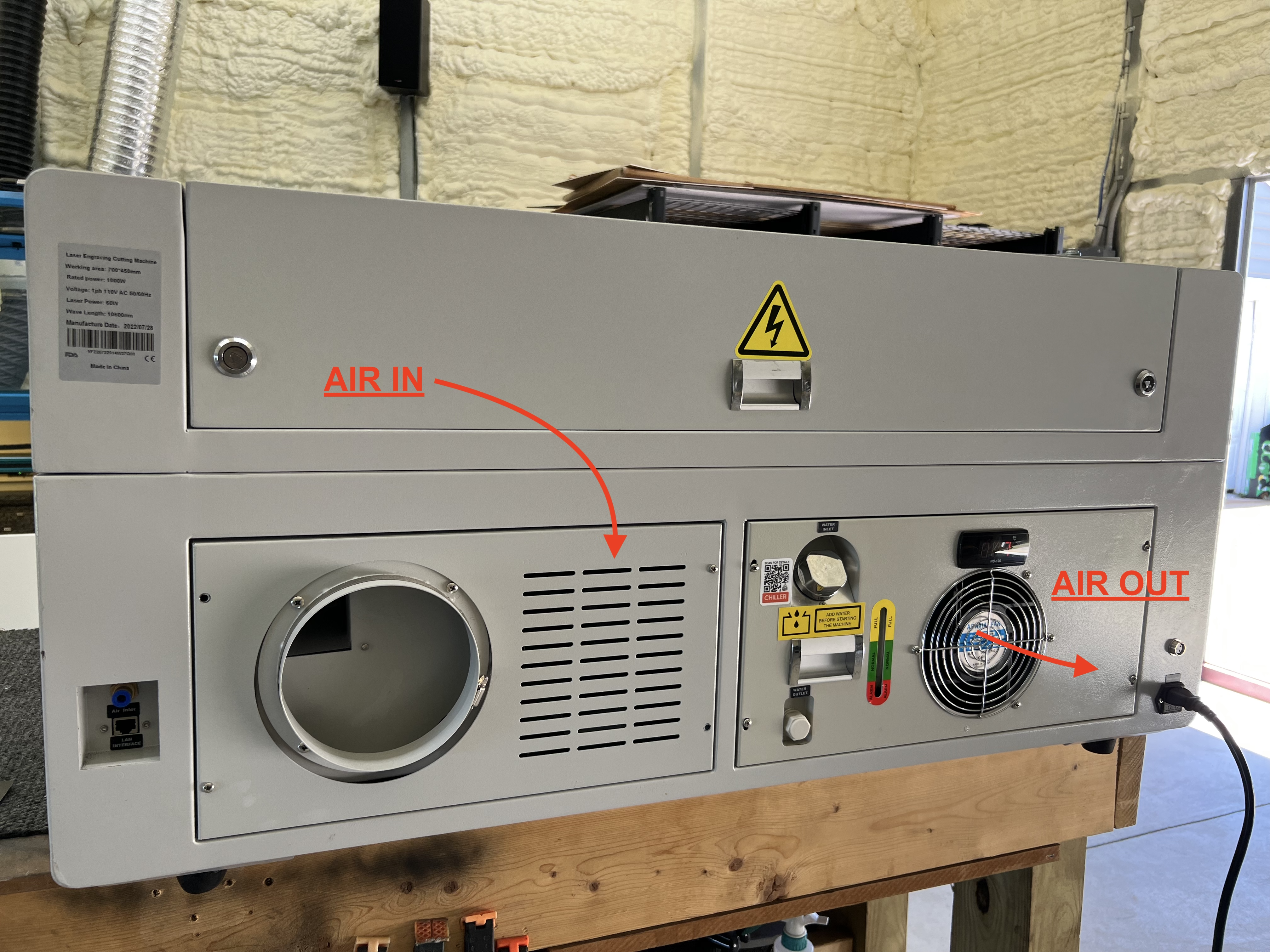

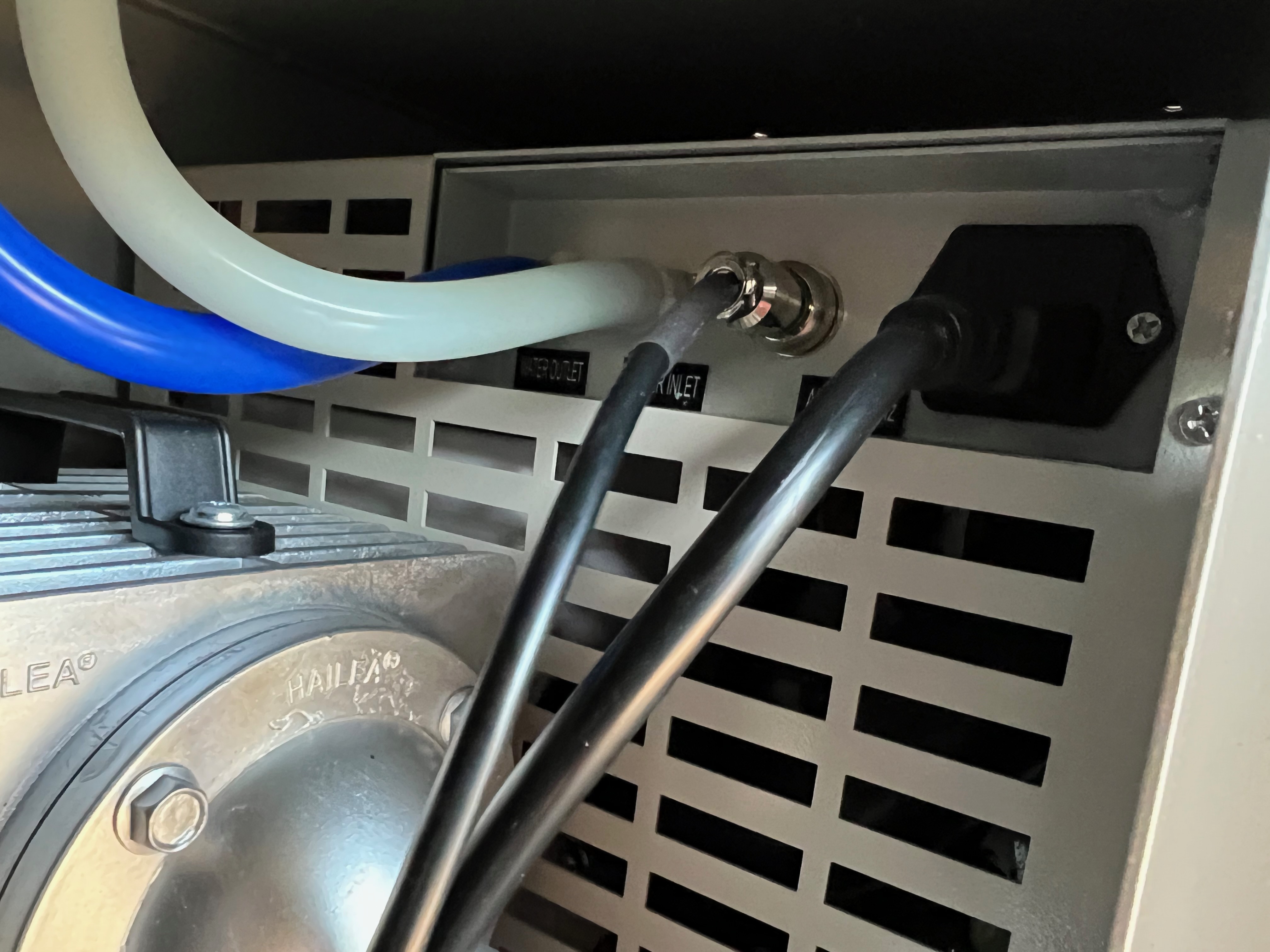

Integrated Passive Chiller
Chiller in/out passing right over the HOT air pump, heated air is being
pulled into the heat exchange, likely impacting tube efficiency. I don't

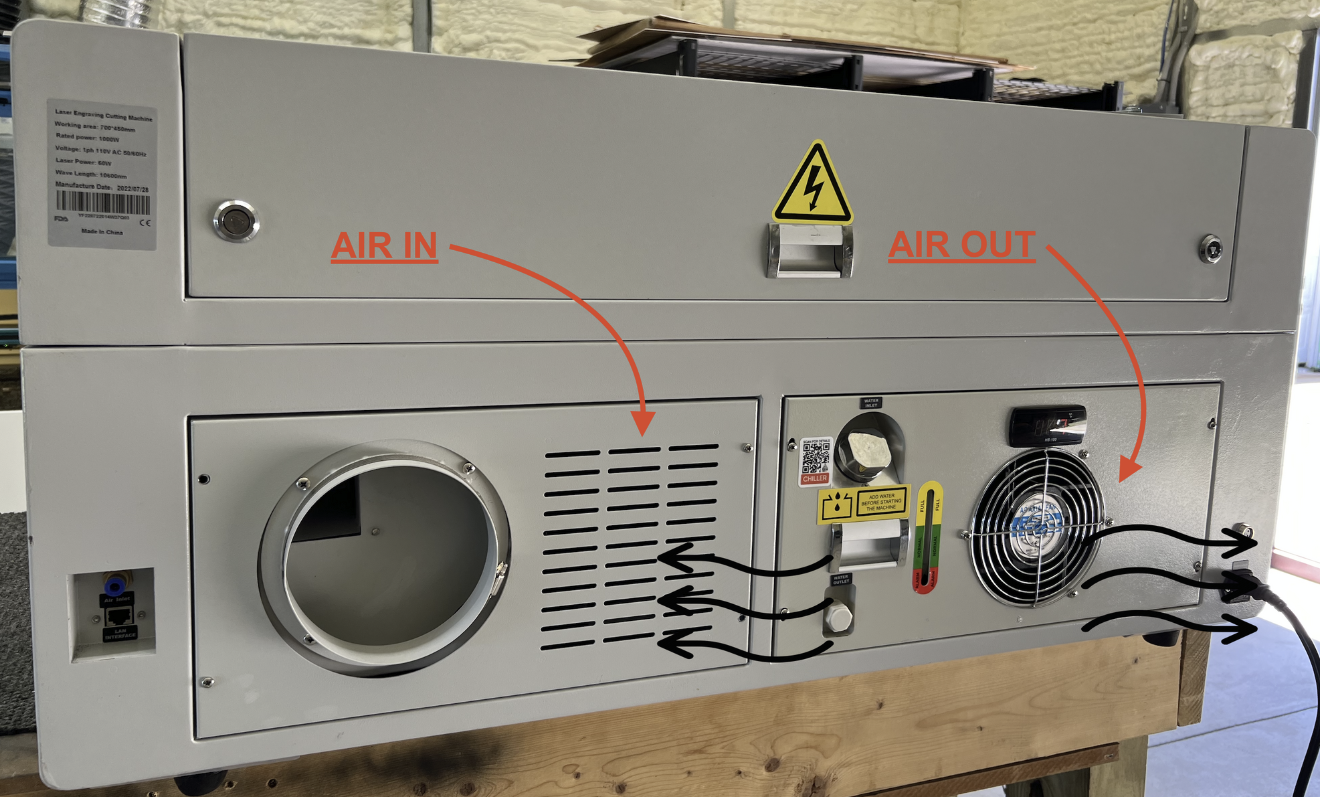

see how a constant coolant temp could be maintained. | Diagram showing the cooling air flow |
Optics & Tube Info

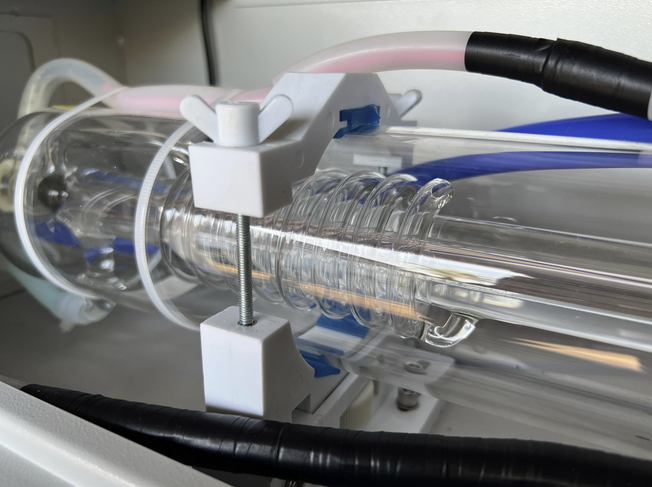

Tube Mounts
Note Plastic Tube mounts | Thunder provides a robust set of machined Aluminum adjustable mounts |

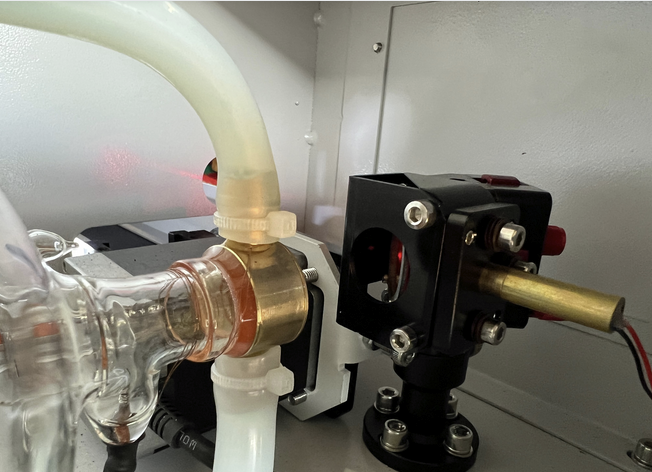

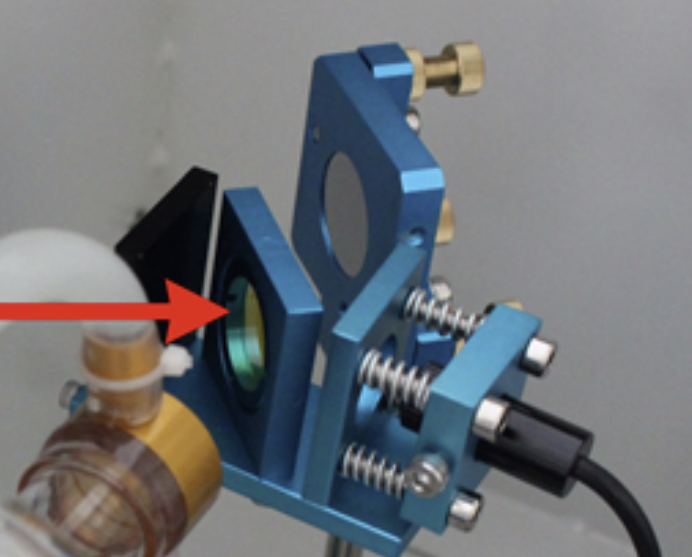

Output Coupler & Beam Combiner/Mirror 1
Bullet style laser beam source. Functional yes, classy no. | Thunder uses a purpose built Red Dot Pointer with the ability to tune the dot. |

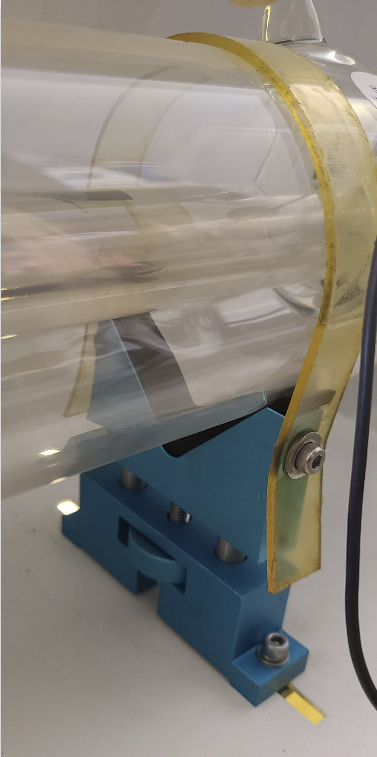

Tube

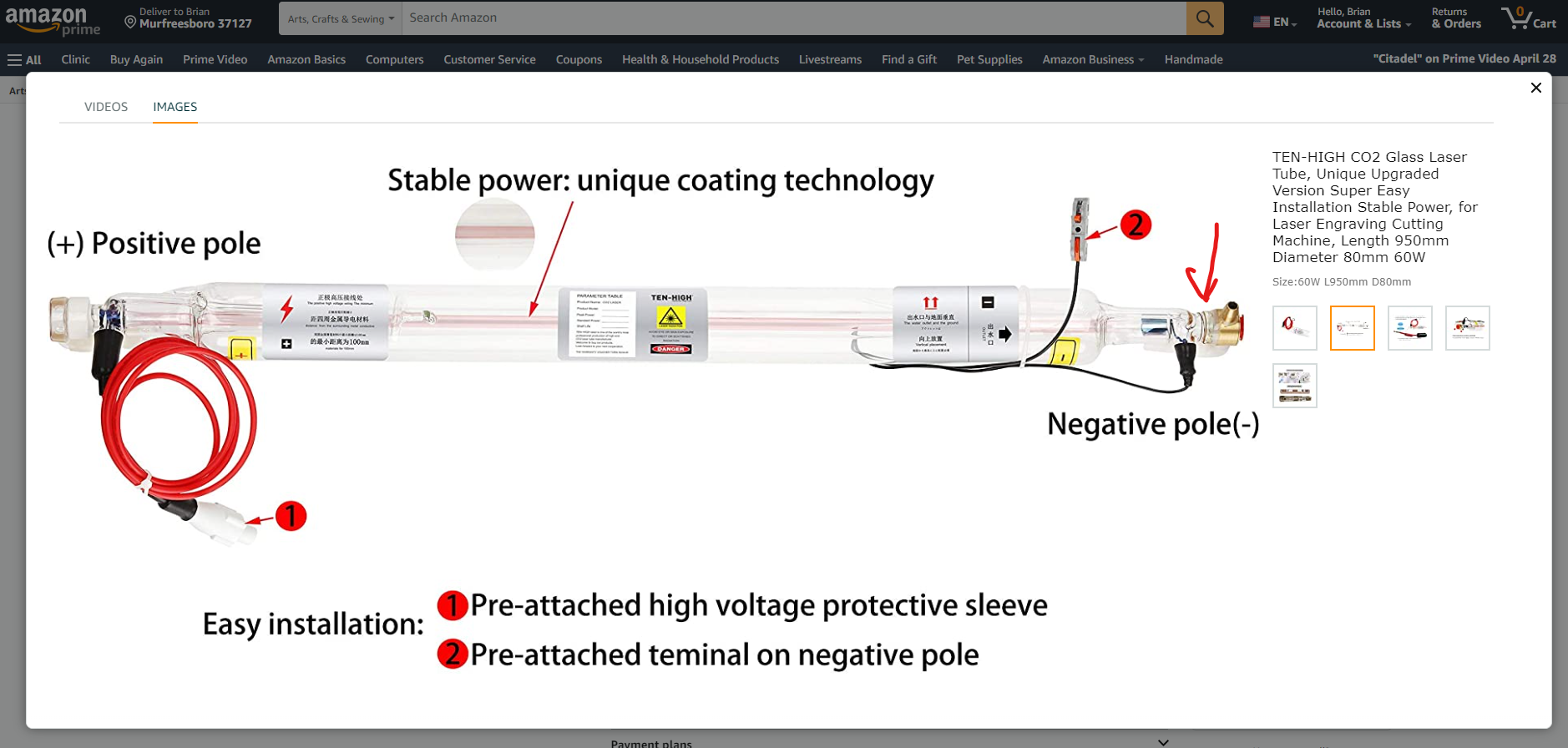

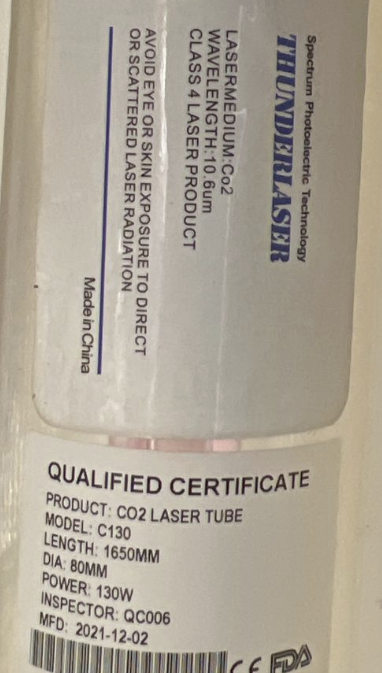

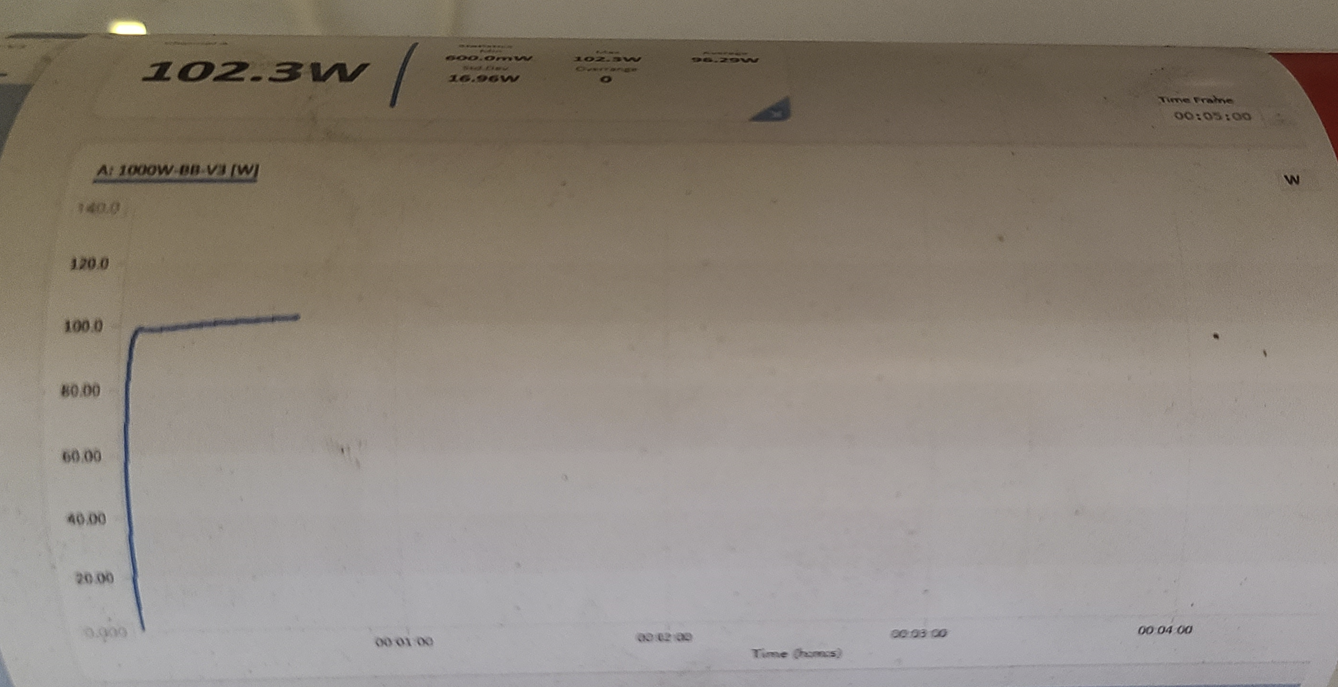

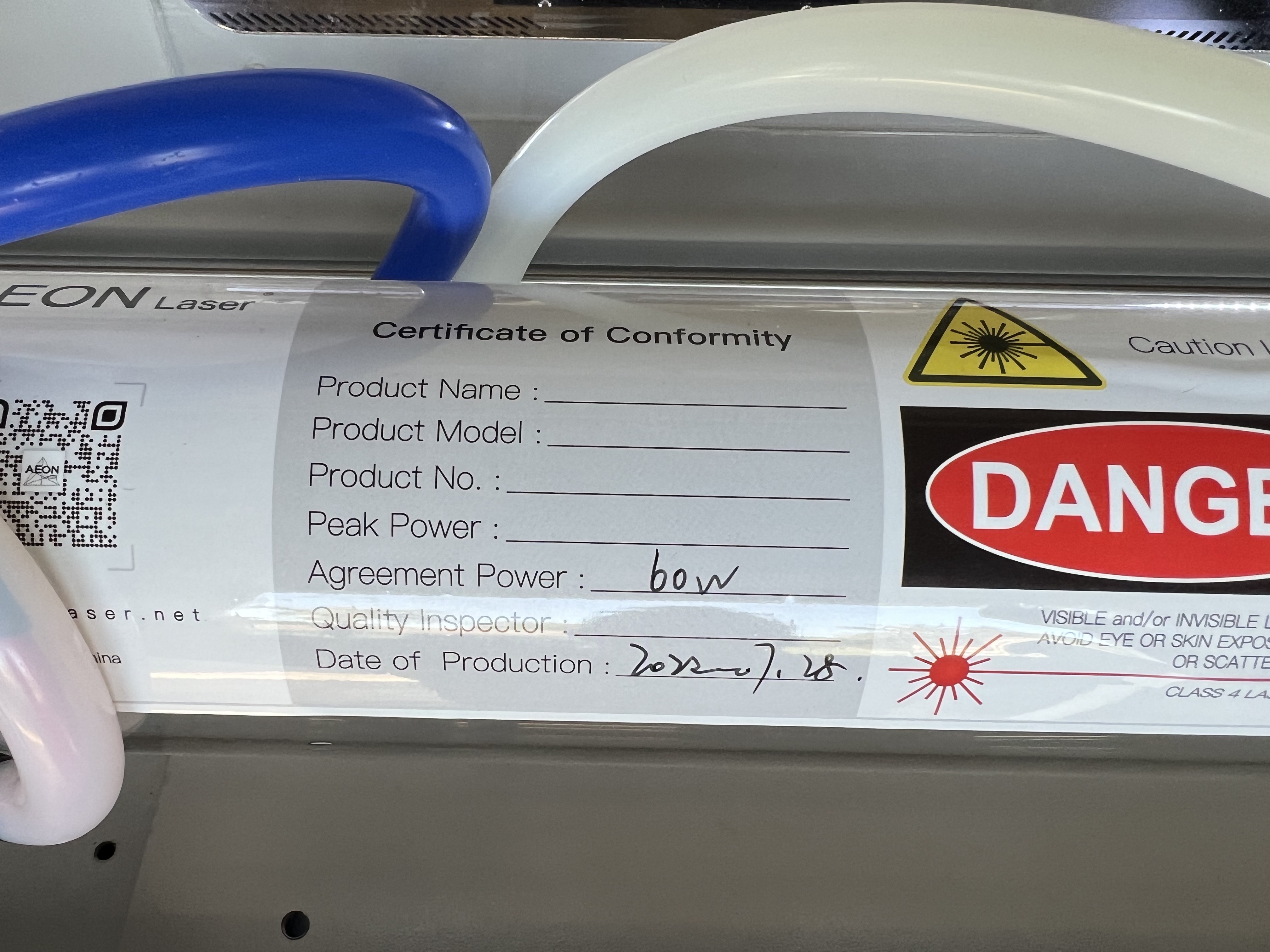

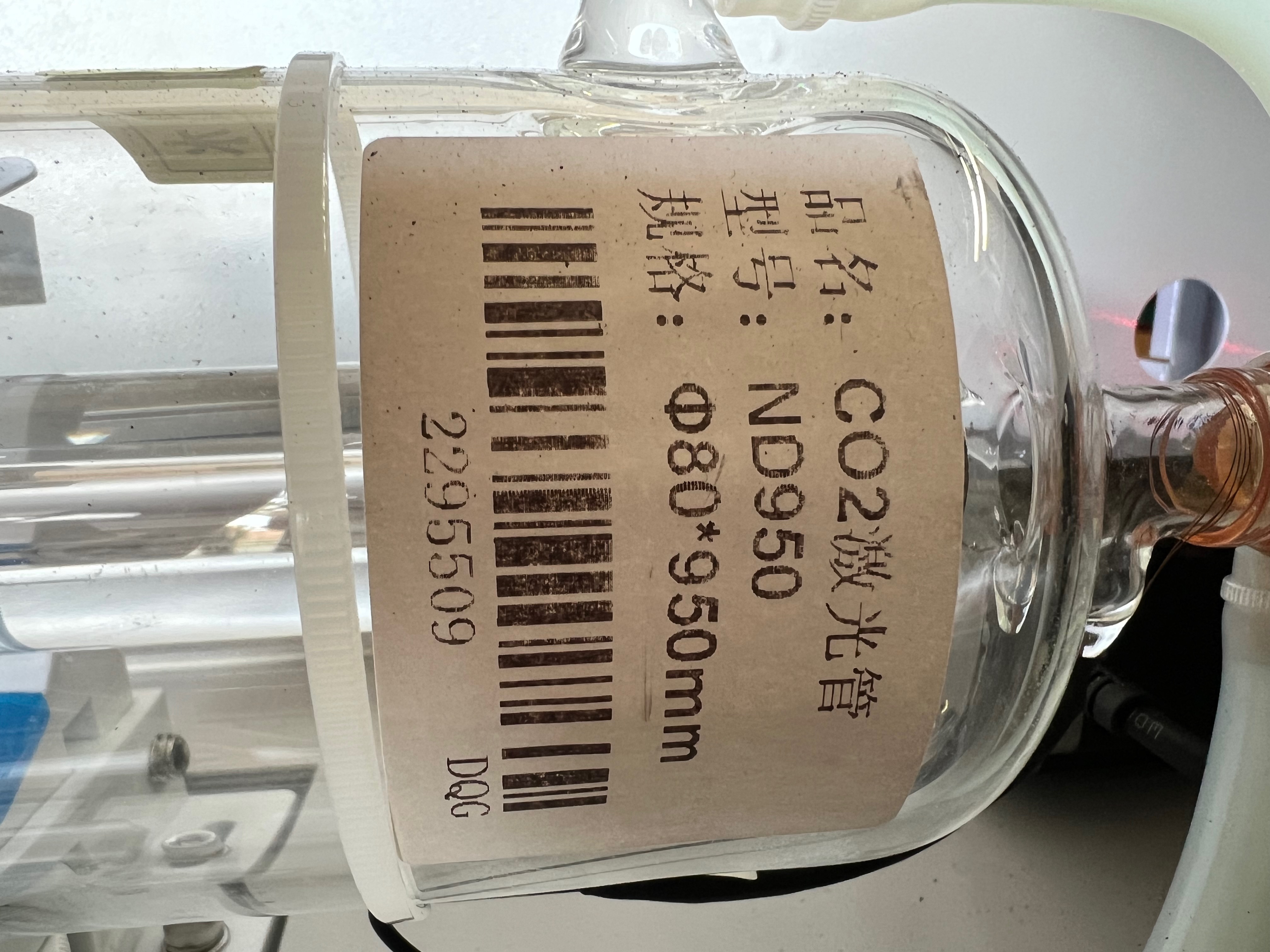

Tube Label and Specs on the tube installed in this Aeon Mira 7 | Notice No testing info or actual peak power data
recorded. Thunder Laser China tests every tube and rejects the ones that
do not output 10% over the tube's nominal stated power output. | It appears to be a rebranded Ten-High tube maybe. Ten-High seems to be the only
ones that have a few wraps of bell wire at the output coupler. Note the
Reci appears to be an option in higher wattage machines and appears to
have testing information. |

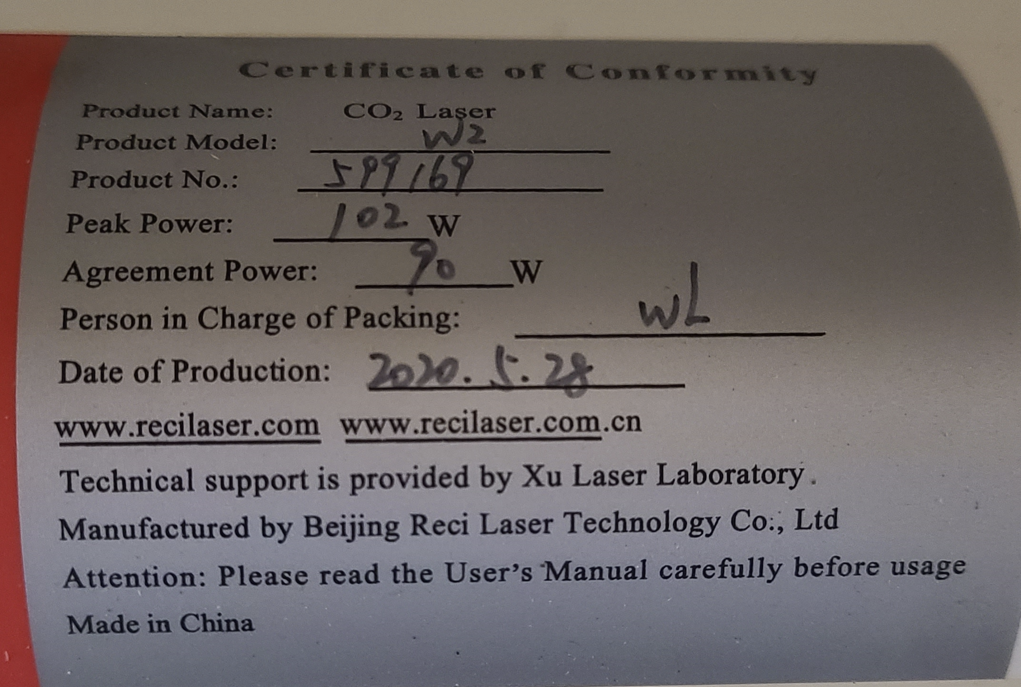

Thunder 80w Reci Tube from a Nova 35 Testing Information |
Thunder 130 SPT Tube Label Example showing QC pass and dimensions |

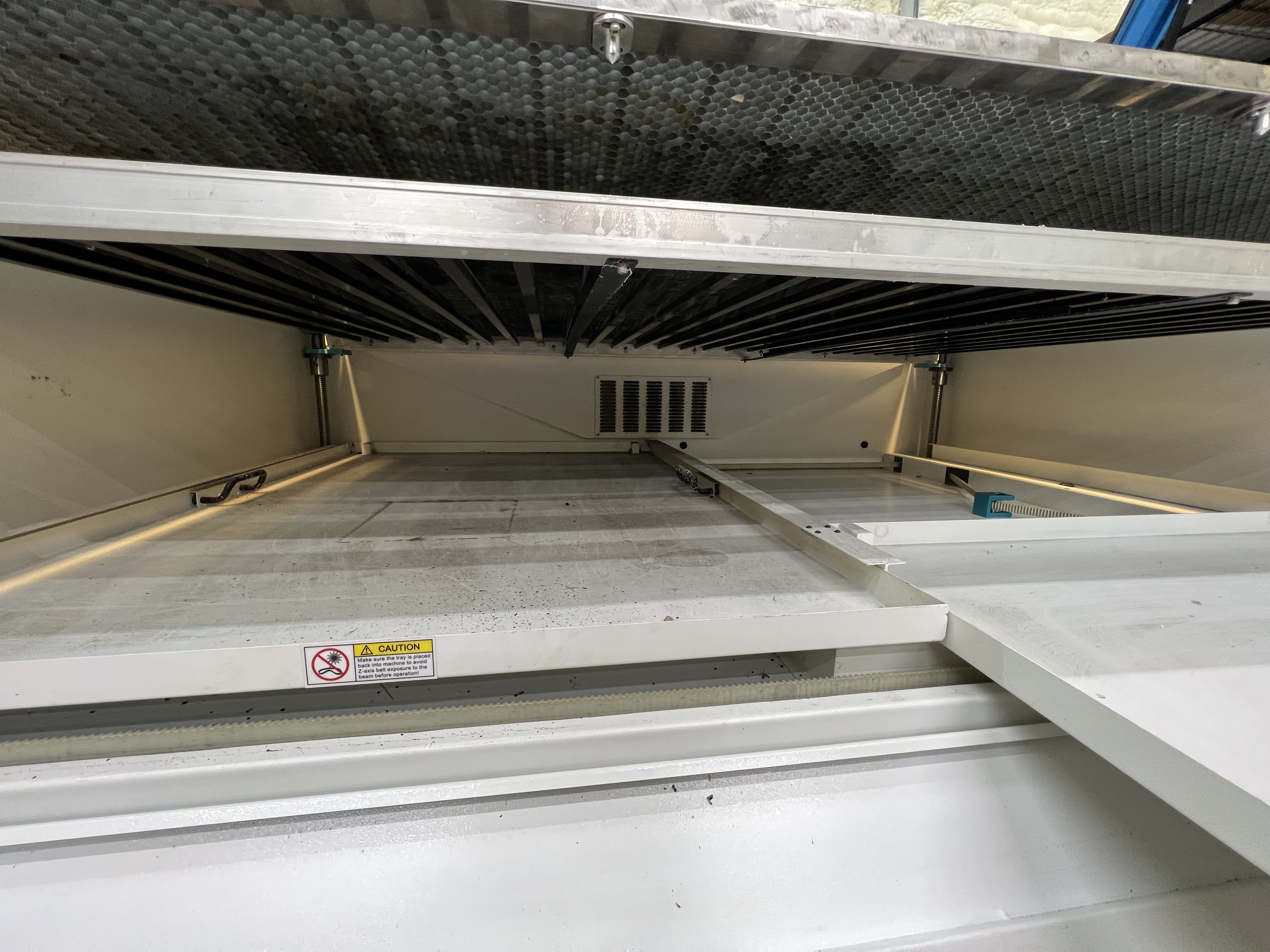

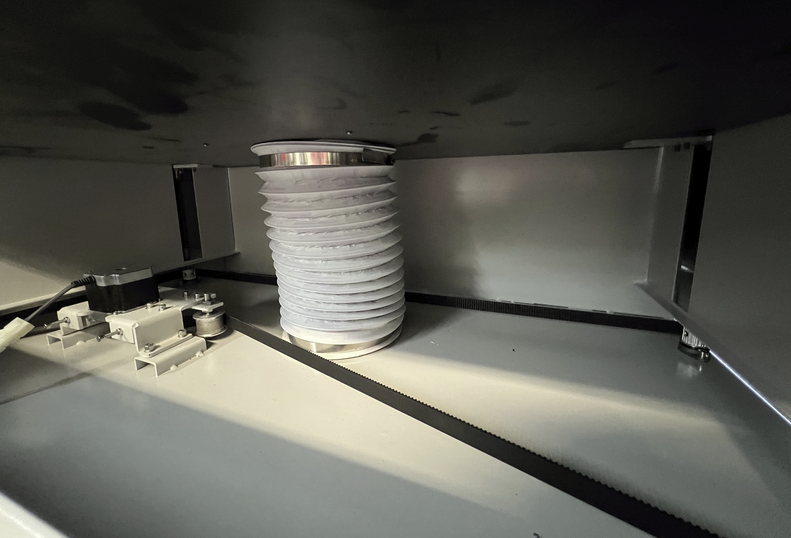

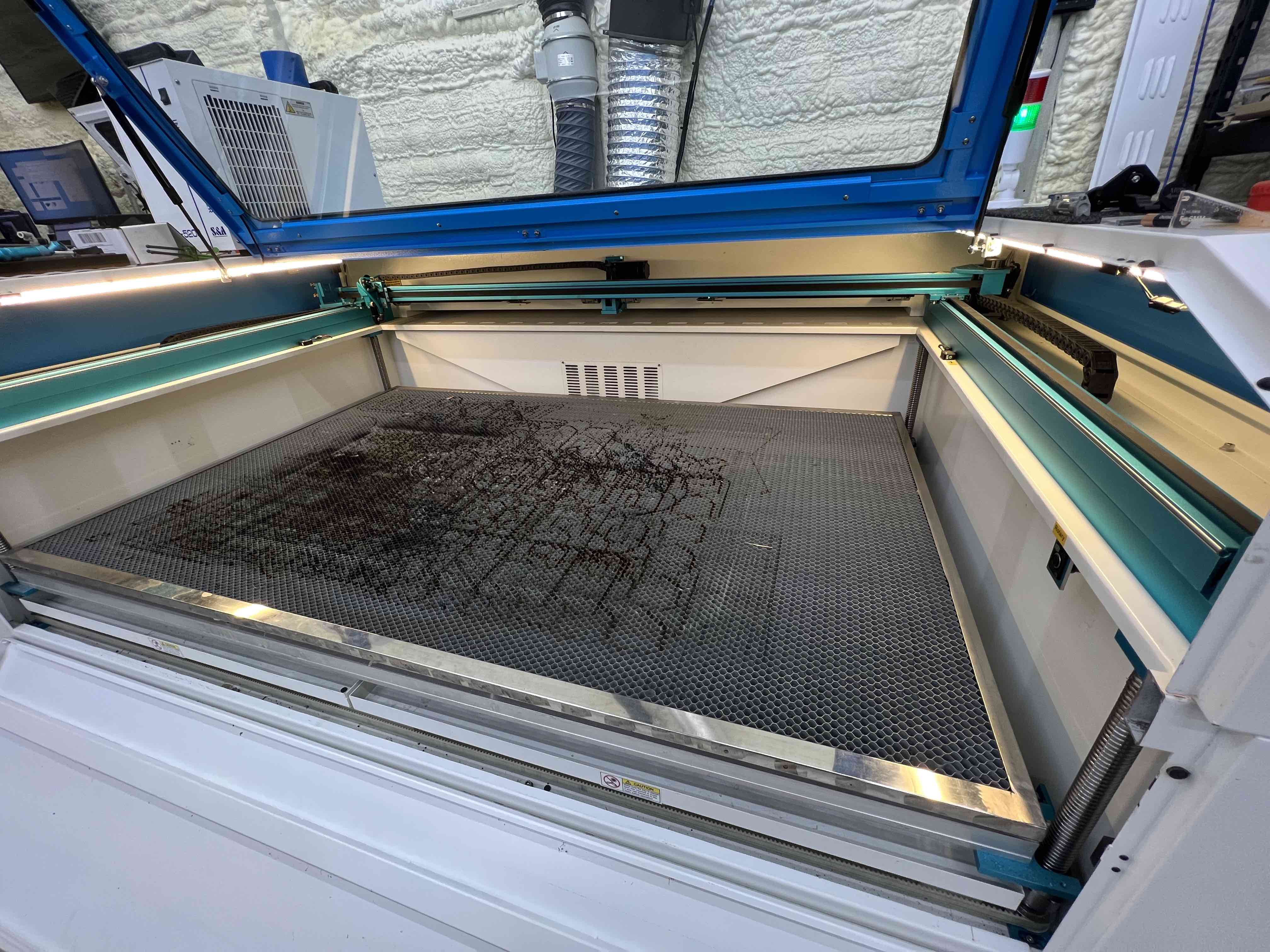

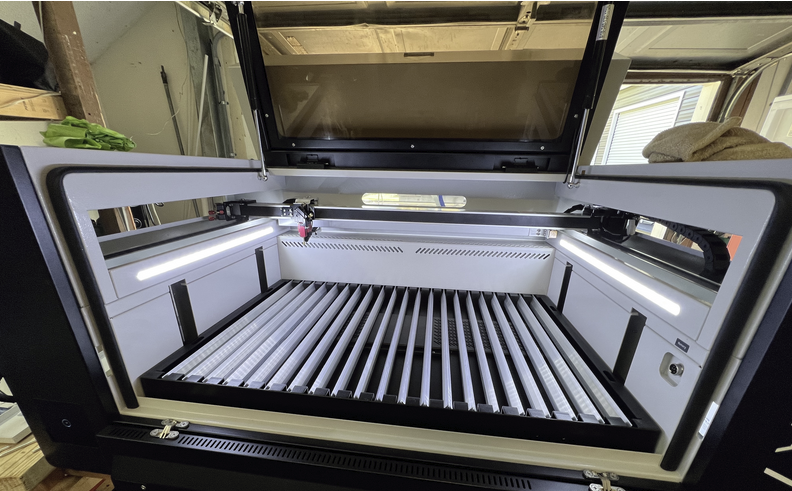

Vented Z w/o Blades or Honeycomb
Z Exhaust connections
6" duct runs to a hollow panel on the z table then below the machine. All exhaust is pulled from a hollow housing around the z bed. The exhaust connection and tubing is an additional failure point. | Thunder exhausts from under the Z bed and includes easy pull out crumb trays on the Nova lineup |

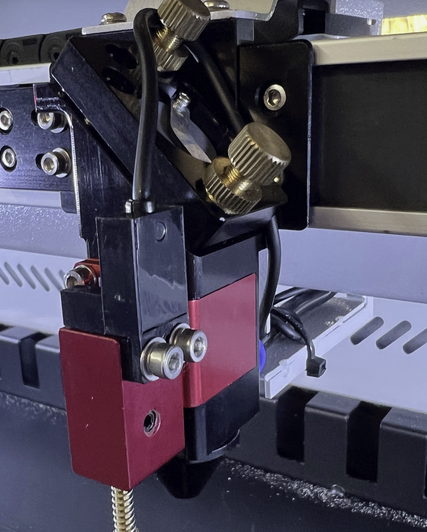

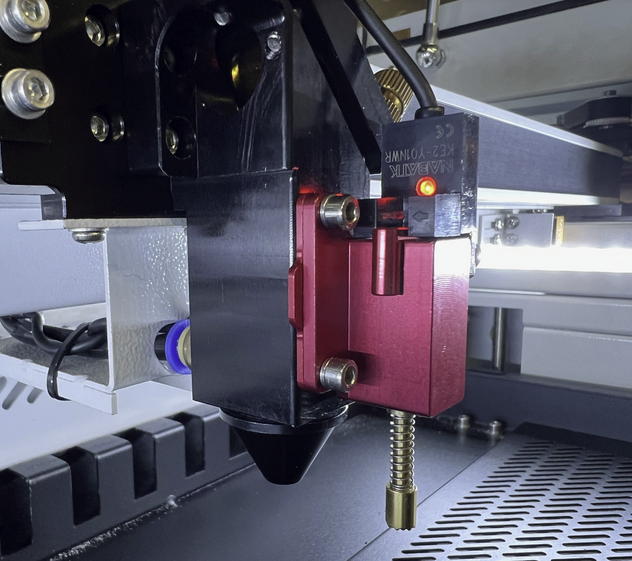

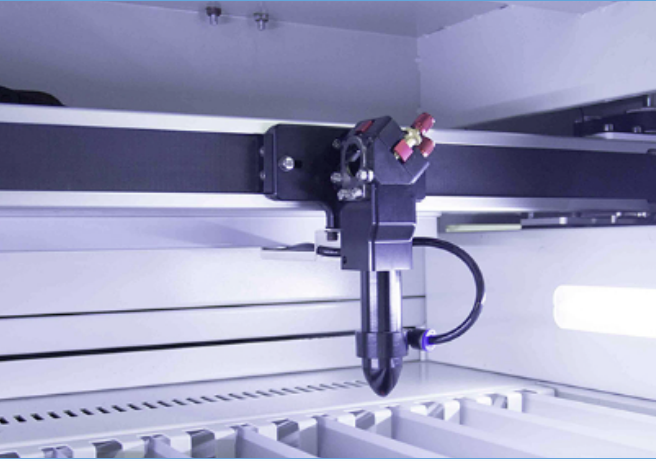

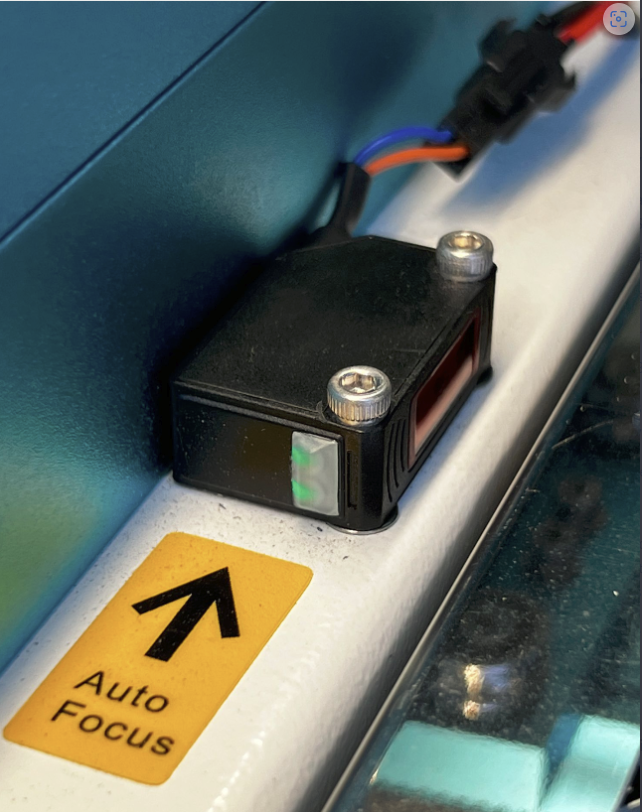

Head and AF sensor
Quite frustrating head design, two bolts, AF sensor have to be removed prior to getting to the lens. While
the Thunder Odin does have a lens tray design with thumb screws, its
autofocus sensor is built behind the head, allowing you to easily swap
lenses out without the use of tools or removing
accessories. Every time you remove the AF sensor assembly you run the
risk of not installing it in the exact position it was in. | Currently Thunder uses optical AF eyes that look across the bed. At the ISA show in Vegas we showed off the new AF head that is Co-axial and not offset from the engraving location. |

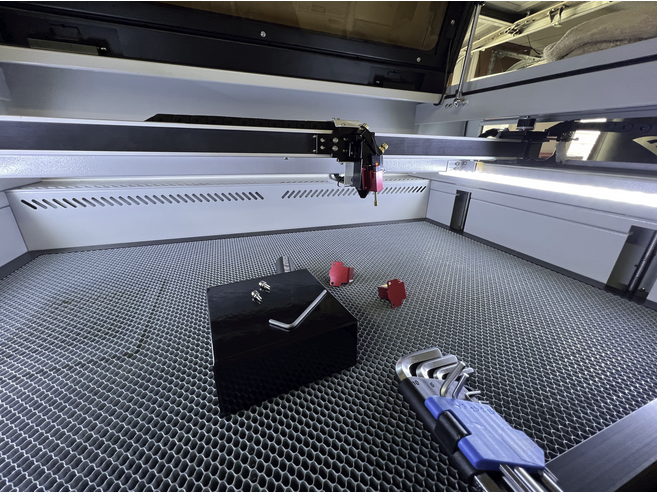

Lens Change not an easy task

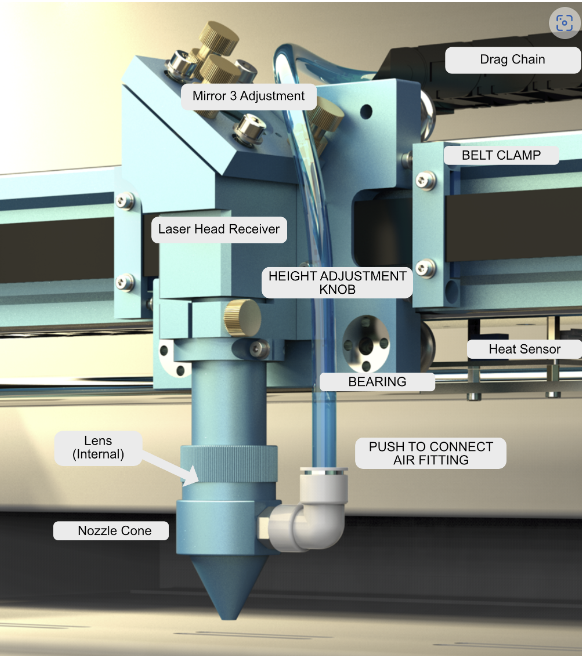

Lots of tools to swap that lens out. Time is money. | Compare to changing out the Lens on a Nova machine, quick knob, tool-less change. Loosen the Heigh Adjustment knob, release the air fitting, lower tube, swap in reverse. This article shows how easy it is to swap lens tubes. |
Example videos:
Start at 48 seconds and end at 56 seconds to see the simple swap process

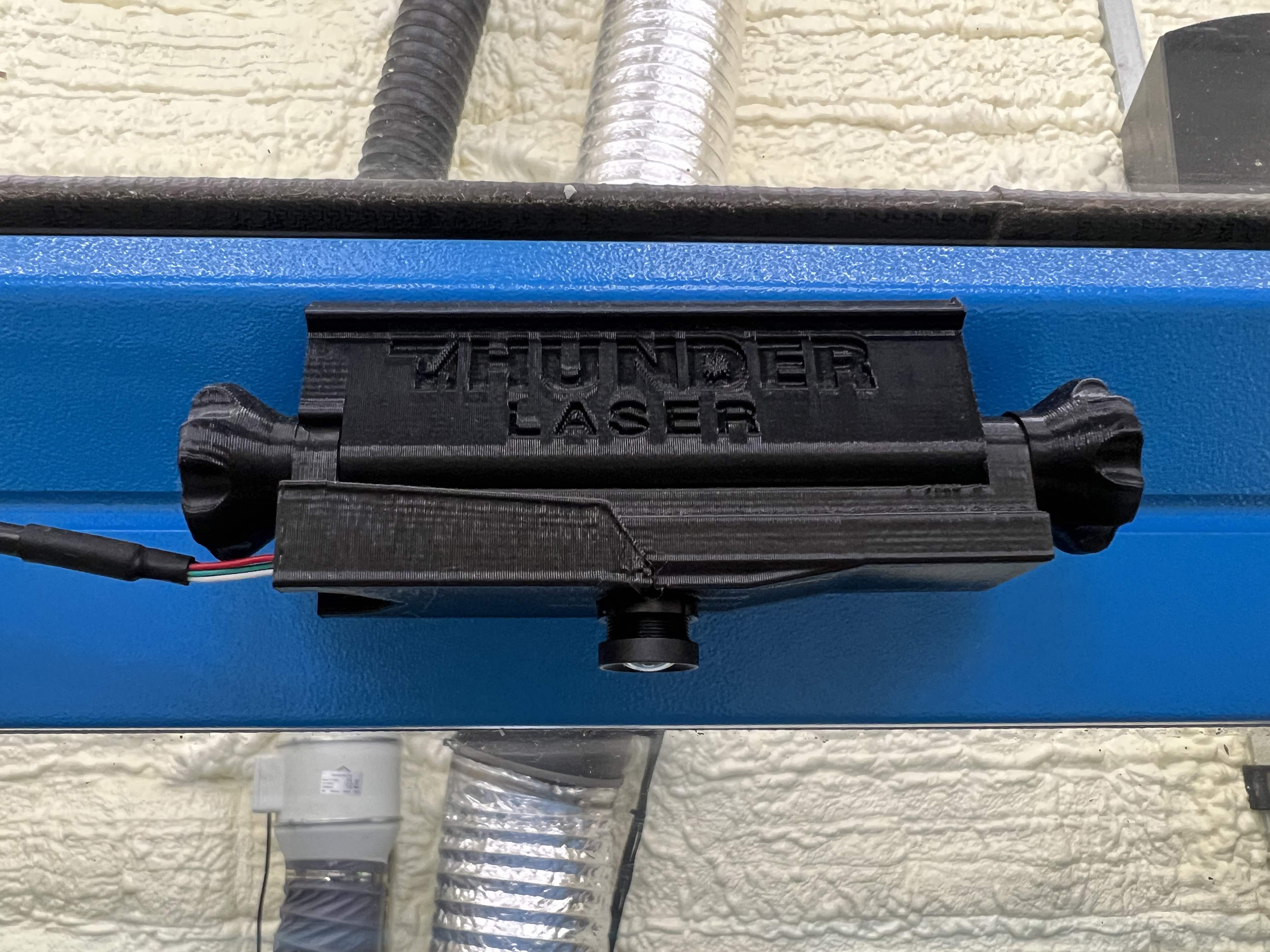

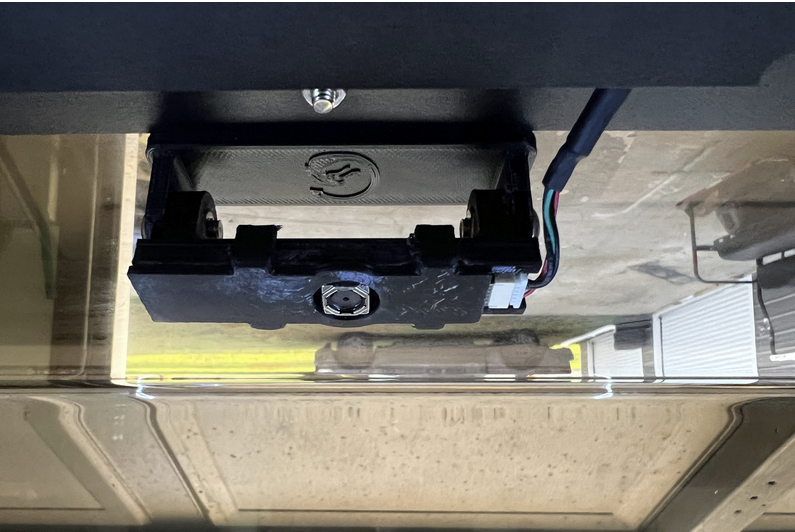

Camera

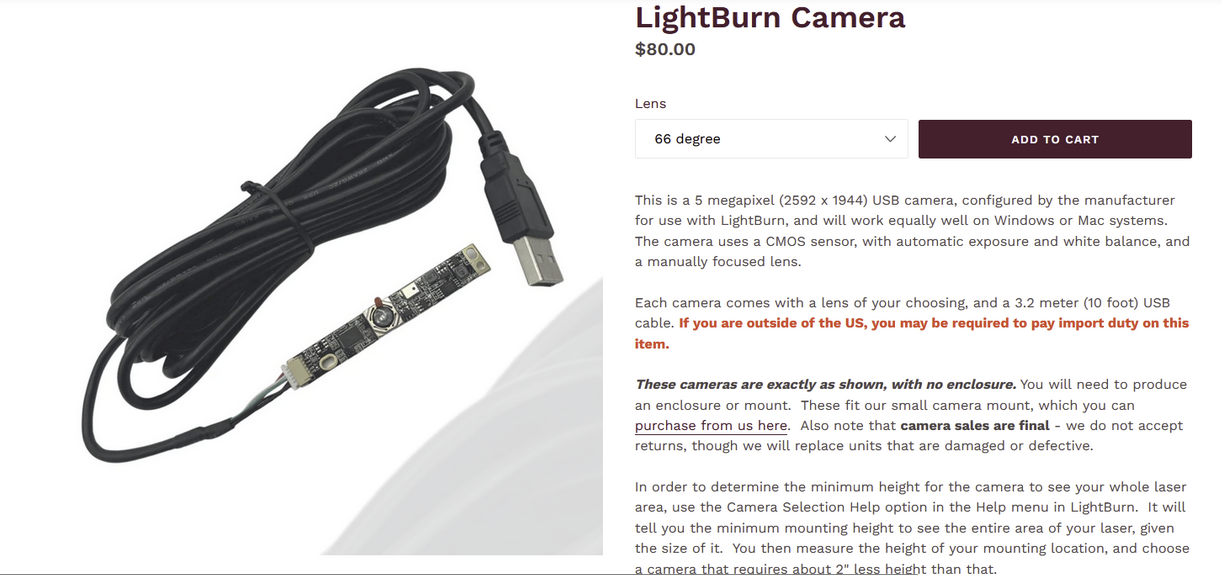

It may come preinstalled but is it calibrated? Looks like the 5mp low res version? Thunder only sells

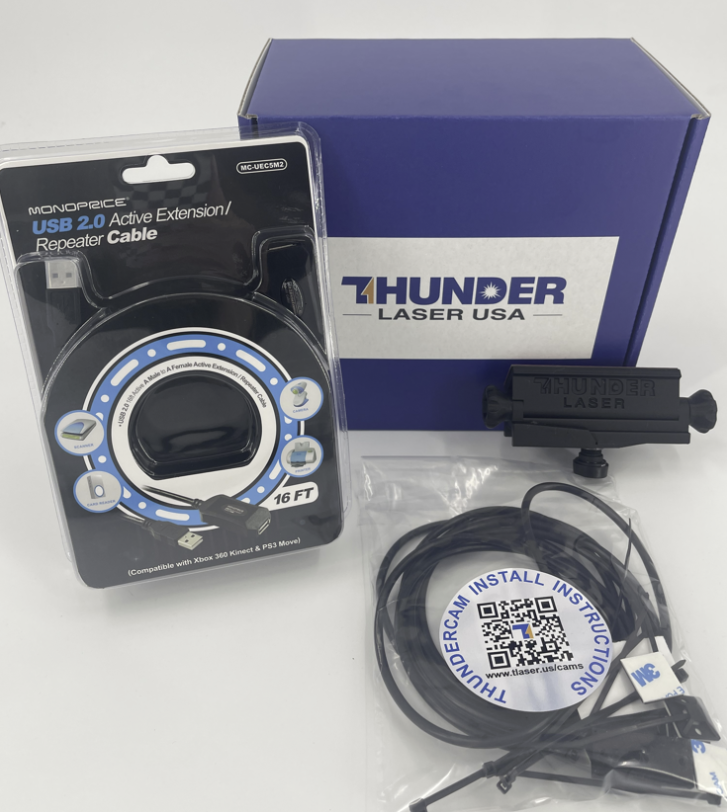

the 8mp versions for better resolution, even for the Nova 24. | Thunder sells a complete kit that you can DIY install that is 8mp and now comes with a USB extender cable for longer distances. Custom designed mount is more robust than the stock mount and is a captive shell design meaning the clips cannot break on the cover which would allow the camera to fall out or come out of alignment.ThunderCAMs vs. LightBurn & Other USB Webcams |

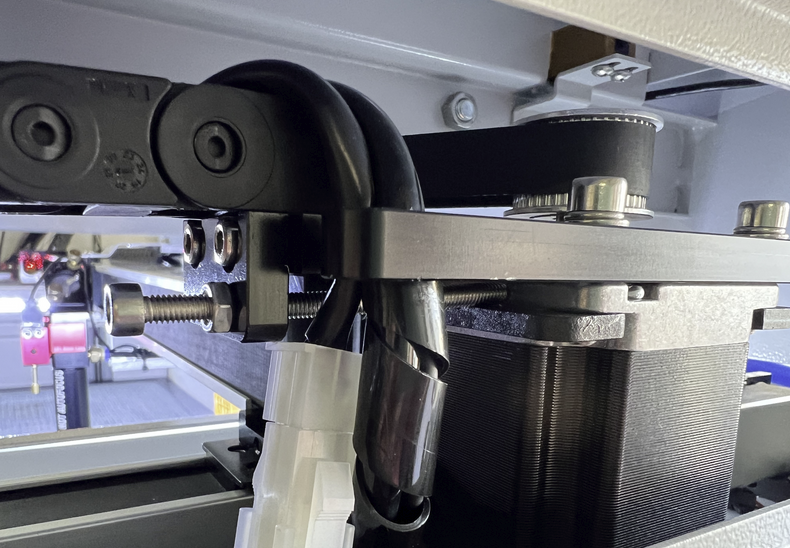

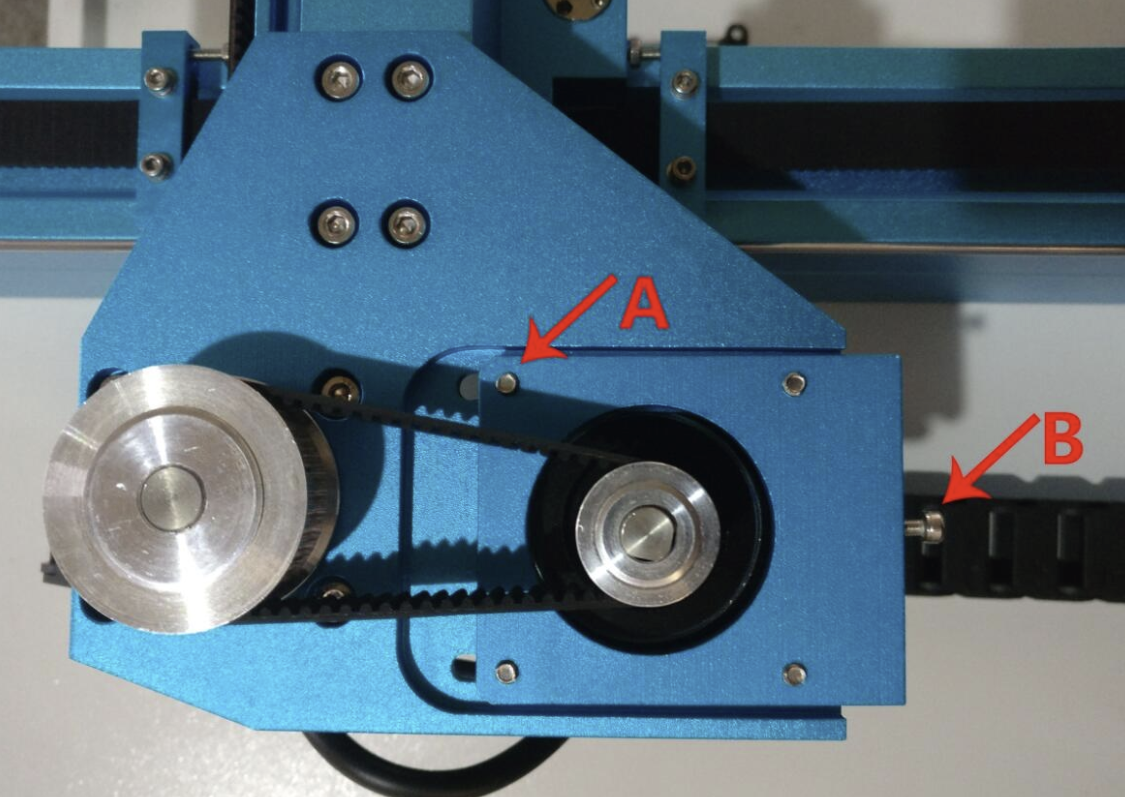

Belt / Motor adjustment.
Elongated jack bolt used for motor tension, can lead to deflection, bending etc | Thunder uses a much shorter jack bolt to limit deflection |

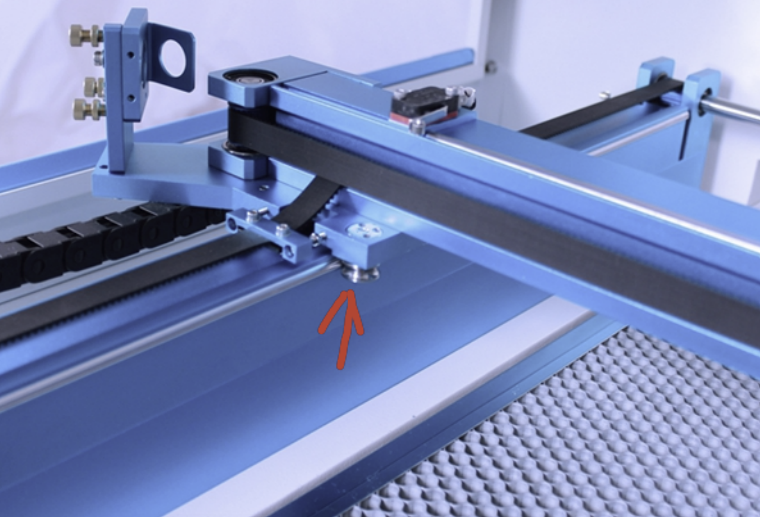

Unexposed Linear Guide and Bearing
They pack the linear guides
in the cabinetry and inside the gantry (behind the belt) to help keep it
clean. This may sound like a good idea and extend the PM cycle, but it
also adds complexity to the maintenance as you have to disassemble parts
to be able to access them. And eventually you will have to maintain
them. | We use 12 sealed
self-lubricating U-groove roller bearings in 3 sets that ride on steel
rails that are pressed into the gantry. No maintenance or lubrication is
necessary. If the bearings happen to need replacing, you can do it
quickly and painlessly with no disassembly other than loosening the
eccentric cams to release the tension and removing a shoulder bolt. |

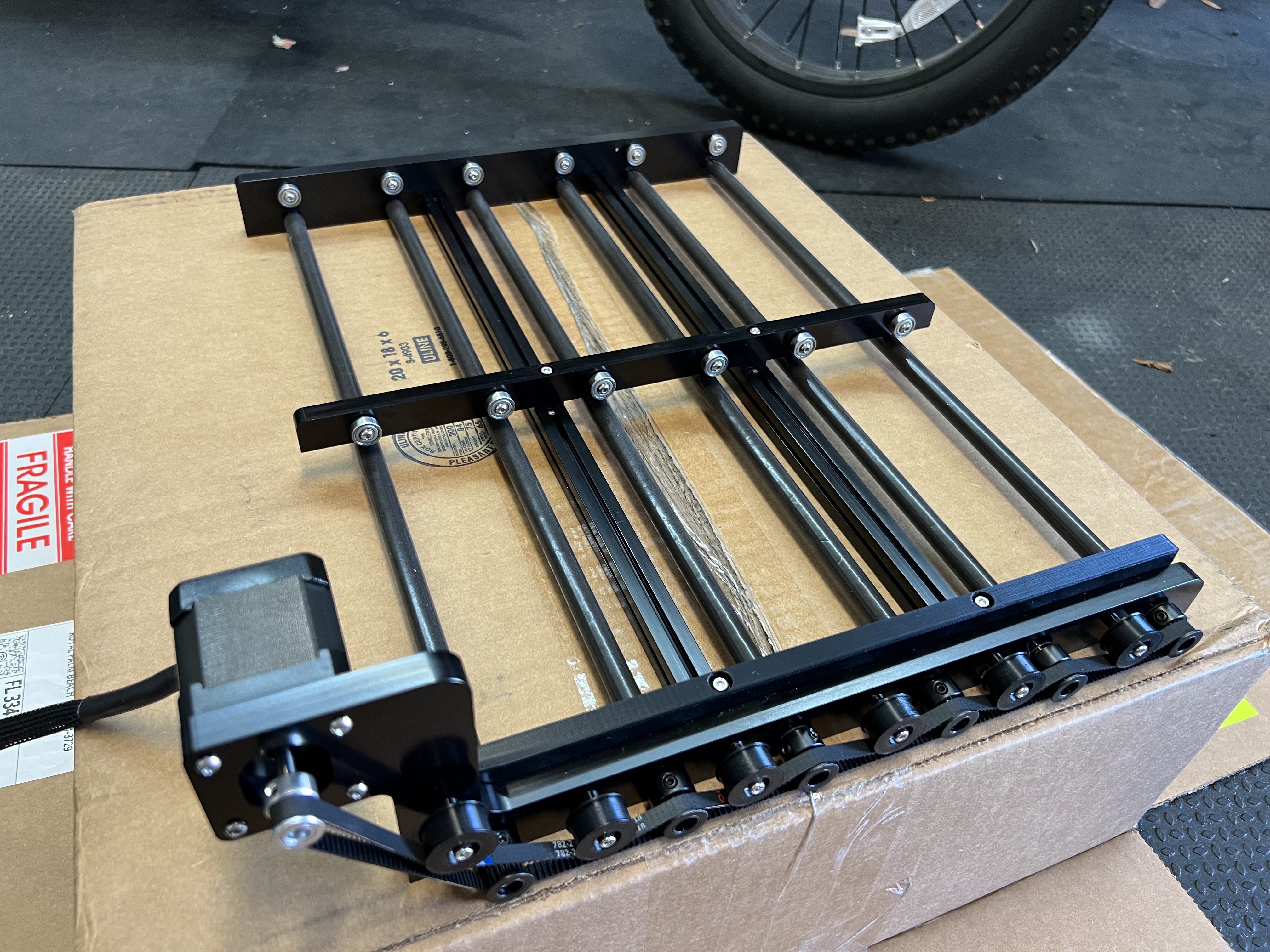

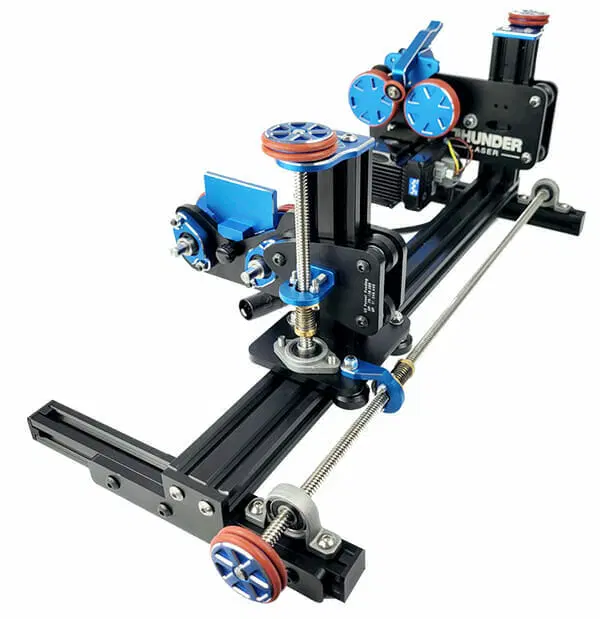

6 Tumbler Rotary

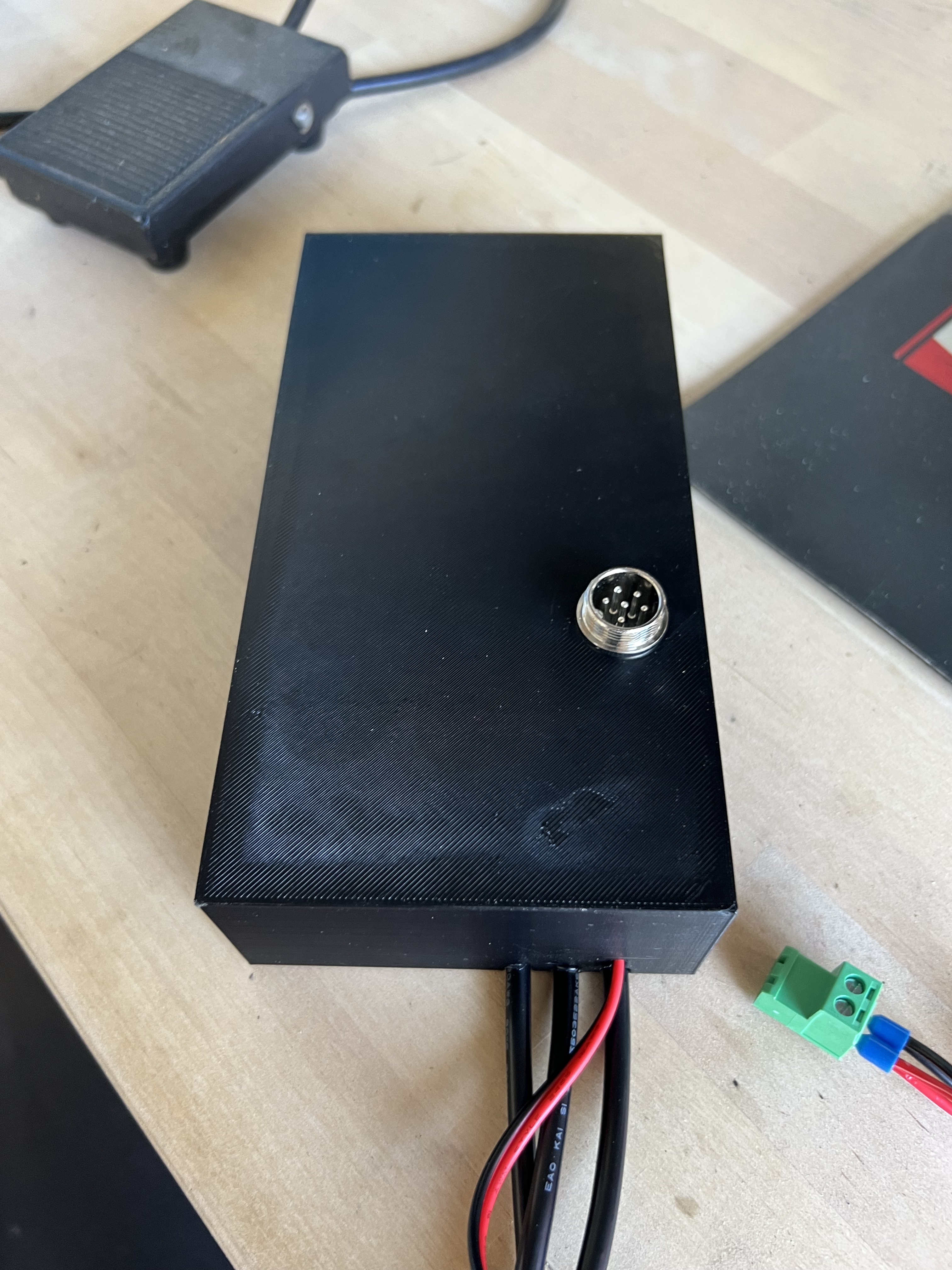

Multi roller rotary. Very cheap and flimsy design, extremely limited as to what type of tumblers, bowls and objects it will hold and spin properly. No option
to make the objects level or compensate for taper. Feels like a risk of 6 tumblers when you hit the start button. Control box adds in unnecessary complexity since it involves the Y Axis wiring. A current Thunder laser uses the U axis natively, no switch or relay inline from the Y driver to the Y motor which are failure points.

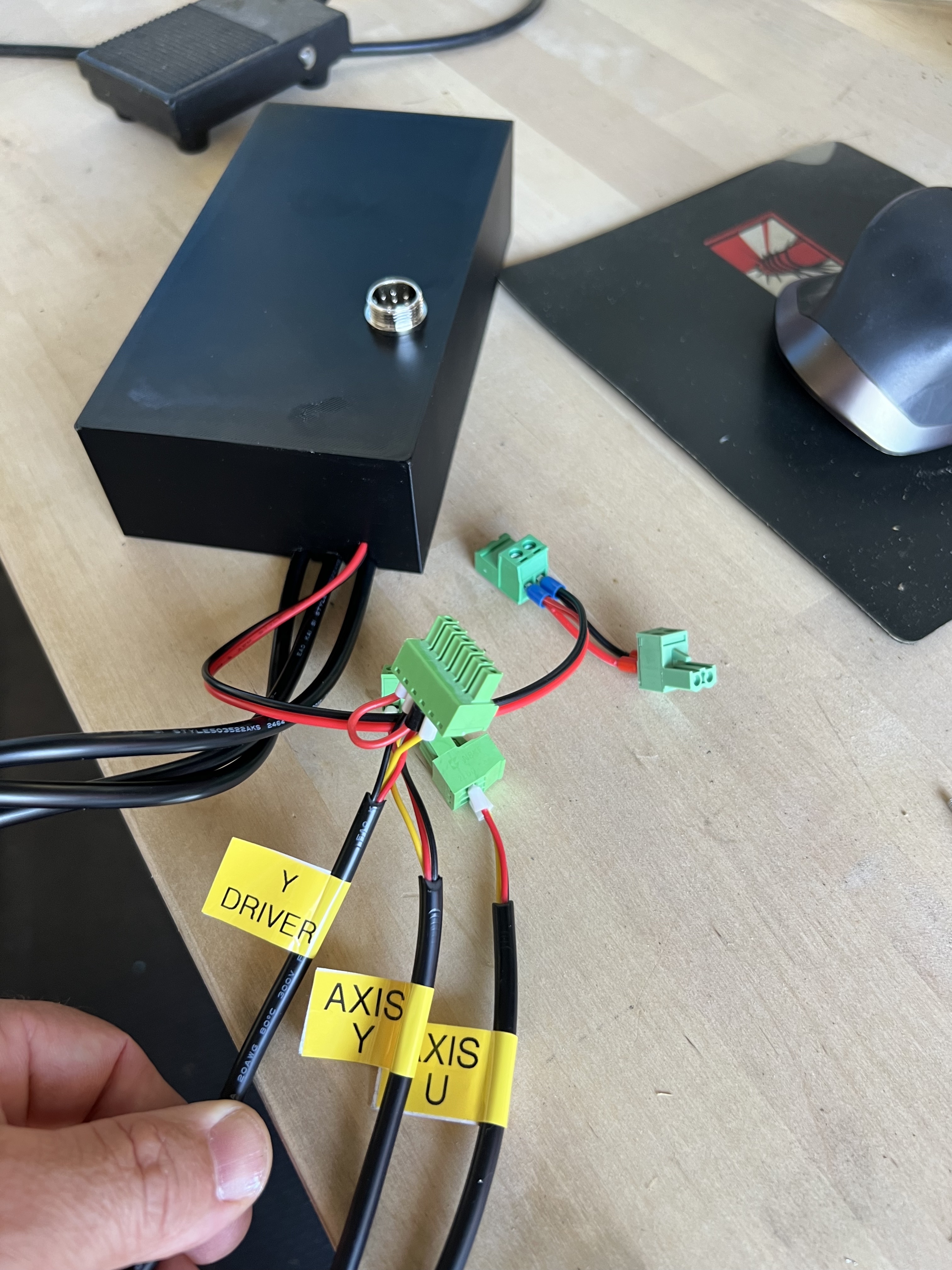

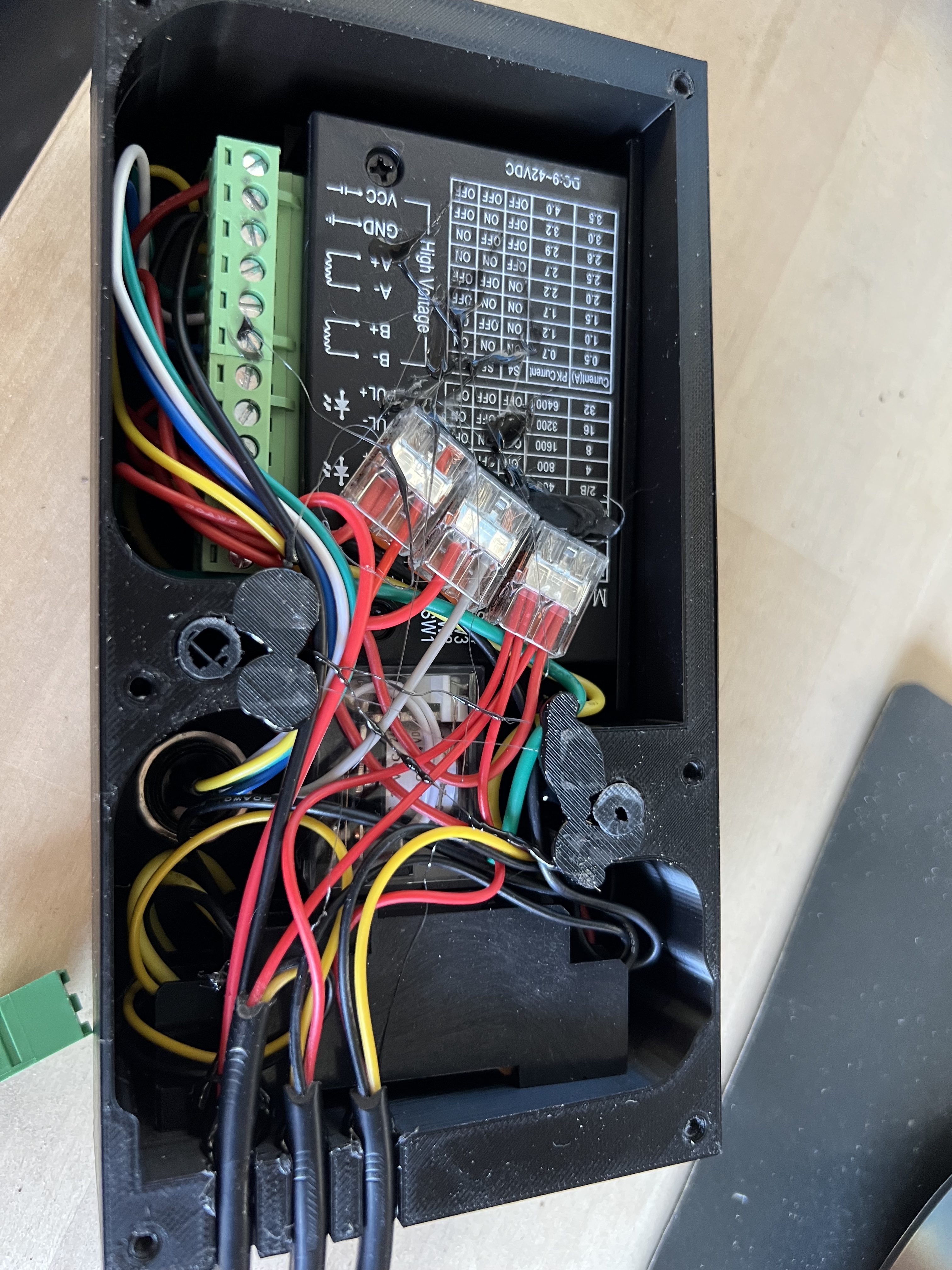

Rotary Driver/Relay box
Wires are unlabeled, box is crammed full. Is there a schematic or drawing on the AEON Laser USA Knowledgebase for this?

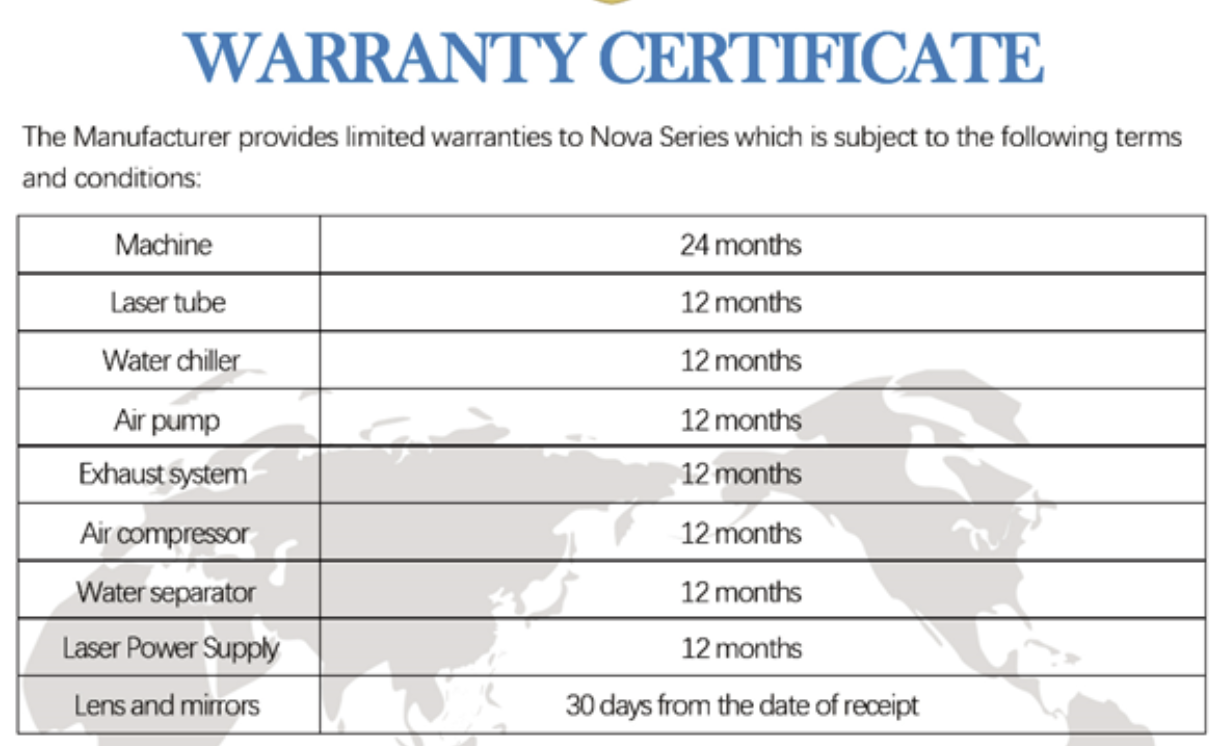

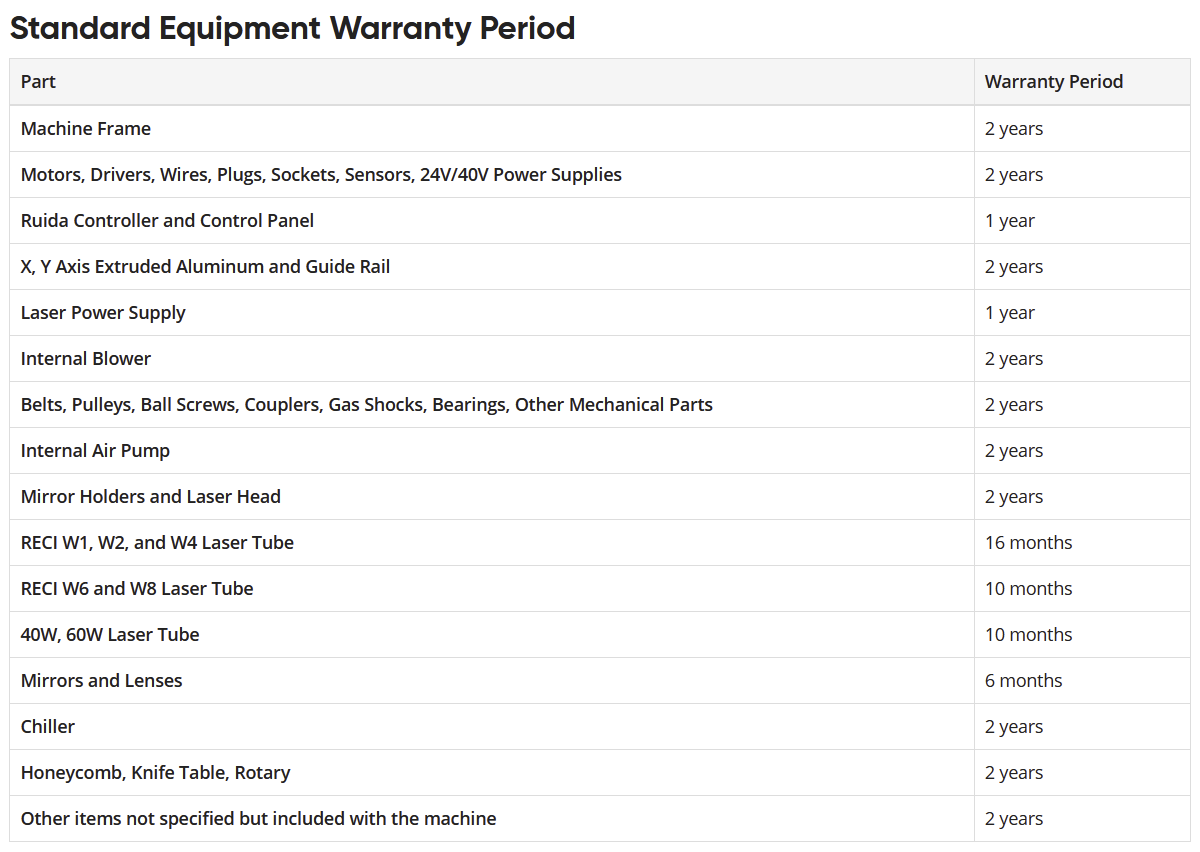

Warranty Comparison

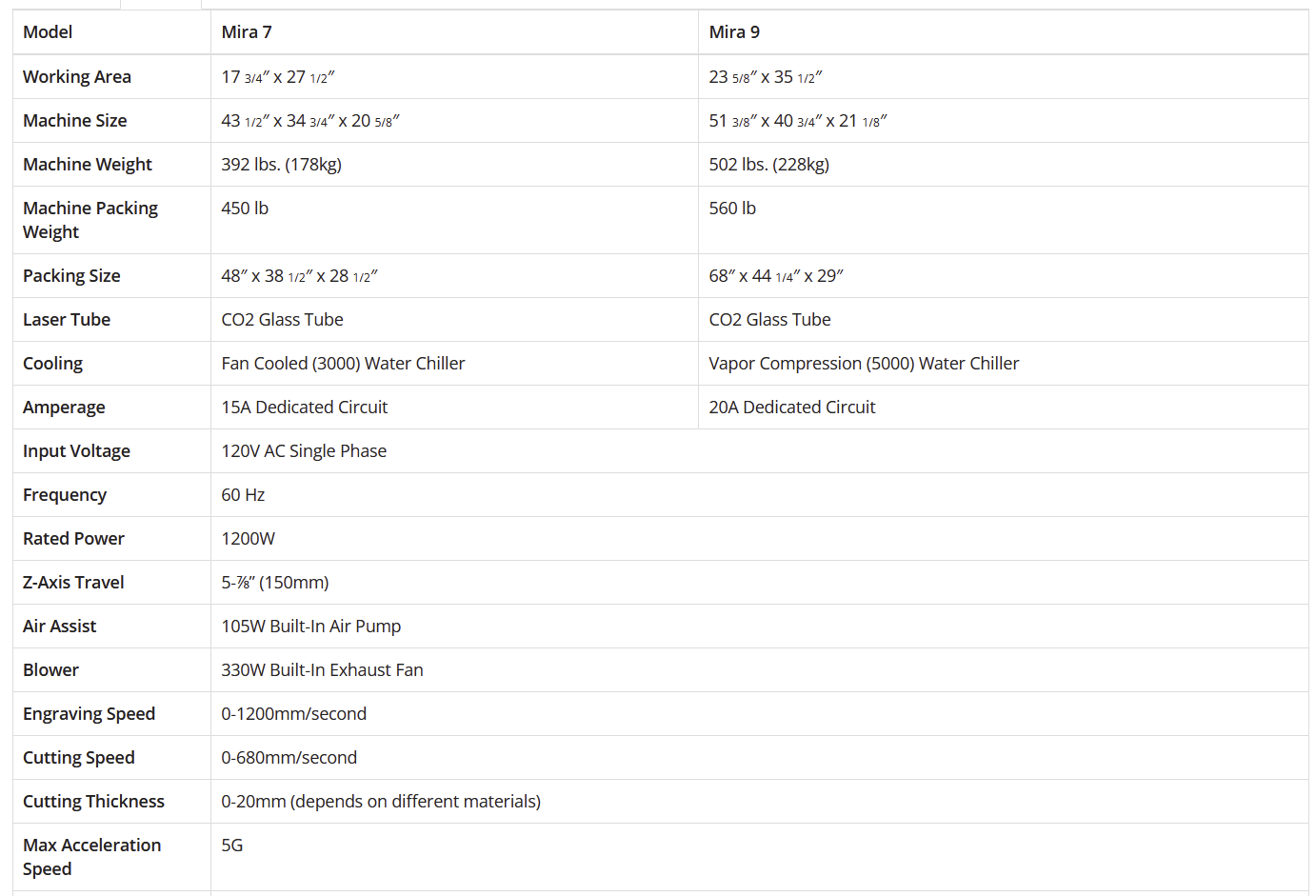

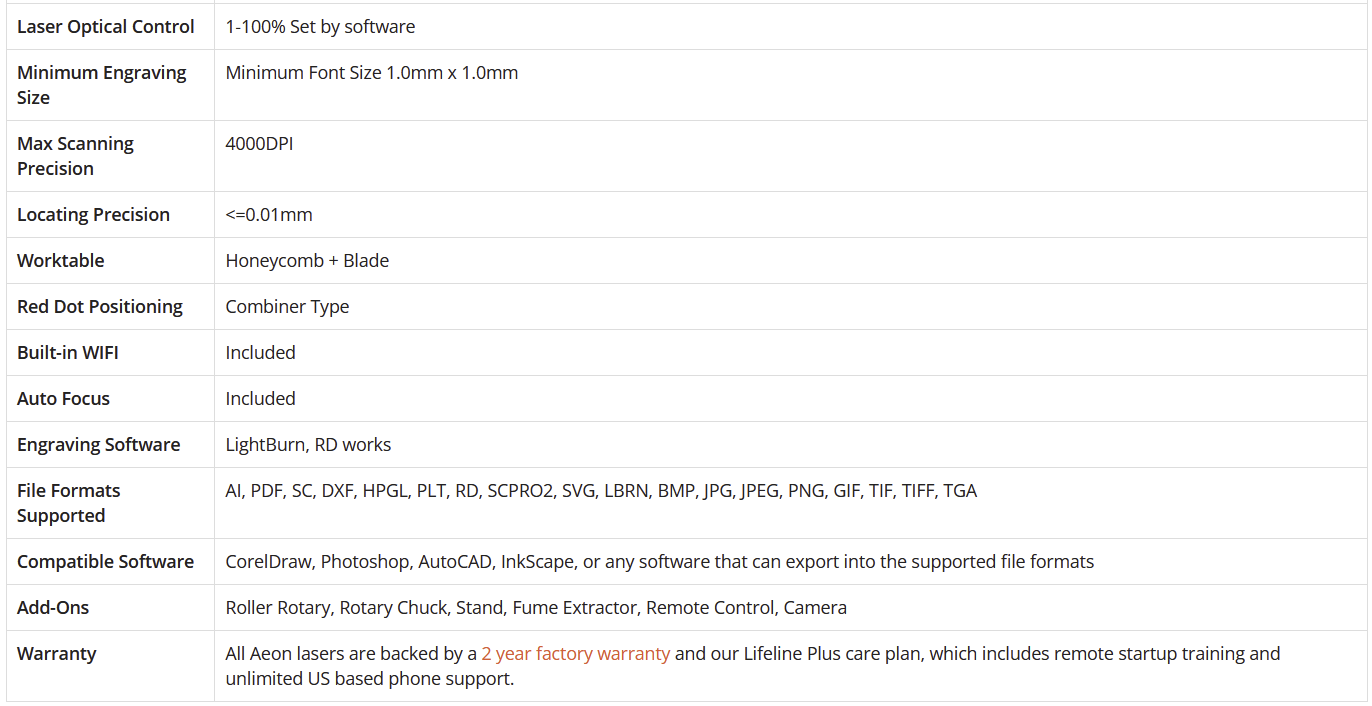

Tech Specs From AEON Website:
There seems to be a few discrepancies in the website documentation and what you really receive?

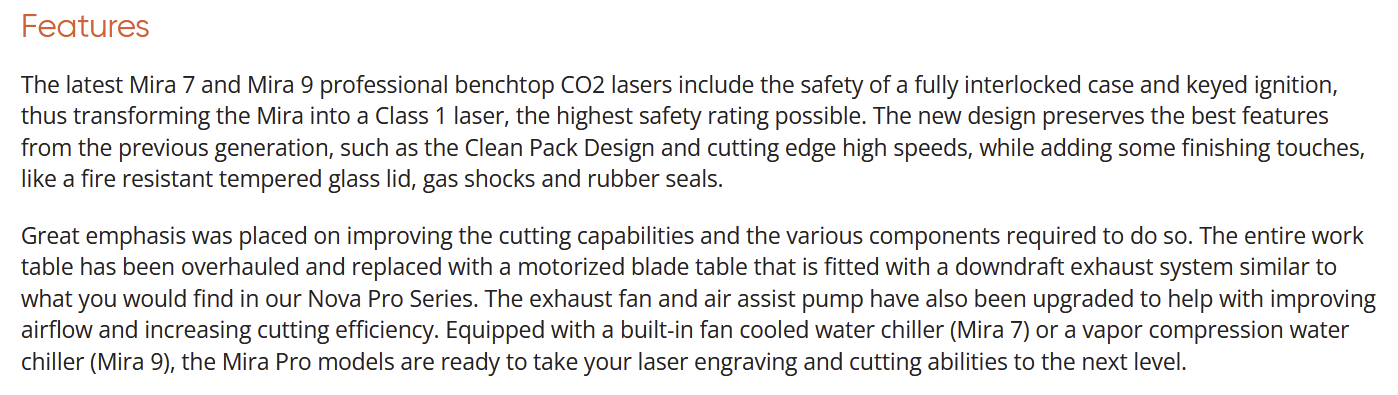

The Lid looks like Acrylic in the photos on the website which is not fire resistant. Could be that they have updated to glass since this model was made? Thunder uses flat tempered glass, its heavy.

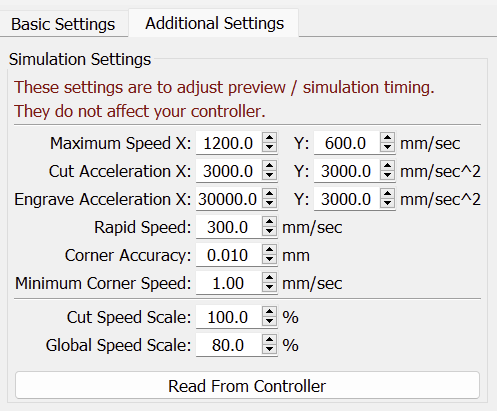

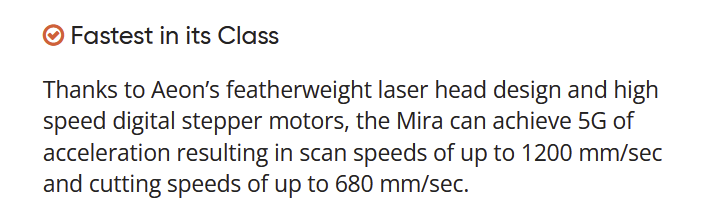

The machine settings for this machine showed 3G acceleration and 600mms peak speed for vectors. Boss(R) claims 1300mms for their LS1420 laser and upwards 2000mm/s for their larger machines with servos. Note that in the PDF that they list on their website is from 2019 and it also claims 5G acceleration which pre-dates this 3rd party machine. Go pull your Simulation settings on your Aeon Mira 7 from 2019 to present in Lightburn, the values should match the yellow highlighted ones here

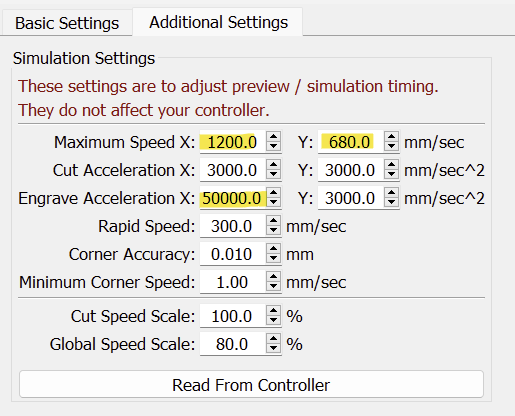

Check the yellow highlighted values, are they as shown? | Note that the values may not be exactly the same, LB allows for multipliers to be set in order to get the time estimates right. Your engrave accel should be higher than 30000 if 5G acceleration is claimed. You can pull it up in the machine settings to verify as well. |
