How to Change the spin Direction of your rotary

Preface: This article covers a few ways to change the direction of spin of the tumbler in your rotary

Method 1: Dip Switches

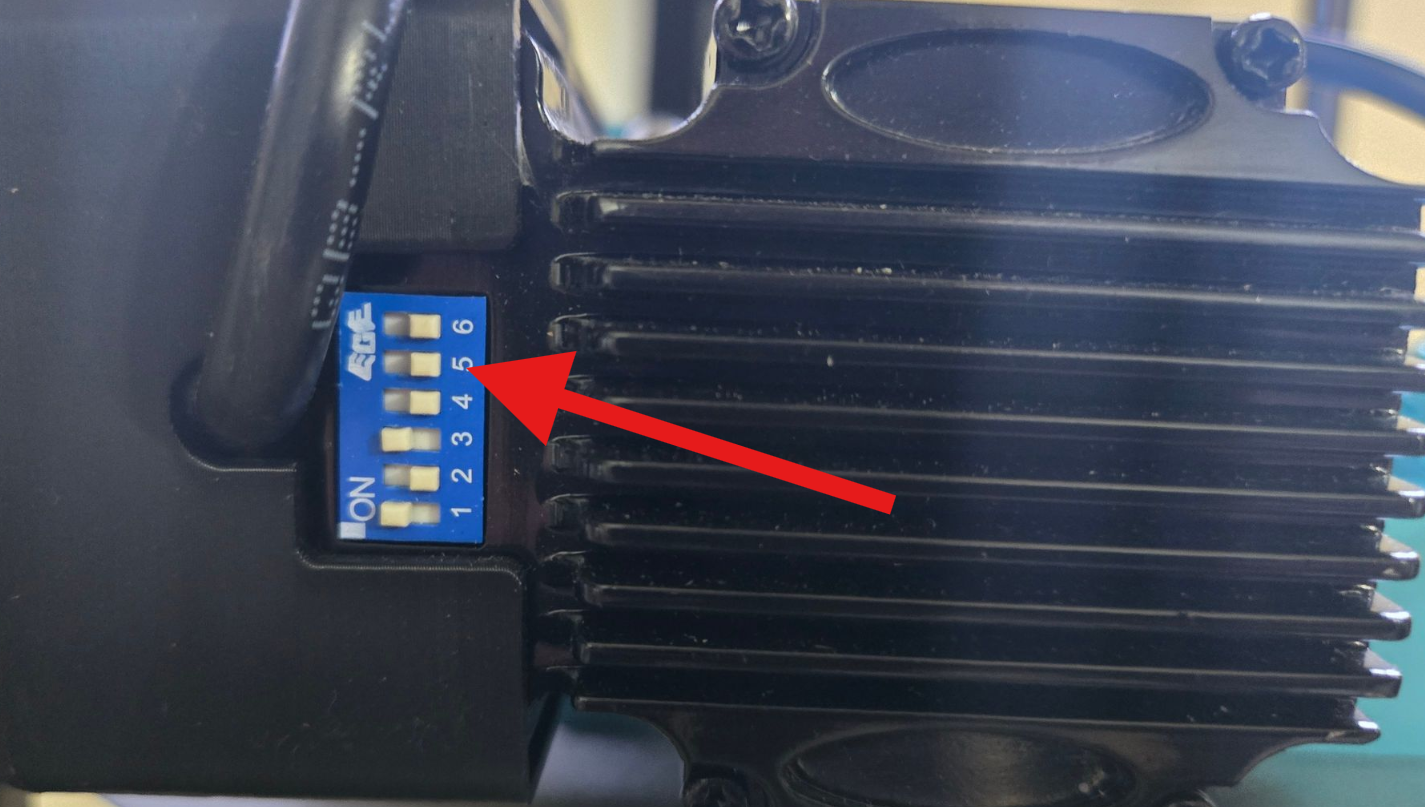

Dip switches are located on the rotary motor driver, look for the little white switches with the blue background.

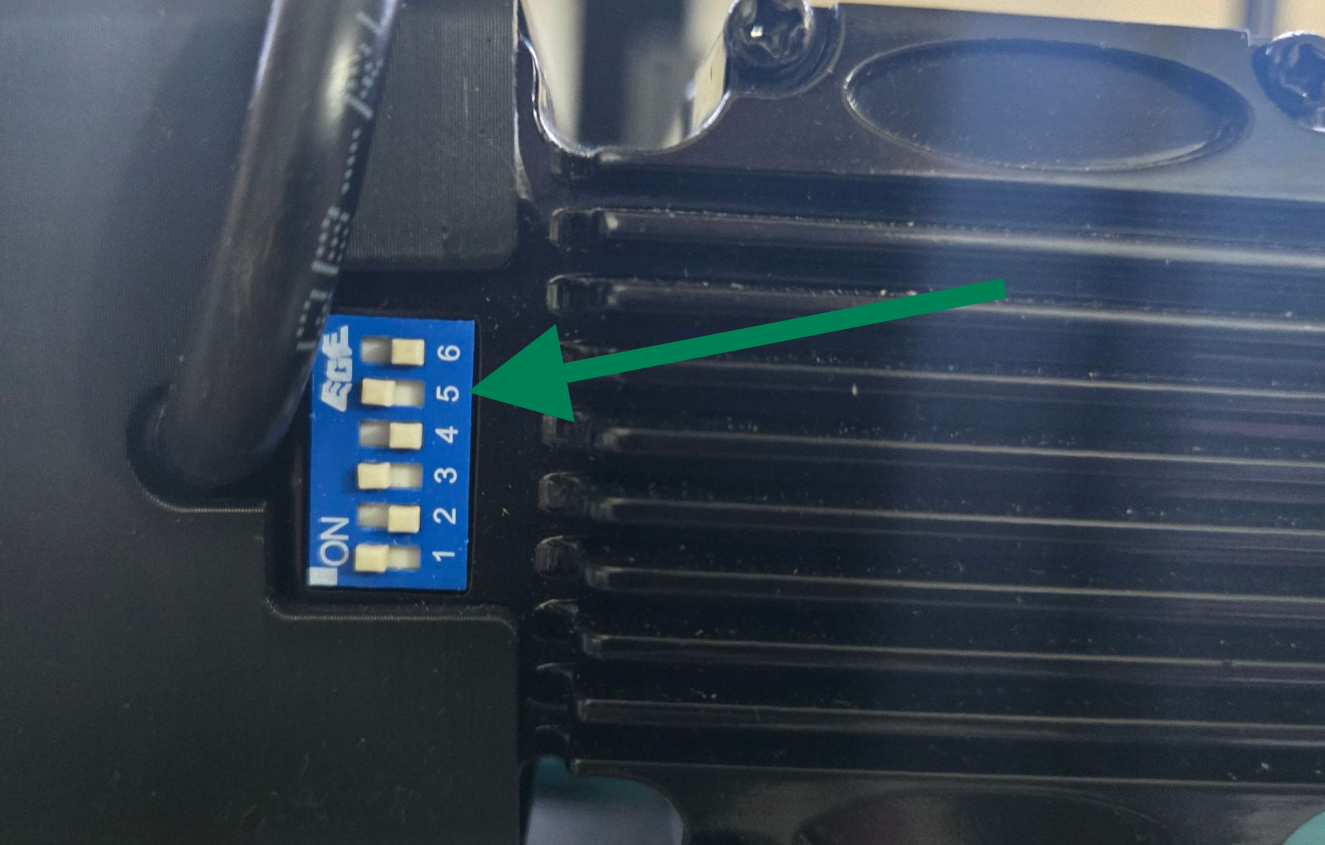

You can change the Dip switch in position 5. Toggle it. Meaning if it was ON...move to OFF. If it was OF....move to OFF.

Take note of the values of Dip Switches 1-4 and 6, yours may vary from what is shown. After you adjust Dip 5, make sure the others are still where they were originally.

Case 1:

Originally Dip 5 Was On	Change Dip 5 to Off

Case 2:

Originally Dip 5 Was Off	Change Dip 5 to On

Method 2: Control Software

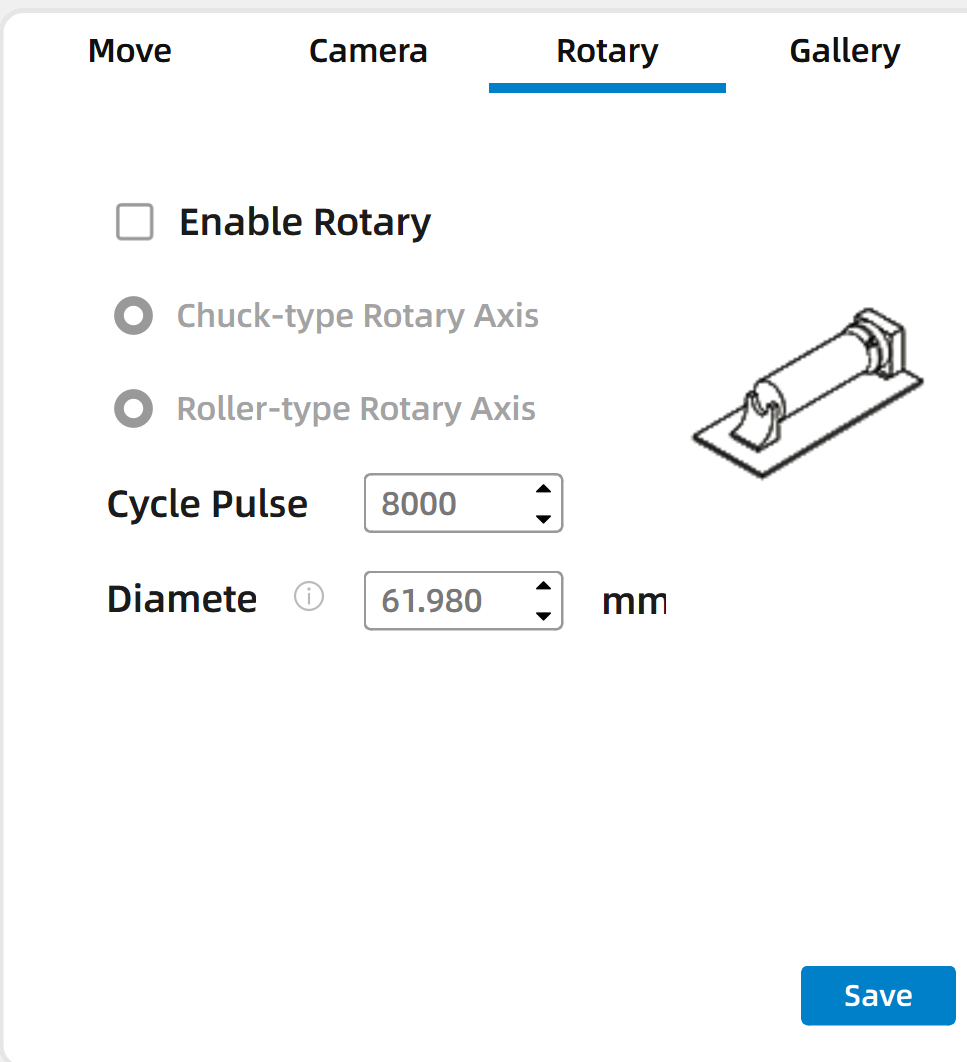

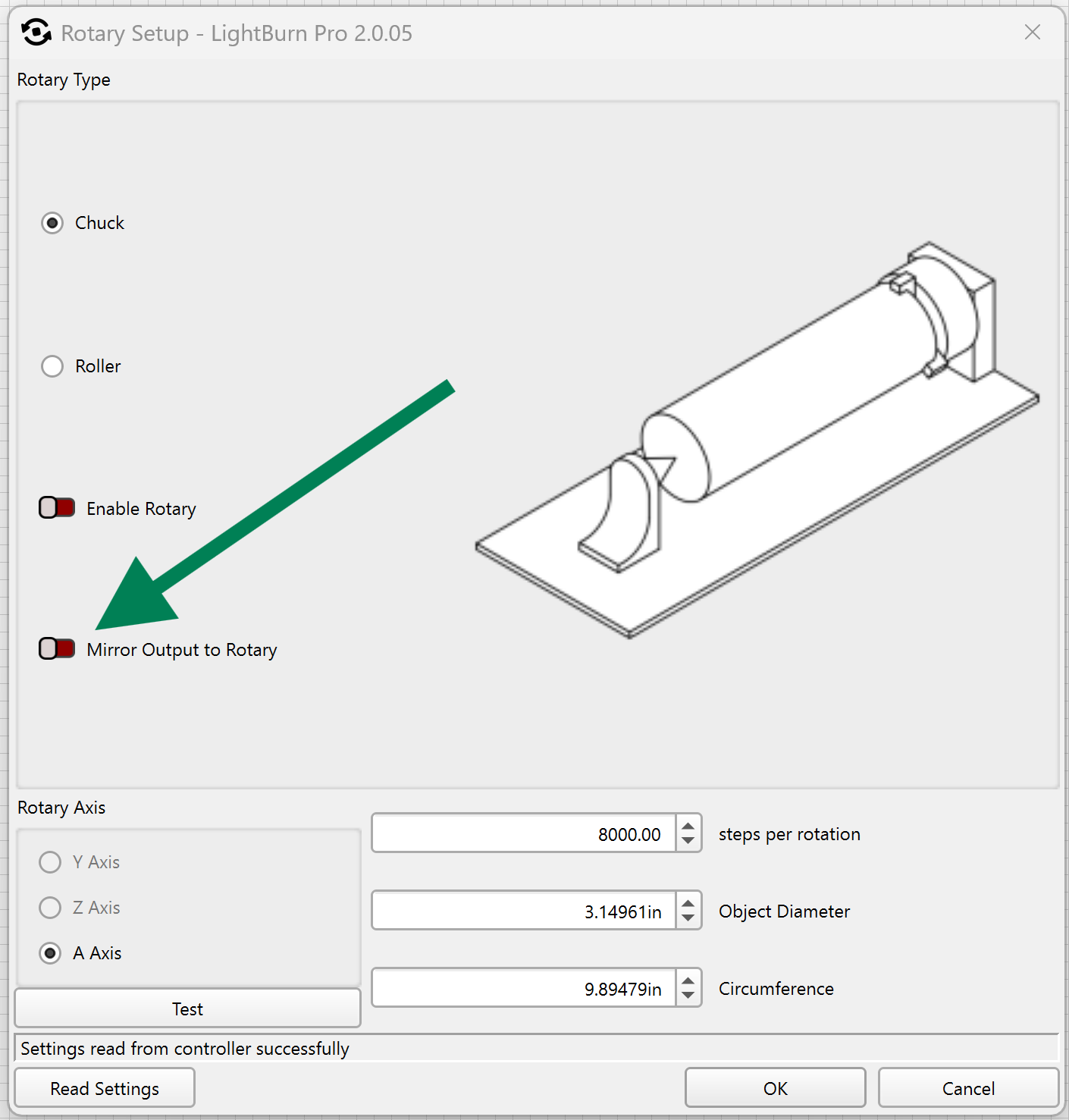

In the software, you will have the option to change directions (mirror). This will mirror the output and give the effect of a direction change.

Lightburn	Lasermaker
	Not yet implemented

Method 3: Physical Orientation

If you have the rotary installed with the motor to the left, you can install with the motor to the right instead or vice versa.
