How The Chuck Rotary Works
Preface: This article covers how a Chuck Rotary works with a Thunder Laser
Quick Start Videos:
Complete Guide:
The Chuck rotary is pretty basic to operate. You need to know the Steps per rotation of the chuck and then your objects Diameter\Circumference
Step Counts for Thunder Laser and Rotoboss Chucks

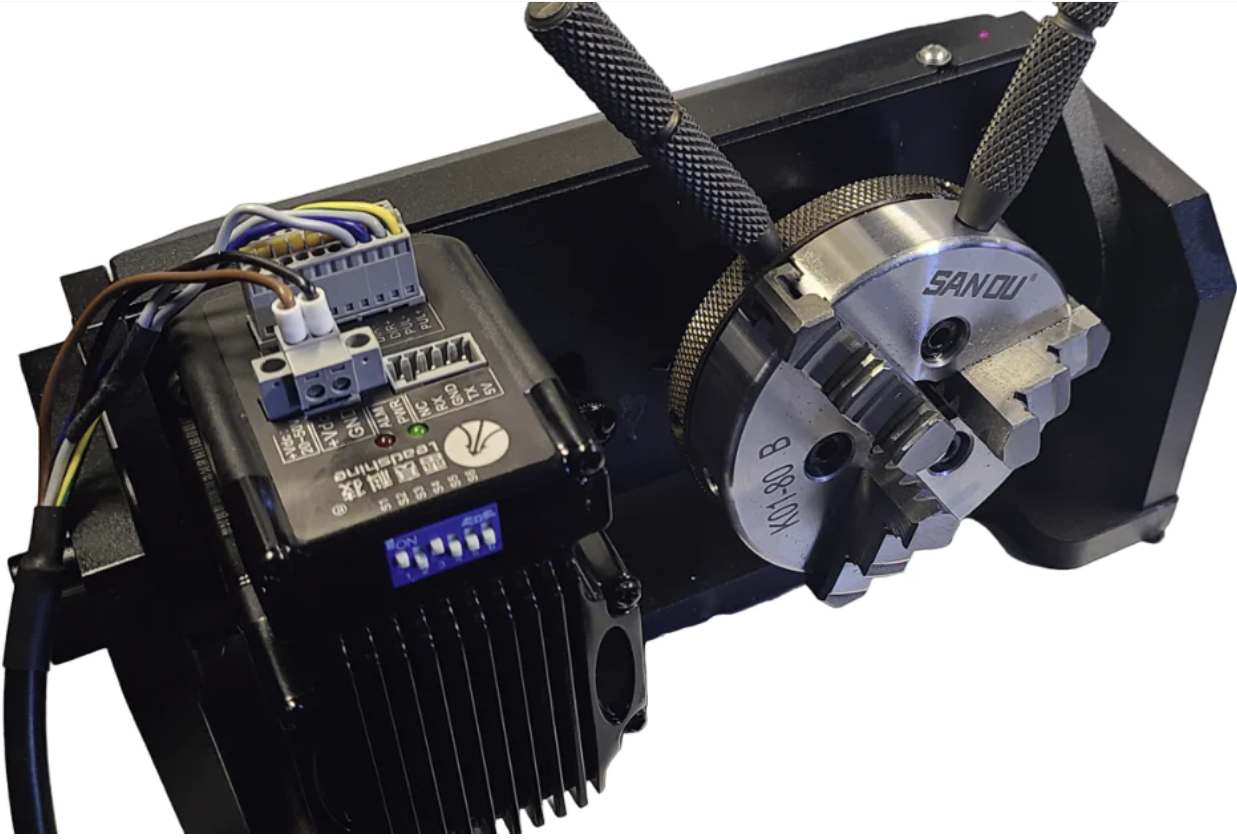

Chuck Description | Steps per Revolution | Picture of Chuck |
Thunder V1 Chuck | 12000 | |
Thunder V2 Chuck | 16000 | |
Thunder Aurora Chuck (no tail stock roller) | 12000 | |

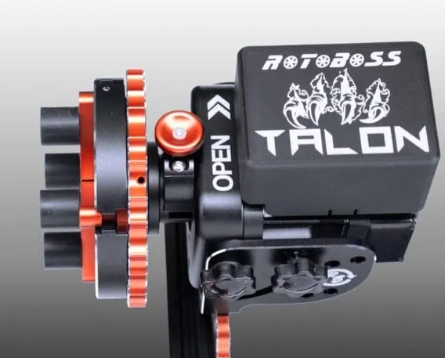

Rotoboss Talon | 8000 | |

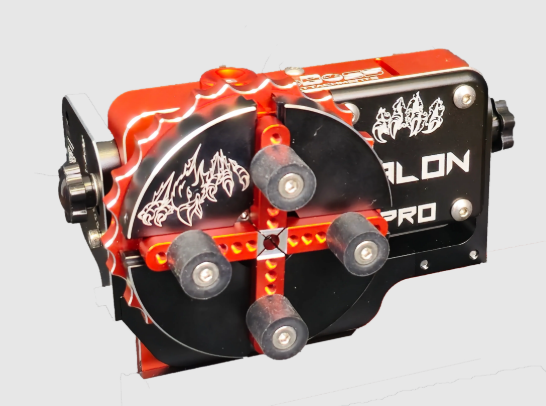

Rotoboss Talon Pro | 16400 (Note that Dip 5 can be used to change the direction so depending on how you install you may change Dip 5) |
Enter Steps and Object Diameter\Circumference:

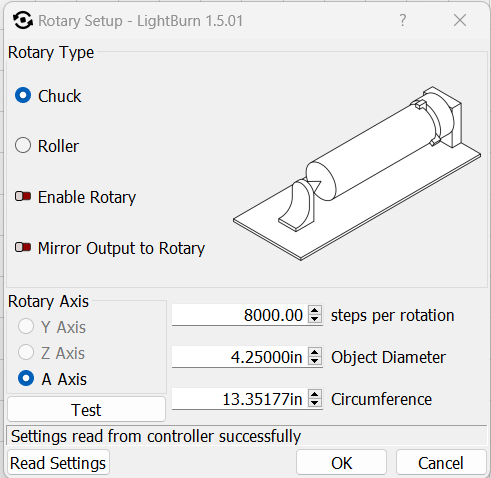

In Lightburn, go to the Rotary Setup window. Enter in the Steps and either the Diameter or Circumference. Lightburn will calculate the other measurement automatically.
In this example, a 4.25" diameter was entered and Lightburn calculated the 13.35177" circumference.
Reference Articles:
Related Articles
Aurora Chuck Rotary Dimensions
Preface: This article covers basic dimensions for the Aurora Chuck Rotary. All dimensions are approximate as they were hand measured.Chuck Rotary Setup and Usage in Lightburn (Nova/Odin)
Chuck Rotary Setup and Usage in Lightburn (Nova/Odin) The following article, supported videos and images will guide you to success with your Thunder Chuck Rotary. NOTE* There are a few style Chuck rotary available through Thunder Laser, Please check ...Chuck Rotary Setup and Usage in Lightburn (AURORA)
Preface: This article will guide you to success with your Thunder Chuck Rotary. NOTE* There are a few style Chuck rotary available through Thunder Laser, Please check HERE to verify yours! If different your steps may vary. Chuck Rotary Setup in ...Aurora Chuck Rotary Functions, Tech Information, Default Settings and Adjustments Overview
Preface: This article covers some of the basics of the Aurora Chuck Rotary Default Dip Switch Settings: 1 ON (Steps bit 1) 2 OFF (Steps bit 2) 3 ON (Steps bit 3) 4 OFF (Steps bit 4) 5 OFF (CW\CWW) 6 OFF (Test Mode) Dip Switch Settings and Steps ...Rotary Roller Diameter Calculation
Preface The Roller Rotary differs from a chuck rotary since it provides rotation by surface contact. A chuck rotary is locked into a degree of rotation of the chuck is a degree of rotation of the object and generally do no have adjustment for surface ...
