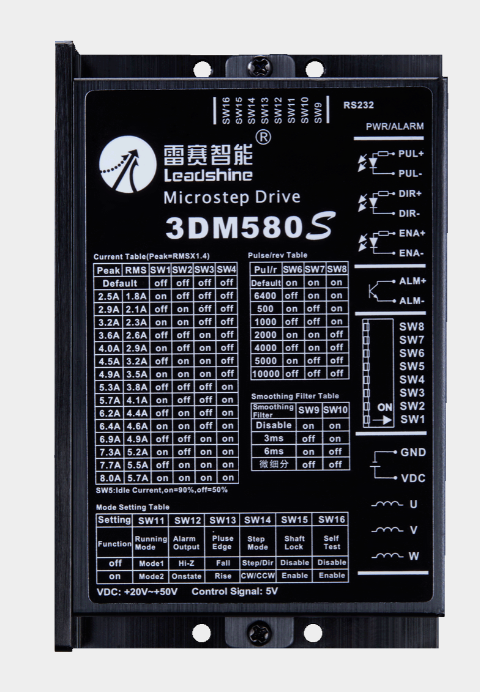

3DM580S 3 Phase Stepper Driver Technical Information
Preface: This is a collection of data for the Driver.
The DM series consists of stepper drives adopting Leadshine latest advanced stepper control technology. Those stepper drives are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 34 (model dependent). DM stepper drives are easy to configure and setup. Output current and micro step resolution can be simply set up via DIP switches.
| Model | 3DM580S |
| Series | DM |
| Command Source | PUL&DIR, CW&CCW |
| Operation Voltage (VDC) | 20-50 |
| Output Current (A, Peak) | 0.5-8.0A |
| Input Frequency (KHz, Max.) | 500 |
| Logical Voltage (VDC) | 5 or 24 |
| # of Inputs | 3 |
| # of Outputs | 1 |
| Characteristics | 3-phase motor |
