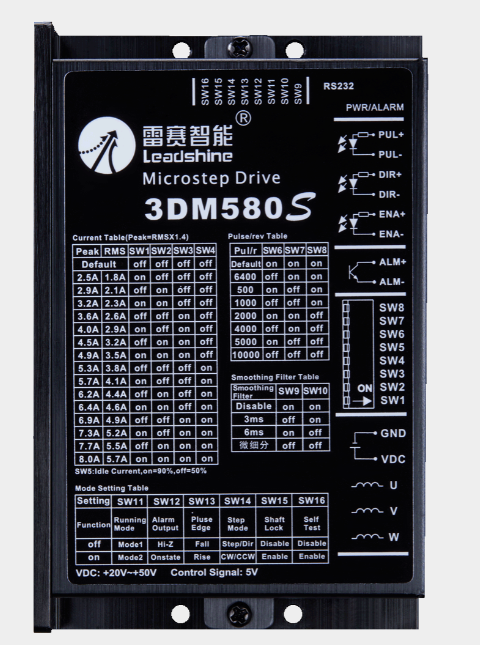

3DM580S Driver

3DM580S Driver

Preface: This article covers the driver information pulled from the OEM website




Step & direction (PUL/DIR) or CW/CCW (double pulse) control

● Suggested supply voltage 20-50 VDC, up to 74VDC

● 500KHz max pulse input frequency in duty-cycle 50%

● 8 micro-step resolutions of 200-10,000 via DIP switches, or 200-51,200 via software

● 16 output current settings of 2.1 -8.0A via DIP Switches, or 0.5-8.0A via software

● Configurable control command smoothing for reducing motor vibration
