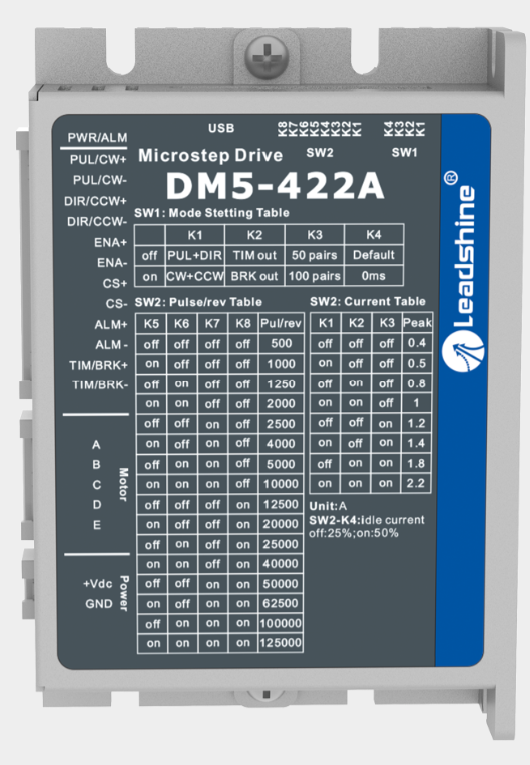

DM5-432A Driver
Preface: This is the bolt driver for machines from about 8-2024 and onward for the X and Y Axes
Voltage input range: 20~36VDC
Maximum current 3.2A
4 input signals: pulse, direction, enable,subdivision number setting method selection
2 output signals: supports alarm and sensor origin/brake
8 levels of current adjustable, 16 levels of subdivision adjustable
Model | DM5-432A |
Series | DM5 |
Command Source | PUL&DIR, CW&CCW |
Operation Voltage (VDC) | 20-36 |
Output Current (A, Peak) | 3.2 |
Input Frequency (KHz, Max.) | 1MHz |
Logical Voltage (VDC) | pulse direction signal level: 5V, digital input signal current: 10mA, other control signal input voltage: 12/24V
|
# of Inputs | 4 |
# of Outputs | 2 |
Characteristics | Standard |
