Preface: This article covers some suggested stand options for the BOLT Desktop Laser
Thunderbolt:

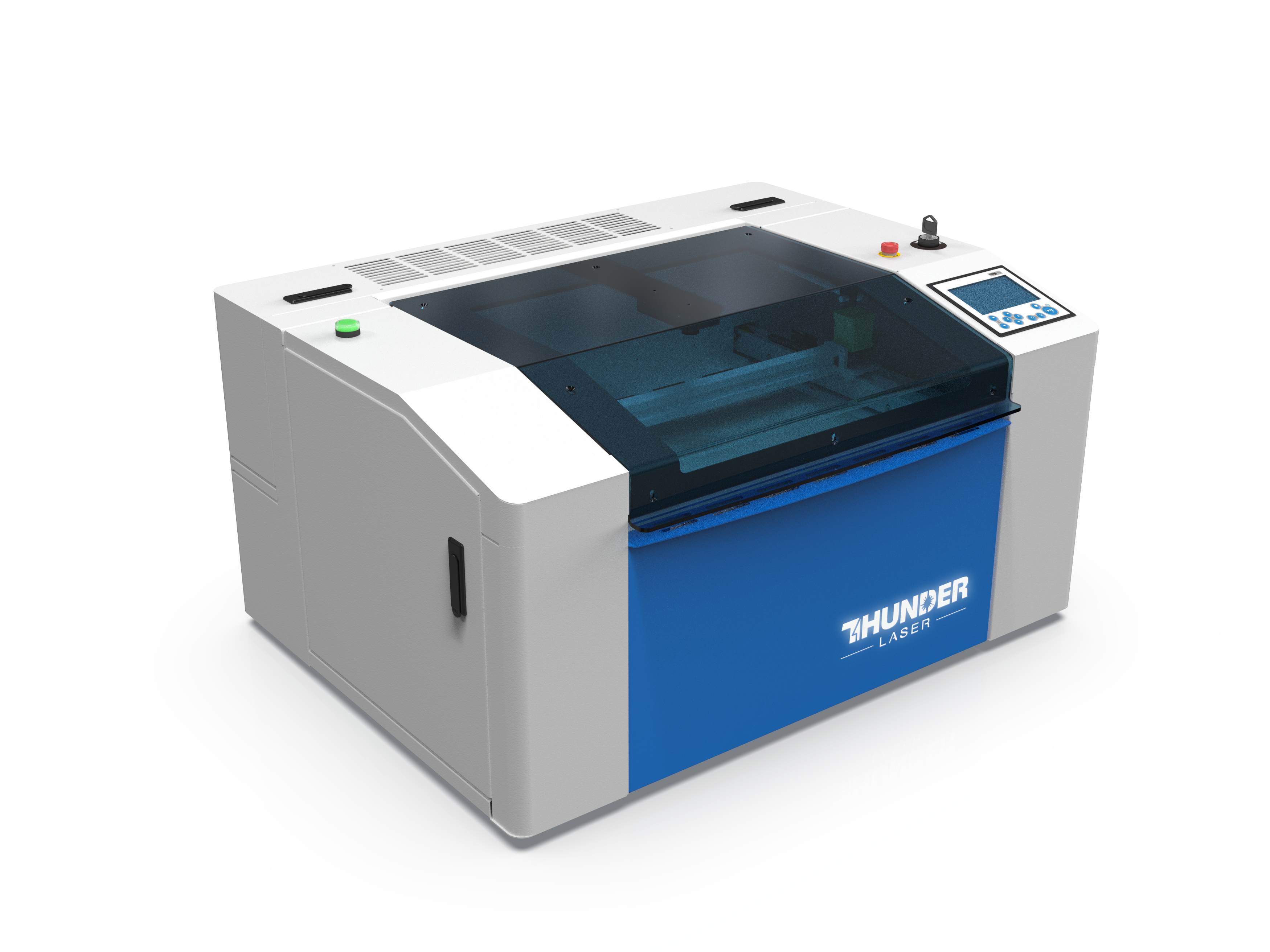

30w Desktop Laser with RF that does not come with a base.
Thunderbolt Housing Dimensions:

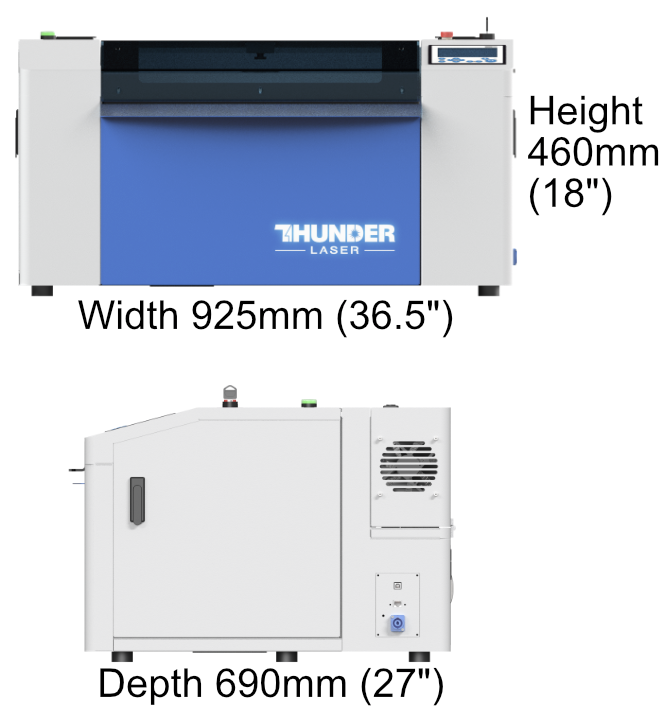

WxDxH: 925mm x 690mm x 460mm (36.5"x27"x18")
Weight: 77kg , ~170lb

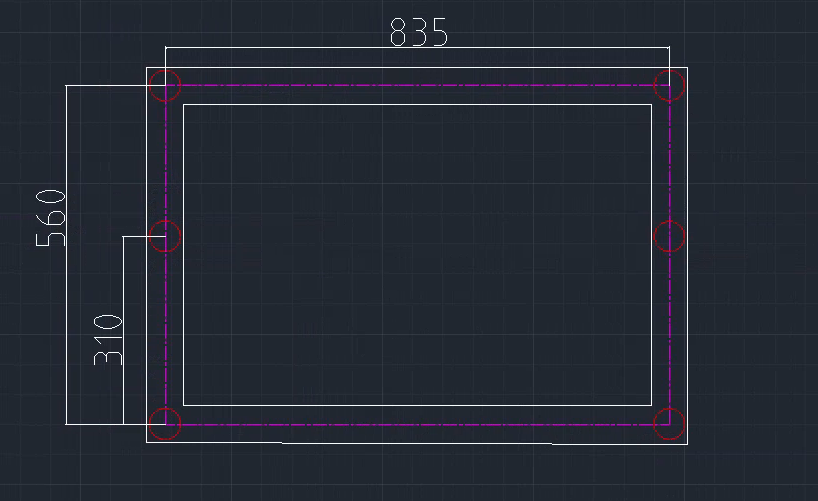

Feet Spacing: centers 835mm x 560mm (32.9" x 22") with ~50mm (2") diameter feet. Feet may add ~20mm (.8") to Height. Feet us a m6x1.0mm flat head bolt to attached to the machine base.

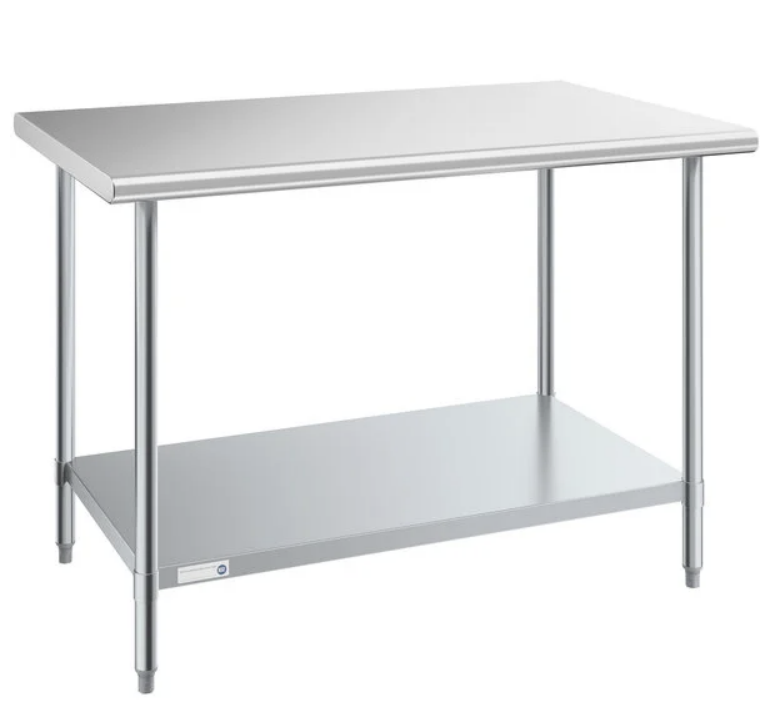

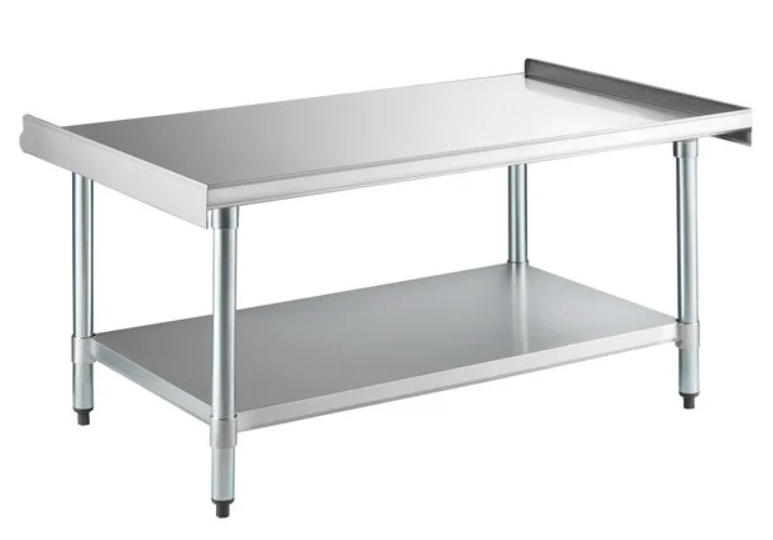

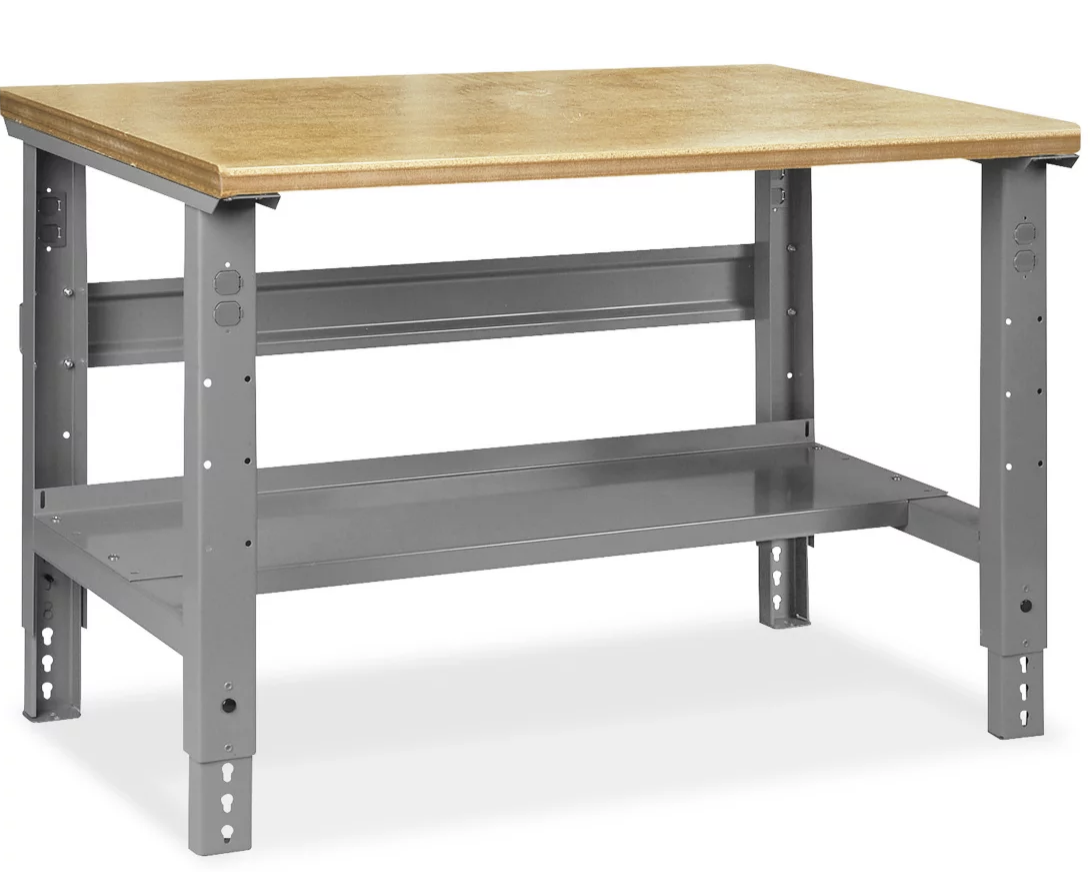

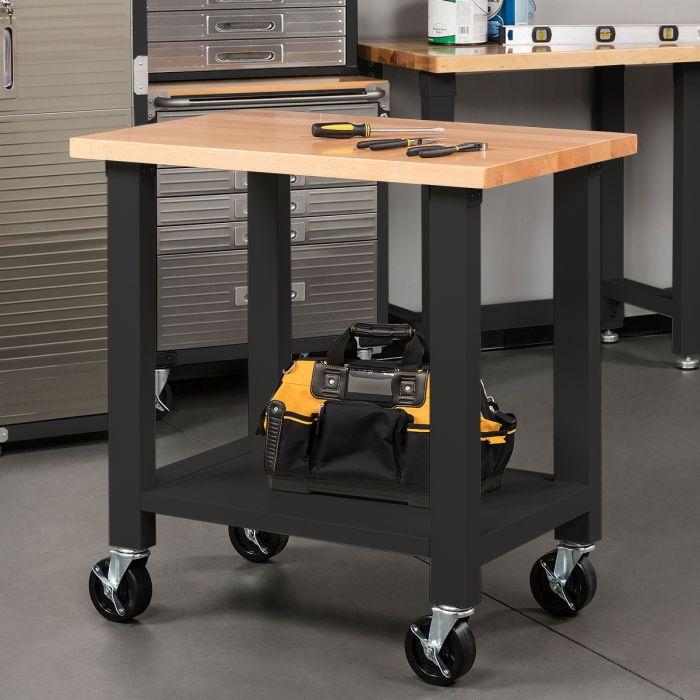

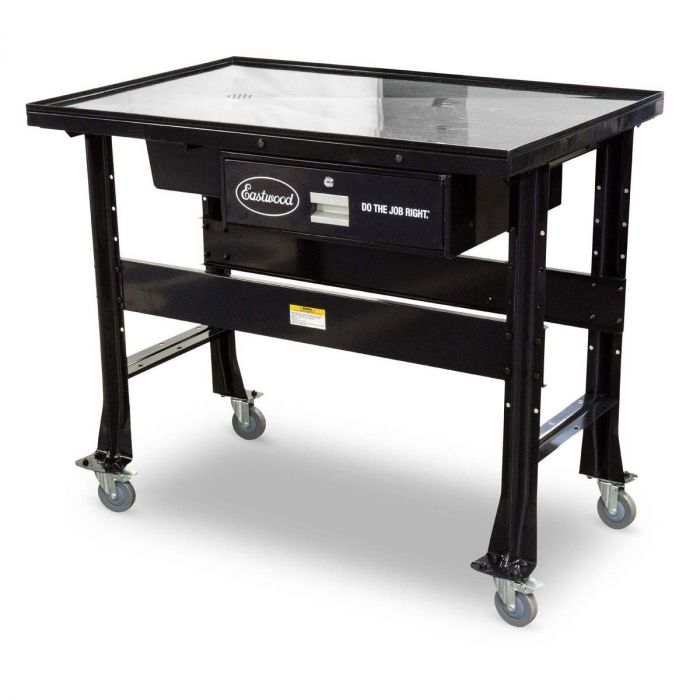

Potential Stand Options:
Considerations:

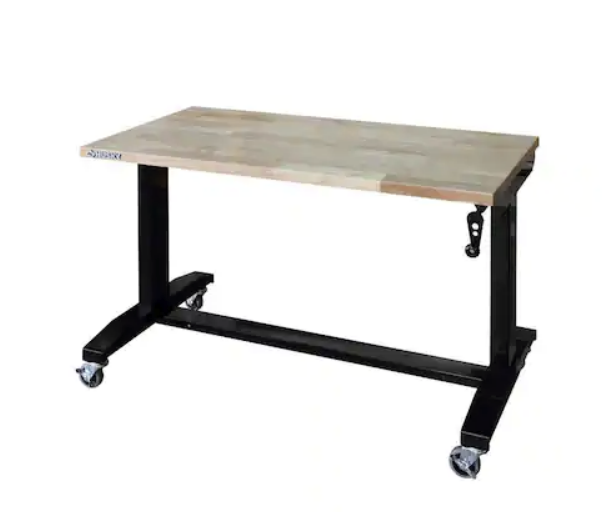

Adjustable stand height
Planned
height of top of Lid of Thunderbolt to match Odin 22 (Approx 42" to lid on Odin
22 which means the Bolt stand table height should be around 24-30")
Planned
height in comparison to some of the Nova 24 Stand Options ( Approx 53"
to top of Nova 24 with a 27" table would put the Thunderbolt Stand height at 35"
since the Bolt is 200mm shorter)
Storage
Casters\Fixed Feet
Cost
Working Space alongside the machine
Stand Load Rating
Custom Built:
Credit to Robert Kofoed of Computer Creationz for the design

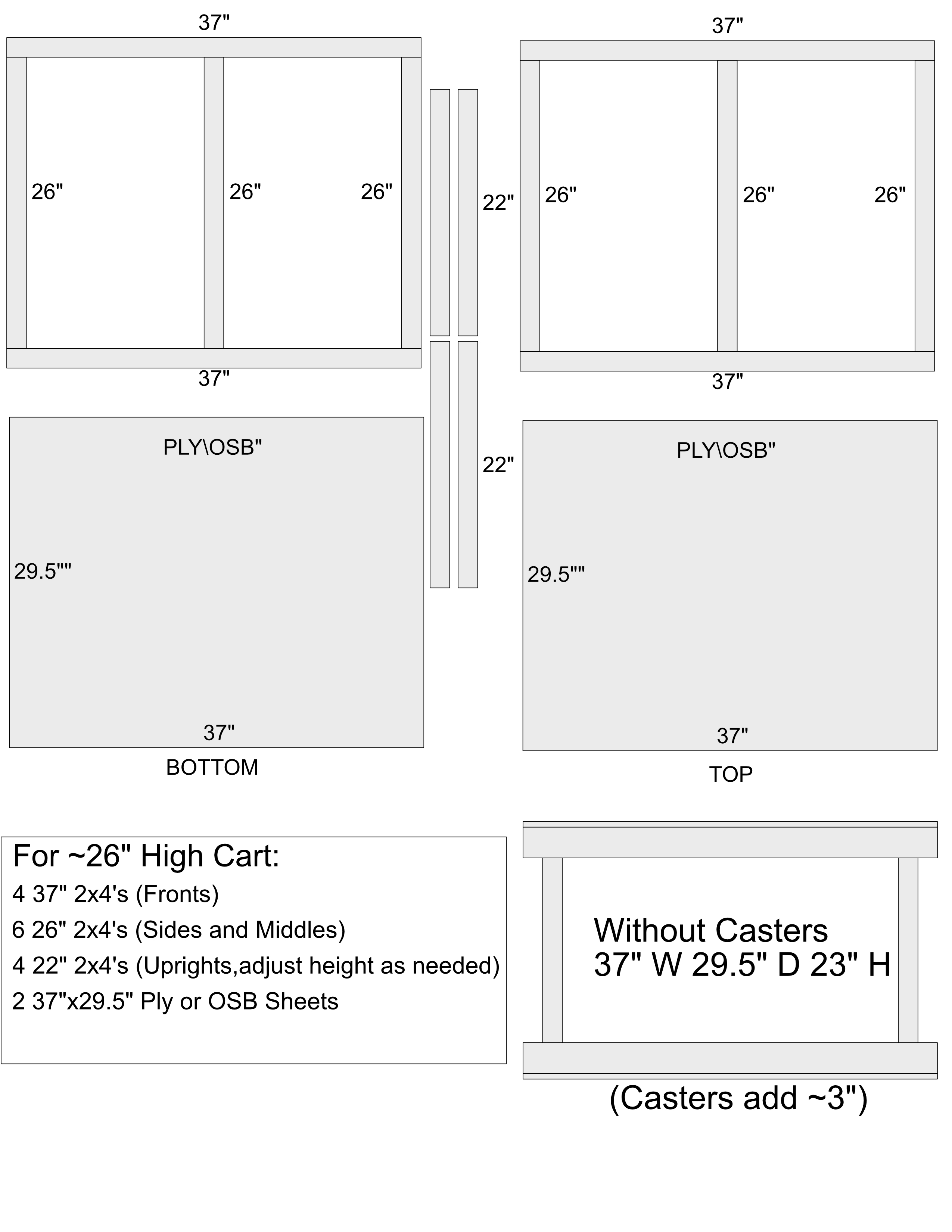

Dimensions 37” wide x 29” deep x 26” tall from ground to top of cart.
Approx Cost: $70 to $100
Material list:
5- 2”x4”x8’
Pine Boards
1 sheet of 1/2” ply or osb
4- 2” wheels (locking) with a 90 lb rating each Link
16- 1” lag screws that will fit the holes of the wheels
