Machine Dimensions
Preface: This article cover machine dimensions, crate sizes, and weights.

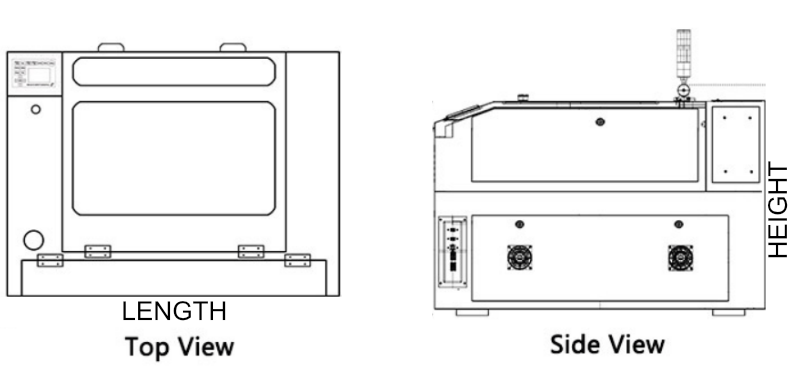

Nova 24* and Mini 60 Reference:

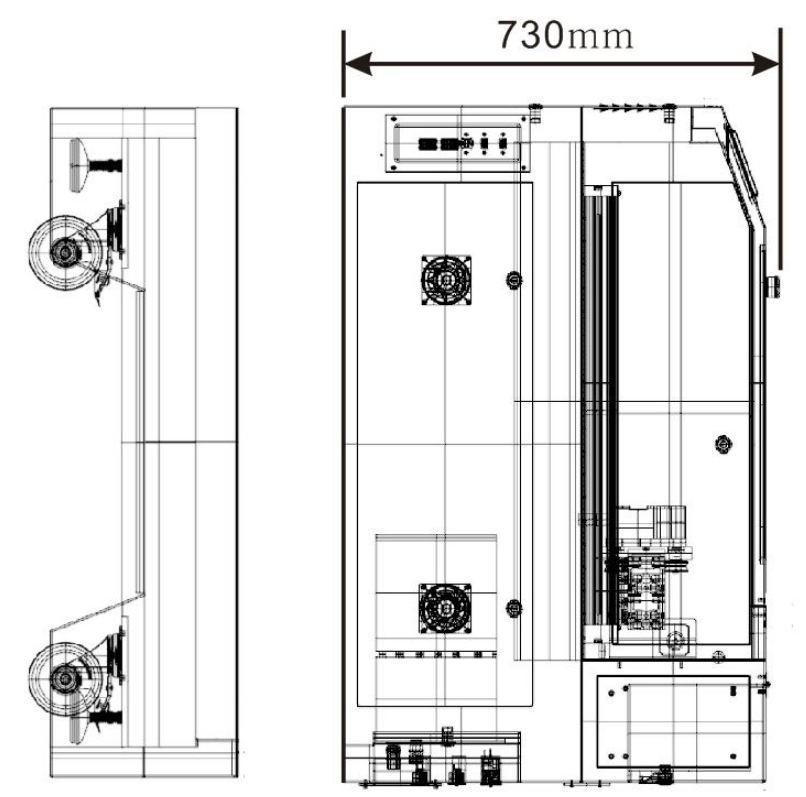

Nova 35, 51, and 63 Reference:

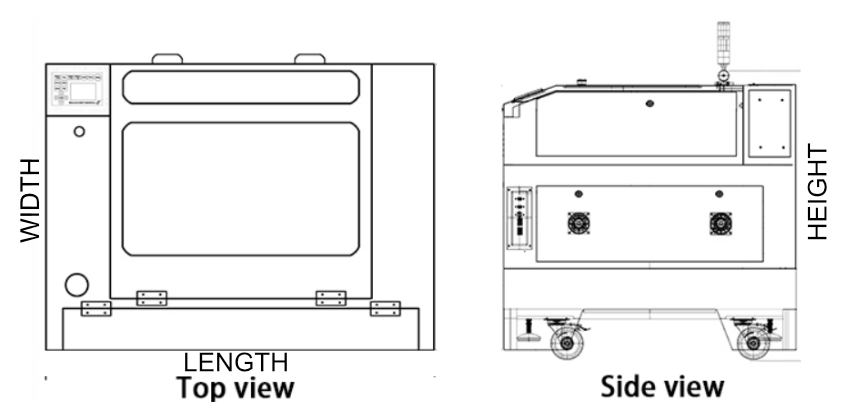

Machine Weights & Dimensions
Note that models will vary slightly based on the selected sources, the peak weight for a given model is shown. Dimensions are of the main machine body. Accessories may add to the overall size of the machine.
All Series
Nova
Nova Plus
Odin
Bolt
Aurora
All Series
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| NOVA 24* | 107cm (42.1in)* | 81cm (31.9in) | 61cm (24in) | 141kg (311LB) |
| NOVA 35-80 | 150cm (59.1in) | 110.5cm (43.5in) | 104cm (40.9in) | 311kg (686LB) |
NOVA 35-100* | 190cm (74.8in)* | 110.5cm (43.5in) | 104cm (40.9in) | 315kg (695LB) |
| NOVA 51 | 190cm (74.8in) | 140.5m (55.3in) | 104cm (40.9in) | 431kg (950LB) |
| NOVA 63 | 220cm (86.6in) | 150.5cm (59.3in) | 104cm (40.9in) | 471kg (1038LB) |
| ODIN 22 | 103cm (40in) | 86cm (34in) | 109cm (43in) | 125kg (276LB) |
ODIN 32 | 98.7cm (39in) | 128.4cm (51in) | 109cm (43in) | 167kg (368lb) |
NOVA 24-60 PLUS | 112cm (44.1in) | 86.5cm (34.1in) | 68.2cm (26.85) | TBD Est. 130kg |
NOVA 35-60 PLUS | 152cm (59.84in) | 115.2cm (45.35in) | 111.5cm (43.9in) | 273kg (602lb) |
| AURORA 8 v1.0 | 70.3cm (27.7in) | 43cm (17in) | 81.2cm (32in) | 71kg (157LB) |
AURORA 8 PRO v1.0 | 70.3cm (27.7in) | 43cm (17in) | 81.2cm (32in) | 72kg (159LB) |
AURORA v2.0 | 75.4cm (29.7in) | 43cm (17in) | 81.2cm (32in) | 93.7kg (206LB) |
Aurora Lite | 75.4cm (29.7in) | 43cm (17in) | 81.2cm (32in) | 72kg (160LB) |
Bolt | 91.5cm (36in) | 68.6cm (27in) | 45.7cm (18in) | 77kg (170LB) |
Bolt Plus | 91.5cm (36in) | 68.6cm (27in) | 45.7cm (18in) | 80kg( 177lb) |
Bolt Pro 22 | 105cm (42in) | 86cm (34in) | 110cm (44in) | 188kg (415lb) |
Bolt Pro 32 | 131cm(52in) | 99cm (39in) | 110cm (44in) | 233kg (514lb) |
*Has an extension. See example layouts article link down below for further details. Nova 24 is about ~57" long with the required extension, the Nova 35-100w extension add ~15" to the frame
Nova
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| NOVA 24* | 107cm (42.1in)* | 81cm (31.9in) | 61cm (24in) | 141kg (311LB) |
| NOVA 35-80 | 150cm (59.1in) | 110.5cm (43.5in) | 104cm (40.9in) | 311kg (686LB) |
NOVA 35-100* | 190cm (74.8in)* | 110.5cm (43.5in) | 104cm (40.9in) | 315kg (695LB) |
| NOVA 51 | 190cm (74.8in) | 140.5m (55.3in) | 104cm (40.9in) | 431kg (950LB) |
| NOVA 63 | 220cm (86.6in) | 150.5cm (59.3in) | 104cm (40.9in) | 471kg (1038LB) |
*Has an extension. See example layouts article link down below for further details. Nova 24 is about ~57" long with the required extension, the Nova 35-100w extension add ~15" to the frame
Nova Plus
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
NOVA 24-60 PLUS | 112cm (44.1in) | 86.5cm (34.1in) | 68.2cm (26.85) | TBD Est. 130kg |
NOVA 35-60 PLUS | 152cm (59.84in) | 115.2cm (45.35in) | 111.5cm (43.9in) | 273kg (602lb) |
Odin
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| ODIN 22 | 103cm (40in) | 86cm (34in) | 109cm (43in) | 125kg (276LB) |
| ODIN 32 | 98.7cm (39in) | 128.4cm (51in) | 19cm (43in) | 167kg (368LB) |
Bolt
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
Bolt | 91.5cm (36in) | 68.6cm (27in) | 45.7cm (18in) | 77kg (170LB) |
Bolt Plus | 91.5cm (36in) | 68.6cm (27in) | 45.7cm (18in) | 80kg( 177lb) |
Bolt Pro 22 | 105cm (42in) | 86cm (34in) | 110cm (44in) | 188kg (415lb) |
Bolt Pro 32 | 131cm(52in) | 99cm (39in) | 110cm (44in) | 233kg (514lb) |
Aurora
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| AURORA 8 v1.0 | 70.3cm (27.7in) | 43cm (17in) | 81.2cm (32in) | 71kg (157LB) |
AURORA 8 PRO v1.0 | 70.3cm (27.7in) | 43cm (17in) | 81.2cm (32in) | 72kg (159LB) |
AURORA v2.0 | 75.4cm (29.7in) | 43cm (17in) | 81.2cm (32in) | 93.7kg (206LB) |
Aurora Lite | 75.4cm (29.7in) | 43cm (17in) | 81.2cm (32in) | 72kg (160LB) |
Shipping Crate Weights & Dimensions
All Series
Nova
Nova Plus
Bolt
Aurora
All Series
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| NOVA 24 | 155cm (61in) | 91cm (36in) | 84cm (33in) | 226kg (498LB) |
| NOVA 35-80 | 200cm (79in) | 127cm (50in) | 127cm (50in) | 405kg (898LB) |
NOVA 35-100 | 200cm (79in) | 127cm (50in) | 127cm (50in) | 415kg (920LB) |
| NOVA 51-100 | 230cm (91in) | 155cm (61in) | 127cm (50in) | 569kg (1255LB) |
NOVA 51-130 | 230cm (91in) | 155cm (61in) | 127cm (50in) | 569kg (1255LB) |
| NOVA 63 | 230cm (91in) | 165cm (65in) | 127cm (50in) | 629kg (1387LB) |
NOVA 24-60 PLUS | 144cm (57in) | 94cm (37in) | 87cm (34in) | 215kg( 473lb) |
NOVA 35-60 PLUS | 184cm (72in) | 124cm (49in) | 127cm (50in) | 374kg (825lb) |
| Aurora Lite | 90cm (36in) | 58cm (23in) | 108cm (42in) | 88kg (194LB) |
| Aurora8-20w | 89cm (35in) | 58cm (23in) | 109cm (43in) | 109kg (240LB) |
Aurora8-50w | 89cm (35in) | 58cm (23in) | 109cm (43in) | 110.5kg (244LB) |
Aurora8-60WMopa | 89cm (35in) | 58cm (23in) | 109cm (43in) | 111kg (245LB) |
Aurora8-100WMopa | 89cm (35in) | 58cm (23in) | 109cm (43in) | 111kg (245LB) |
| Aurora8-5 UV | 89cm (35in) | 58cm (23in) | 109cm (43in) | 116kg (256LB) |
Bolt | 106cm (42in) | 85cm (34in) | 70cm (28in) | 101kg (223LB) |
| Bolt Plus | 106cm (42in) | 85cm (34in) | 70cm (28in) | 100kg (221lb) |
Bolt Pro 22 | 113cm (44.5in) | 100cm (39.5in) | 127cm (50in) | 253kg (558lb) |
Bolt Pro 32 | 140cm (55in) | 115cm (45in) | 127cm (50in) | 313kg (690lb) |
As of Jan 7th, 2025
Nova
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| NOVA 24 | 155cm (61in) | 91cm (36in) | 84cm (33in) | 226kg (498LB) |
| NOVA 35-80 | 200cm (79in) | 127cm (50in) | 127cm (50in) | 405kg (898LB) |
NOVA 35-100 | 200cm (79in) | 127cm (50in) | 127cm (50in) | 415kg (920LB) |
| NOVA 51-100 | 230cm (91in) | 155cm (61in) | 127cm (50in) | 569kg (1255LB) |
NOVA 51-130 | 230cm (91in) | 155cm (61in) | 127cm (50in) | 569kg (1255LB) |
| NOVA 63 | 230cm (91in) | 165cm (65in) | 127cm (50in) | 629kg (1387LB) |
As of Jan 7th, 2025
Nova Plus
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
NOVA 24-60 PLUS | 144cm (57in) | 94cm (37in) | 87cm (34in) | 215kg( 473lb) |
NOVA 35-60 PLUS | 184cm (72in) | 124cm (49in) | 127cm (50in) | 374kg (825lb) |
As of Jan 7th, 2025
Bolt
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
Bolt | 106cm (42in) | 85cm (34in) | 70cm (28in) | 101kg (223LB) |
| Bolt Plus | 106cm (42in) | 85cm (34in) | 70cm (28in) | 100kg (221lb) |
Bolt Pro 22 | 113cm (44.5in) | 100cm (39.5in) | 127cm (50in) | 253kg (558lb) |
Bolt Pro 32 | 140cm (55in) | 115cm (45in) | 127cm (50in) | 313kg (690lb) |
As of Jan 7th, 2025
Aurora
MODEL | LENGTH CM (IN) | WIDTH CM (IN) | HEIGHT CM (IN) | WEIGHT KG (LB) |
| Aurora Lite | 90cm (36in) | 58cm (23in) | 108cm (42in) | 88kg (194LB) |
| Aurora8-20w | 89cm (35in) | 58cm (23in) | 109cm (43in) | 109kg (240LB) |
Aurora8-50w | 89cm (35in) | 58cm (23in) | 109cm (43in) | 110.5kg (244LB) |
Aurora8-60WMopa | 89cm (35in) | 58cm (23in) | 109cm (43in) | 111kg (245LB) |
Aurora8-100WMopa | 89cm (35in) | 58cm (23in) | 109cm (43in) | 111kg (245LB) |
| Aurora8-5 UV | 89cm (35in) | 58cm (23in) | 109cm (43in) | 116kg (256LB) |
As of Jan 7th, 2025
Measurements without the base (Nova 35, 51, and 63)
MACHINE BASE WEIGHTS
Model | Weight kg (LBS) |
Nova 35 | 40kg (89LBS) |
Nova 51 | 55kg (122LBS) |
Nova 63 | 84kg (186LBS) |
| Odin 22/Bolt Pro 22 | 53kg (117LBS) |
Odin 32/Bolt Pro 32 | 67kg (148LBS) |
As of 11-18-2024
All nova series machines will fit through a standard doorway: Here is howHoneycomb Bypass Table Height for Pass-through:
Height will vary when using leveling feet and floor slope.
Model | Pass-through Height |
Nova 24 | - |
Nova 35 | 25-5/8" +-1" |
Nova 51 | 25-5/8" +-1" |
Nova 63 | 30-1/" +-1" |
Example Layouts:
Related Articles
Example Layouts for Work Space Considerations For Nova Laser Machines
The drawings a done graphically and may not be to scale. Use the measurements accompanied by arrows and devices. You should also allow for working space in front of the machine and for any additional peripherals you add. You should leave room on all ...Aurora Series Dimensions & Weight
AURORA Series Aurora 8 & Aurora 8-Pro Fiber Weight 232LB (105kg) V1 Reference Articles: Machine Dimensions Aurora Series Unified User's ManualAurora Chuck Rotary Dimensions
Preface: This article covers basic dimensions for the Aurora Chuck Rotary. All dimensions are approximate as they were hand measured.Odin Series Dimensions & Weight
ODIN Series Weights & Dimensions ODIN 22 Weight 441LB (200kg) ODIN 32 Weight 569LB (258kg)ThunderBolt Desktop Machine 3rd Party Stand and Base Options
Preface: This article covers some suggested stand options for the BOLT Desktop Laser Thunderbolt: 30w Desktop Laser with RF that does not come with a base. Thunderbolt Housing Dimensions: WxDxH: 925mm x 690mm x 460mm (36.5"x27"x18") Weight: 77kg , ...
