Example Layouts for Work Space Considerations For Nova and Nova Plus Laser Machines

Example Layouts for Work Space Considerations For Nova and Nova Plus Laser Machines


Info
The drawings a done graphically and may not be to scale. Use the measurements accompanied by arrows and devices. You should also allow for working space in front of the machine and for any additional peripherals you add. You should leave room on all sides for access to open the doors and perform work, 3' minimum. For the Nova 35,51 and 63...consider the vertical clearance from floor to opened Lid to be ~70", for the Nova 24 it will vary based on the stand used.


Nova Series

Nova 24
Nova 35-80W
Nova 35-100w
Nova 51
Nova 63
Nova 24
Info
All Nova 24's Have a tube extension

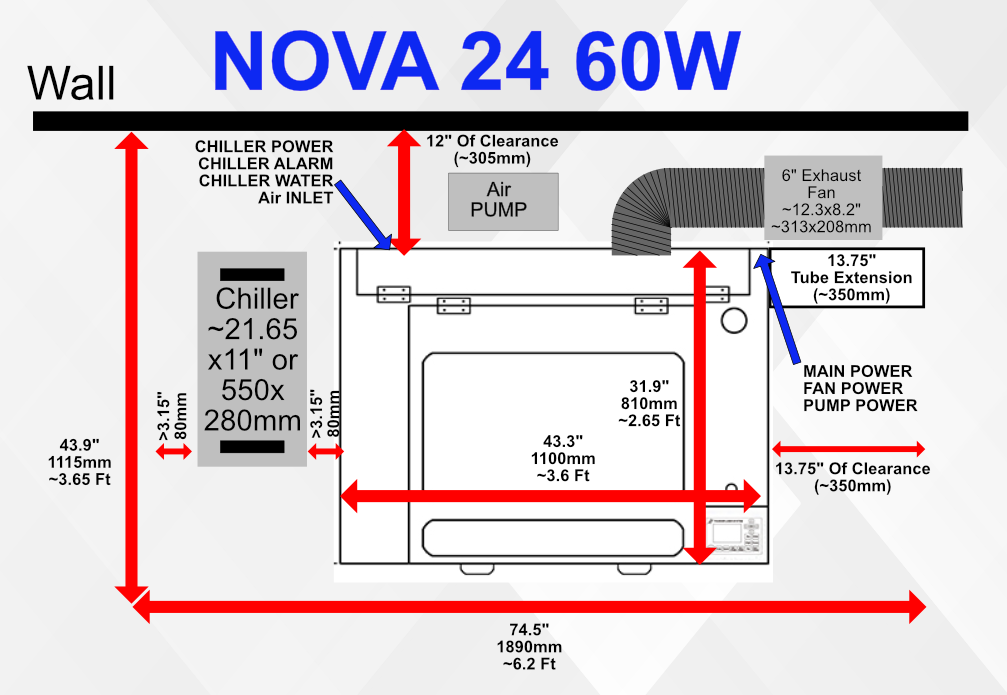

Machine minimum space of about 6.2ft x 3.65ft (Note that with a custom stand and parts, you can locate the chiller to the side or under the machine to save space)
Nova 35-80W
Info
No Extension for 80W

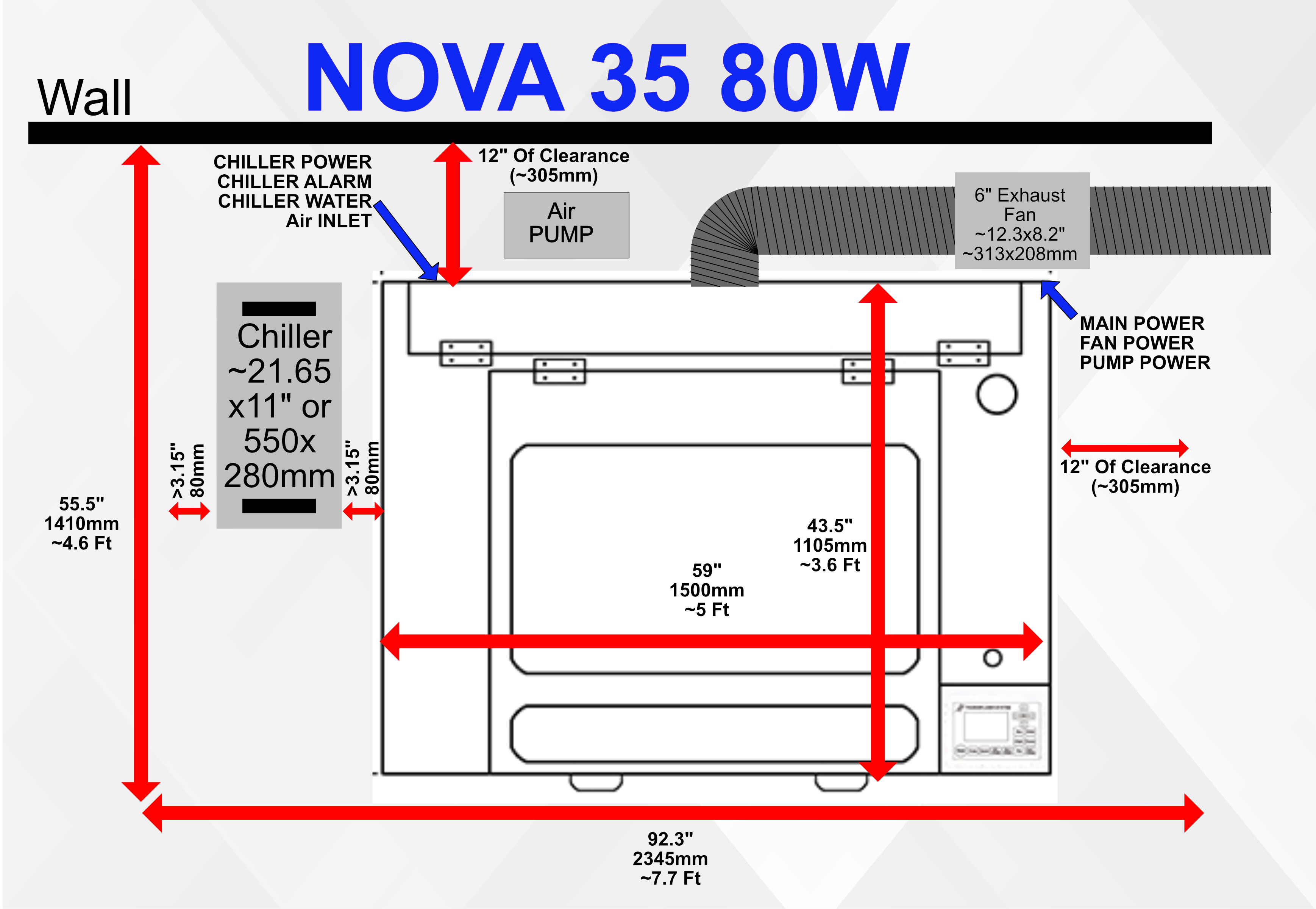

Machine minimum space of about 7.7 ft x 4.6ft


Nova 35-100w
Machine minimum space of about 8ft x 4.6ft (Note that with a Chiller Extension kit you can move the chiller to the right under the tube extension to save space)

Nova 51

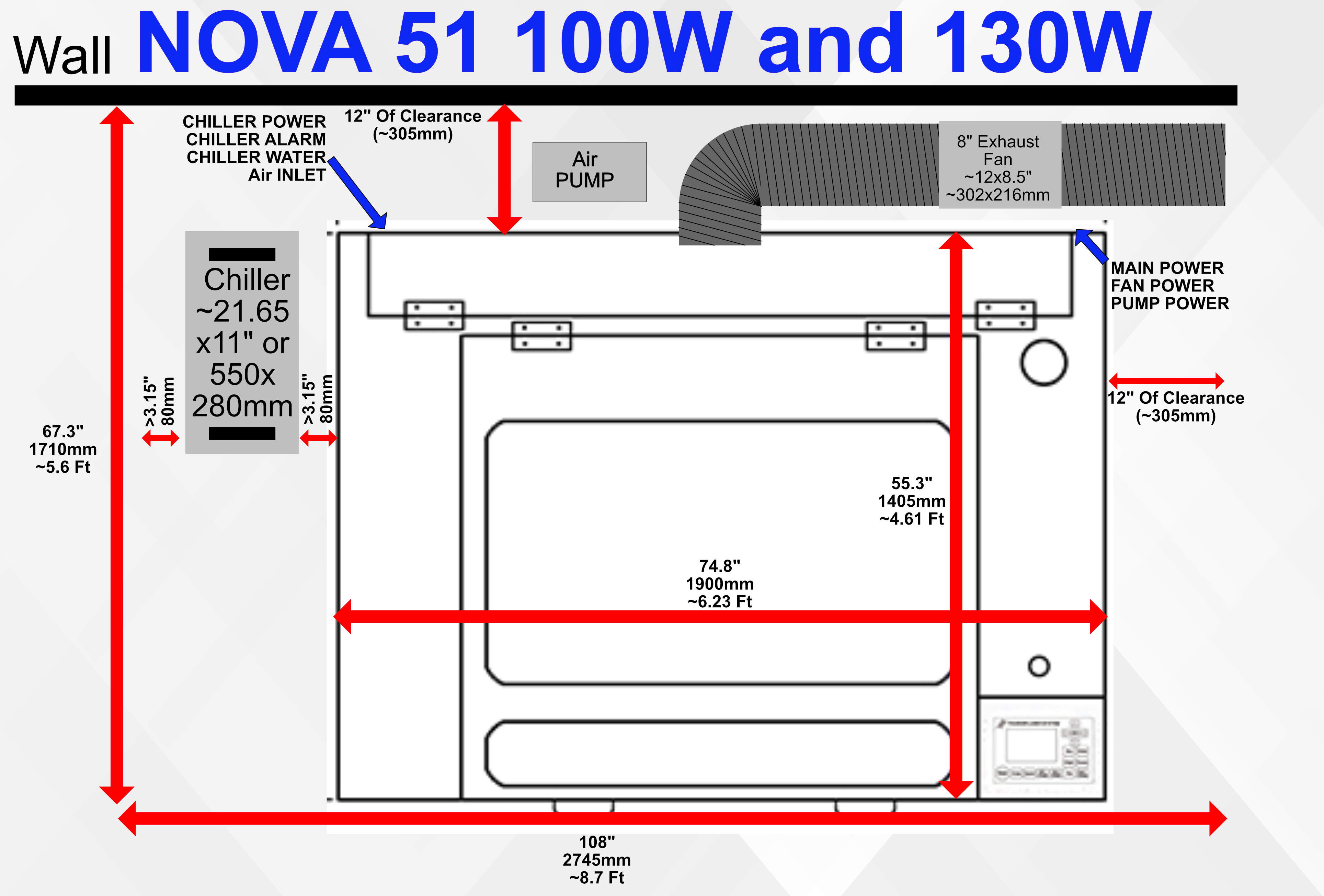

Machine minimum space of about 8.7ft x 5.6ft



Nova 63

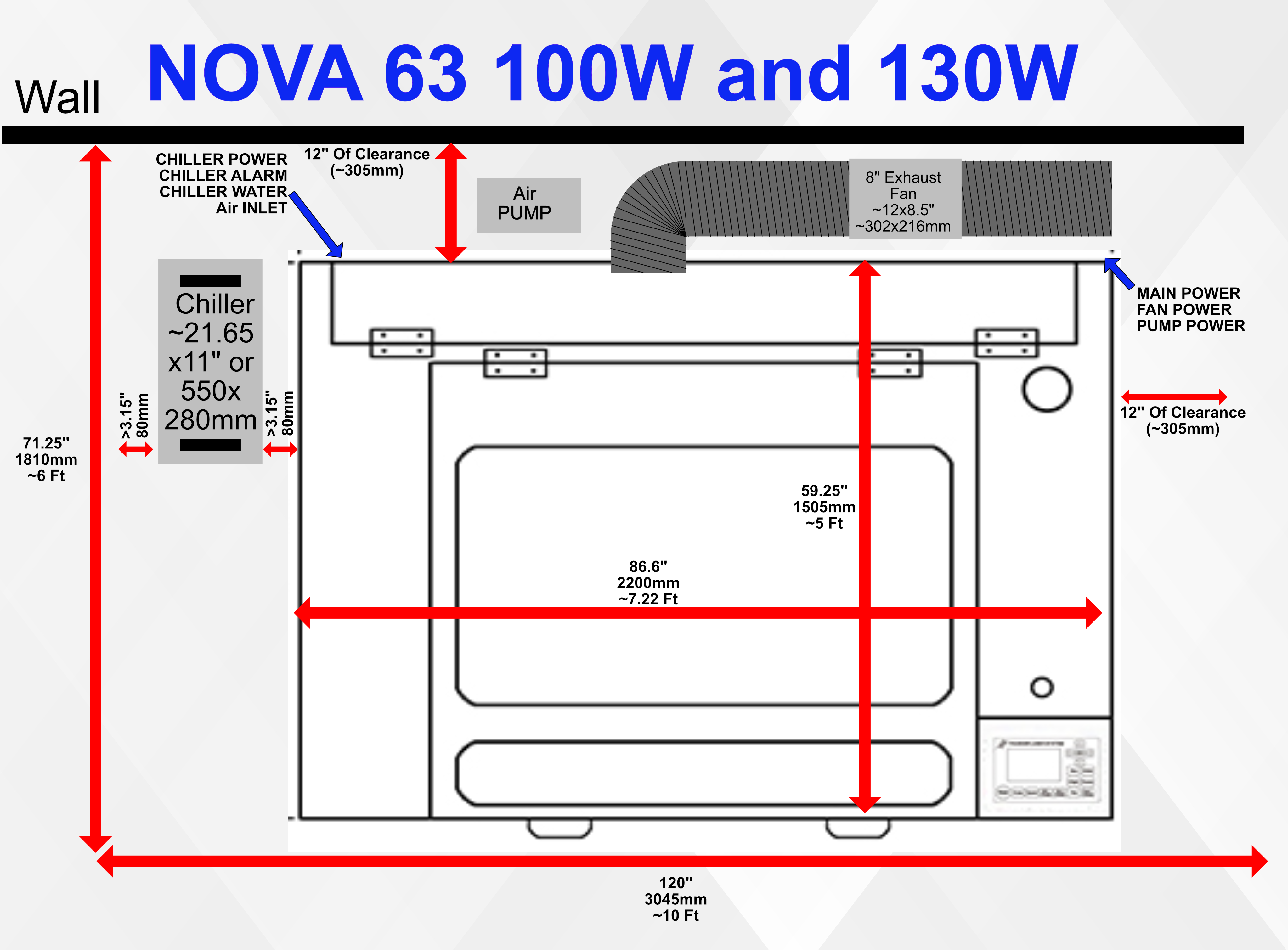

Overall Space Required Approximately: 10ft x 6ft




Nova Plus Series

Tentative data for the Nova Plus series, information is subject to change.
Nova 24 Plus
Nova 35 Plus
Nova 51 Plus
Nova 24 Plus
Machine minimum space of about 3.84ft by 5.67ft
​
​
Nova 35 Plus
Machine minimum space of about 4.78ft by 7ft
​
​
Nova 51 Plus
Machine minimum space of about 5.76ft x 8.3ft
