Aurora vs Nova and Odin Rotary Port Wiring
Preface: This article is in progress and should not be used for any wiring or troubleshooting. There is a high level of information contained in this article.
Depending on which machine and control board you have, the wiring for your rotary may vary. Nova (7pin) , Odin, Bolt and Aurora 2.0 all share the same rotary wiring. The Aurora 1.0 wiring was Gnd Reference signals, so some wire changes have to be made for the same Rotary to work on the different machines.

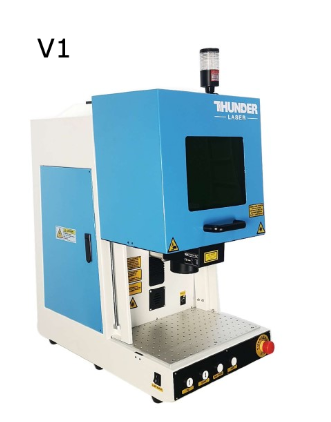

Aurora 1.0 (Square Door, Laser source on Right Side):

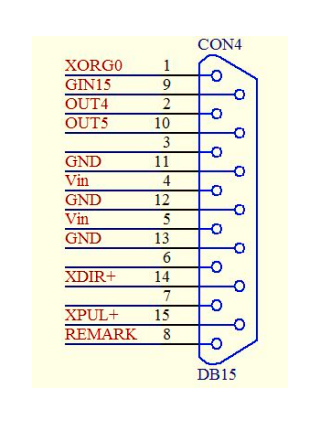

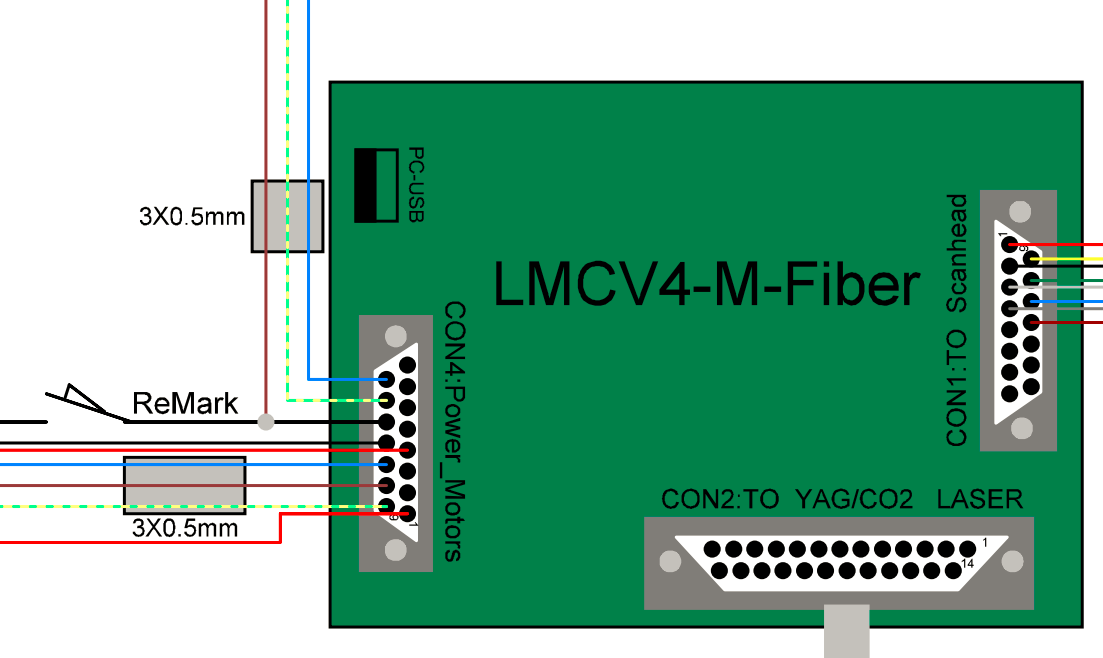

LMCV4-M-Fiber Con4 Pinout for Non Pro Models

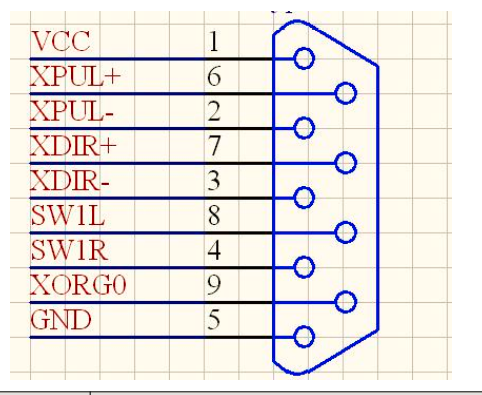

DLC2-M4 Control Board for Pro models, note that the rotary uses the A-Axis and the manual says that the X,Y,Z and A axis connectors are all the same, just different Axis designation

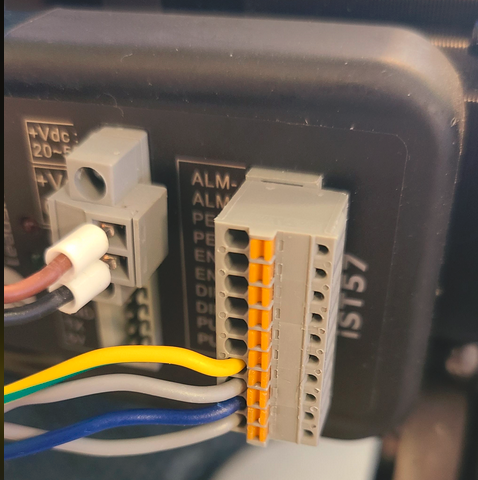

Wiring to make the Rotoboss Roller Rotary work on an Aurora 1.0:
Dir- - Grey Gnd
DiR+ -Blue
Pul- - Grey Gnd
Pul+ -Yellow\Green

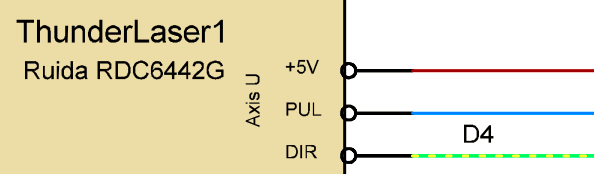

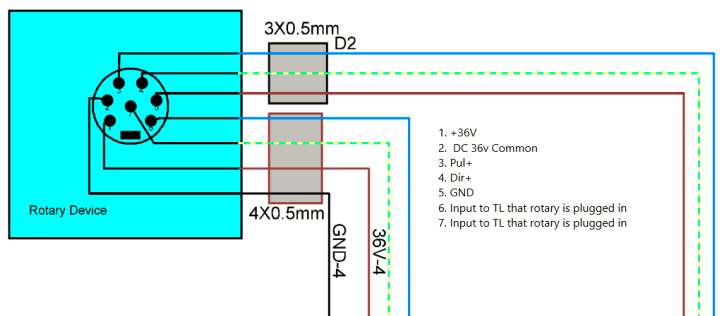

Nova (7pin)\Odin, Bolt and Aurora 2.0:

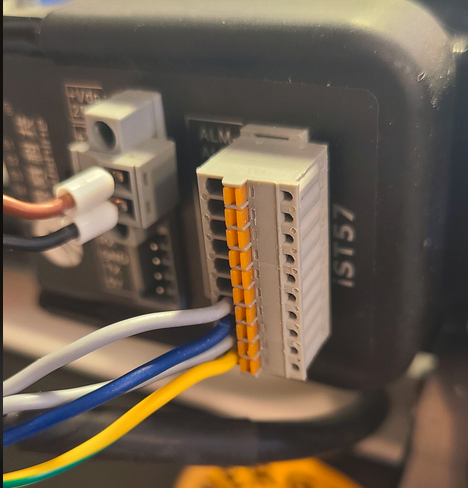

Wiring to make the Rotoboss Roller Rotary work on a Nova(7pin), Odin or Bolt:
Dir- - Yellow\Green
Dir+ -Grey 5v
Pul- - Blue
Pul+ -Grey 5v
