ODIN 22 MACHINE PICTURES FROM 2022 REFERNCE IMAGES

ODIN 22 MACHINE PICTURES FROM 2022 REFERNCE IMAGES

This article provides pictures of the internal components of a 2022 Model of an ODIN 22. Your actual pictures may vary.

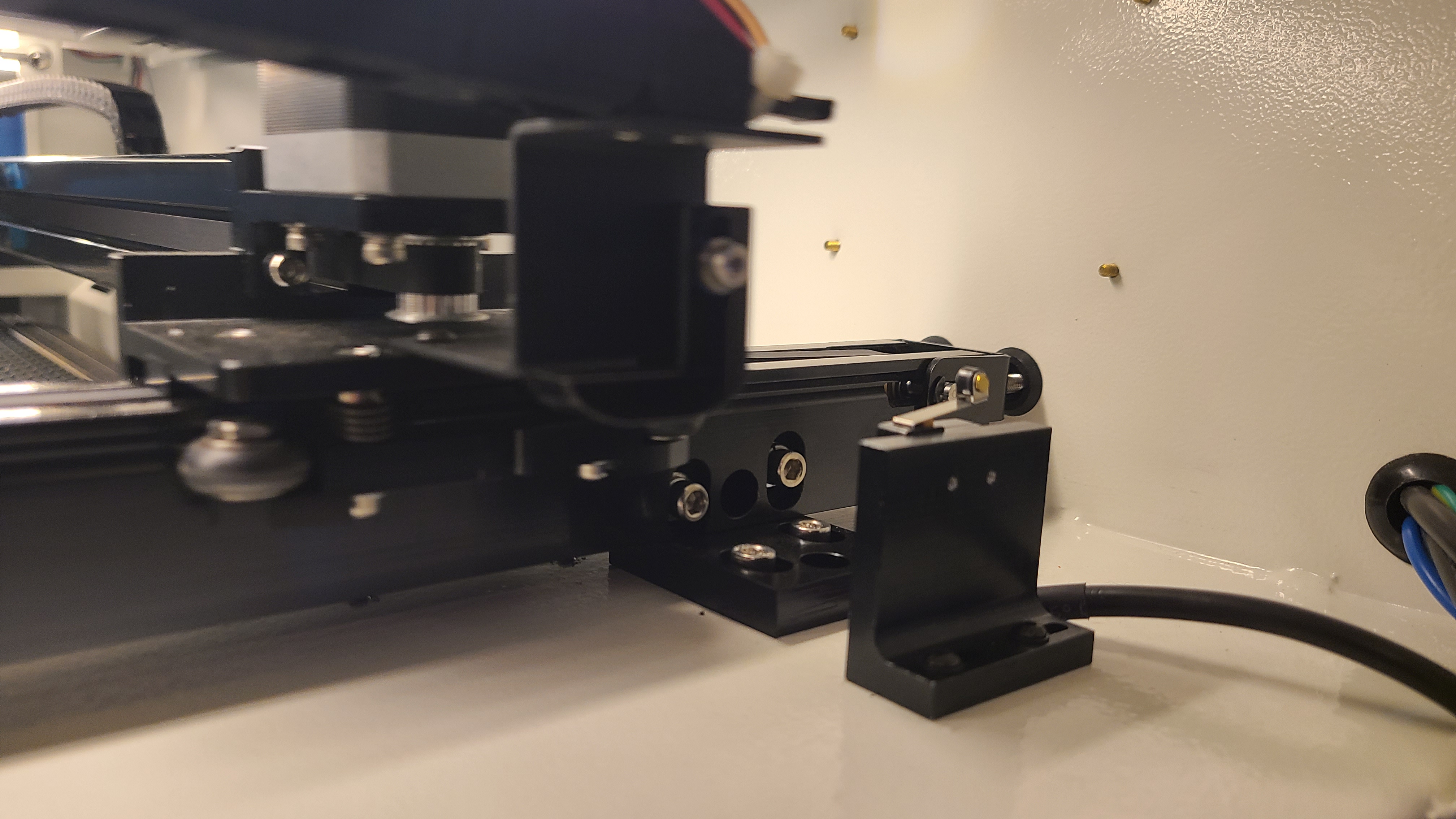

Odin Y Axis Home Sensor

ODIN Y Axis Home Sensor
ODIN Y AXIS HOME SENSOR MADE
ODIN Y AXIS HOME SENSOR

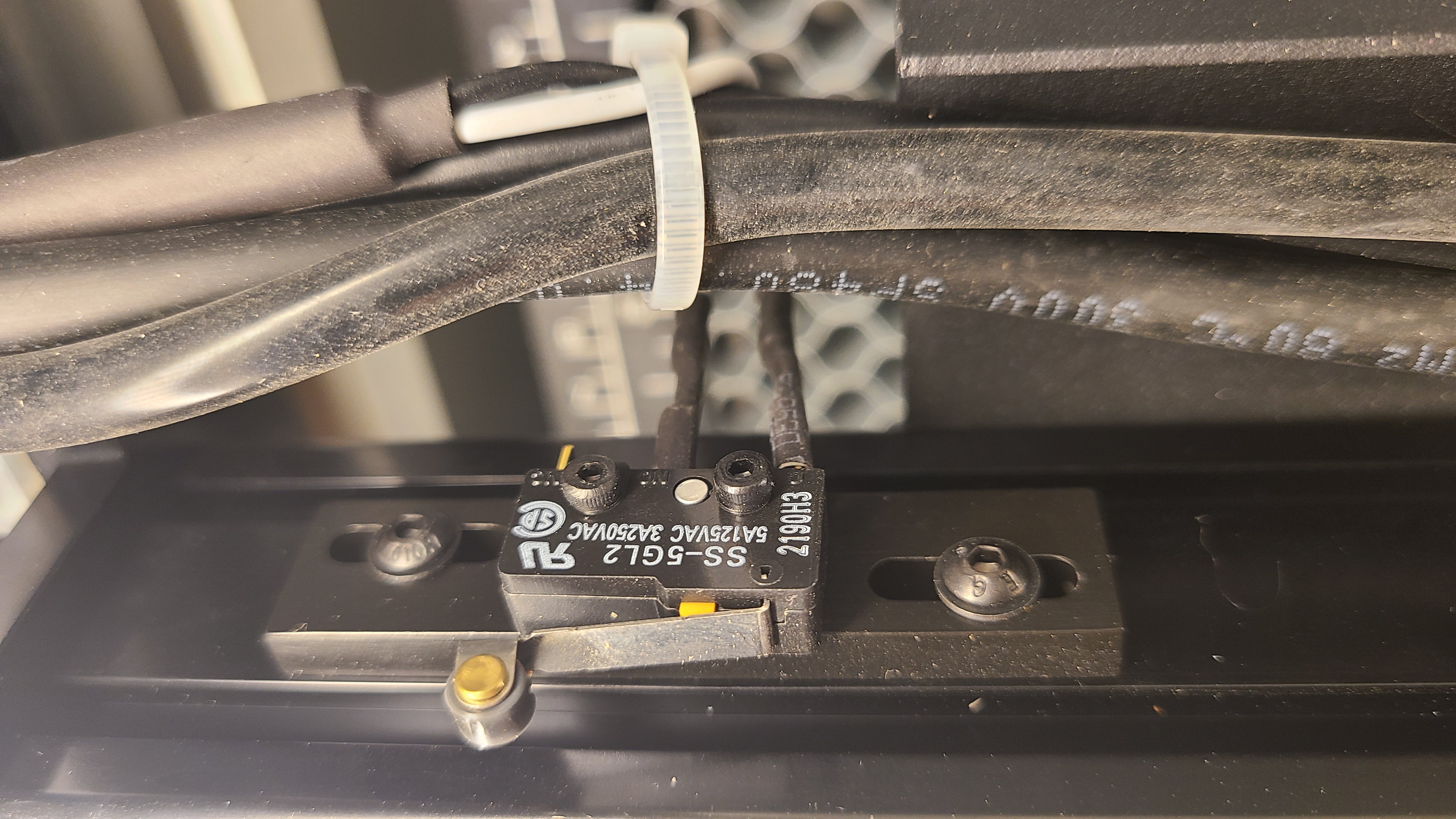

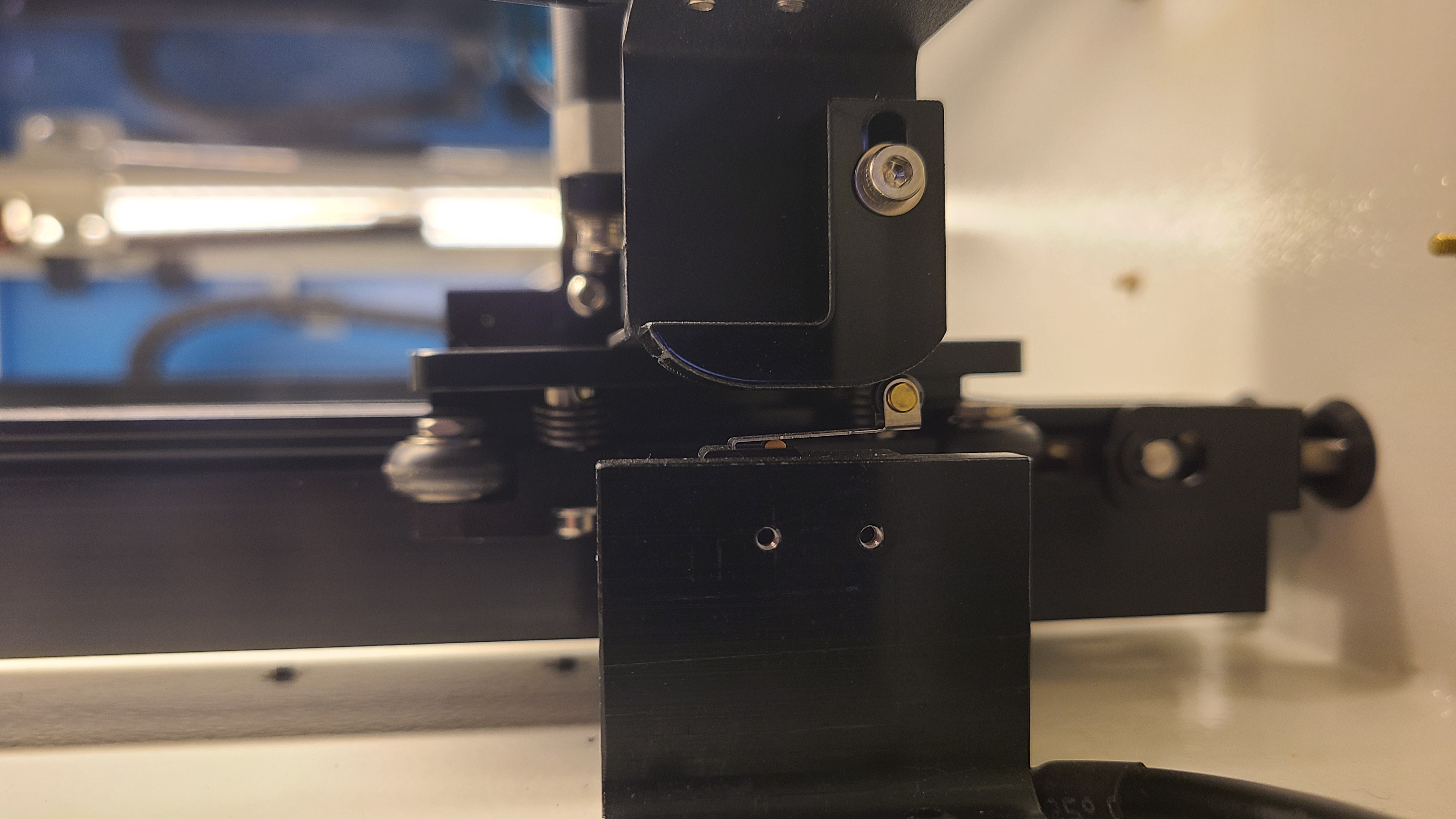

ODIN X Axis Home Sensor

ODIN X AXIS HOME SENSOR



ELECTRICAL CABINET ON THE RIGHT HAND SIDE

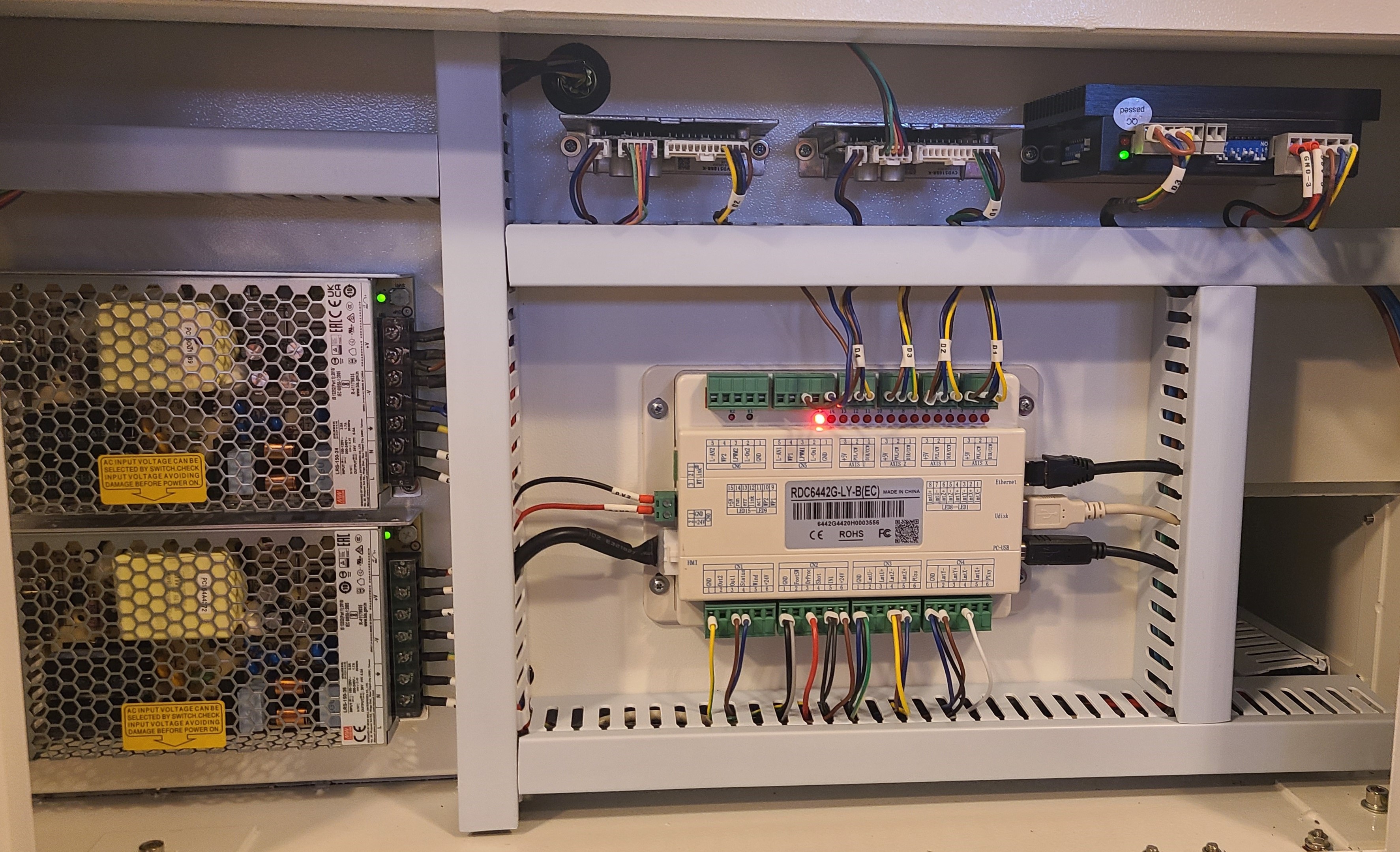

ODIN RIGHT HAND SIDE ELECTRICAL CABINET

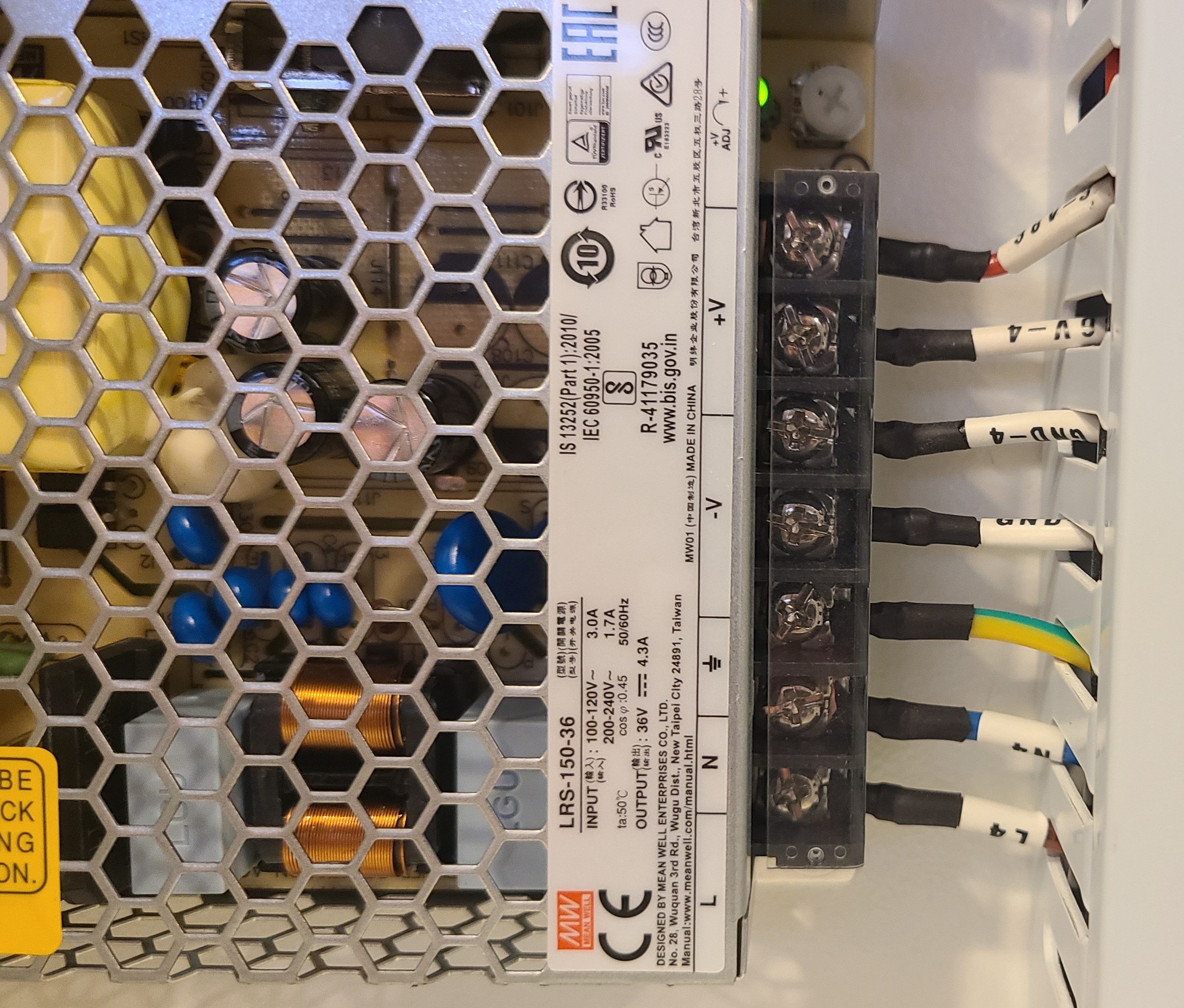

ODIN LRS-150-36 POWER SUPPLY WIRING
ODIN LRS-150-24 POWER SUPPLY WIRING

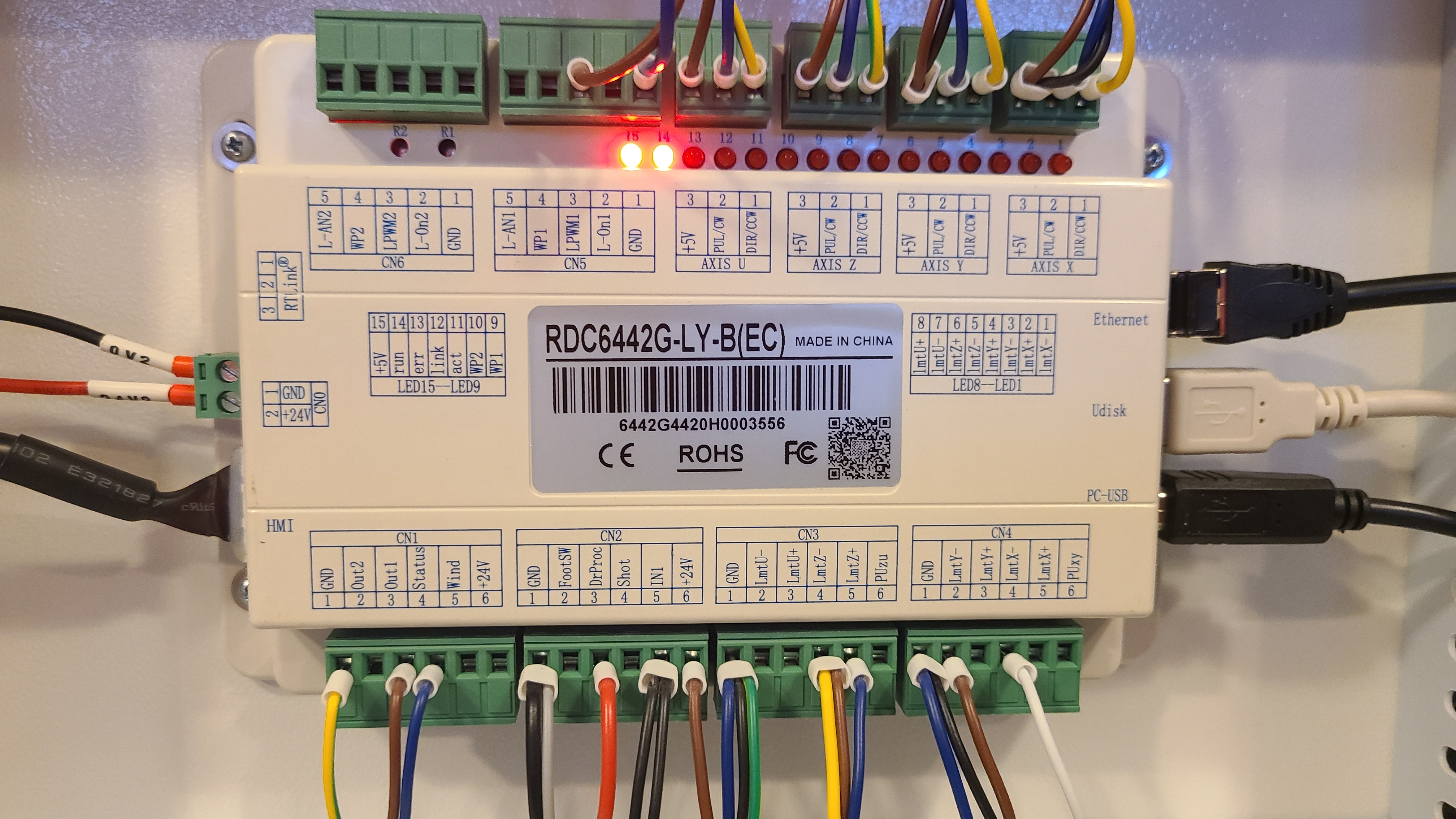

ODIN RUIDA CONTROLLER WIRING

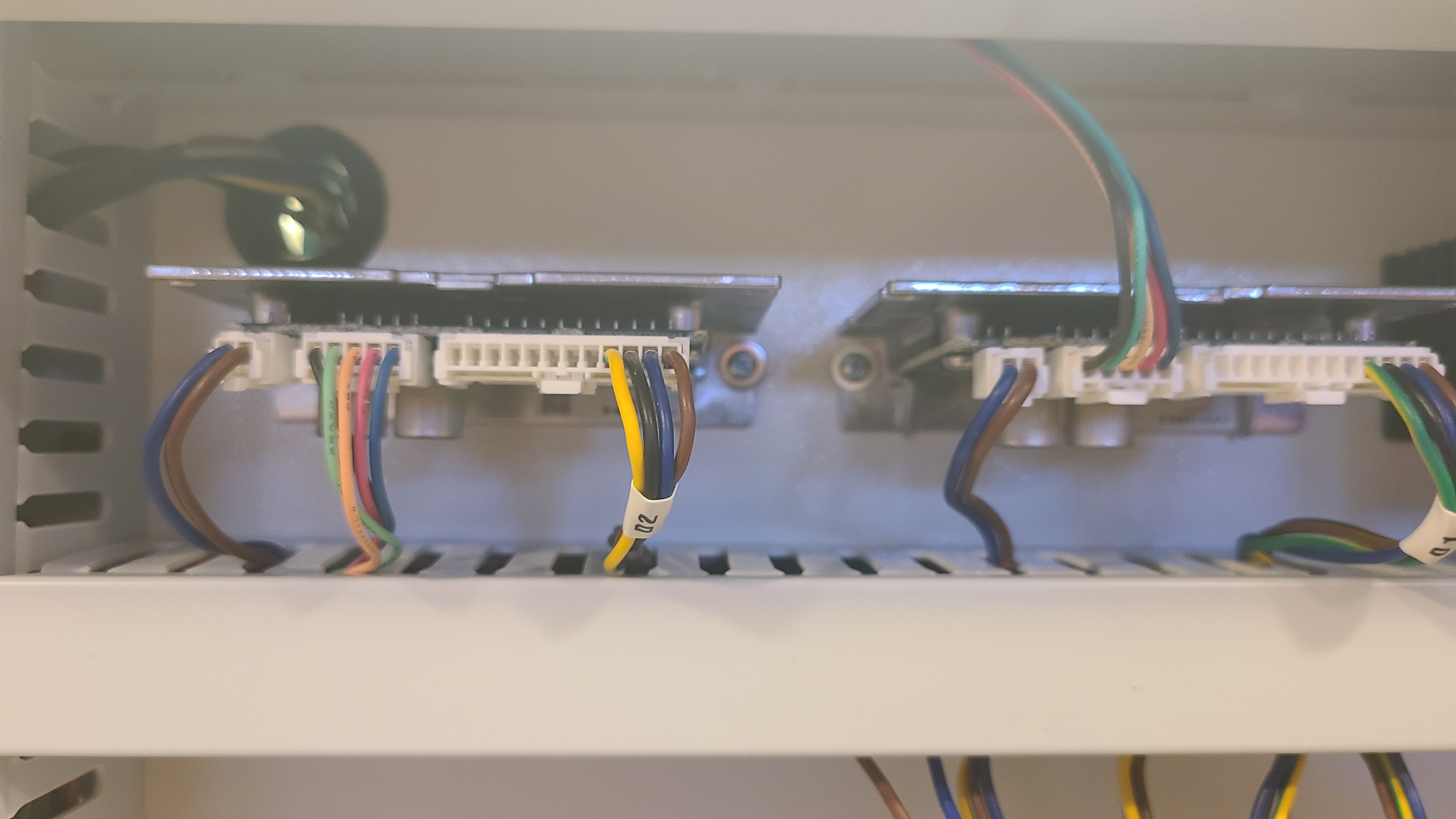

ODIN X and Y AXIS DRIVERS

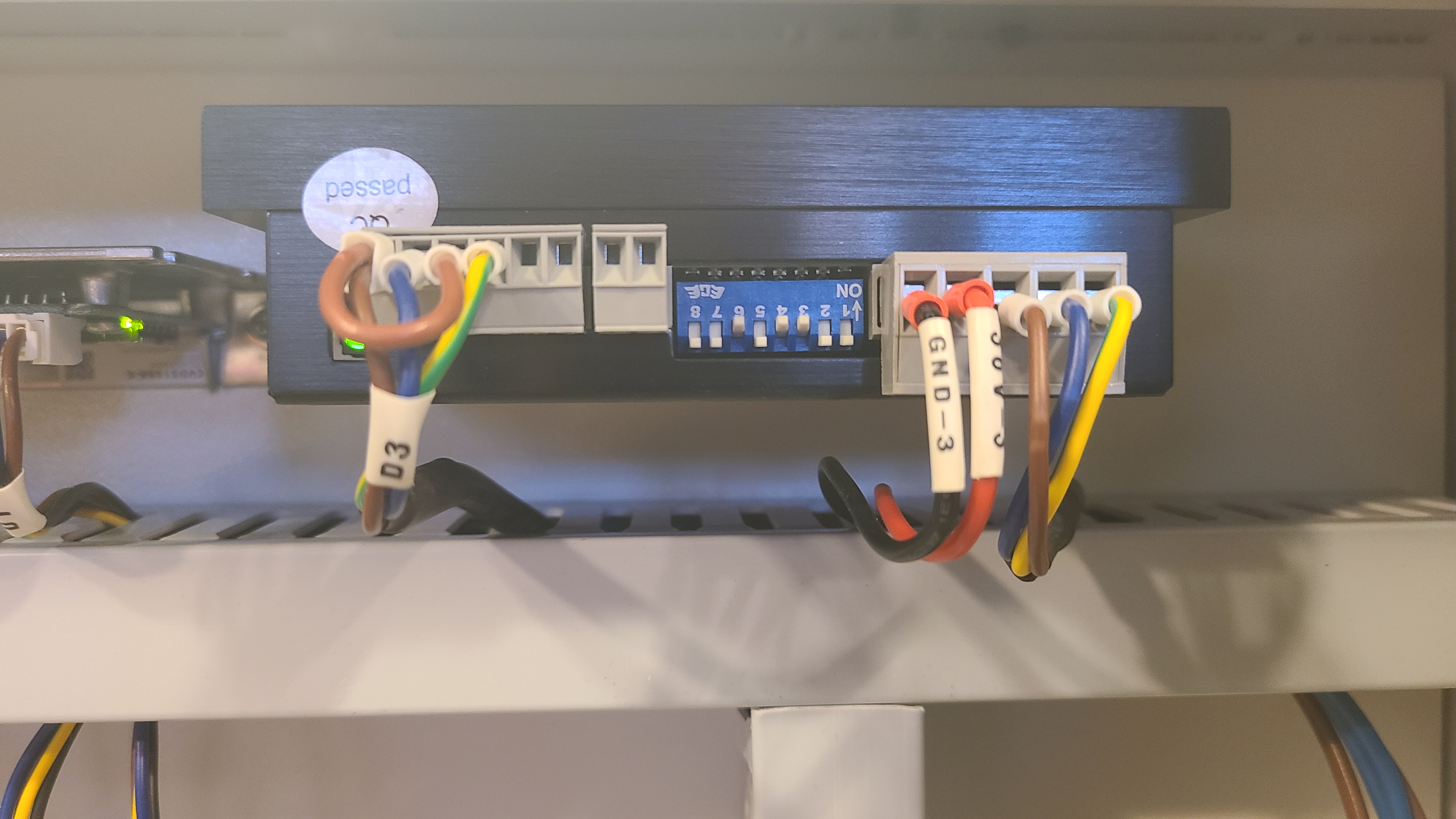

ODIN Z Axis Driver Wiring


ODIN TUBE DOOR ELECTRICAL COMPONENT

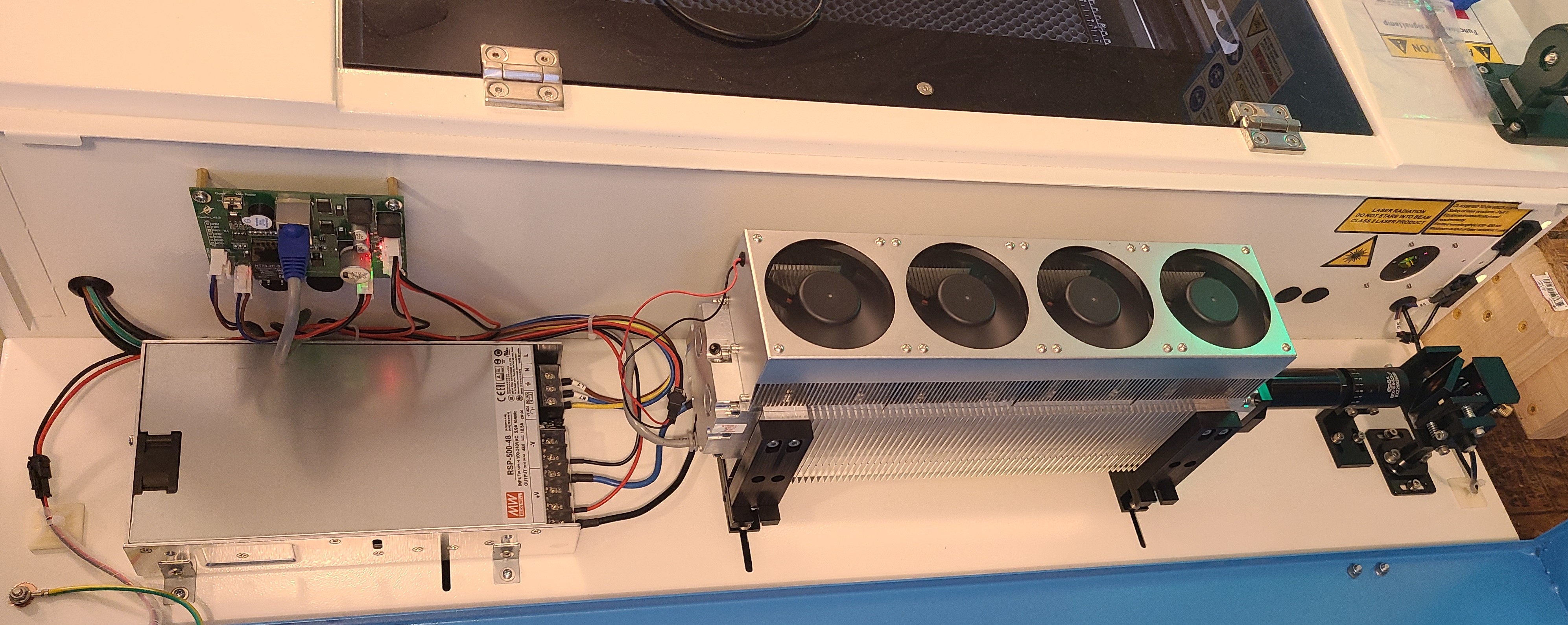

ODIN RF TUBE LAYOUT

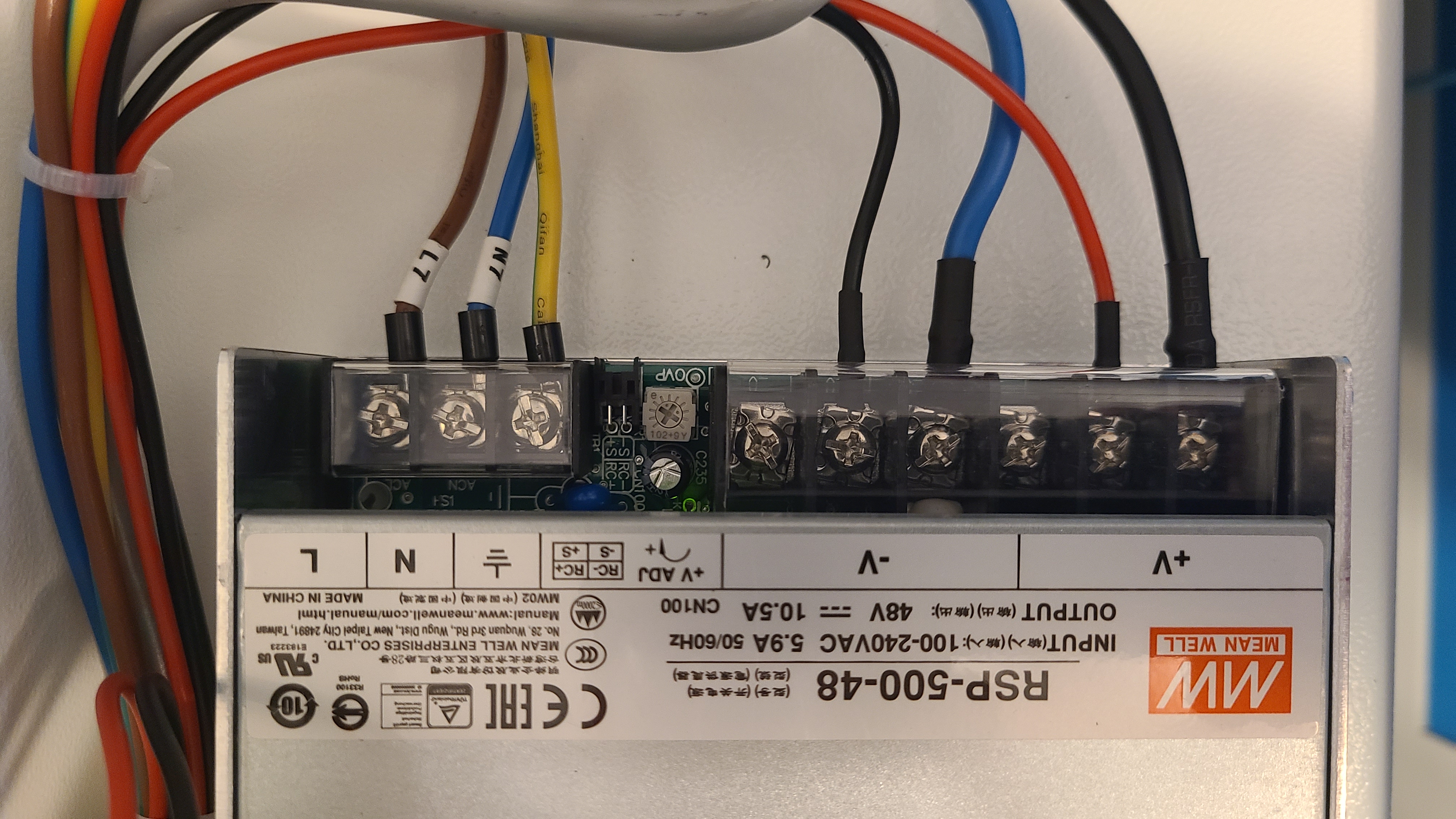

ODIN RSP-500-48 TUBE POWER SUPPLY WIRING
ODIN RF TUBE CONTROL BOARD WIRING
ODIN RF TUBE WIRING

ELECTRICAL CABINET ON THE LEFT HAND SIDE

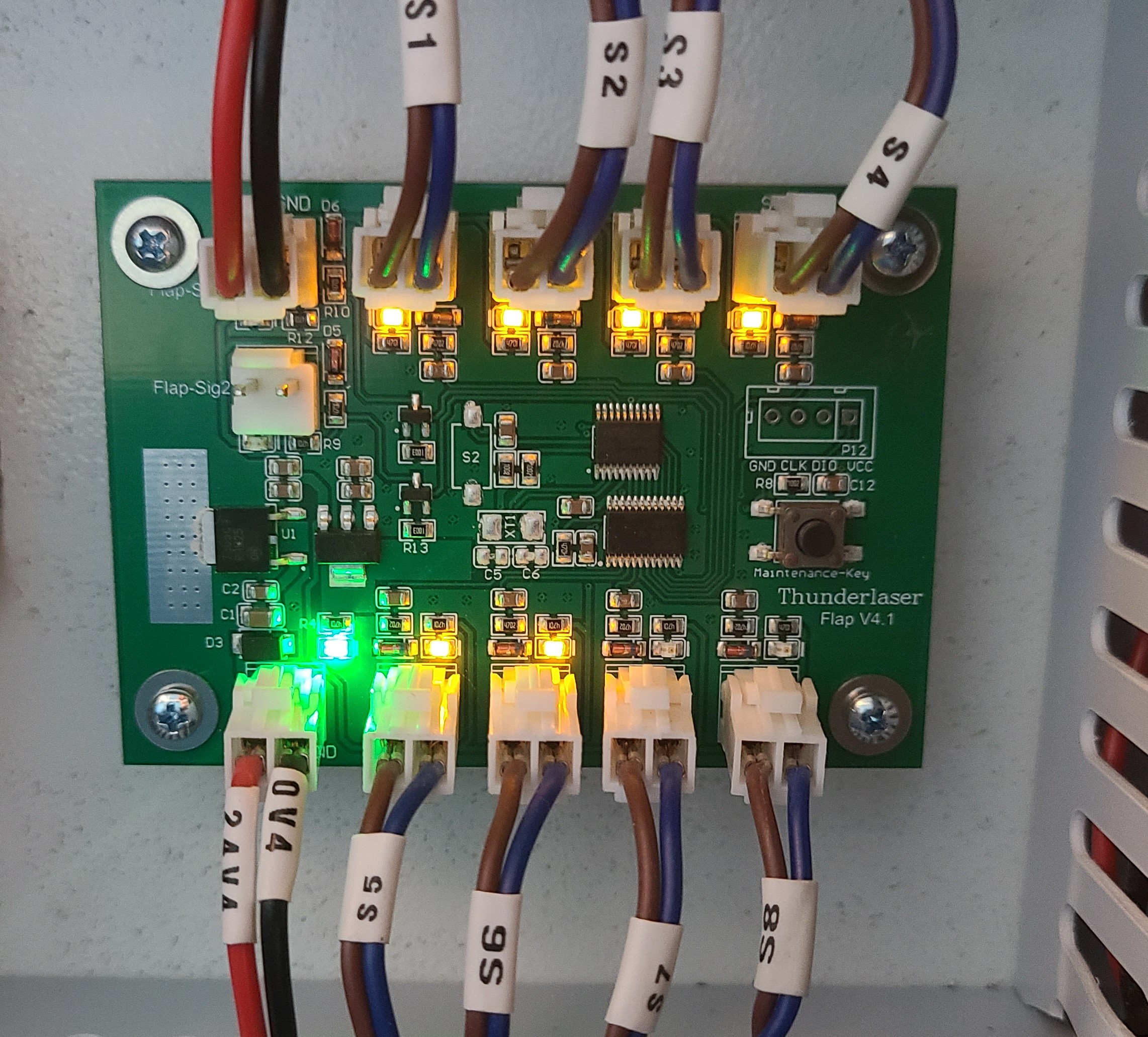

ODIN DOOR BOARD

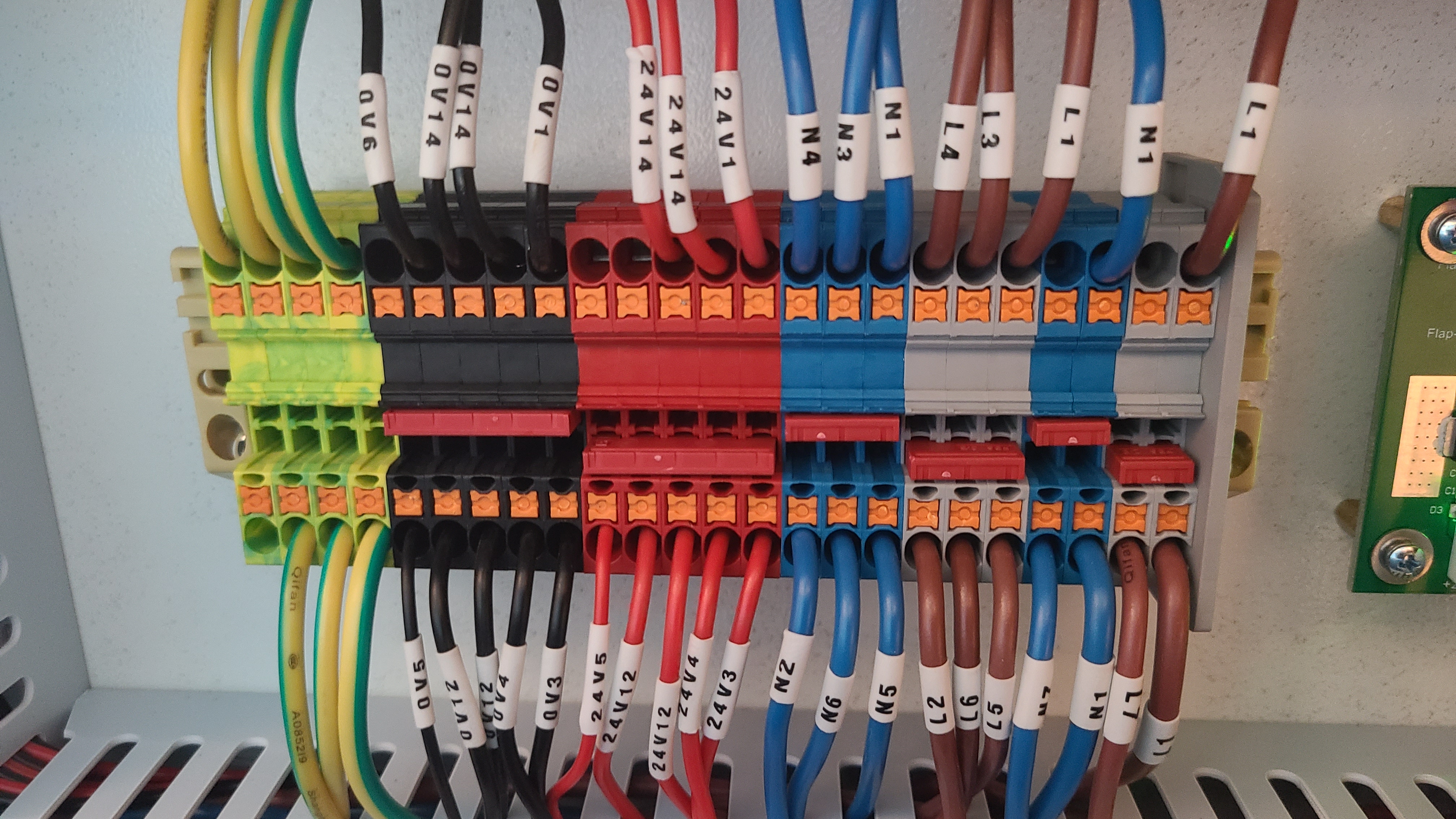

ODIN WIRING TERMINAL BLOCKS

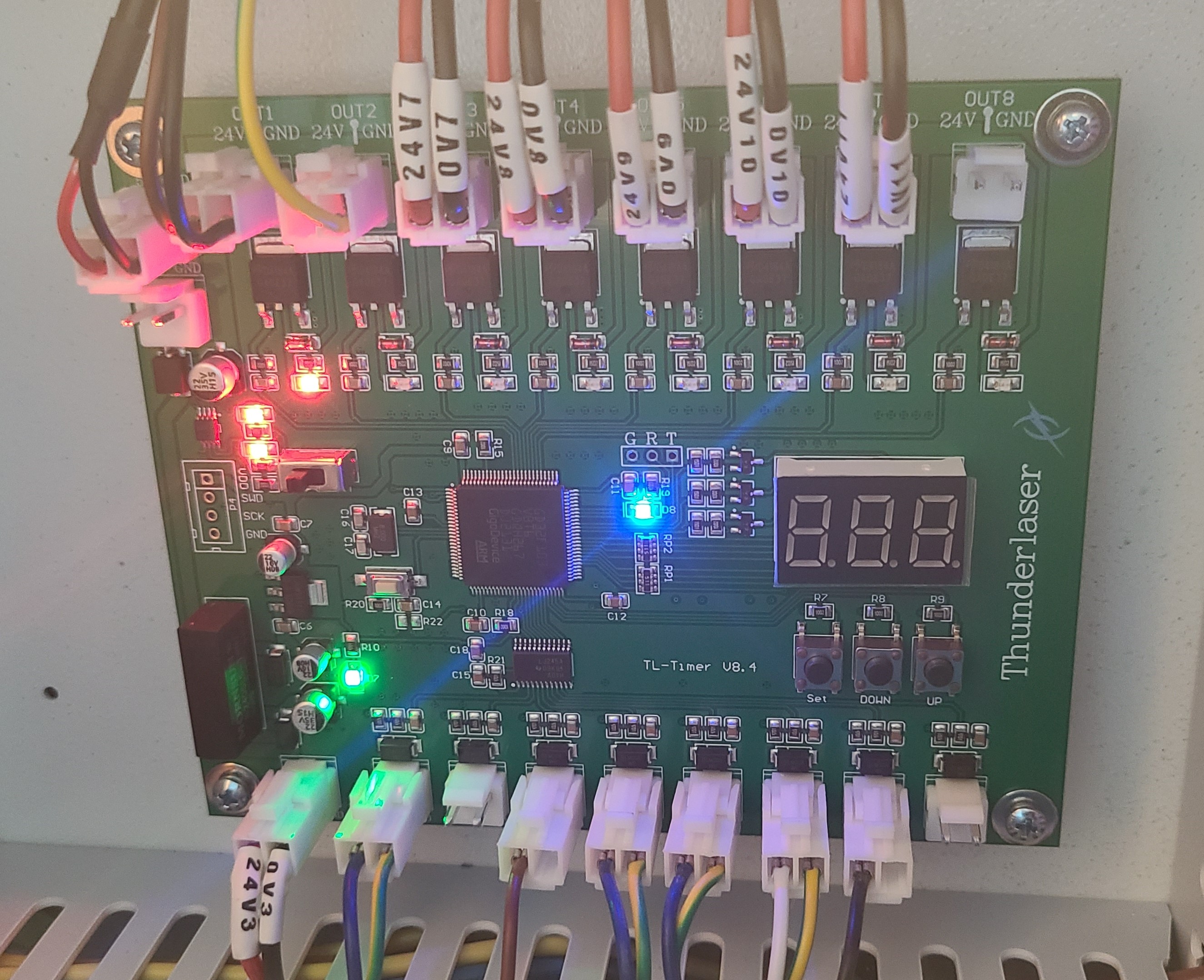

ODIN TL TIMER BOARD
ODIN MAIN BREAKER RELAYS AND CONTACTOR


Relays: Left to Right
FAN, LOW AIR, HIGH AIR, ALARM, ROTARY
ODIN RELAYS WIRING

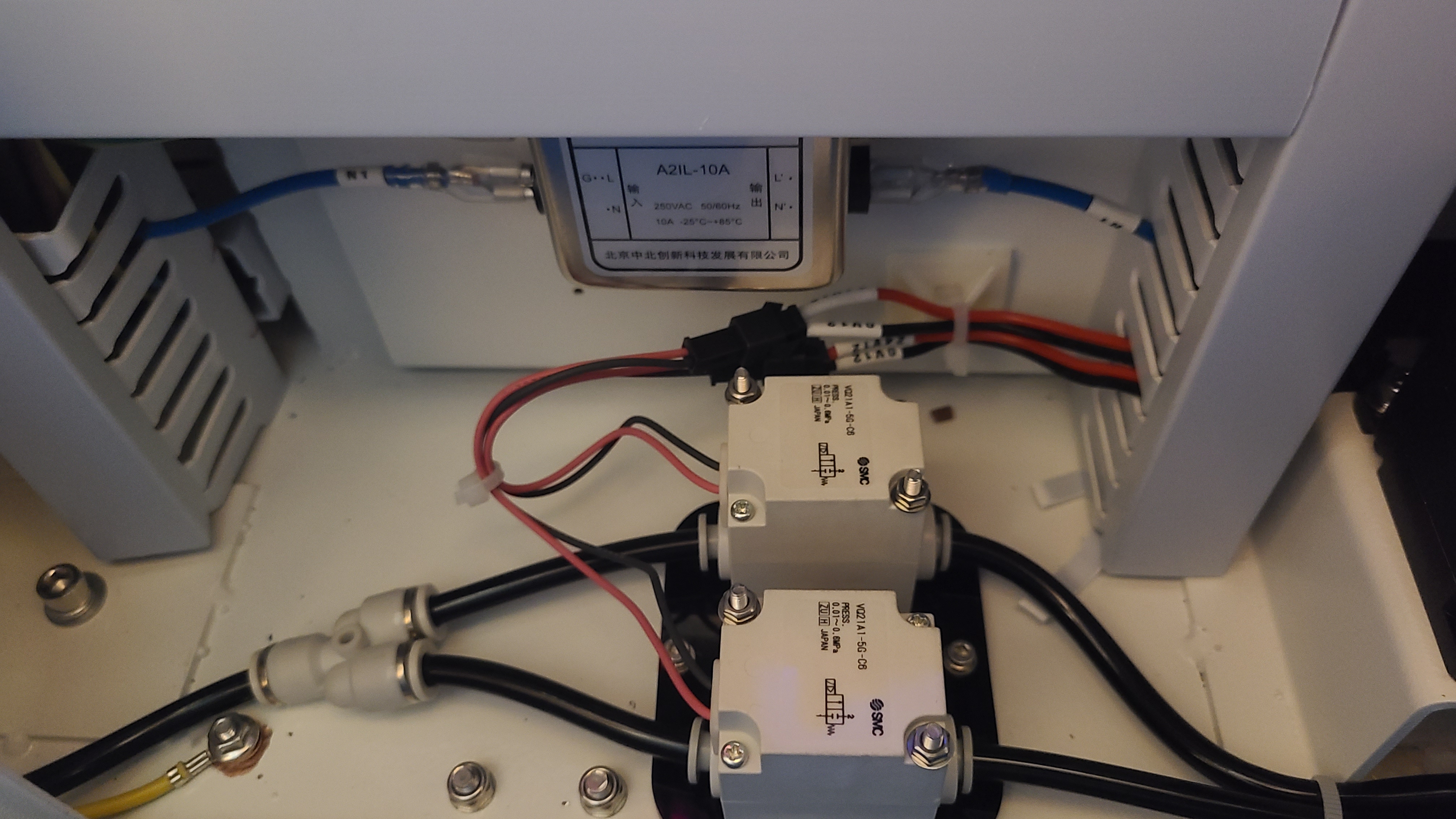

ODIN HIGH AND LOW AIR CONTROL SOLENOIDS


Z Axis Honeycomb Drive Belt Mechanical

ODIN Z AXIS UPPER (Zlimit-) and LOWER (Zlimit+) Endstops

ODIN Z Axis Honeycomb Tensioner Assembly

ODIN Z Belt Tensioner close up

ODIN Z Belt Layout
