Nova Series v8 AC Power Overview and Diagnostics

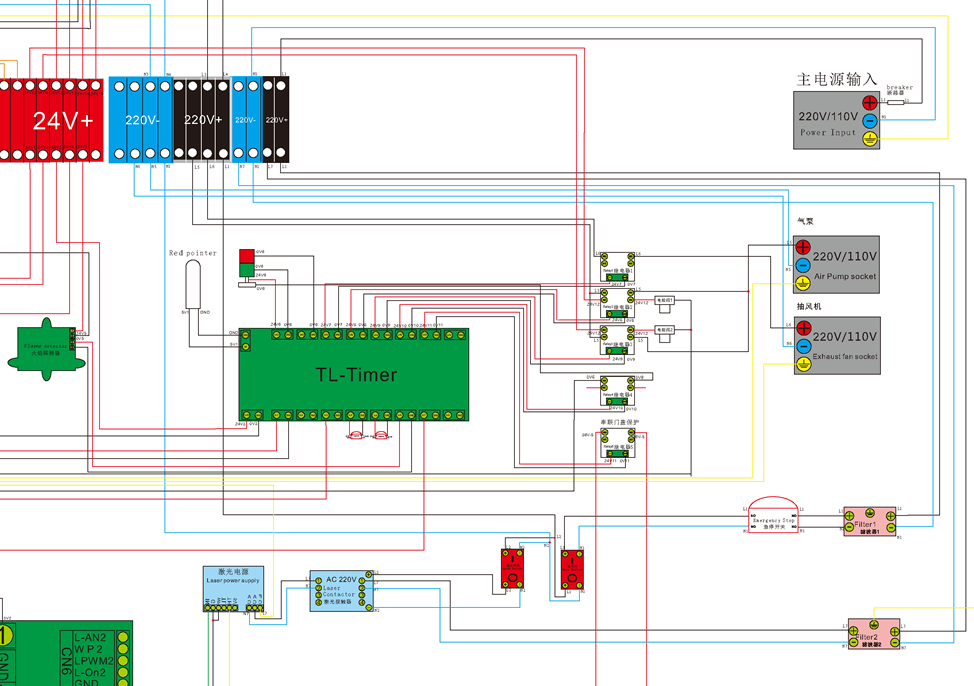

Here is the TL Timer V8.3) block diagram

Nova Series DSP TL Timer Mid 2020 Block Diagram v8.3

Here is the v8 diagram: Nova Series DSP TL Timer V8 2019 Block Diagram



• Related Articles

• Nova Series Users Manual

  For Thunder Laser USA support please email support@thunderlaserusa.com

• NOVA series How To replace the 24VDC Controls Power Supply

  This article covers how to replace the 24V Power supply that powers the controls for your NOVA machine. Note that this was done on a NOVA35. Larger Machines like the NOVA63 will have this Power Supply by it self not hidden by the 36V power supply. ...

• Thunder Laser Main Power Requirements

  Preface: This article covers the main power requirements for your Thunder Laser. It is your responsibility to properly install a Local Code Compliant power feed for the machine. Nothing in this guide will supersede a Local Jurisdiction and you should ...

• NOVA series How To replace the 36VDC Driver Power Supply

  This article covers how to replace the 36V Power supply that powers the drivers for your NOVA machine You will need: -30 minutes -Phillips screw driver with standard length -Voltmeter (How To Use A Multimeter) -Camera -Replacement Meanwell LRS-350-36 ...

• Nova Series Laser Won't Turn On - No Power

  Preface: This article covers some of the basics for when your Nova Series Machine will not power on. Basic things to Check: Emergency Stop Button Symptom Fix Estop Button Pressed. Could be accidental by like a pet, a long board, a kid walking through ...
