Example Layouts for Work Space Considerations For Aurora Laser Machines
The drawings a done graphically and may not be to scale. Use the measurements accompanied by arrows and devices. You should also allow for working space in front of the machine and for any additional peripherals you add.
Exhaust are remote mounted and not shown due to the minimal rear wall clearance.

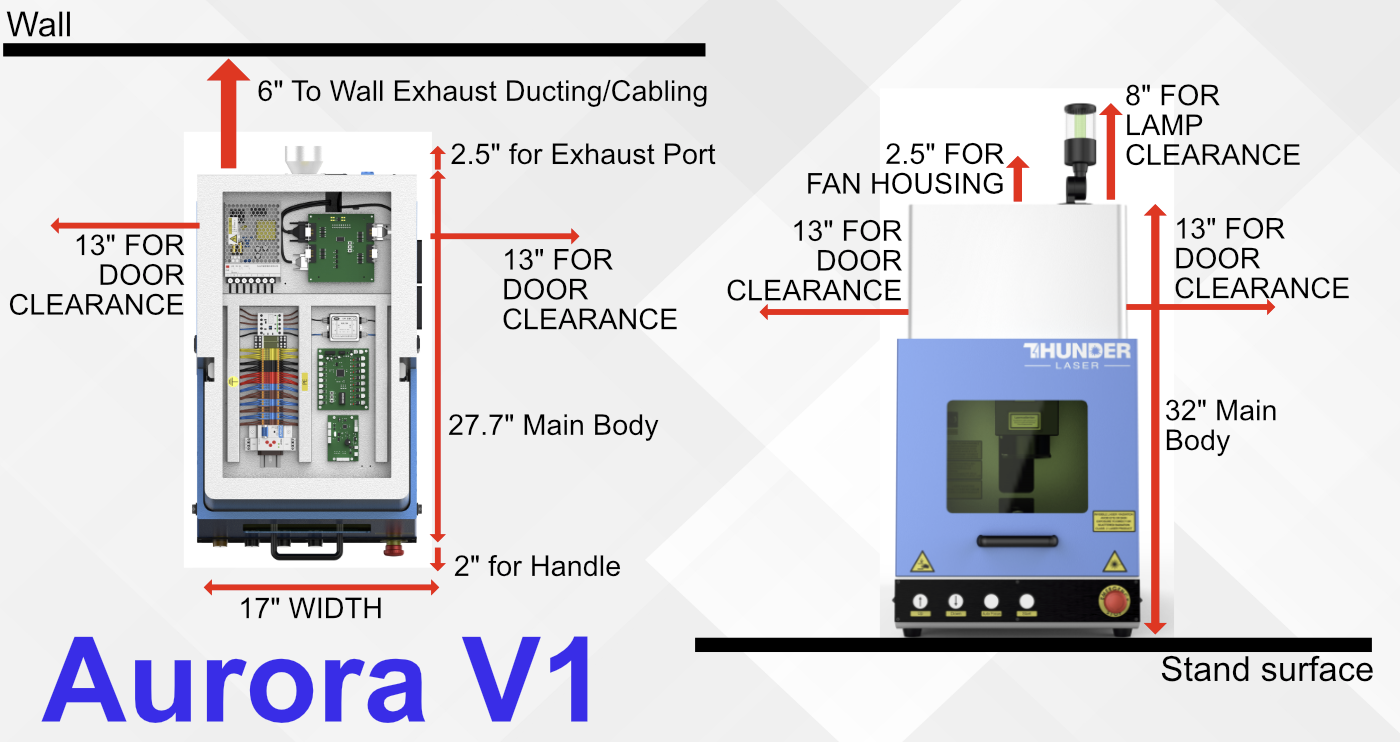

Aurora V1
Overall Space Required Approximately: 3.6ft wide x 3ft deep x 3.33 ft tall

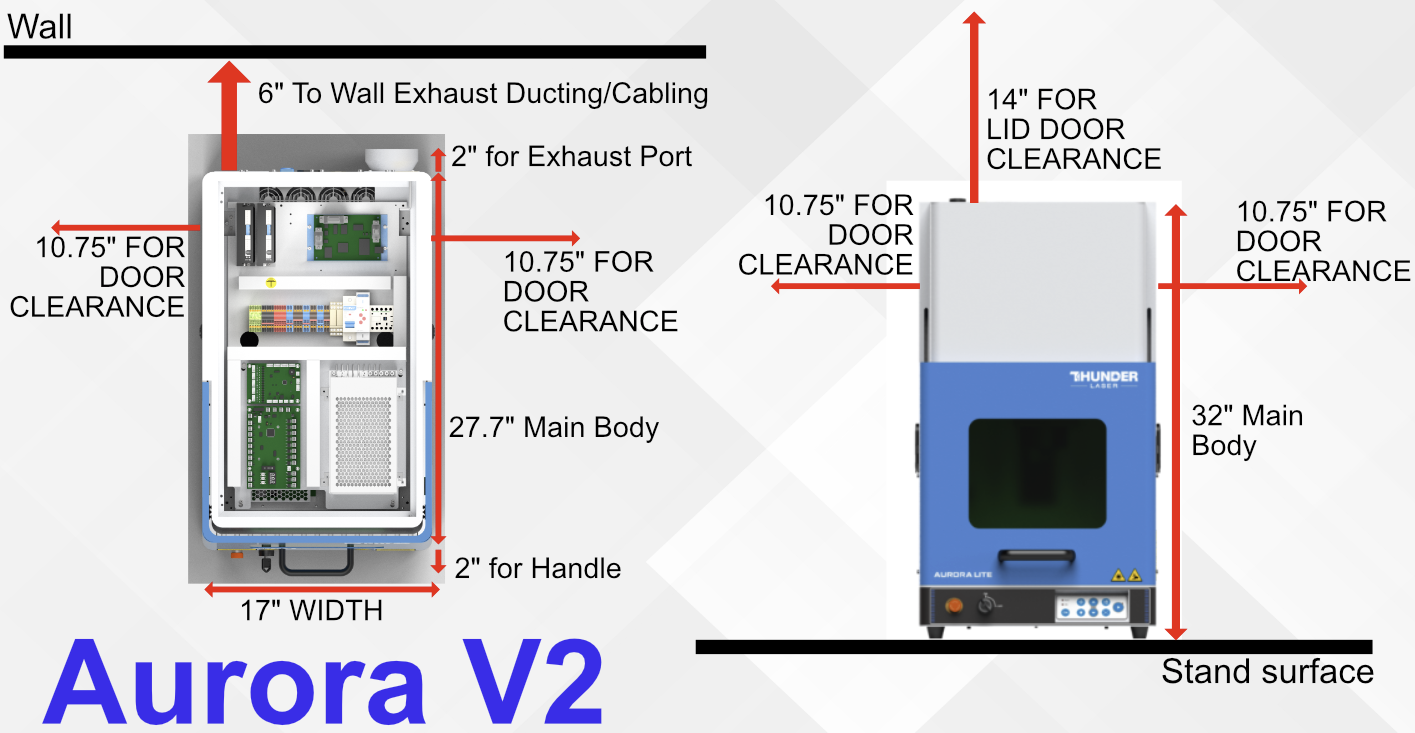

Aurora V2
Overall Space Required Approximately: 3.2ft wide x 3ft deep x 3.83 ft tall.
