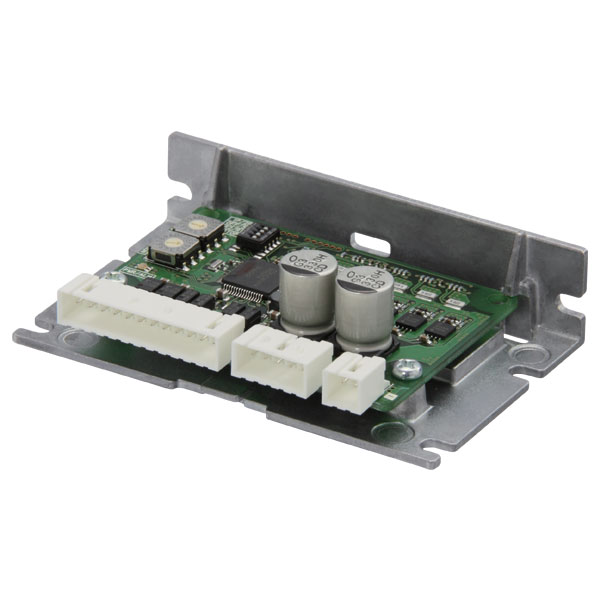

CVD518BR-K Driver

CVD518BR-K Driver


5-phase, fully digital microstepping driver, CVK Series

Accepts 2-phase Pulse Input Signals

16 Motor Resolution Settings

Lowest Vibration Driver Type


Specs:



Driver Type
5-Phase, Pulse Input

Power Supply
24 VDC

Current
1.8 A/Phase

Excitation Mode
Microstep

Lead Wires
5








Rotary and Dip Switch Settings:


Bolt
X Axis
Y Axis

Rotary Step - 6
Rotary Run - F
Dips 2,4 ON, all others OFF



Rotary Step - 8
Rotary Run - F
Dips 2,4 ON, all others OFF
