Checking The Blade System Before Using The Z Axis

Checking The Blade System Before Using The Z Axis

The blades can become dislodged, jammed, etc... during shipment.

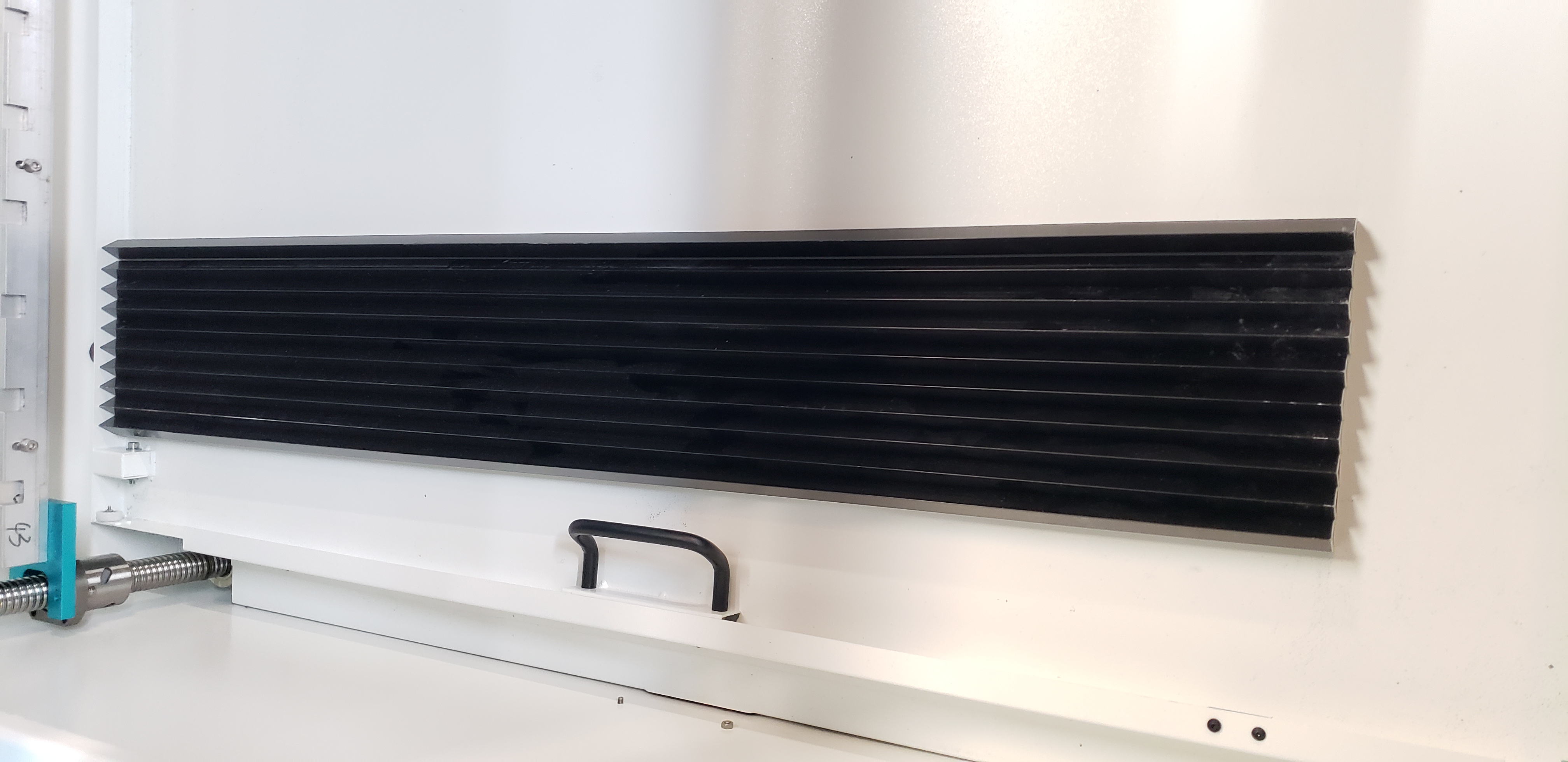

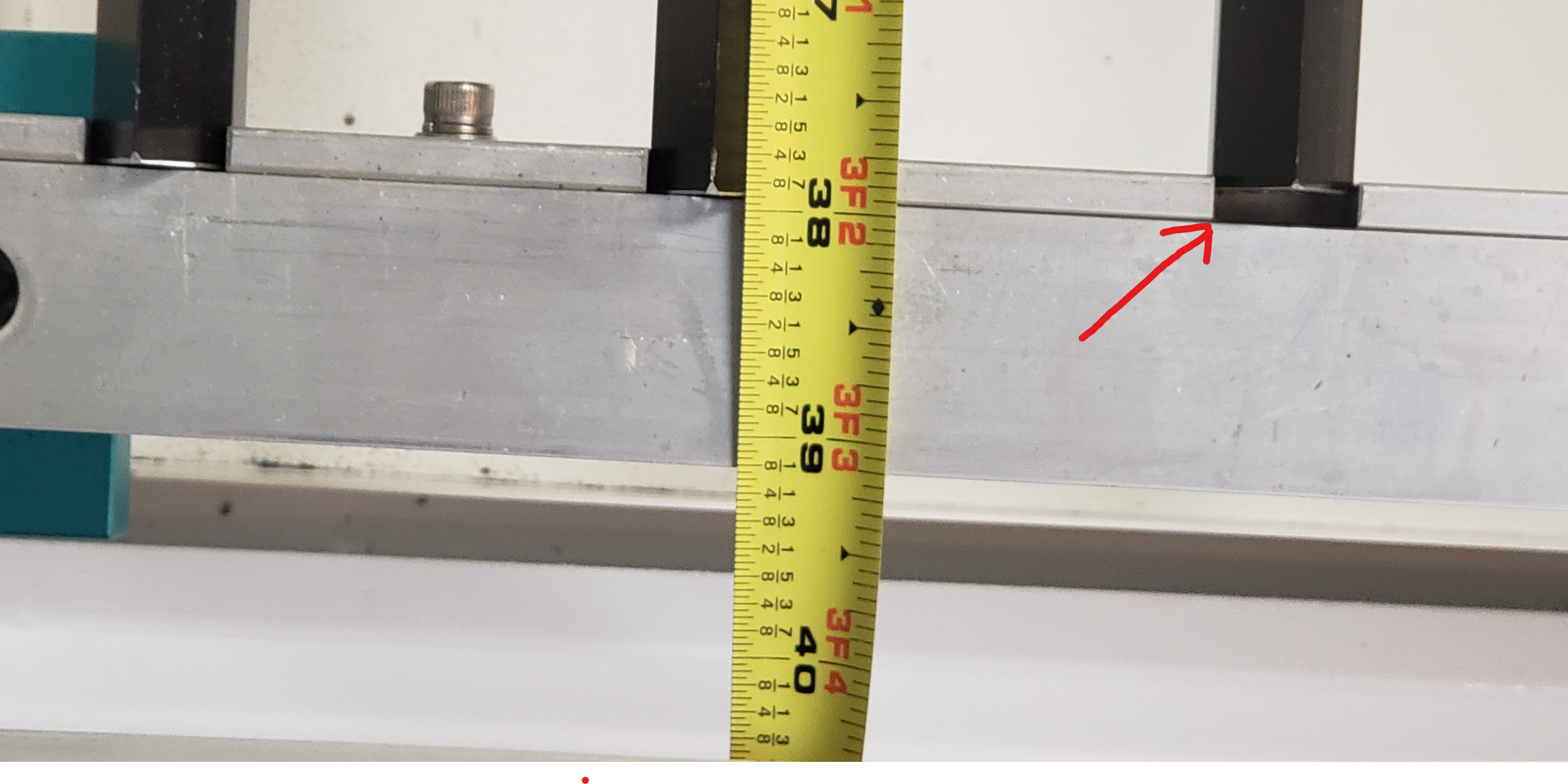

When this happens, the frames can spread from a jammed blade and cause tolerance issues and other blades can fall out

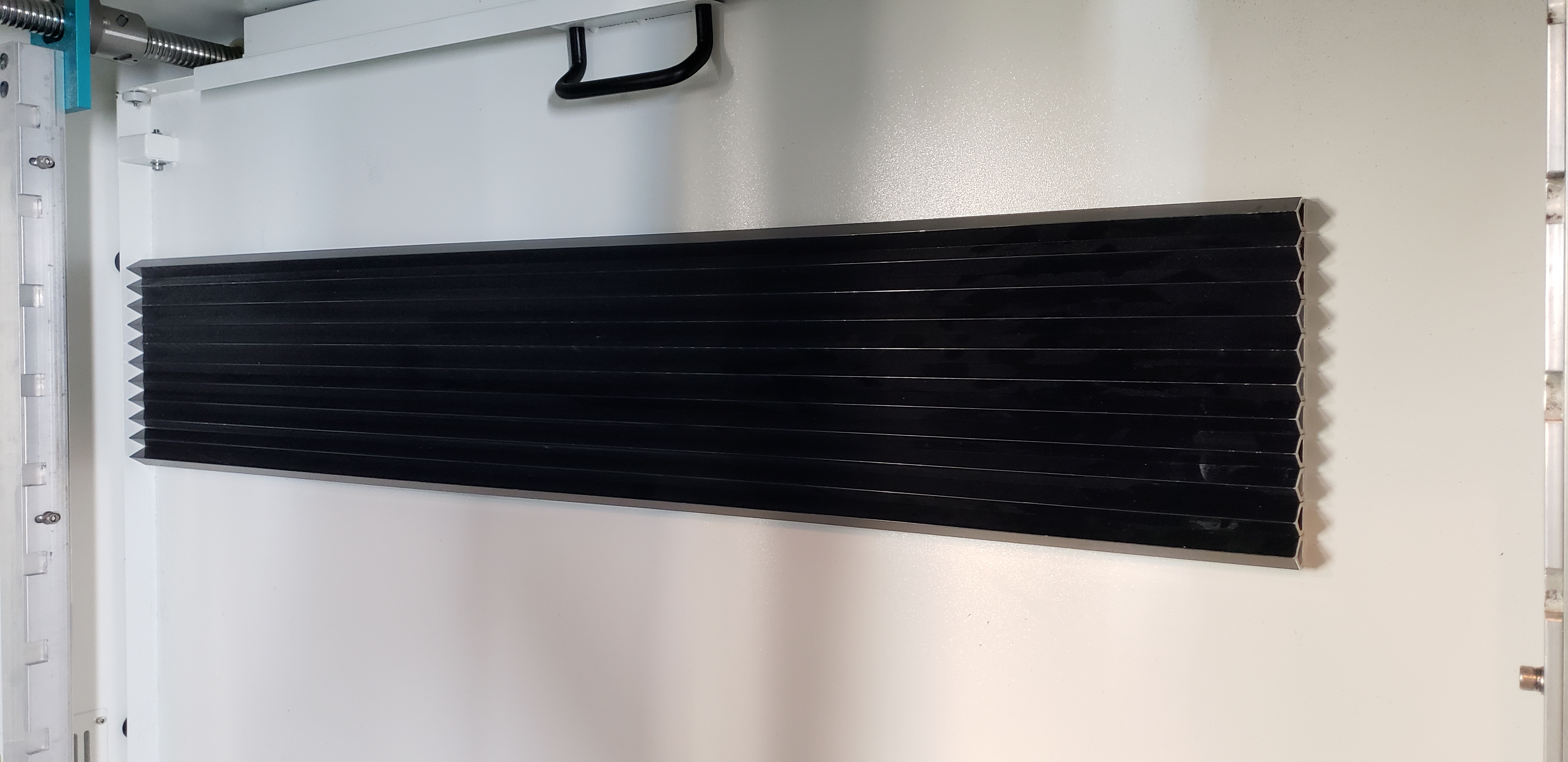

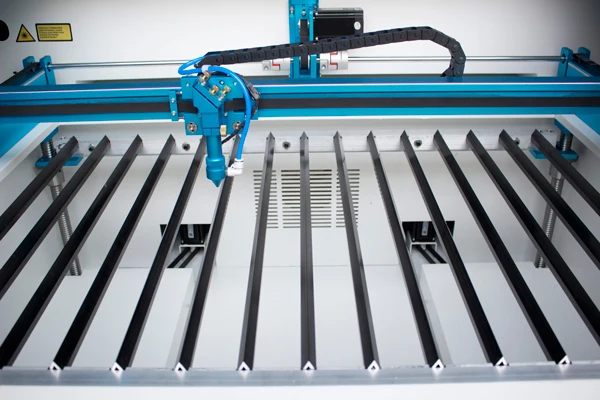

It's a good idea to remove the honeycomb:

Removing the Honeycomb Bed

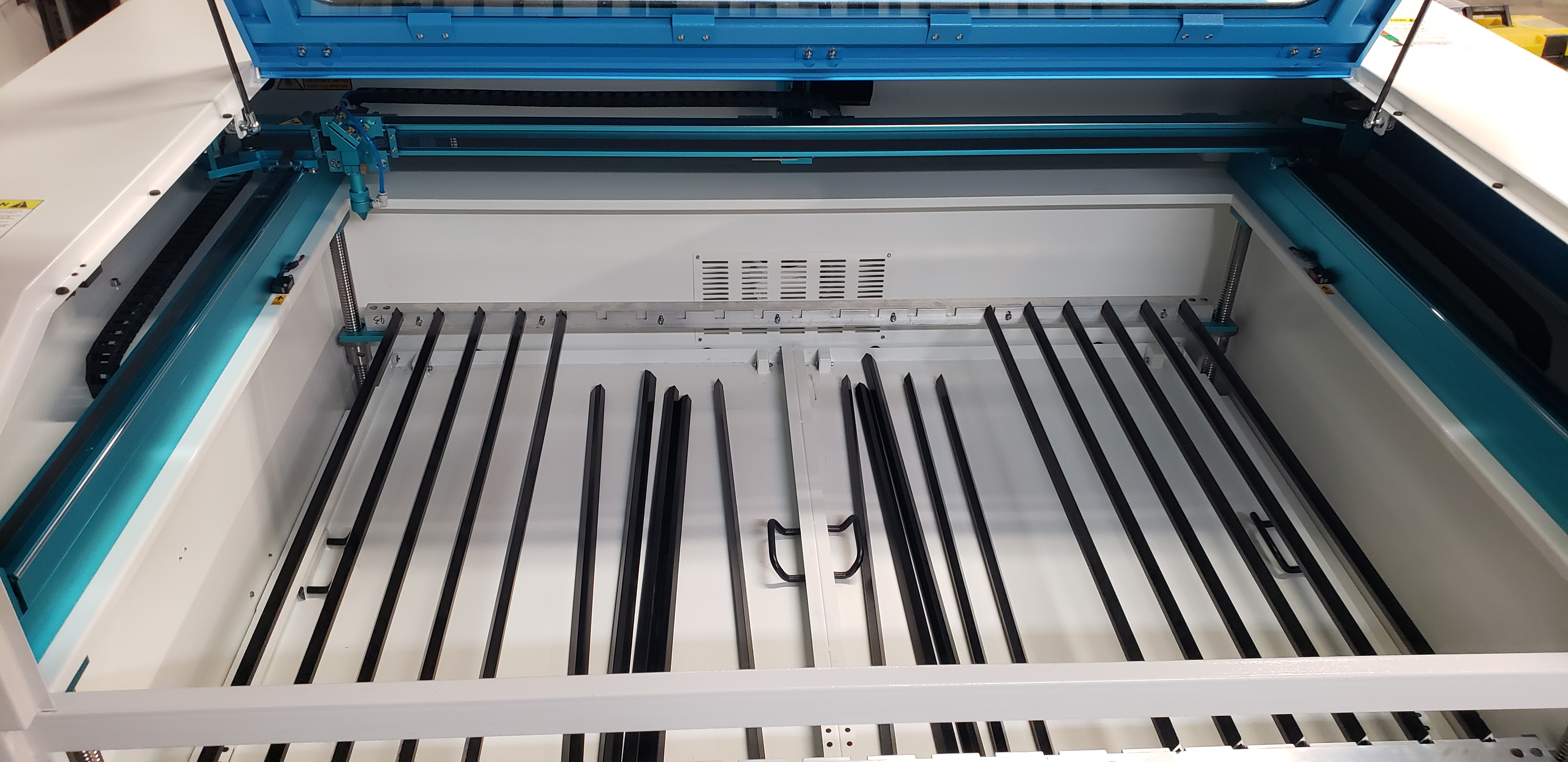

Then remove all the blades.


Then reinsert the blades one at a time



Then reinstall the honeycomb.
