Thunder Laser Chiller Alarm Interconnect Specifications

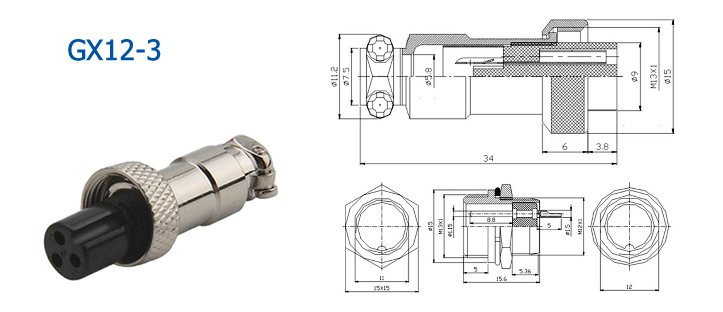

GX-12-3 Aviation DIN connector (for the Nova series laser side):

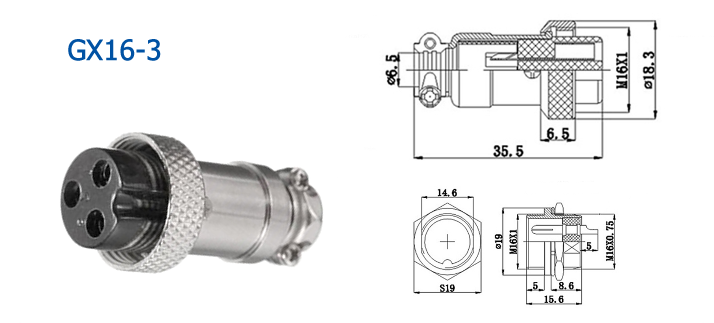

GX-16-3 Aviation DIN connector (for the chiller side):
Diagrams
Electrical Pinout

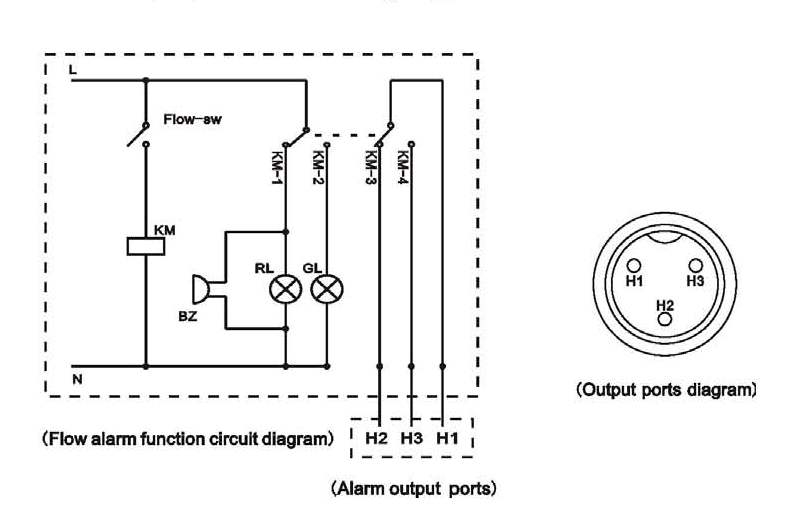

Below is the pinout of the CW-5xxx chiller alarm output:
Condition States

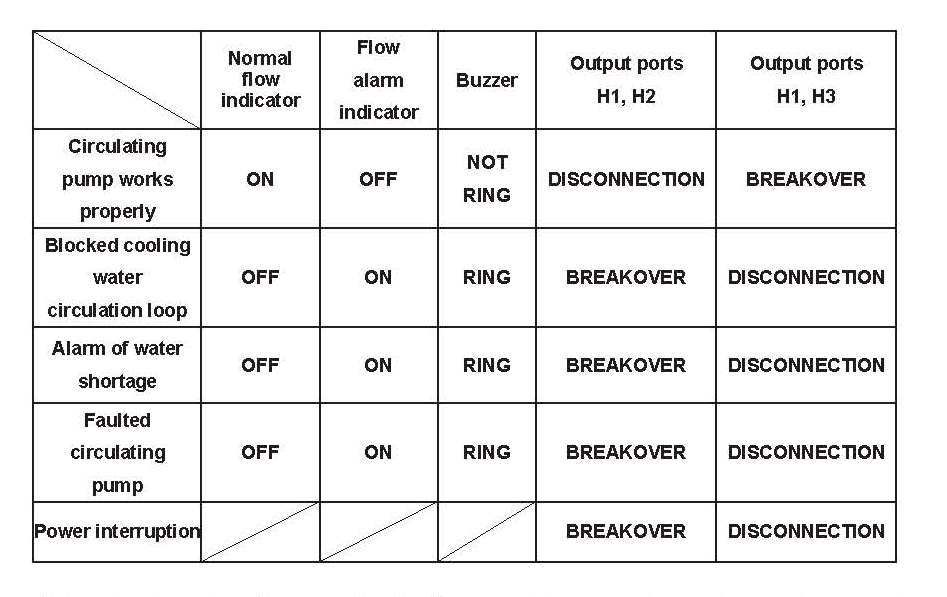

And here is the relay matrix:
Only need the H1 and H3 connections to complete the alarm signal circuit.
