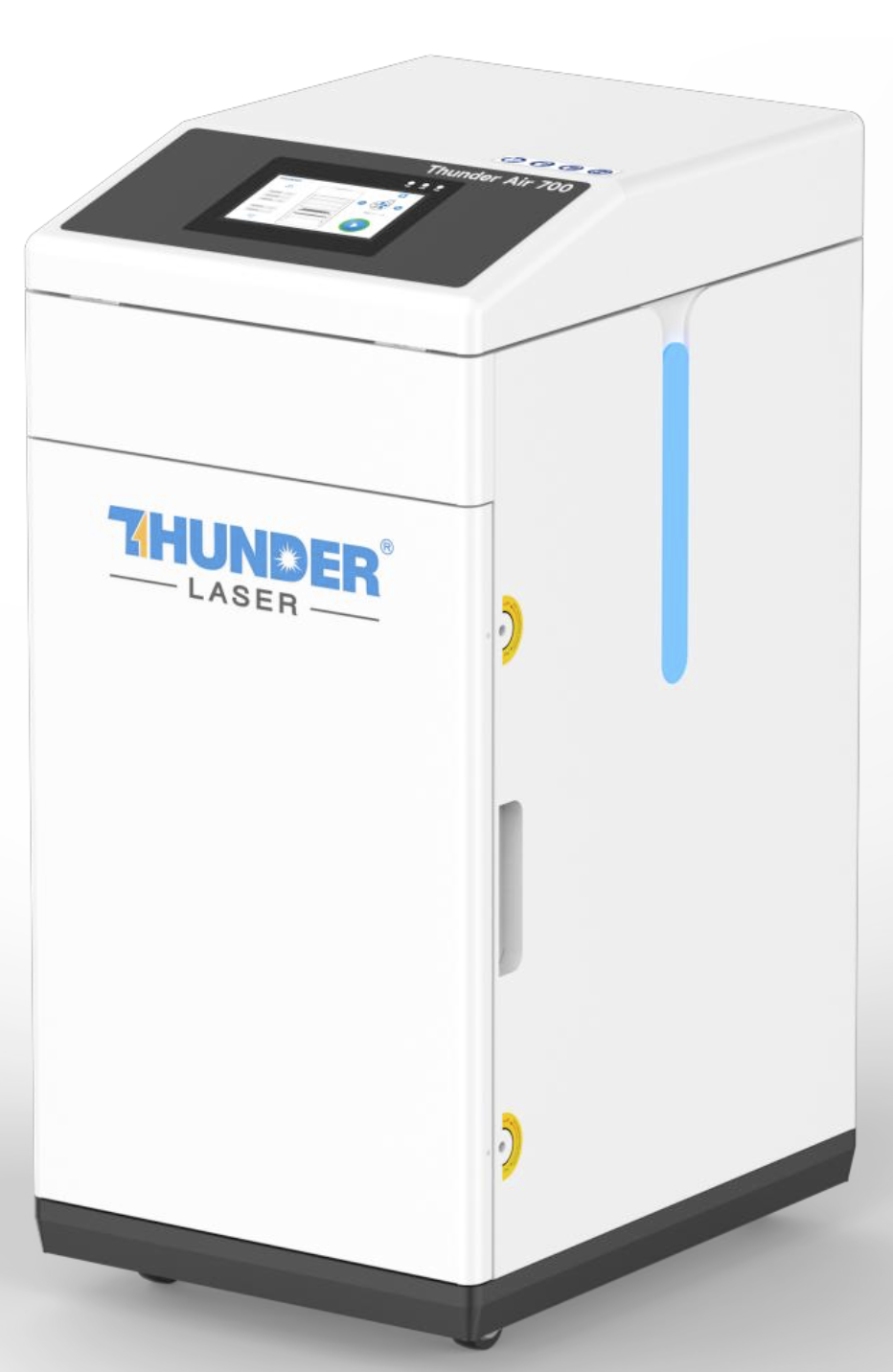

Thunder Air Fume Extractor

THUNDER AIR

Thunder Air: Fume Extraction Solution

Built for Clean, Safe, and Reliable Production

Specification	Thunder Air 700​
Dimensions	475x605x972 mm / 18.70" x 23.82" x 38.27"
Airflow	MAX. 700 m³/h / 412 cfm
Air Pressure	MAX. 4000 Pa
Compatible Voltage	220 V /110 V
Noise Level	≤65 dB
Weight	95 kg / 209.44 lb
Power	600 W
Airflow Adjustment	5 Levels
Touch Screen	7" Touchscreen
Air Duct	Ø150 mm
Control Mode	PLC-controlled speed regulation and differential pressure signal alarm
5-stage Filter System	SS Protection — 99.99% fire protection G4 Pre-Filter — ≥85% efficiency (≥5 μm) F8 Medium Filter — ≥85% efficiency (0.3 μm) MOF Carbon + H11 — Gas-phase molecules & VOC adsorption H13 HEPA — 99.99% efficiency (0.3 μm)

Find Manual attached Below.
