Things to know:


If your Thunder Laser is under warranty, you need to use our OEM specified brand and model unless directed by Thunder Laser USA Support. If your machine is out of warranty you are free to replace it with whatever you wish but making sure you use the prescribed parts will help ensure continued performance and reliability.

These are weights and dims of the thunder OEM Laser Tube crates:



Thunder Laser uses mostly SPT tubes (and Reci) and every tube is inspected, measured, and tested to make sure each one meets or exceeds our quality standards.


Thunder Laser USA does stock tubes for warranty stock. If your Thunder Laser is under warranty and you have a problem please submit a support ticket at  support@thunderlaserusa.com

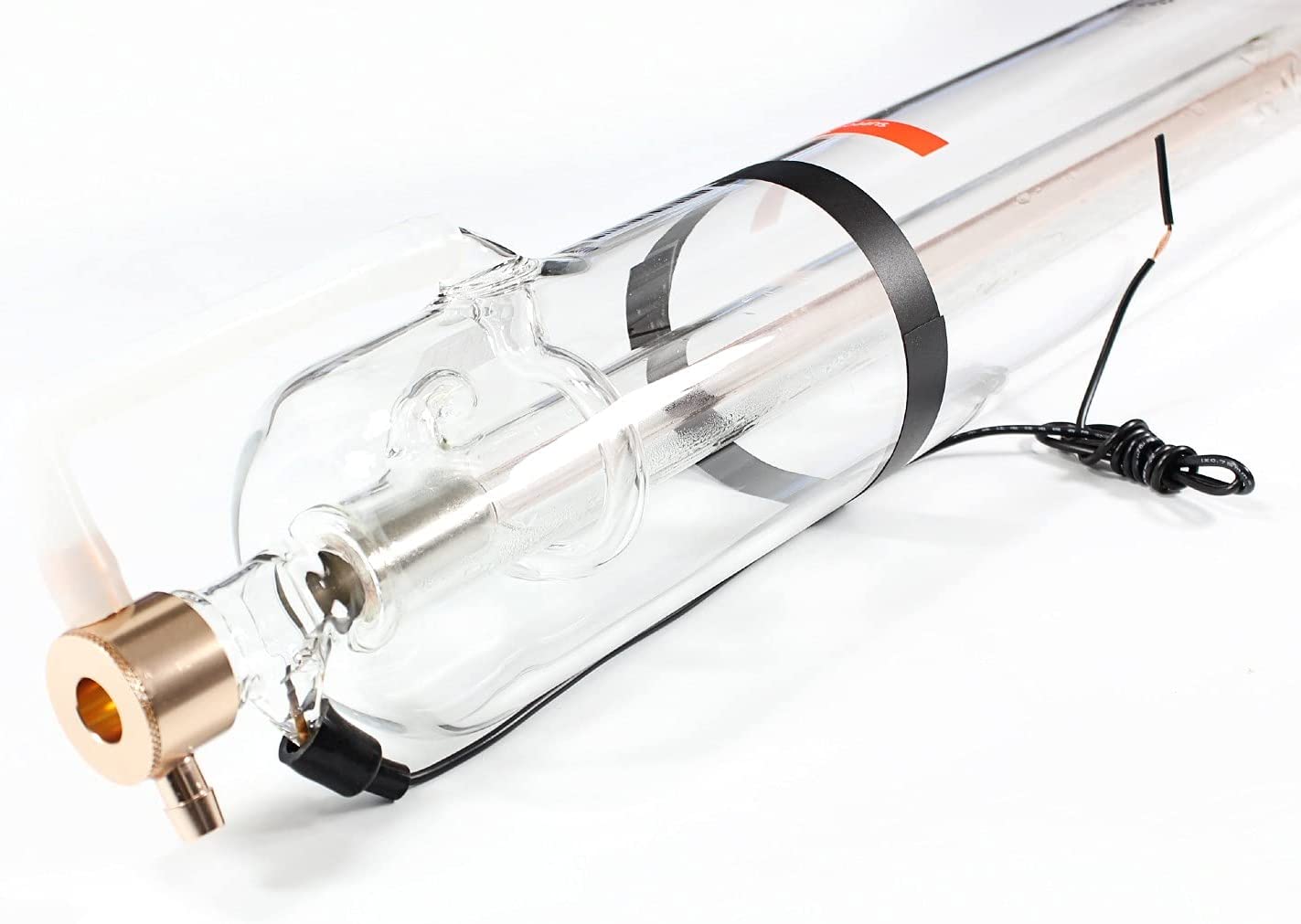

Our OEM tubes already have the wire pigtails with HV connector attached. The current Light Object and other 3rd Party will likely only have wire wrap posts which need to be terminated correctly.



We like to keep the specified model and type tube in warranty machines, but if you are out of warranty and choose another brand tube, that is totally up to you. adding Non-OEM spec equipment could change the behavior, output, calibration, etc... so the tube needs to have the same specs as the OEM tube to help mitigate the difference.


The instructions for installing our OEM tube can be found here:

How To Replace The Nova Series DC Tubes






Where to source OEM Laser Tubes and LPSU:



MACHINEOEM TUBECHILLER
OEM LPSU
OEM TUBE
LINK
LENGTH/DIAMETER
MAX LPSU CURRENT
@ 100% power
(governed & calibrated in config)
Mini60-40SPT-C45CW-3000

850mm/50mm
16mA
Nova 24-60SPT-C70CW-5000HY-T60SPT-C70
1250mm/55mm
17 mA
Nova 35-80RECI W2-90
CW-5000MYJG-100
ReciW2-90
1250mm/80mm
27 mA
Nova 35-100SPT C-100CW-5000MYJG-100SPT C-100
1460mm/80mm
22 mA
Nova 51-100SPT C-100CW-5000MYJG-100SPT C-100
1460mm/80mm
22 mA
Nova 51-130SPT C-130CW-5200MYJG-150SPT-C130
1650mm/80mm
30 mA
Nova 63-100SPT C-100CW-5000MYJG-100SPT C-100
1460mm/80mm
22 mA
Nova 63-130SPT C-130CW-5200MYJG-150SPT-C130
1650mm/80mm
30 mA
