Rubber Stamp Sample Test 1

Rubber Stamp Sample Test 1

A client with a Nova 24-60 is needing to fine tune his settings for rubber stamps. These tests are performed on a Nova 35-80 but the 20 Watt differential can be factored in. I used an untouched .lbrn file, provided by the client, that has proven to be problematic.


Example 1 is using the client's saved parameters. Example 2 is a duplicate of X1 with settings changes and no ramp. Example 3 is a duplicate of X2 and has a small ramp enabled.


Here is the material i used in my tests:

https://www.amazon.com/Orange-Rubber-Stamp-Engraving-Machine/dp/B017IHVSLM/





Here the finished examples are viewed under a microscope:

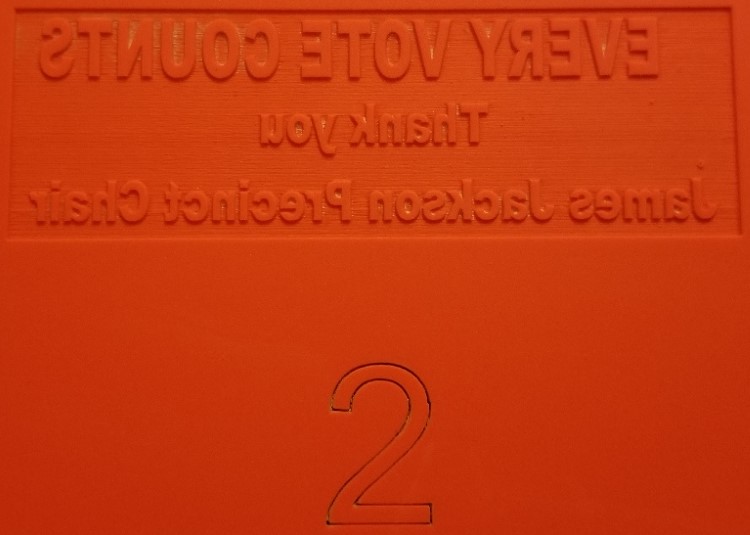

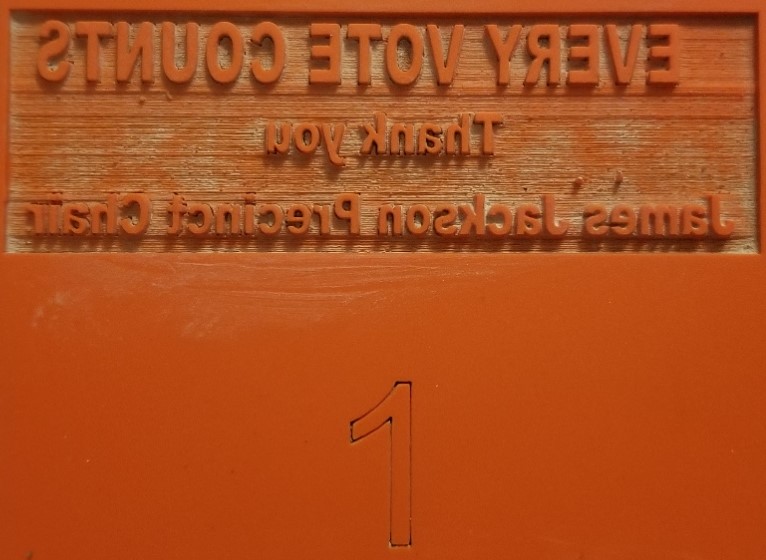

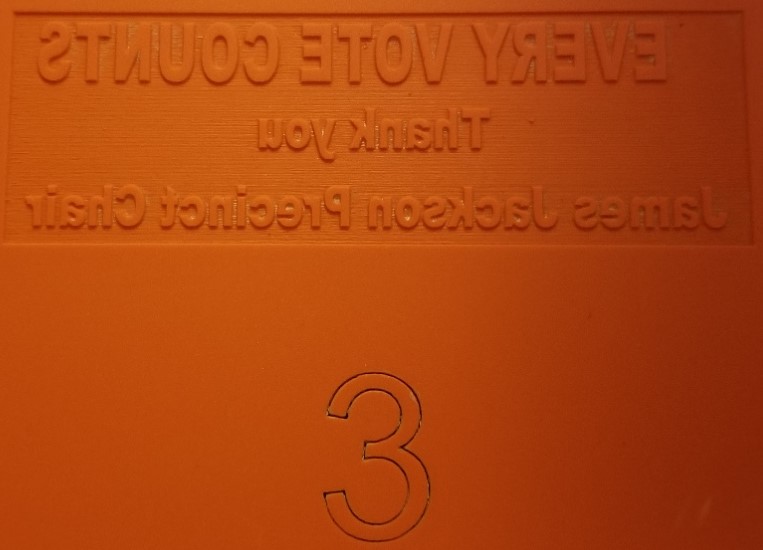

Here are stills of the 3 examples:





Here are X 1-3 mounted, inked, and tested. The depth needs to be increased on X2 and X3:




Here is what the stamps look like under the scope after inking and stamping:

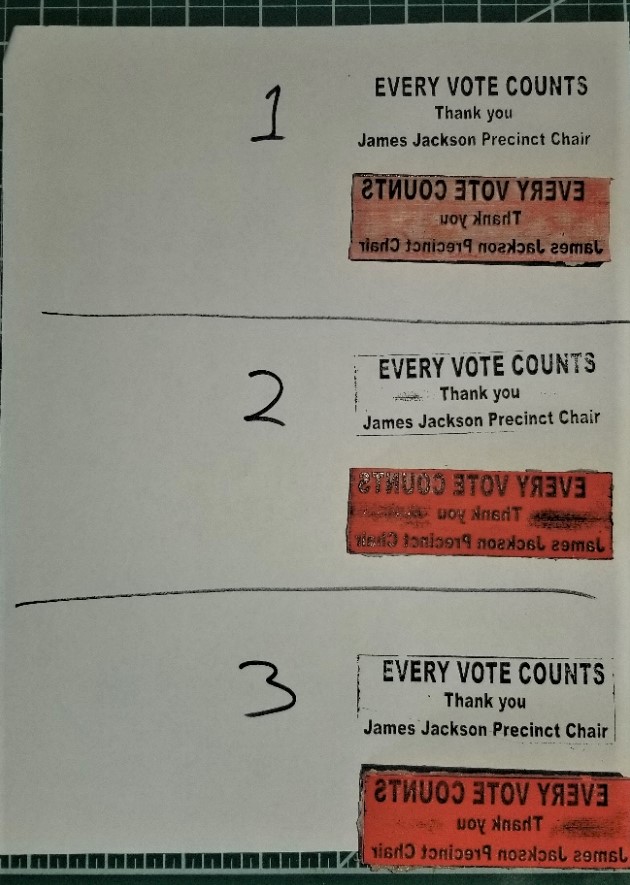

And here is the stamp on white copy paper:
