RJ2S-CL-D24 Relay Specifications for Exhaust, Air Assist, Rotary and Door relay

RJ2S-CL-D24 Relay Specifications for Exhaust, Air Assist, Rotary and Door relay

Preface: This article covers the technical specs of the relay used to power peripherals on your Thunder Laser. The information in this article is from the attached spec sheet.


Basic Information:

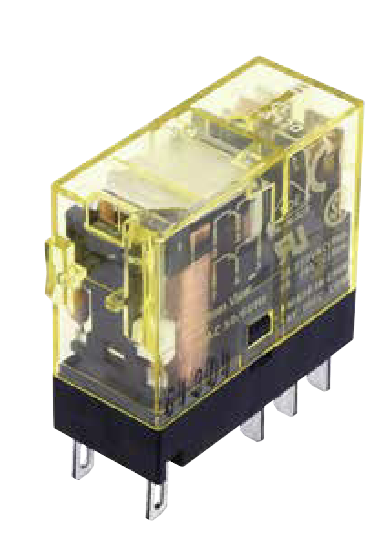

Part Number: IDEC RJ2S-CL-D24 (full product line spec sheet attached)
Coil Voltage: 24VDC




Contact Configuration:

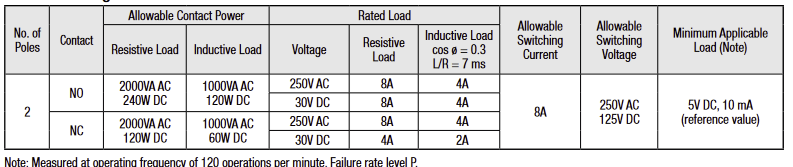

Contact Ratings:

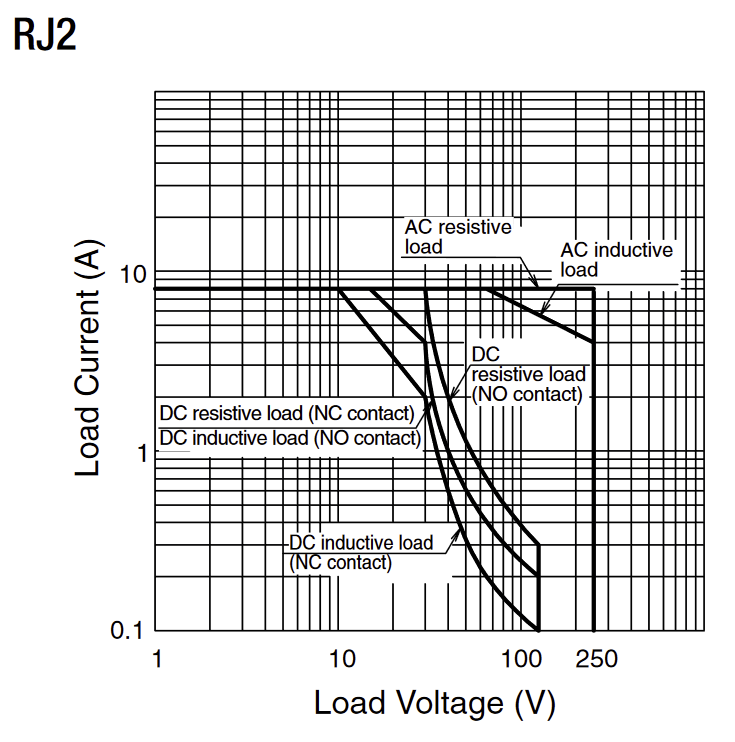

Maximum Switching Capacity:
