Red Dot Pointer Issues and Replacement

Red Dot Pointer Issues and Replacement

Check your laser head nozzle exit to make sure its not caked in dust and soot

The red dot pointer has no power

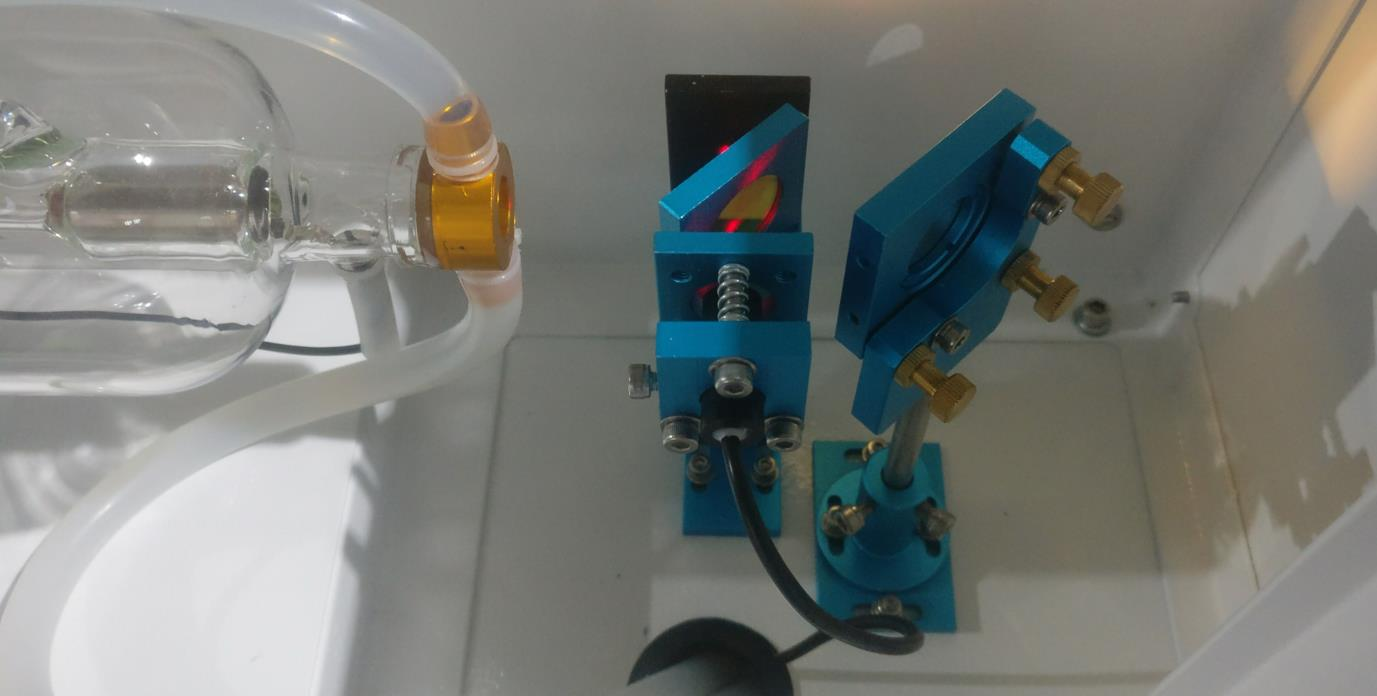

Locate on the Red Dot Pointer Mount in the rear of the machine, and check if the Red Dot Pointer is on, like below. It will not form a 'normal' looking spot typically so don't automatically assume the module has failed.

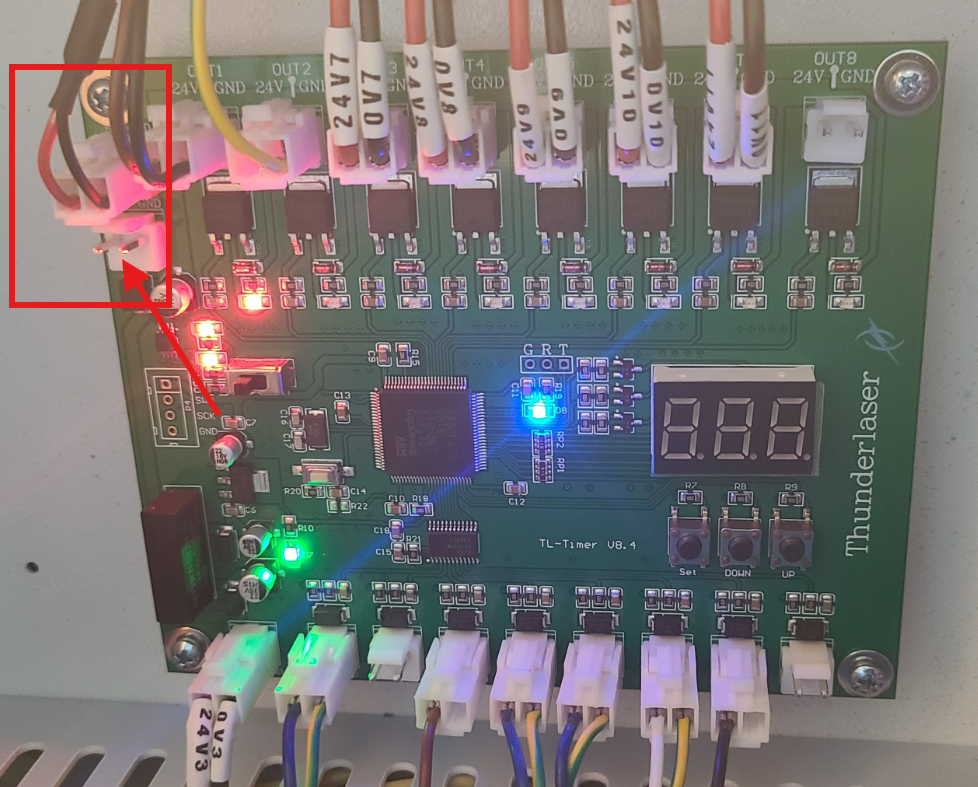

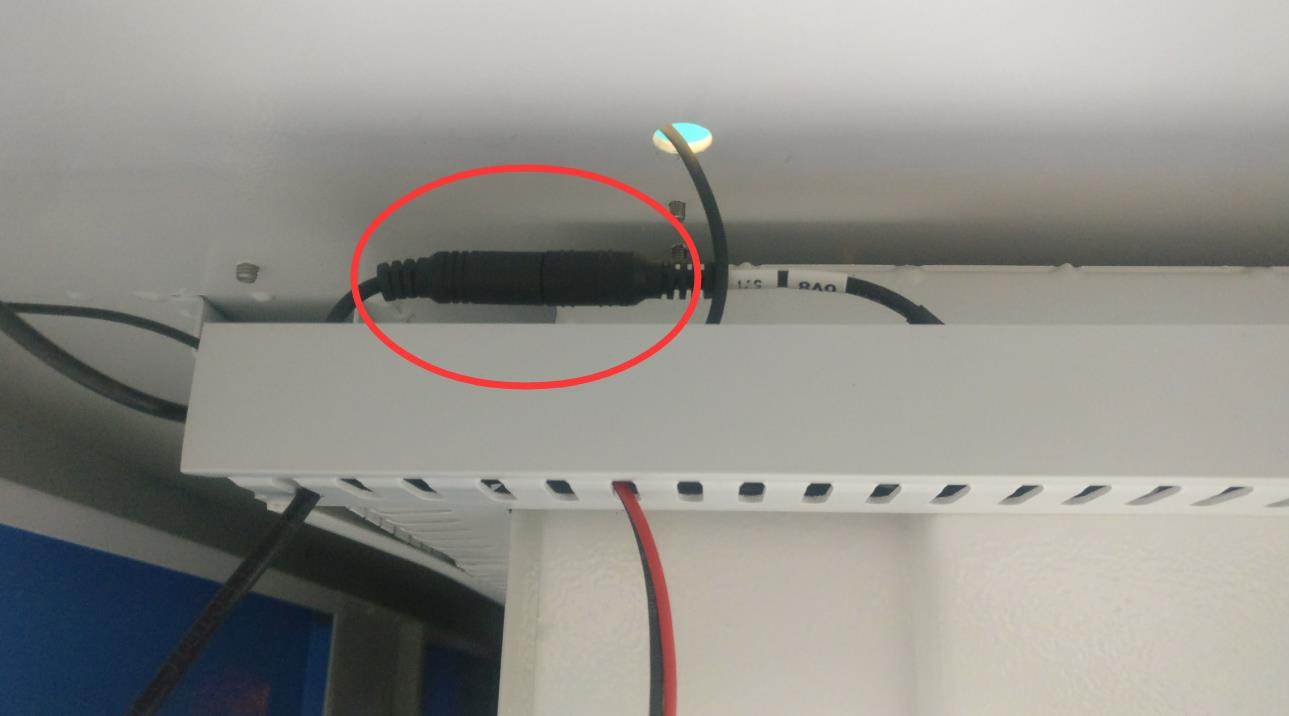

If not, please open the lower left-hand door panel, find the connector for the red dot and check if it’s connected well, like below. This connector gets its +5VDC power from the TL Timer board.



Power Source:

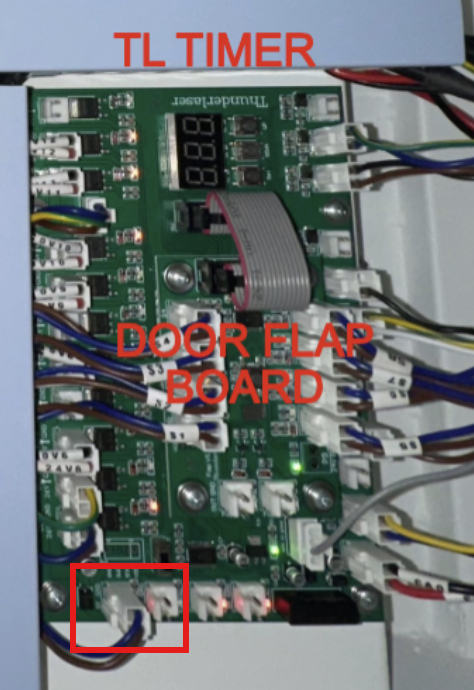

The red dot in newer machines is powered by the TL timer which has redundant power supplies for the 5V needed for the red dot. You can check with a meter for 5VDC and even swap the connector to the spare source.


Nova Machines: The TL timer is on the right side in the electronics bay behind the blue door

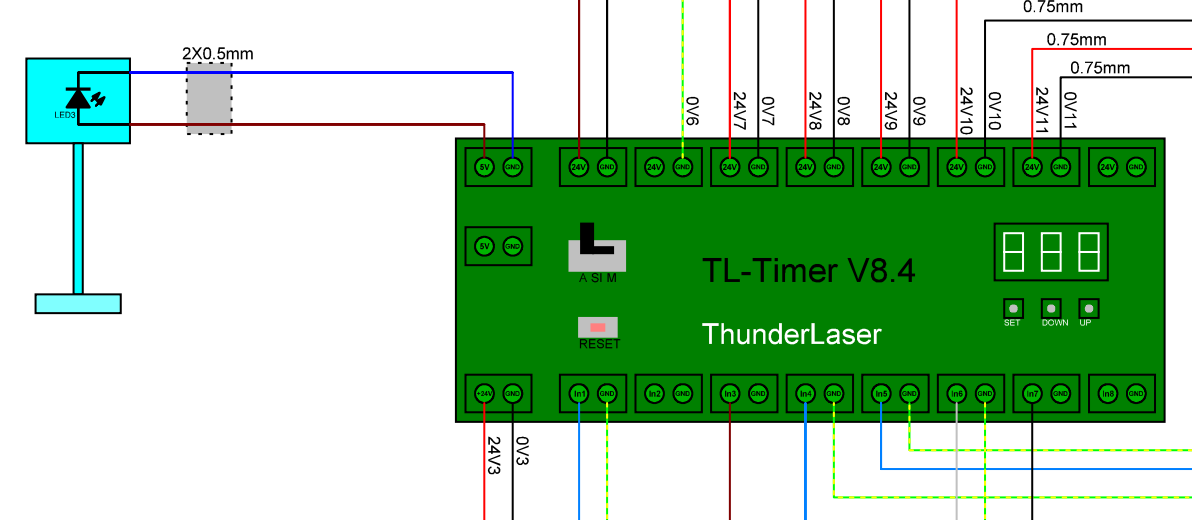

Schematic of the Red Dot Power on V8.4 TL Timer
V8.4 and lower TL TIMER Red Dot Power Source



Bolt and Odin Series: The TL timer is on the Left side behind the door.

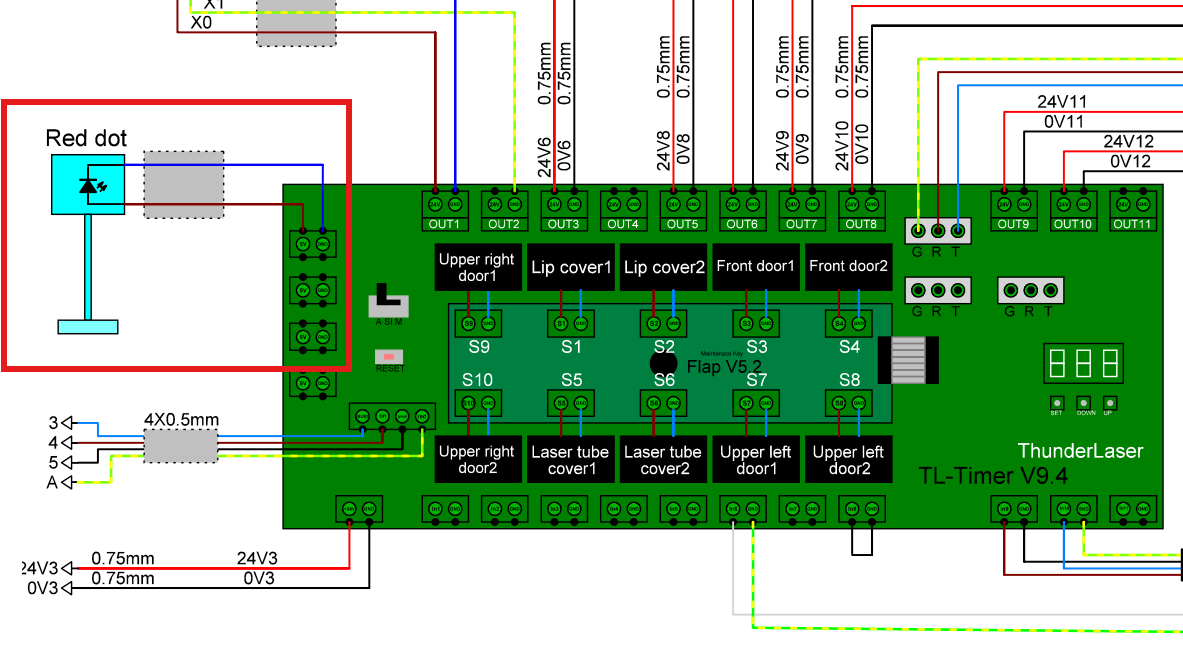

Schematic of a the Red Dot Power On V9.4 TL Timer
V9.0 and higher TL TIMER Red Dot Power Source

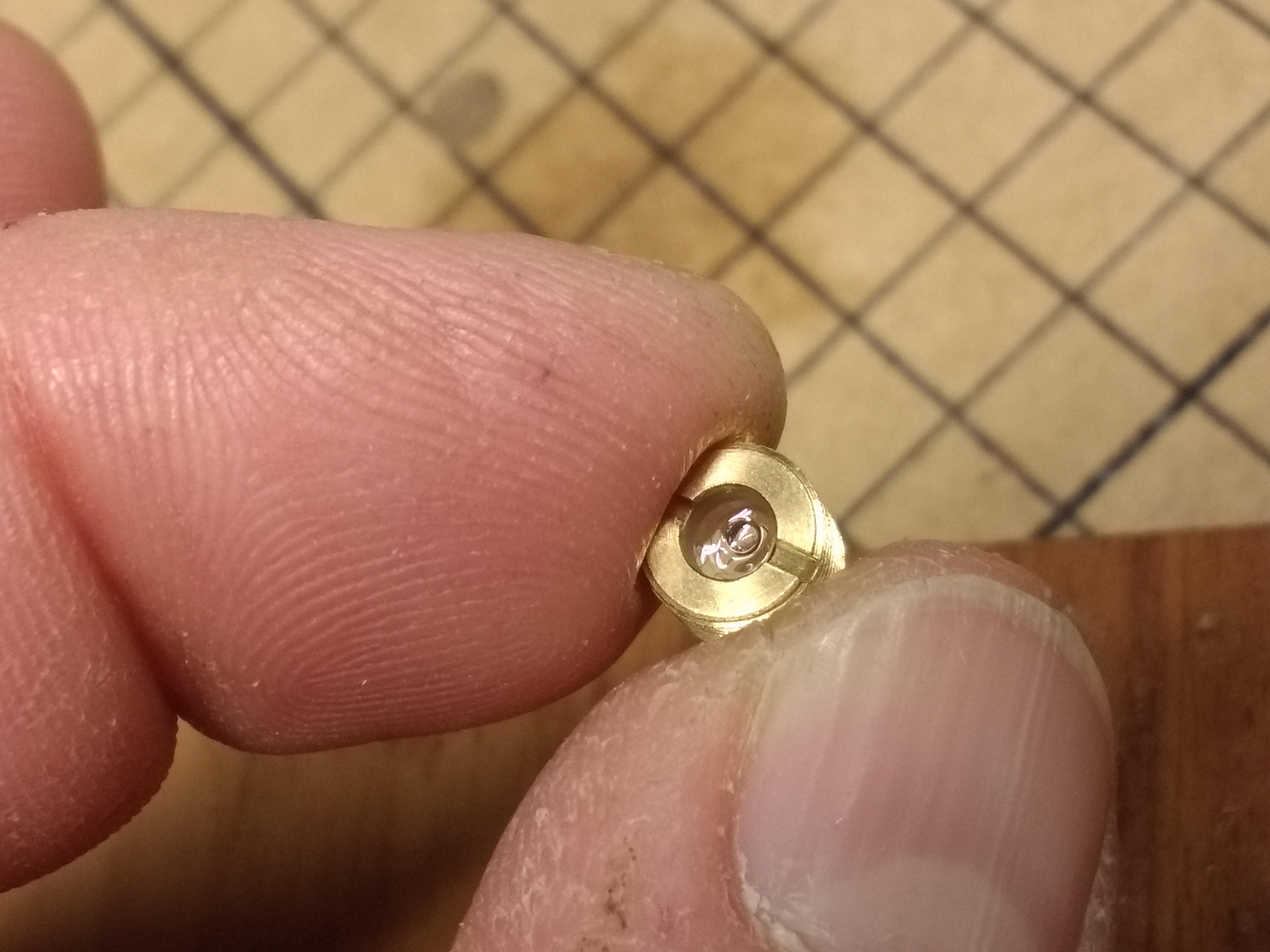

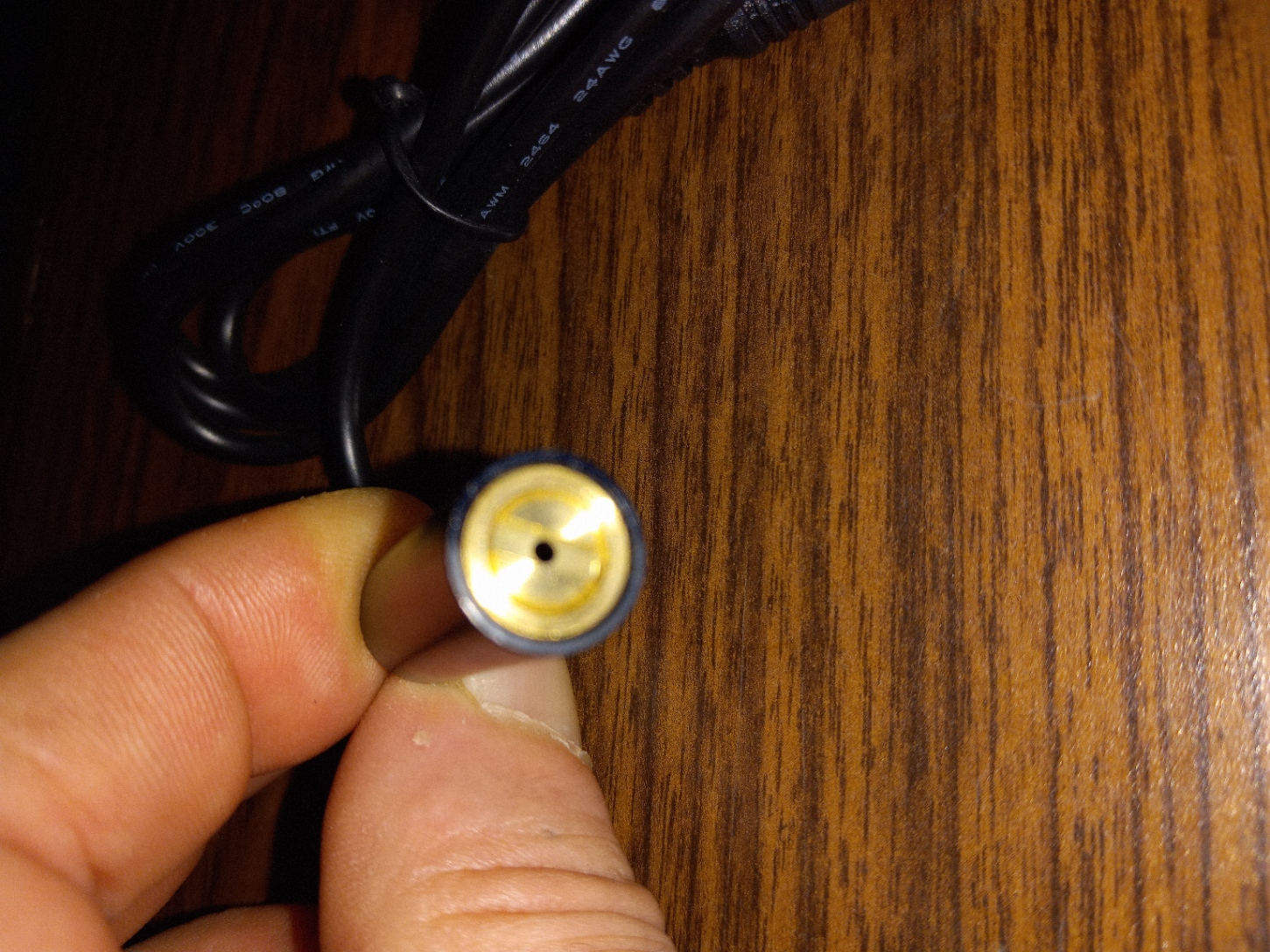

Red dot lens damage due to beam reflection


Here is an example of a red dot module lens assembly that has been exposed to reflected beam energy. This is almost always caused by using too much power while processing reflective materials like powder-coated tumblers, anodized metals, bare metal in conjunction with a marking compound, attempting to cut metals, etc...  This specific issue is not normally covered under warranty.



Update: we are using a red dot module with a much smaller aperture to help mitigate reflected beam energy. This design seems to help but makes it more difficult to visualize the lens:




The red dot pointer is not aligned (most common)


Procedure: Align the Red Dot pointer


1.Move the laser head on the middle of the working table.

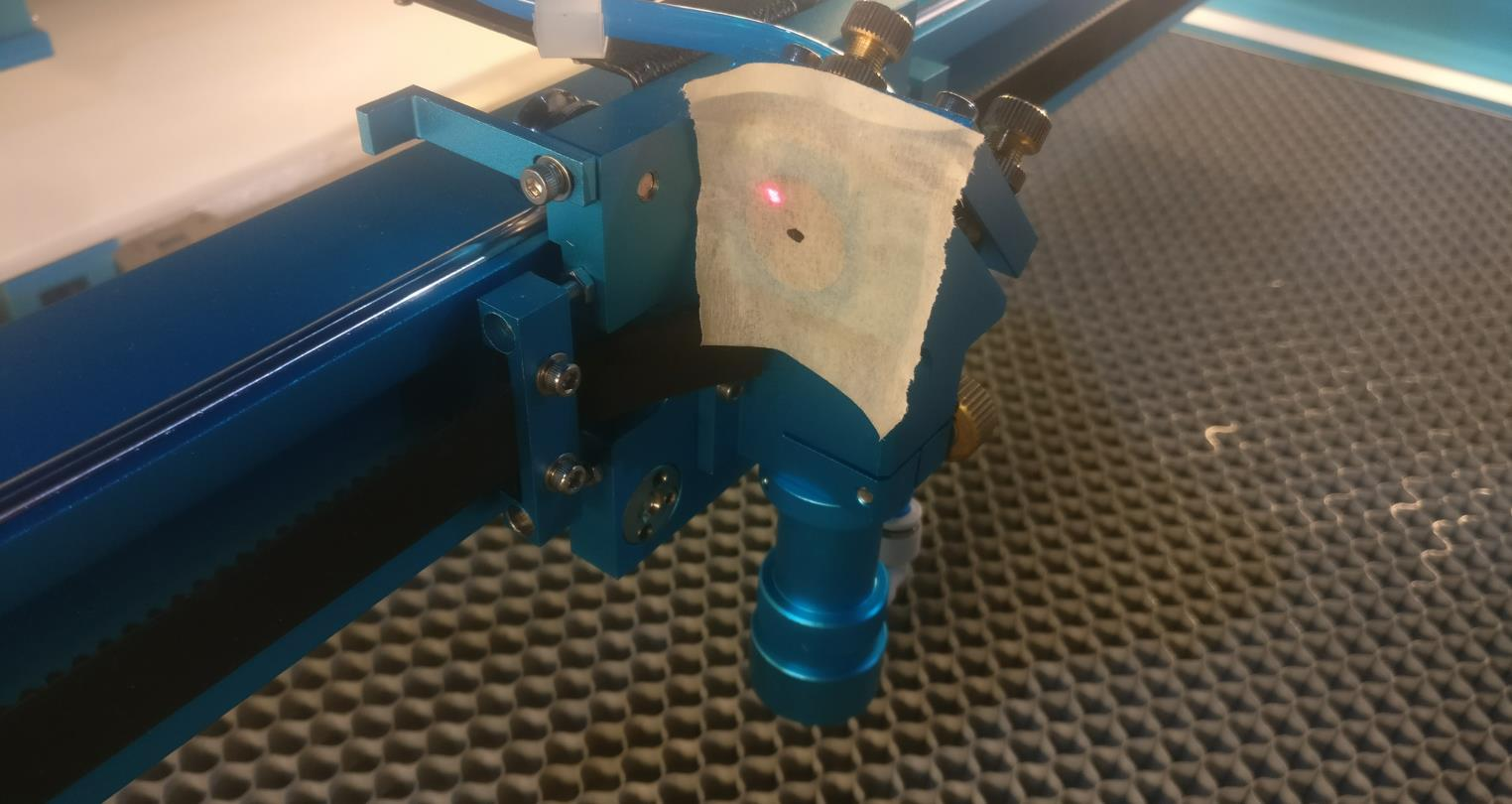

2.Place a square of masking tape over the left side of the third mirror carriage, and mark a dot on the center, like below.

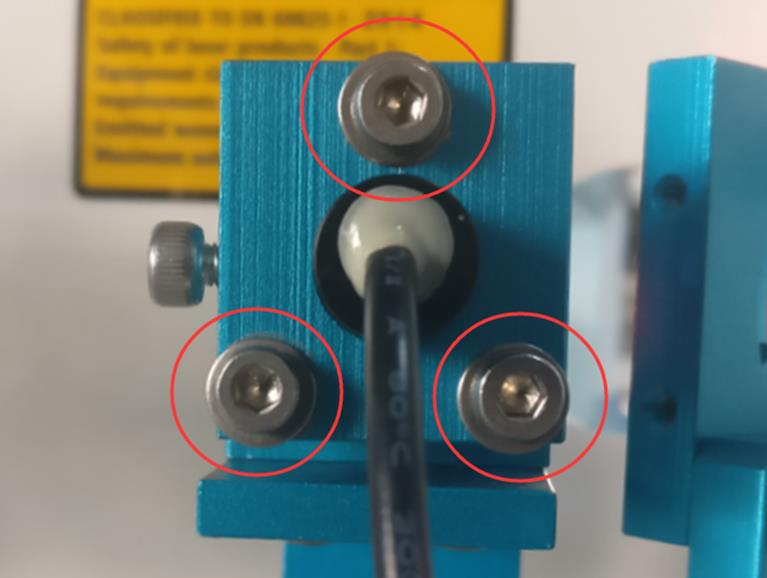

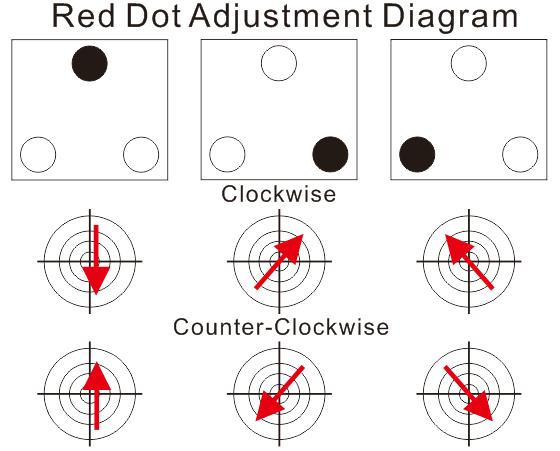

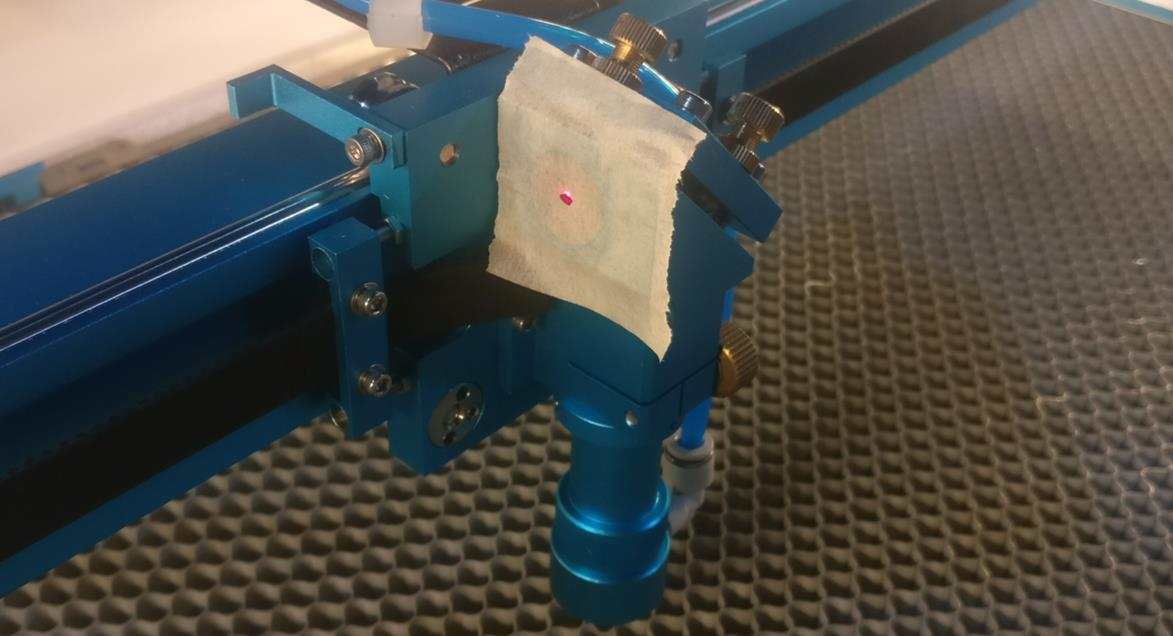

3.Use the three adjustment screws on the Red Dot Pointer Mount to move red dot to the mark dot on the tape, like below.






The red dot pointer pigtail is terminated with a barrel connector so you can easily replace it. It is a +5vDC device. It is powered from the TL Timer board.


The red dot pointer 12x30mm.


Here is a link that you can use to buy a replacement red dot pointer.

Cloudray has a similar one too, but we have had a few reports that the barrel connector on the pointer doesn't provide power from the thunder OEM harness due to some small deviation in components. We recommend using the OEM module.
