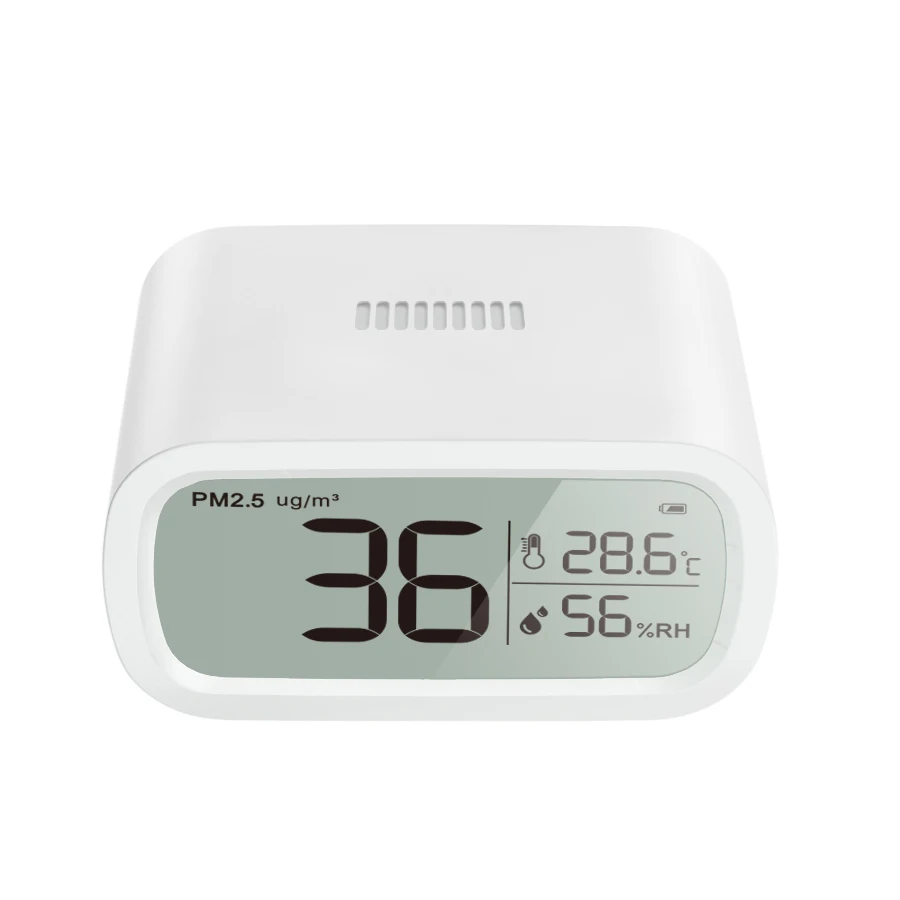

PM2.5 Portable Smart Air Detector Mini Sensitive Air Quality Monitor
A13 PM2.5 Portable Smart Air Detector Mini Sensitive Air Quality Monitor
PM2.5 measurement, adopt laser sensor technology
HD LCD display
Temperature and humidity measurement
Index exceeding reminder, when PM2.5 value exceed
100 ug/m³, the display will blink
Power saving function, 10 minutes automatically shut
down in case of batteries powered.
Brand: | HAPTIME |
Molde: | A13 |
Name: | HAPTIME PM2.5 Portable Smart Air Detector Mini Sensitive Air quality Monitor LED Screen PM 2.5 For Home Office |
Product size : | 141*94*55mm |
Display screen : | HD LCD display |
Power supply : | 3 AAA batteries ( not included ) or usb cable |
PM2.5 measuring range : | 0-999ug/m3 |
Resolution : | 1ug/m3 |
Humindity detection range : | 20%~95% |
