Odin Series Lens Assembly Check
Previous Design:

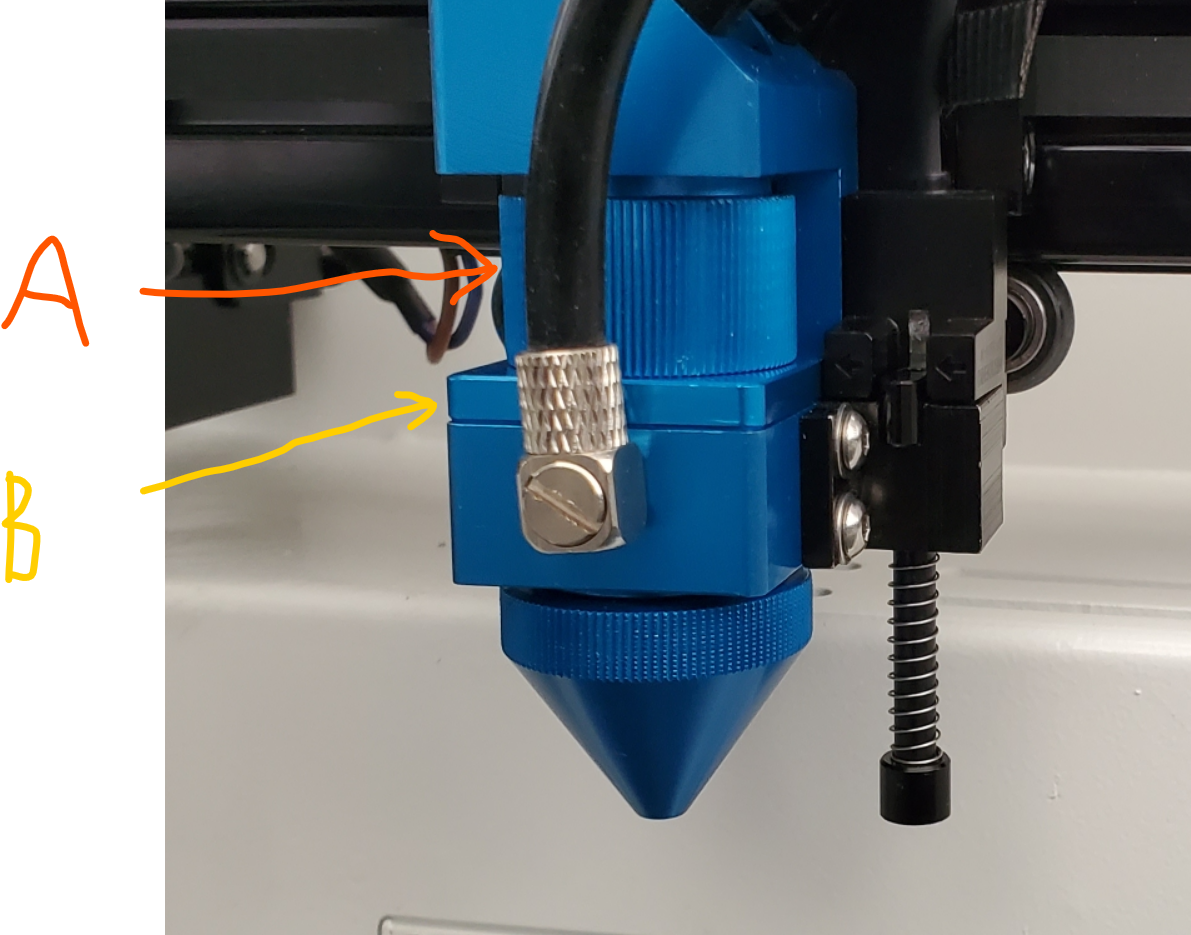

A is the fixing nut for the lens assembly. B is the lens assembly:
Here is how you can check that the lens is properly positioned and secure:

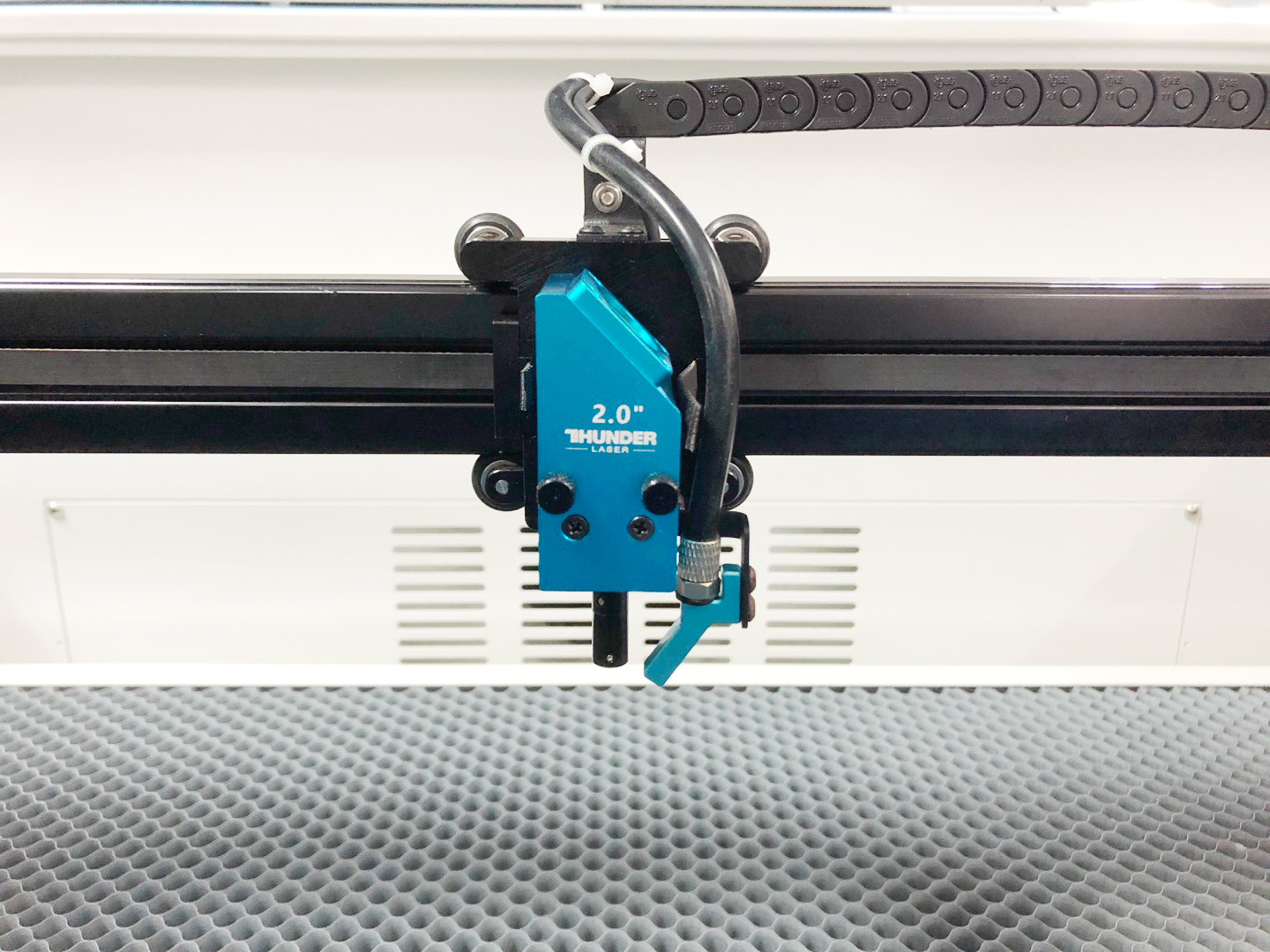

New Design:
We have new design of lens assembly, the video is coming:
To inspect the lens, unscrew the 2 black knob screws and remove the front panel of the laser head assembly. The lens will be adhered in place to a tray attached to the front panel
