Nova Series Included Parts

Nova Series Included Parts

Overview

Here is what is included with your Thunder Laser Nova series. Tools may be substituted and not look exactly as what is shown below.

See the attached PDFs for legacy info.



Parts List

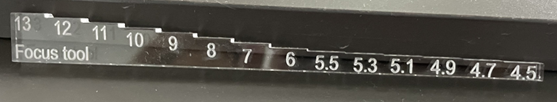

1. Focus Gauge

Ensure correct focus between laser head and material (6mm).

A picture containing indoor

Description automatically generated


2. Optics Removal Tool

Fixed ring for opening reflector and focusing lens.




3 .Lens Cleaning Kit

Frequent cleaning of the lenses helps to extend the life of the lenses.




NOTE: YOU AMY RECEIVE OPTIC/CLEANROOM FOAM-TIPPED SWABS INSTEAD OF CLOTHS.


4. 6mm Nozzle

Provides a soft blowing effect.



Graphical user interface

Description automatically generated with medium confidence


5. Magnets

We need to make sure that the material is flat enough or it may not be in focus.

A picture containing text, electronics

Description automatically generated


6. Lubricating oil

Reduced friction on Z axis leadscrews and corrosion inhibition between bearings and guide rails


7. X/Y Limit switch

Just in case

A picture containing appliance, sewing machine, indoor

Description automatically generated


8. Allen Wrenches

For your convenience

A picture containing indoor, person

Description automatically generated


9. Snap Ring Pliers

Used with the Allen driver to adjust the tightness of the fixed pulley.

A picture containing person, indoor

Description automatically generated




10. Spare belt

If the original belt is badly worn, it needs to be replaced.

A picture containing indoor

Description automatically generated


11. Retractable Blade

For cutting cable ties, unboxing, etc…

A picture containing honeycomb, outdoor object

Description automatically generated



12. Reverse compensation settings

Parameters for optimizing machine engraving effects, each machine’s parameters are unique.



A picture containing text, person, indoor, electronics

Description automatically generated


13. Acrylic

Testing the power of the laser for proper functioning There will be instructions in the link here:

A picture containing honeycomb, outdoor object

Description automatically generated



https://www.thunderlaser.com/troubleshooting/maintenance/how-to-judge-if-the-laser-power-become-weaker.html


14. Spare laser power supply fuses

Newer units may have circuit breakers


15. Ruler

A ruler with numbers on it

Description automatically generated with low confidence



16. Screwdrivers

A picture containing text, indoor

Description automatically generated



17.Cable ties

A close-up of a pipe

Description automatically generated with low confidence


18.Usb and Ethernet cable

A picture containing person, indoor, blue

Description automatically generated


Connect with the machine.
