Nova Series Drag Chain Specs

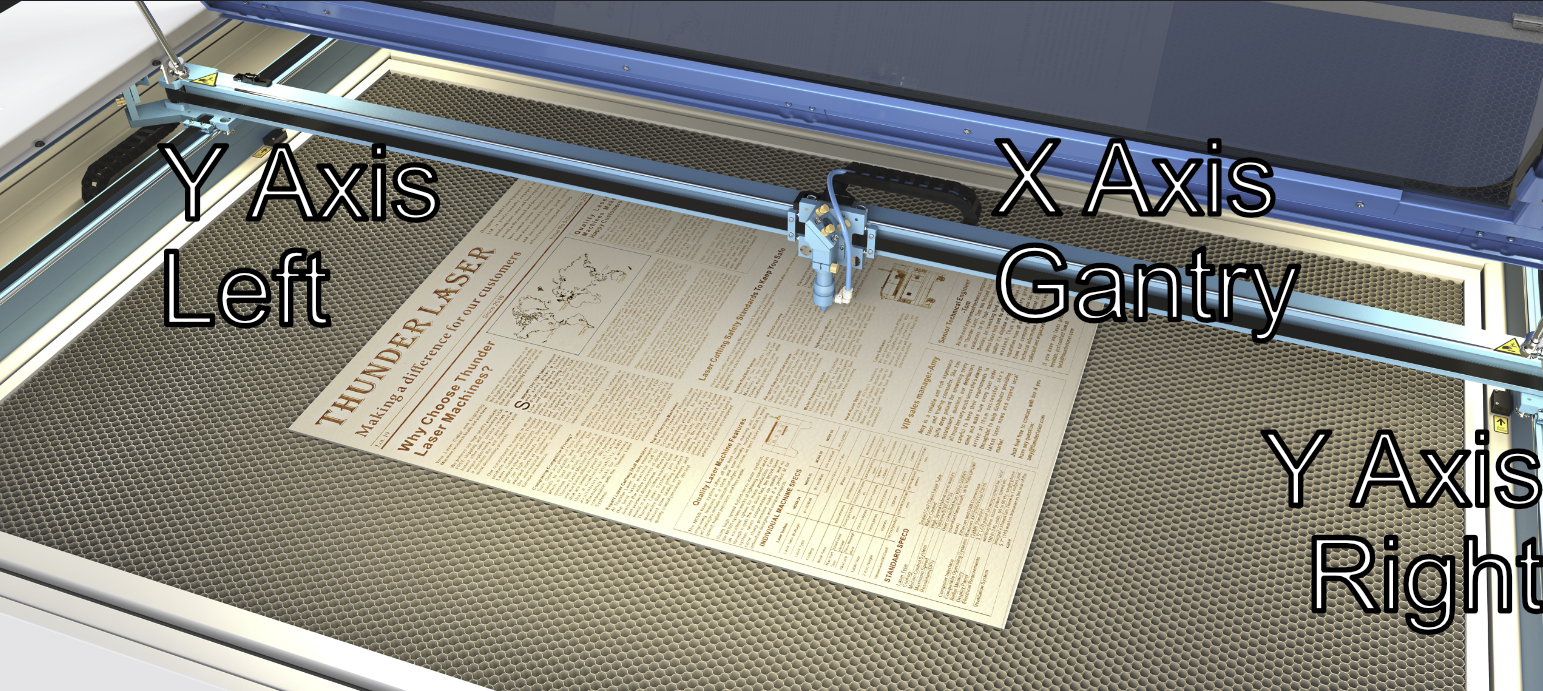

The drag chain in your Nova series machine will vary by location and machine model. There are 3 separate sections in the machine. Please use the image below when deciding which location you need.
Nova 24/Mini 60
Nova 35
Nova 51
Nova 63
Nova 24/Mini 60
| Location | Chain Spec | Link Quantity/Length |
Y Axis Left Side | 10mm x 20mm R28 | 18/420mm |
10mm x 20mm R28 | 22/550mm | |
Y Axis Right Side | 15mmx20mm | 14/440mm |
Nova 35
| Location | Chain Spec | Link Quantity/Length |
Y Axis Left Side | 10mm x 20mm R28 | 24/520mm |
10mm x 20mm R28 | 29/640mm | |
Y Axis Right Side | 15mmx20mm | 18/540mm |
Nova 51
| Location | Chain Spec | Link Quantity/Length |
Y Axis Left Side | 10mm x 20mm R28 | 30/660mm |
10mm x 20mm R28 | 39/840mm | |
Y Axis Right Side | 15mmx20mm | 24/700mm |
Nova 63
| Location | Chain Spec | Link Quantity/Length |
Y Axis Left Side | 10mm x 20mm R28 | 32/700mm |
10mm x 20mm R28 | 46/9800mm | |
Y Axis Right Side | 15mmx20mm | 25/730mm |
