Machine Hardware Identification

Machine Hardware Identification


Nova 35 pictures:

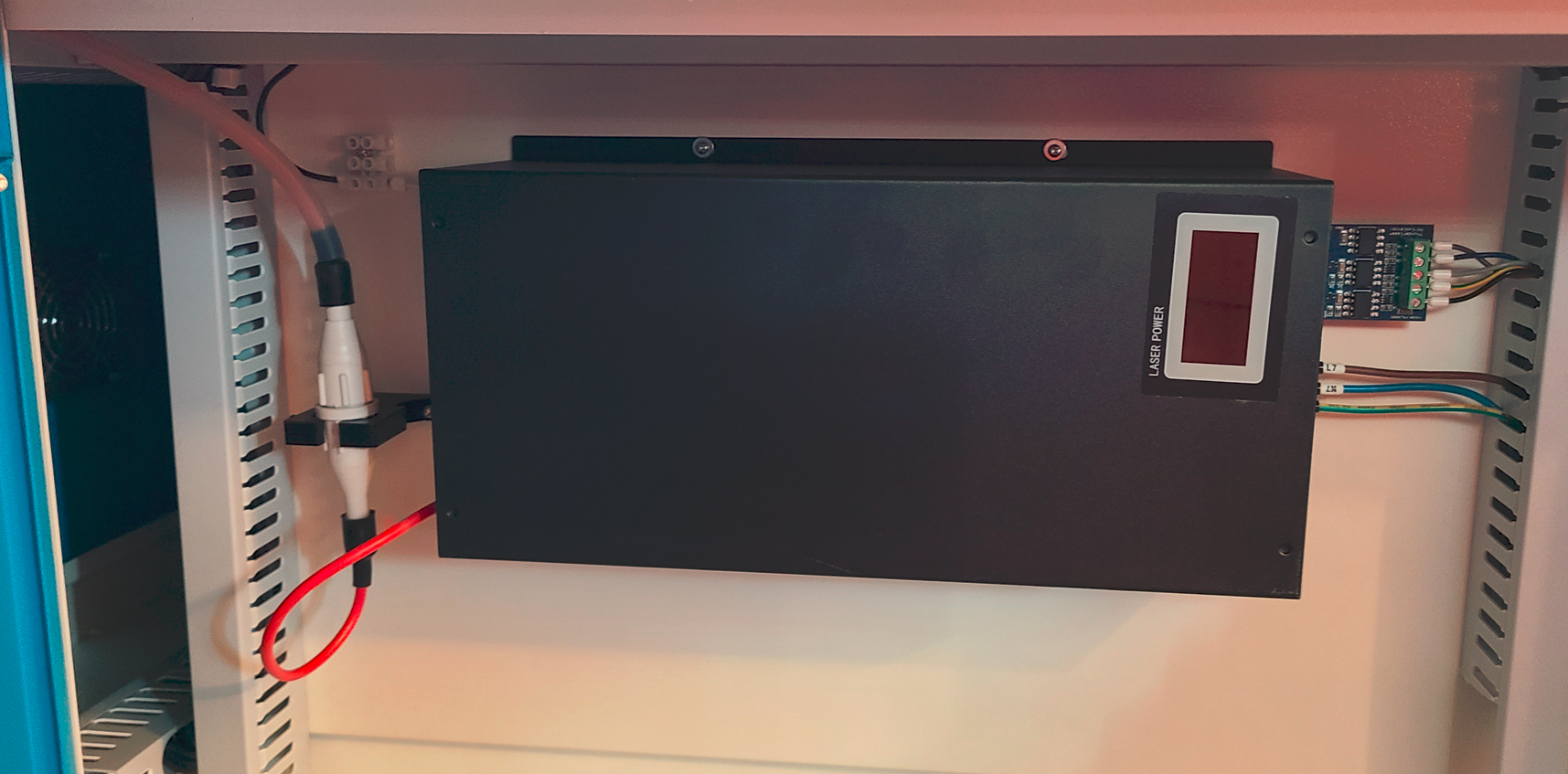

Right Side Control Panel:

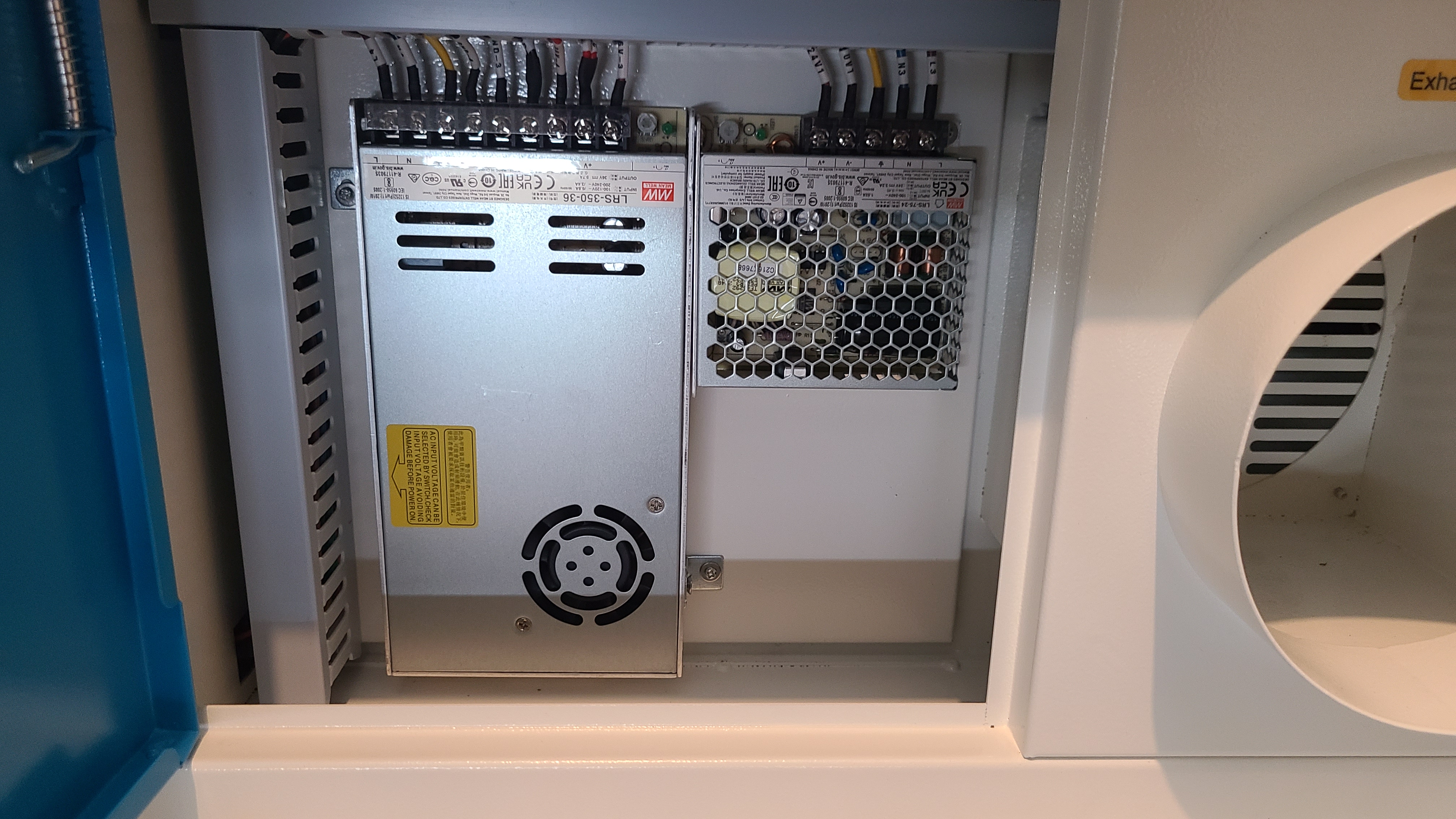

Back Left Side Control Panel for LPSU:




Nova 51:

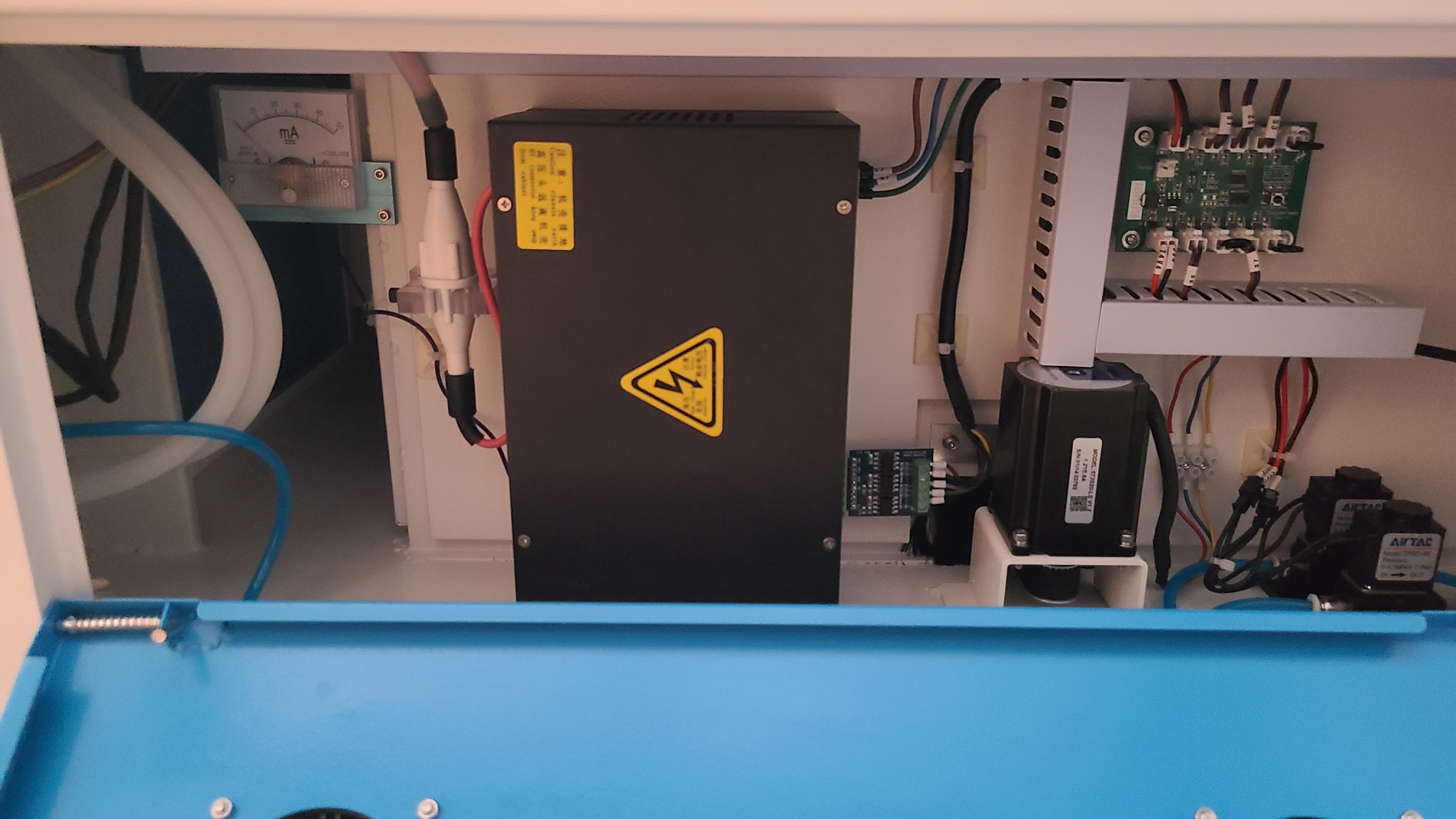

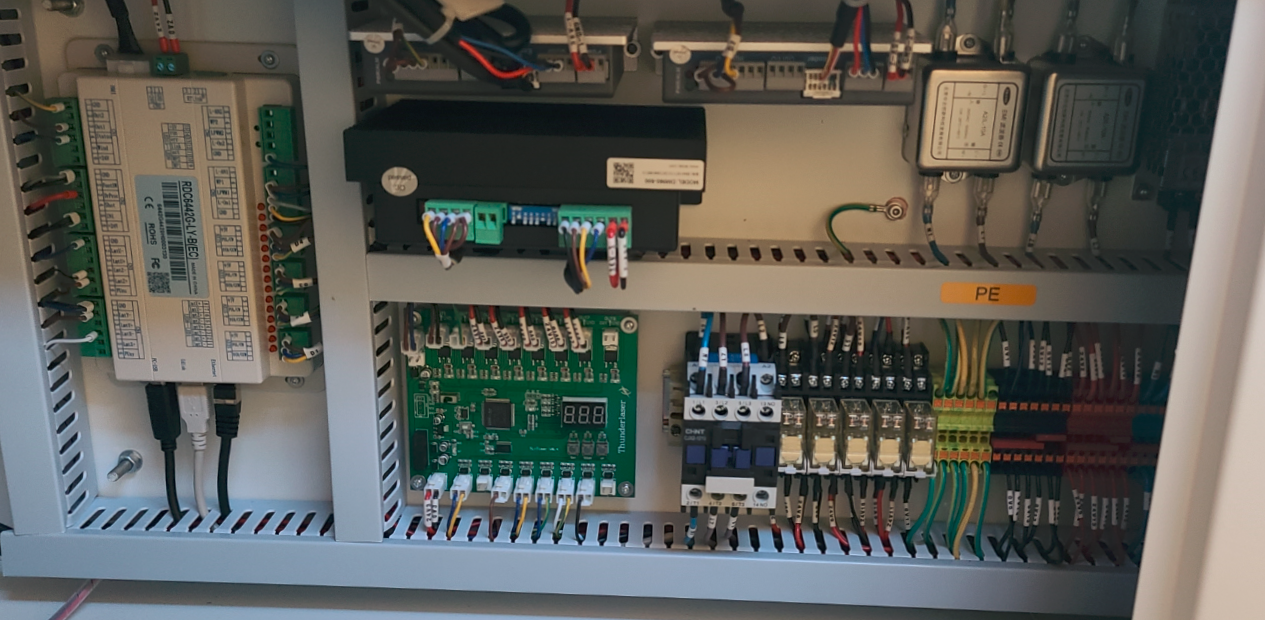

Left side of Machine, behind right blue door:

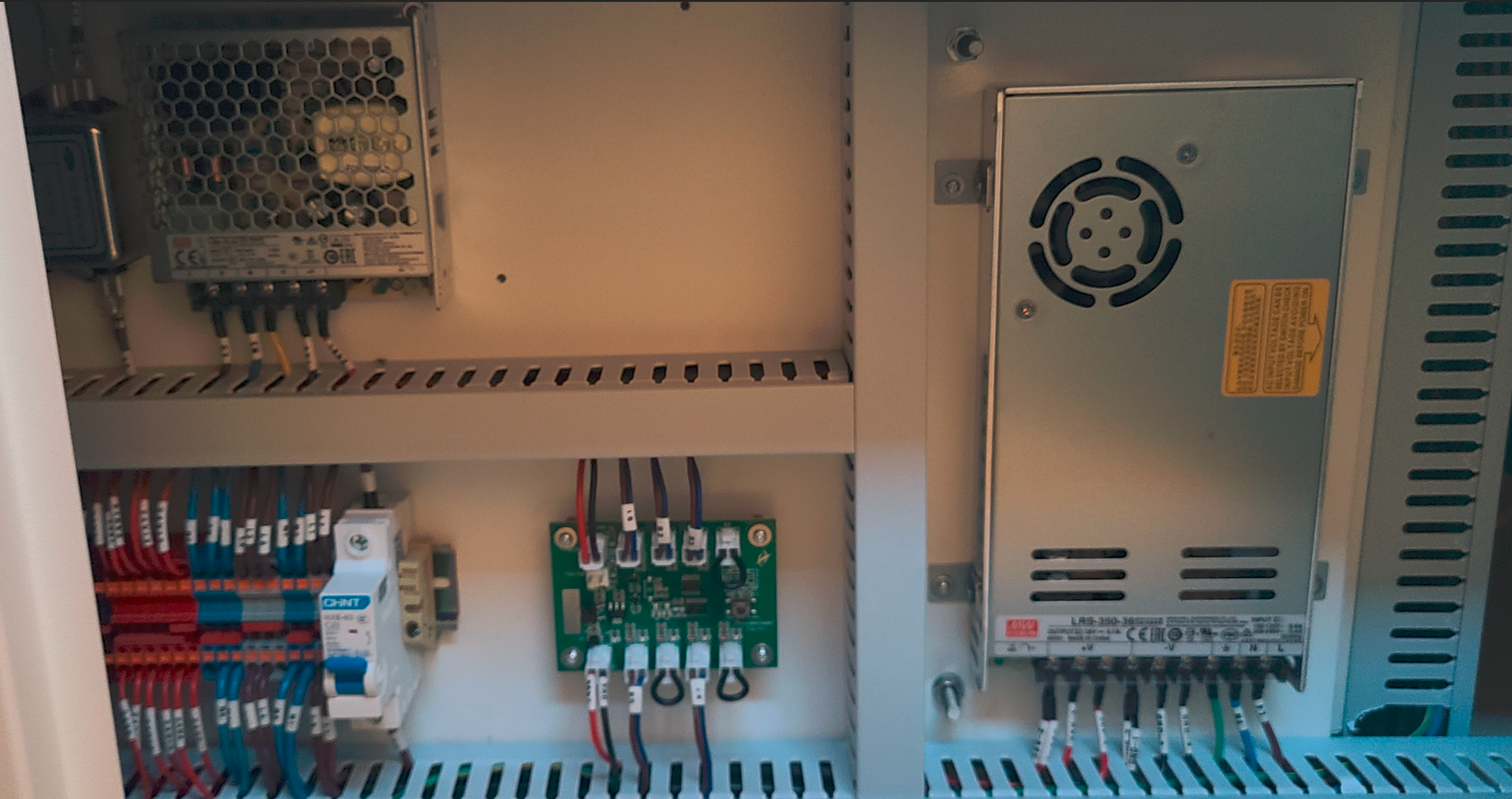

Right Side of Machine, behind left blue door:


Right Side Of machine, behind right blue door:


Back Left Control Panel LPSU:

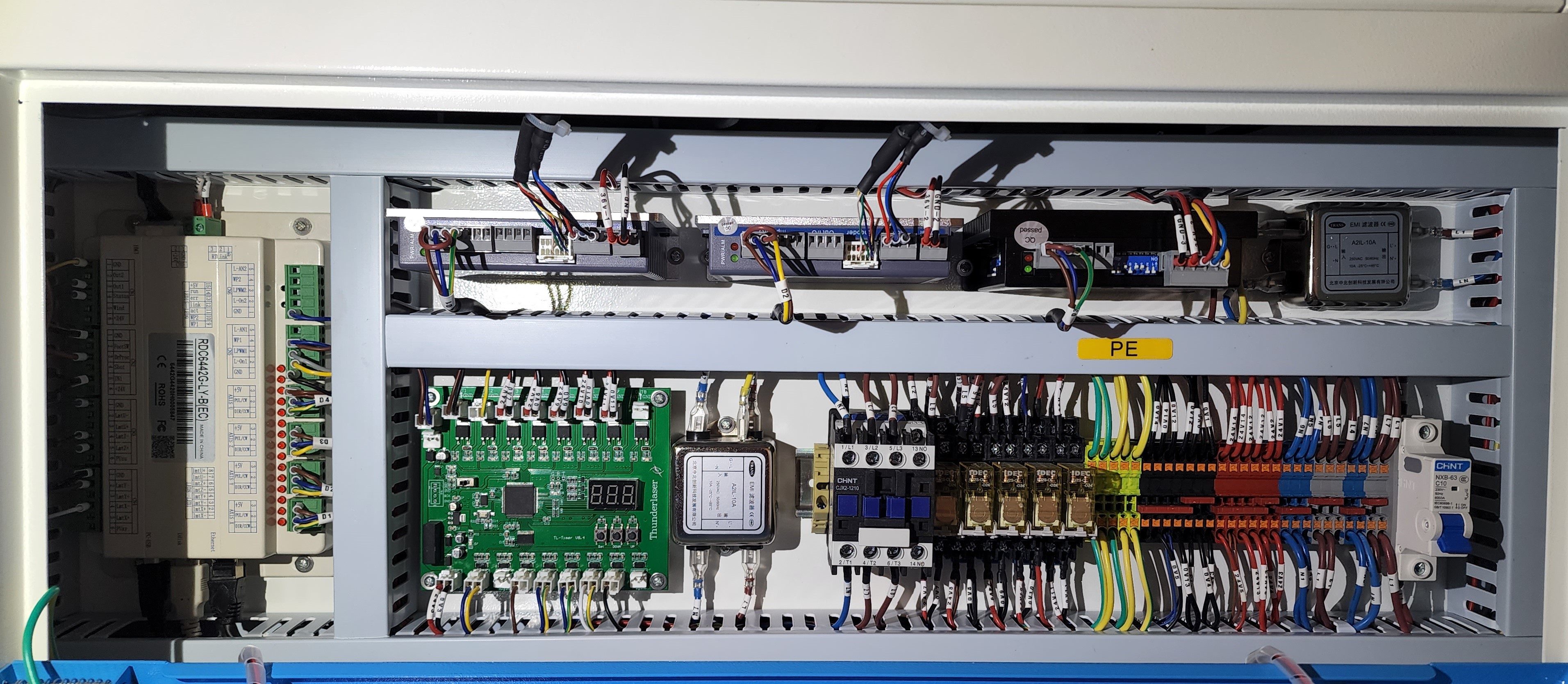

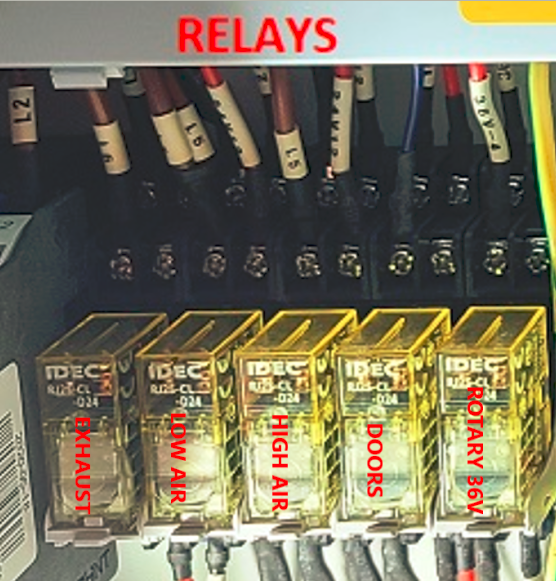

Relay Functions:

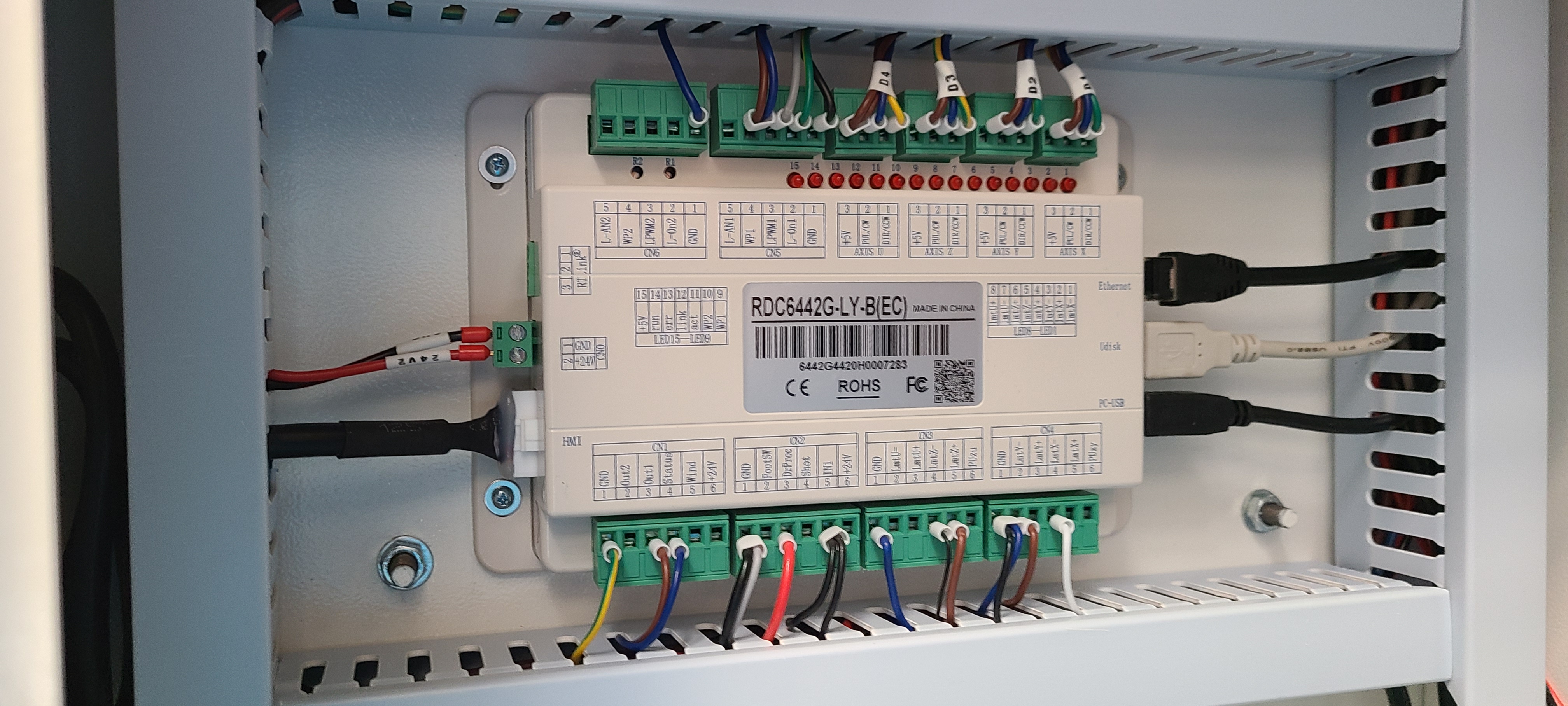

Ruida Controller Close up:



Nova 24 Pictures:

Right Side control panel

Nova 24 control panel

Left Side Control Panel:

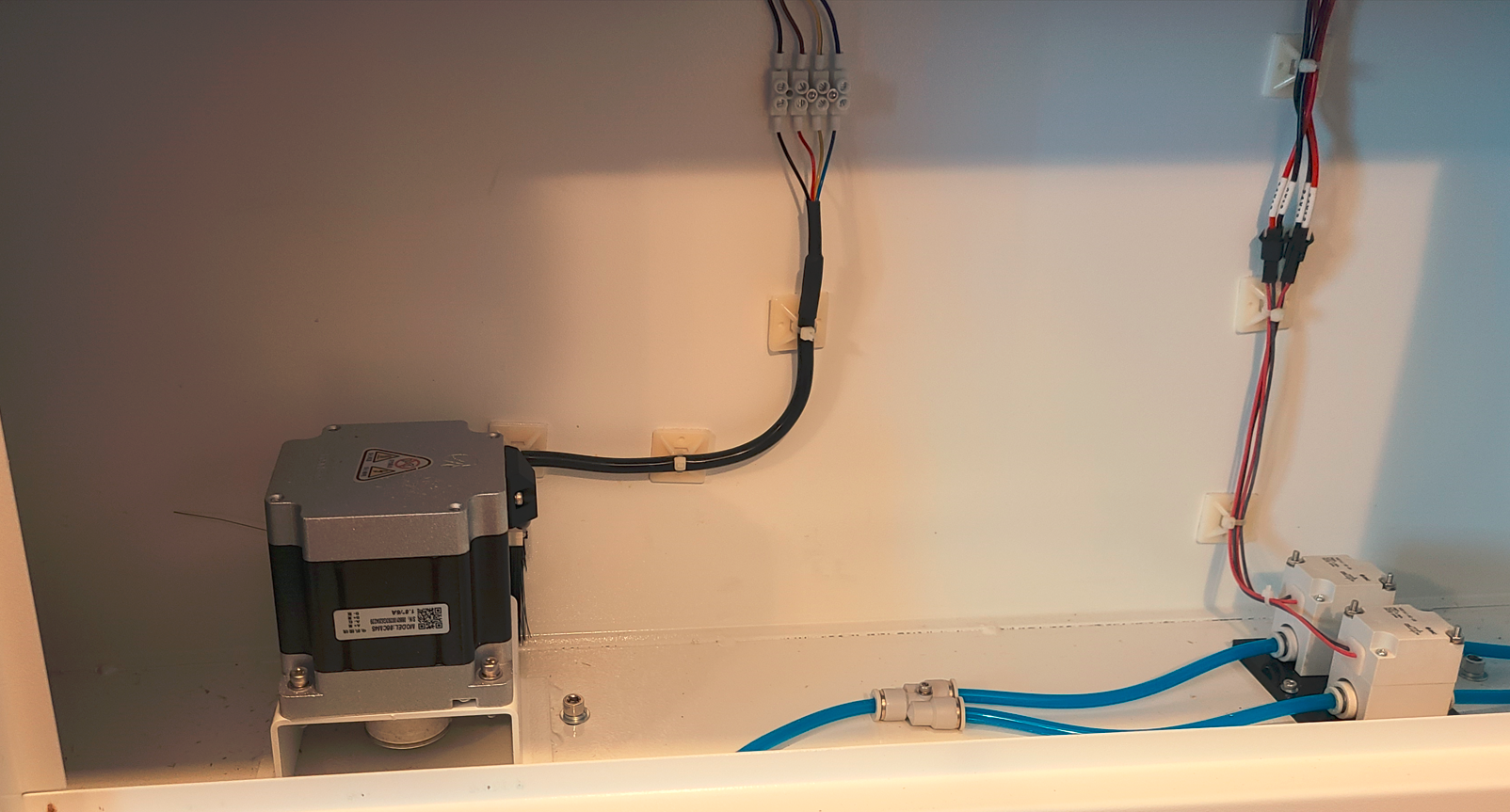

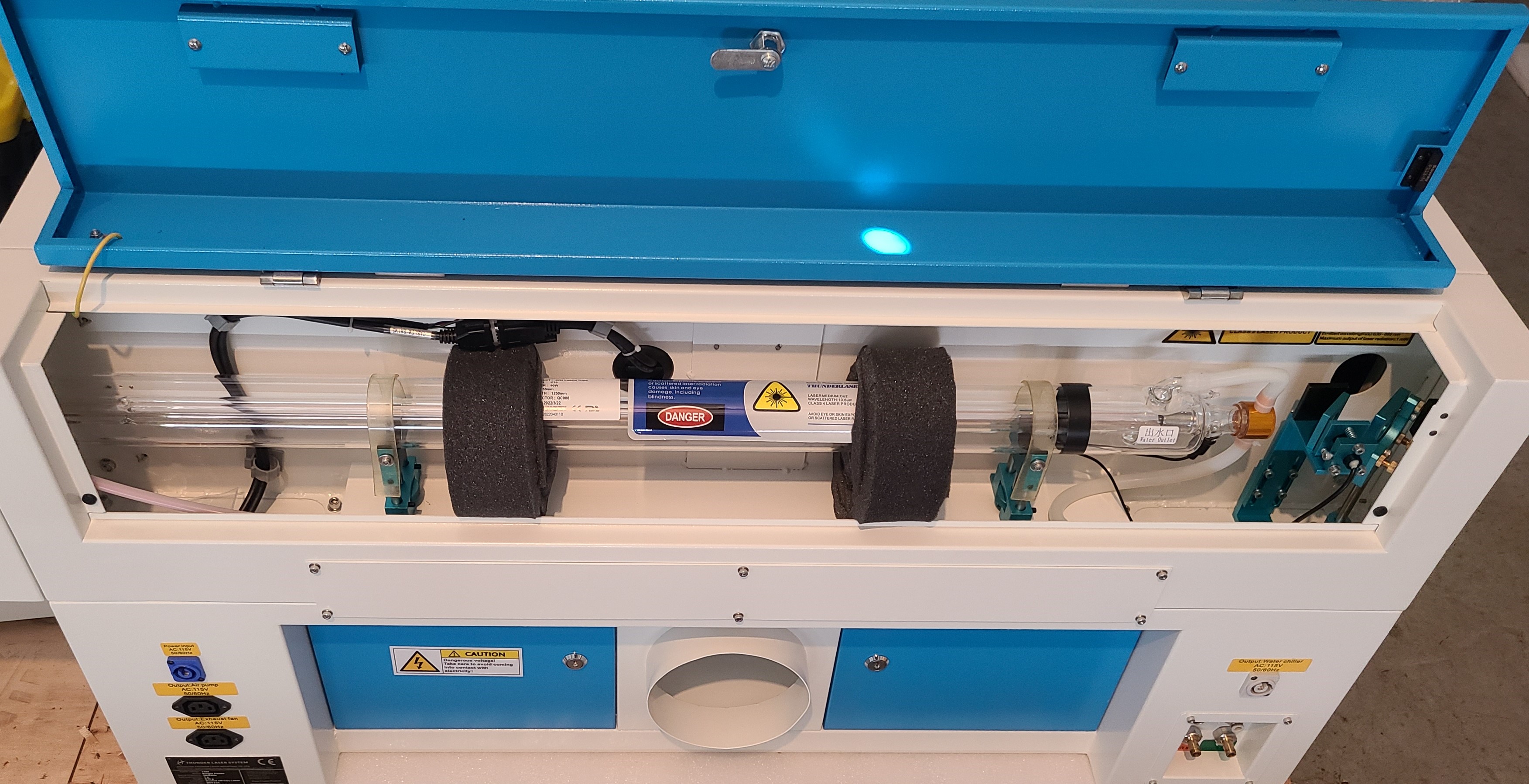

Tube Bay

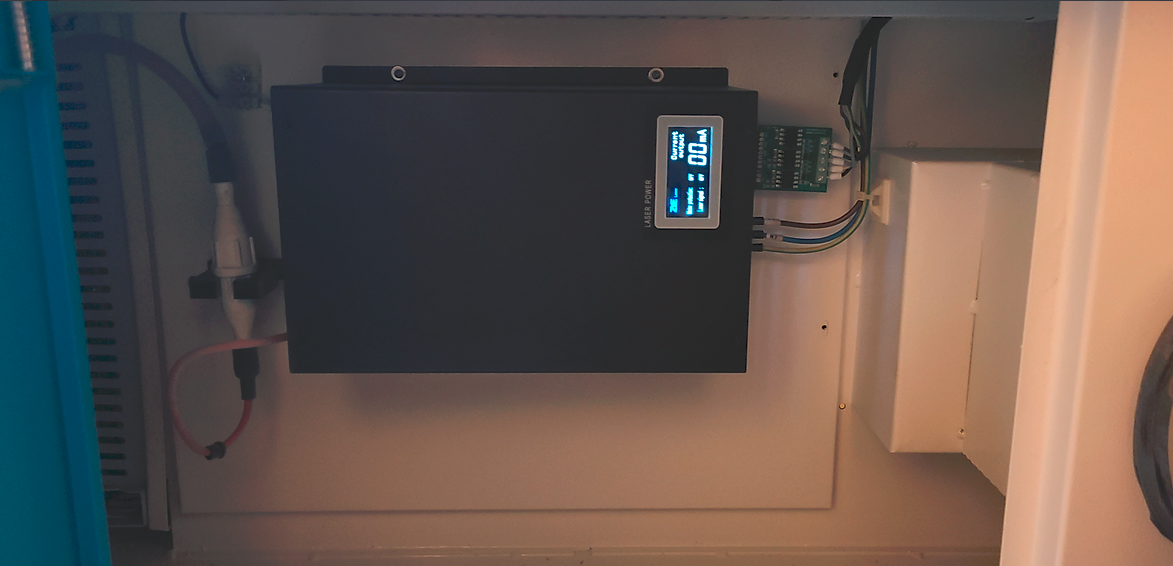

Back Left Side control panel with 24v and 36v Power Supplies:
