Preface: This article will walk you through a mock device setup so you can emulate a Thunder Laser in your LightBurn trial. There are two methods to do it, the Manual method where you create the profile per the instructions in the video and the dimensions for your machine and the Import method. This is for gantry lasers only. Galvo setup is a little different


Quick Start Guide:

Two options, create manually (slow) or download and import (fast).

Manually Create:


Download and Import a Profile:





Complete Guide:

When installing LightBurn for the first time be sure to select Install FTDI Drivers so they will already be loaded. Once you get your Thunder Laser you can delete the mock device and run the "Find My Laser" Wizard (if connected USB, not applicable to Ethernet) and it should find and install your Thunder Laser automatically or use the device you already have set up and just add the scanning offsets, etc.

There are two ways to accomplish this, you can do the manual method or the easy method of downloading and importing a profile. Both methods are detailed below.

Manually Create:

Use these values for WORK AREA dimensions:


Machine
Width
Height
Nova 24
600mm/23.62in
400mm/15.75in
Nova 35
900mm/35.43in
600mm/23.62in
Nova 51
1300mm/51.18in
900mm/35.43in
Nova 63
1600mm/63in
1000mm/39.37in
Odin 22
560mm/22.05in
380mm/14.96in
Odin 32
810mm/31.89in
500mm/19.69in
Bolt
508mm/20in
305mm/12in


1.Select Create Manually
2.Select Ruida Controller
3.Select Packet USB






4.Enter Dimensions and Name Device
5.Select Rear Left
6.Summary Page



Download and Import a Profile:

1.Download the profile for the machine you want to create a mock trial of from the bottom of this article.
2.After you install Lightburn and open it up, it will ask that you create a Device. Select the Import button and navigate to where you downloaded the Device profile and select it for import.  Then click Ok.

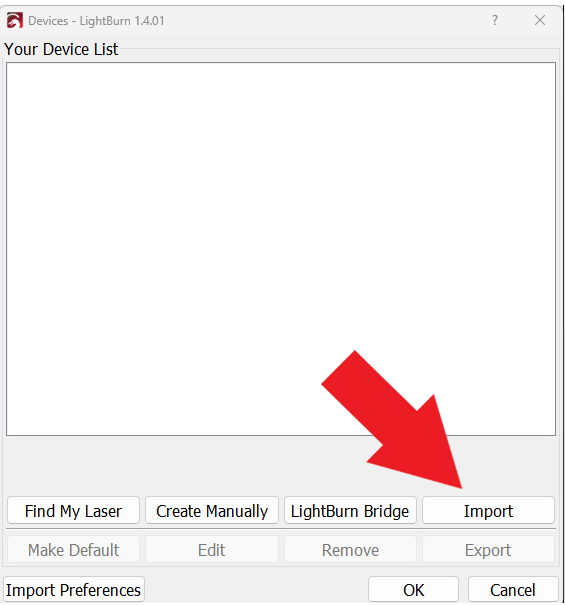

1.Select the Import Button.
2.Navigate to the location of the .lbdev file, Click on it, select Open. Your new Device is imported.



Note that the Simulator Settings for the mock setup may look a little different than when you connect and upload from your actual machine. Lightburn gives you the ability to modify them to give you more accurate results (estimate vs actual) and Lightburn applies some default scaling when you upload.
