How to make a cable and test Pulse an RF Laser Tube for ODIN and BOLT

Preface: This article covers how to make a Test cable to be able to Test Pulse an RF tube in and Odin or Bolt Laser.

Quick Start Video:

This video only covers the cable connections and how to test. It does not cover making the test pulse cable.

*coming soon*

---

Complete Guide:

How to Make the Test Pulse Cable

Tools  you will need:

Wire Strippers

RJ45 8 Pin Ethernet Patch cable w/T-568B termination

Ferrule and Crimper (Optional)

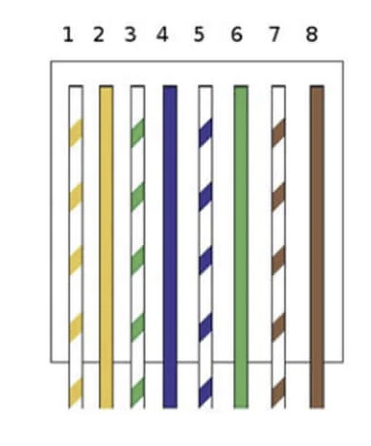

What is a T-568B termination for an Ethernet Cable:

The cable you select should have the wires in the following order to meet T-568B requirements. If you have a different cable, it will still work but you will need to ignore the wire colors and go by the Pin Out number only

      Pin. Color

1. White Orange

2. Orange

3. White Green

4. Blue

5. White Blue

6. Green

7. White Brown

8. Brown

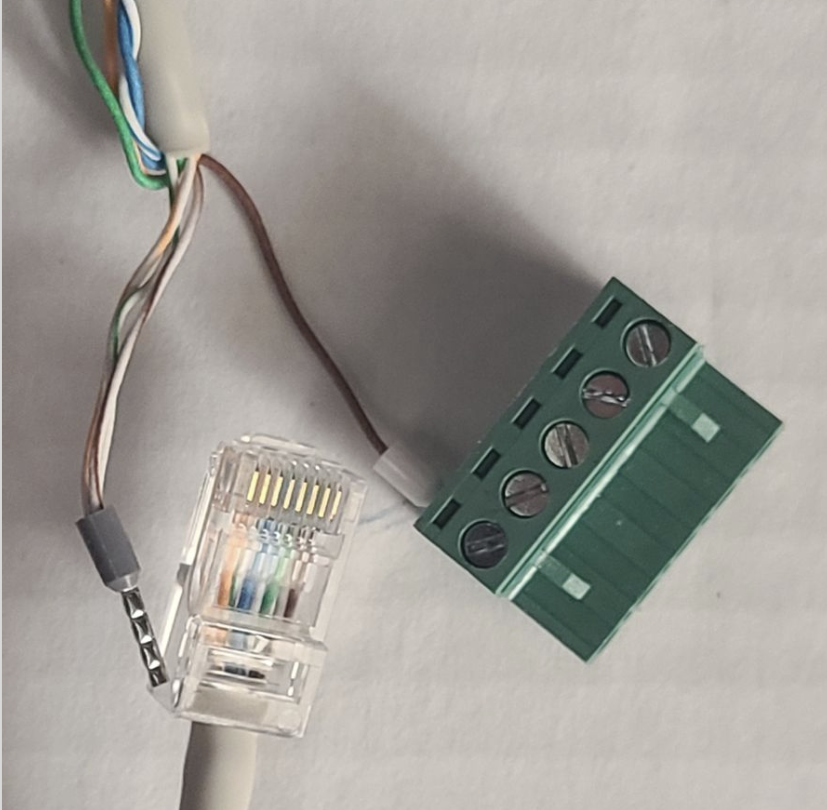

Cable Connections:

Pins 1,3 and 7 should be shorted together. You can use a wire ferrule to crimp them together, solder them, twist and tape etc. You can even use a jumper block if you have one. These wires will not be connected to anything else.

Pin 8 will then be tied to CN5 Pin 1 GND terminal. It is recommended to use the spare green terminal block in CN6. Connect the brown wire to the terminal.

Pro Tip: Break the Ethernet Cable Retainer Tab off the Ethernet end. This will make the cable easier to remove after testing

The Test:

This test , if successful will fire the laser at 100% power and bypasses interlocks. You should take the necessary safety precautions when performing this test.

Initial Setup

1. Power up your machine

2. Remove the lens from your machine

3. Place a piece of scrap material (like a wood plank) under the laser head

4. De-focus a few inches from the head

5. Unplug the Ethernet connection from the Laser Tube

6. Unplug Cn5 from the Ruida Controller

Test Fire

7. Plug the test cable into CN5

8. Plug in the cable to the Tube

9. Quickly inspect if the tube fires and unplug the cable

10. Return machine back to stock.  Power off the machine and then plug in machine CN5 and machine Ethernet connectoins
