How to fix the Thunder Bolt Camera Live Preview that is rotated or flipped upside down
How to fix the Thunder Bolt Camera Live Preview that is rotated or flipped upside down
Preface: The OEM camera manufacturer sold cameras of the same part number but with varying firmware which caused the images to be flipped on some Thunder Laser machines.
Three Solutions:
1. Physically Invert Camera Position
2. Send Camera to Thunder to Flip with Software (Mac Users)
3. Use Software to flip (Windows Only)
Physically Invert Camera Position
Quick Start Video:
Complete Guide:
Invert Procedure:
Tools you need:
1.5mm Allen Wrench
2mm Allen Wrench
Time to complete: 10 minutes

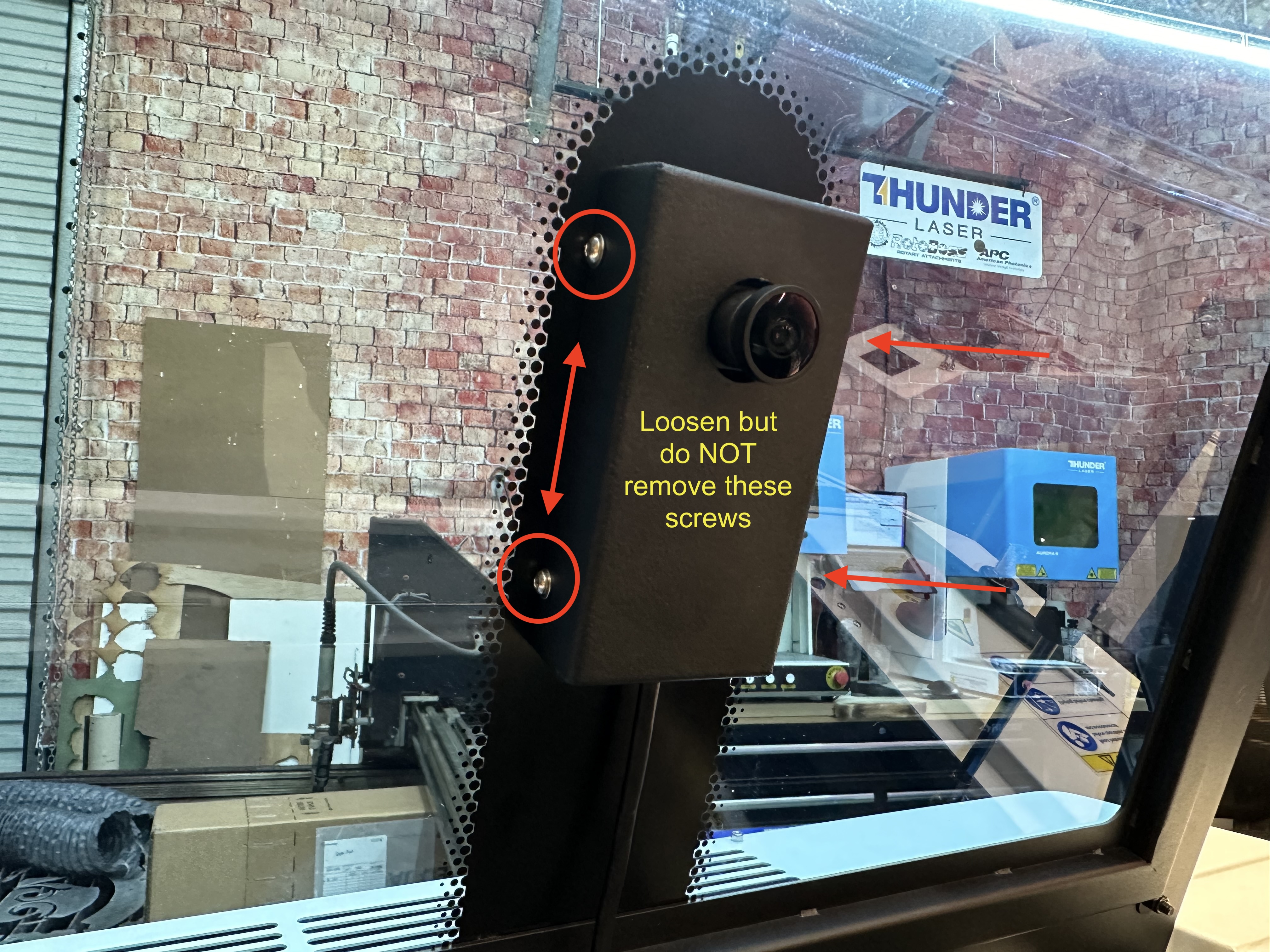

1. Loosen Screens for Camera Cover
Do not completely remove the screws. There are four of them. Just loosen
2. Remove Camera Cover

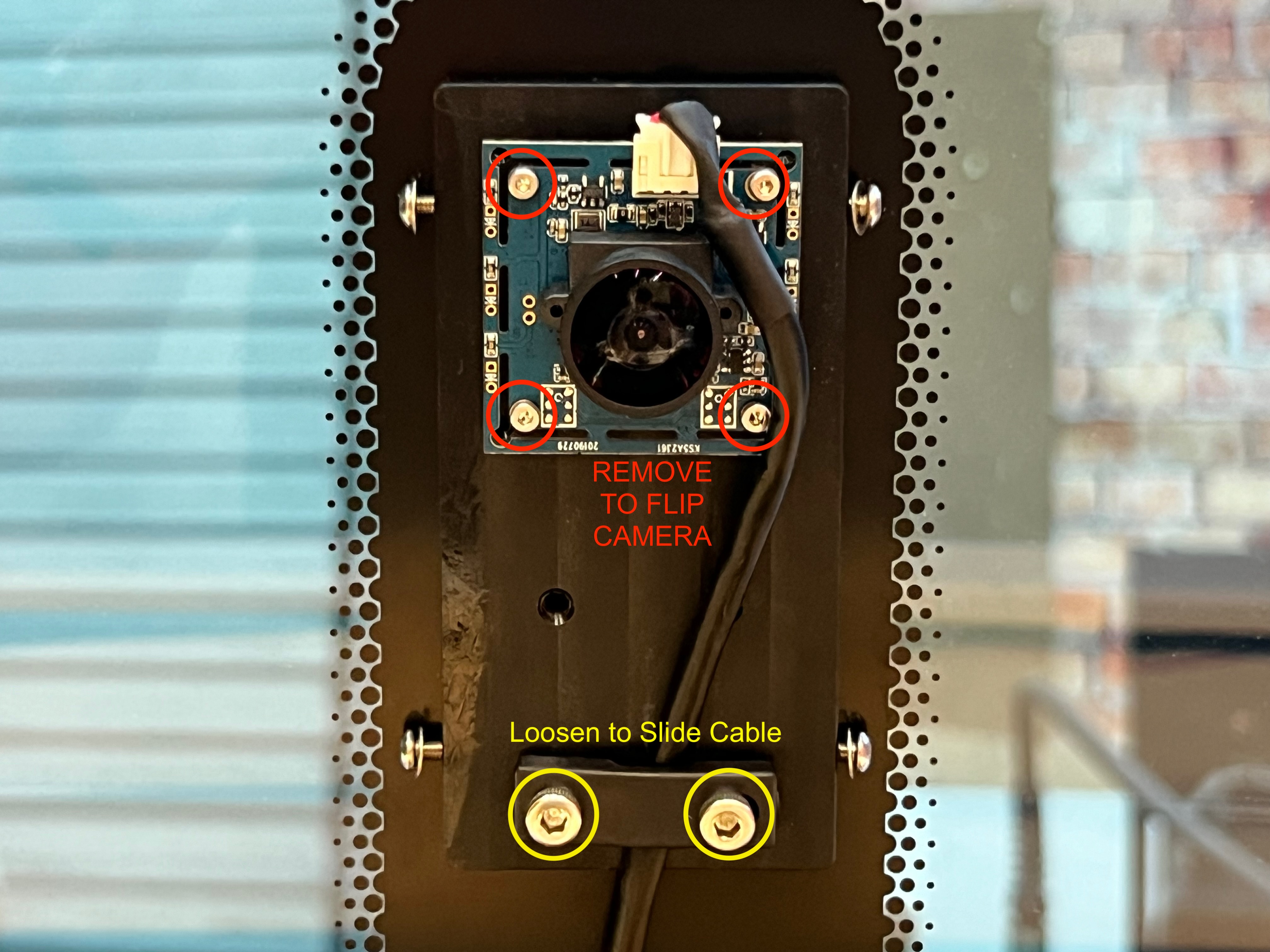

3. Unbolt Camera
For these small screws it would be good to cover the bed first as you are likely to drop one
4. Rotate camera and route cable
5. Bolt Camera Back
6. Reinstall Cover
Send Camera to Thunder to Flip
Thunder will send you a replacement camera and a shipping return label. You will need to swap the camera and then return the original camera back to Thunder.
Swap Procedure: Use the steps shown above to remove the camera. The only additional steps are for your to remove the cable from camera and send it to Thunder with a label provided by Thunder Laser USA. When you get a camera back
Use Software to Flip (Windows Only)
Unplug all other cameras from your computer, including your ThunderCam. The software can flash and brick your Thundercam.
Problem
description:
The Live preview in Lightburn is flipped 180°
Solution:
The
camera manufacturer has software packaged to update the camera's firmware. After loading
the firmware, the camera will be flipped to the correct direction.
1.Turn on your Bolt and connect to it with USB cable to your computer.
2.Open the camera direction program — ‘KINGSEN TOOLS V20201225.exe’
3.Select the firmware file KS5A2361.bin and
then click the ‘Download’ button.
Note: Before clicking the
download button, you must to turn off the computer's camera software (Close Lightburn and any software trying to access the camera).
4.Wait for the firmware upgrade to complete
5.When you see the green Pass logo, it
means that the upgrade procedure has been completed. Then please open the Lightburn
software camera to check whether the camera direction has been changed to the
correct direction.
If
you see red Fail logo, it means the upgrade process is failed.
(1). Make sure there is no other software on
the computer is using the camera and retry
(2). Make sure that the connection
between the camera and the computer is stable and retry
(3). Unplug and re-plug the PC cable again
and retry
Windows Blocking the EXE from running:
If you get a message from windows that looks like this, with a popup too:

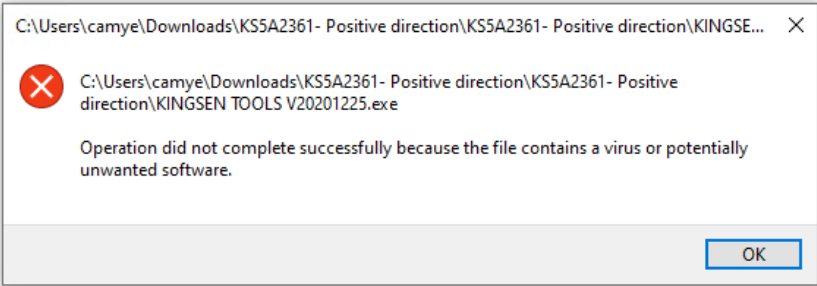

Error Message

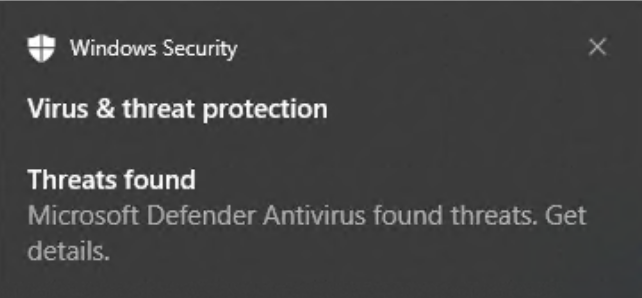

Popup from Windows Defender
Then Windows is going to block and delete the EXE file. What you need to do is temporarily suspend protection and re-enable protection once done with the image flip software.
How to Disable and Enable Protection:
By doing so you understand and accept risks of disabling the protection, beyond just running the EXE that was downloaded.

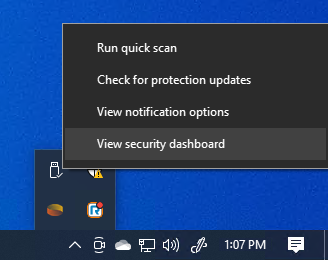

In your Tool Bar, right Click on the Windows Defender Icon and Select to View security Dashboard

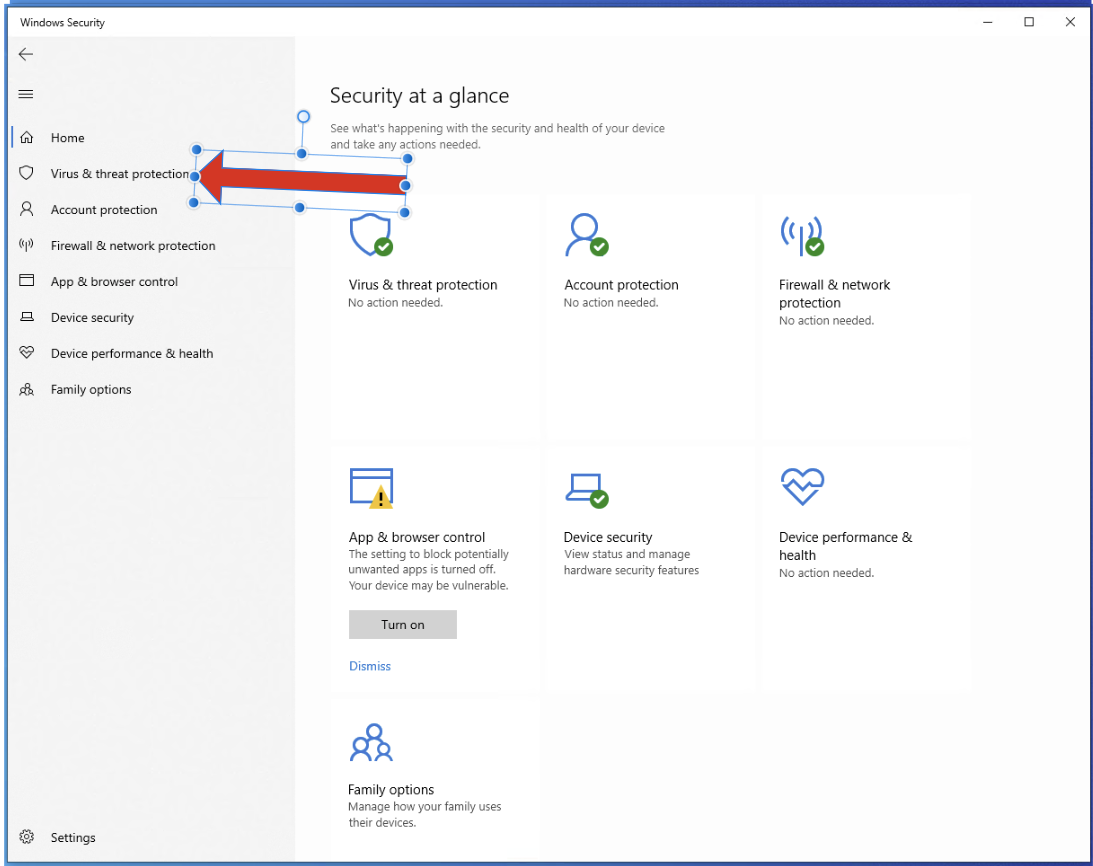

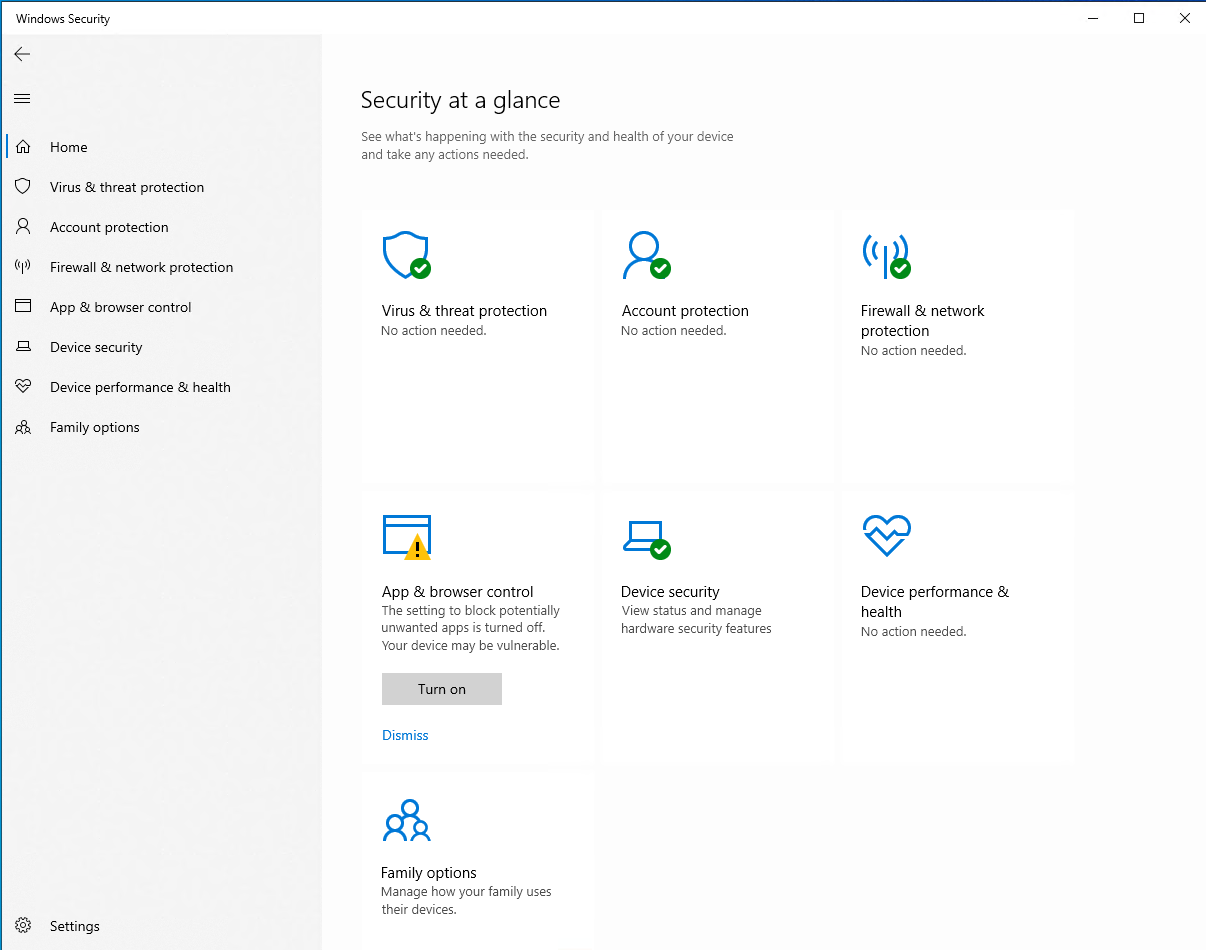

Security Dashboard Home Page
Select the "Virus & threat protection" page

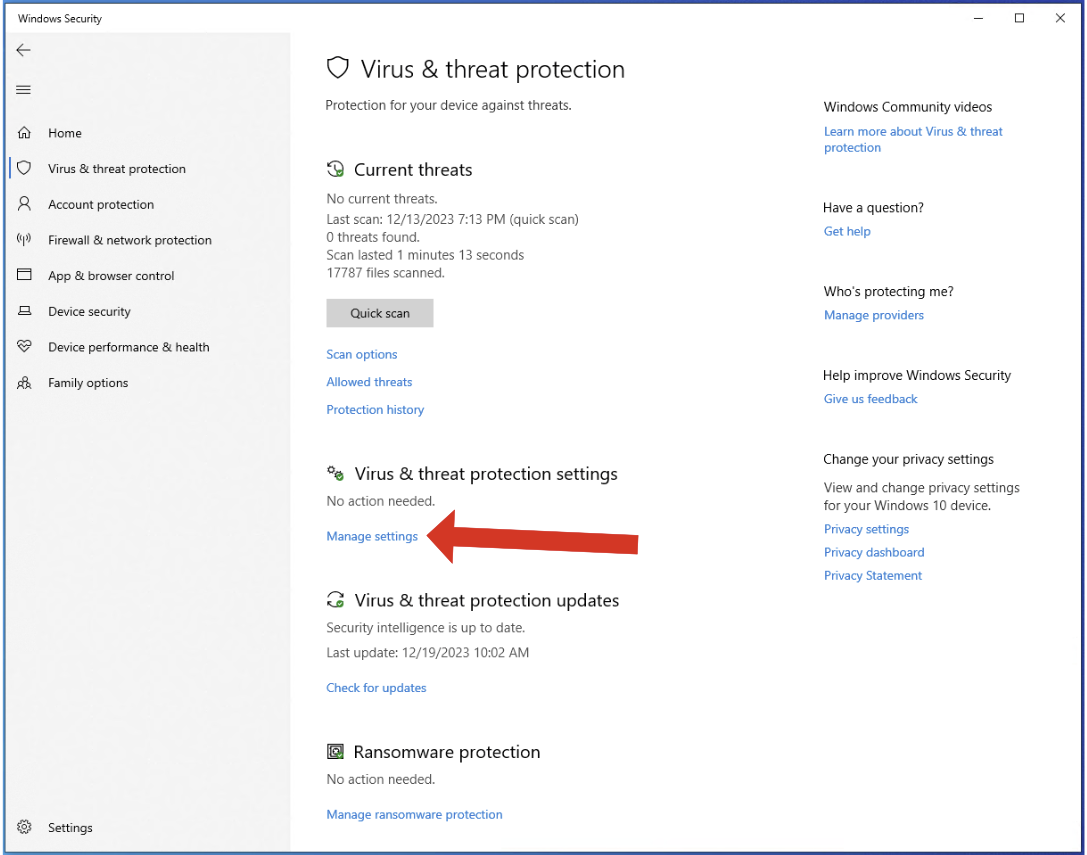

Click the "Manage Settings" under "Virus & threat protection settings"

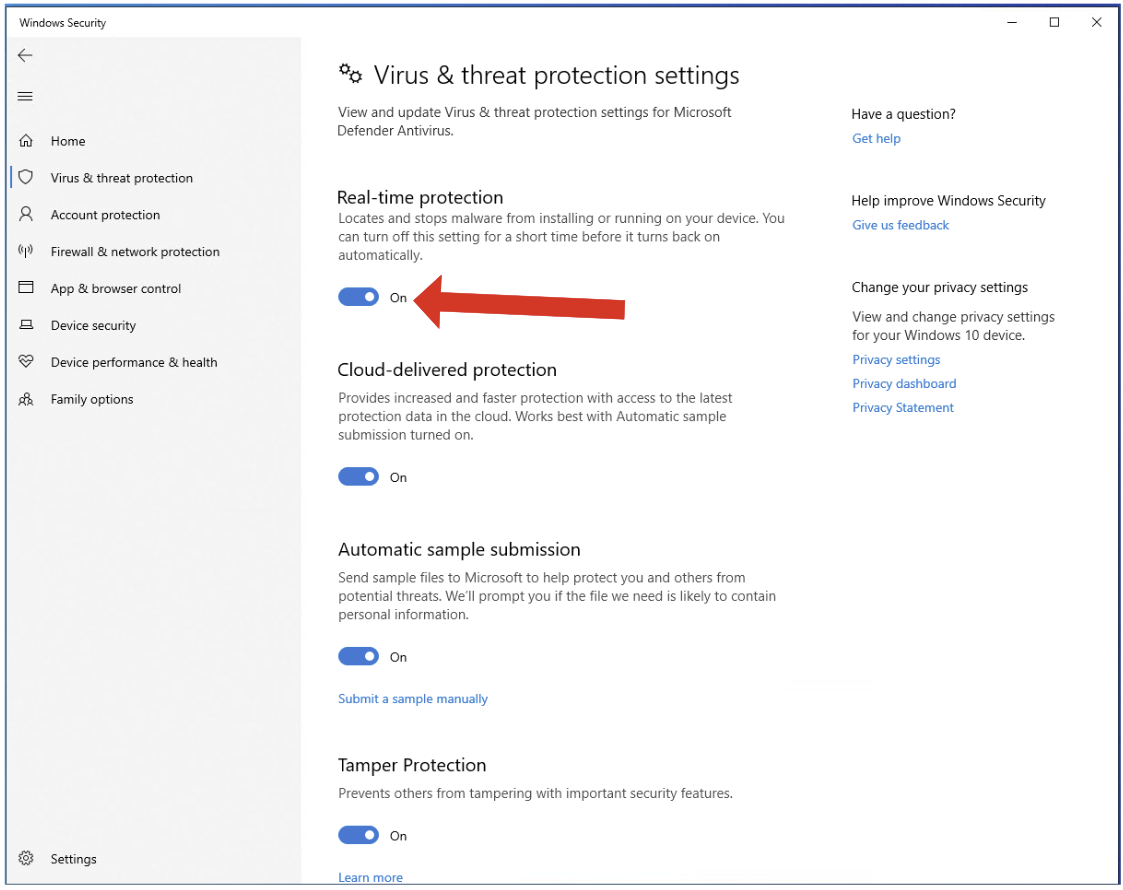

Click the ON slider to change it to Off

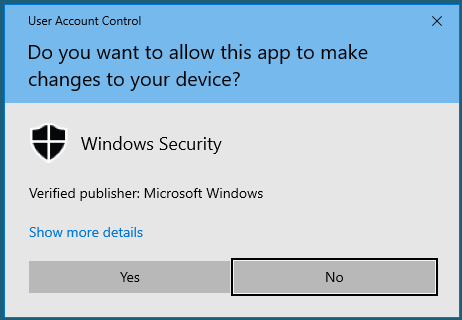

Click Yes on the Popup Prompt

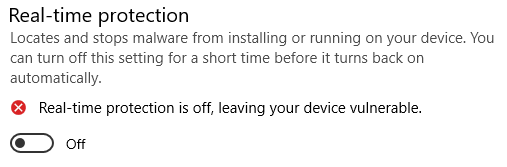

Protection Off

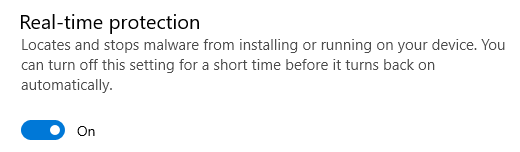

Protection On. Set the protection back to on once done with the Flip Software
Be sure to go back an re-enable protection once finished.
