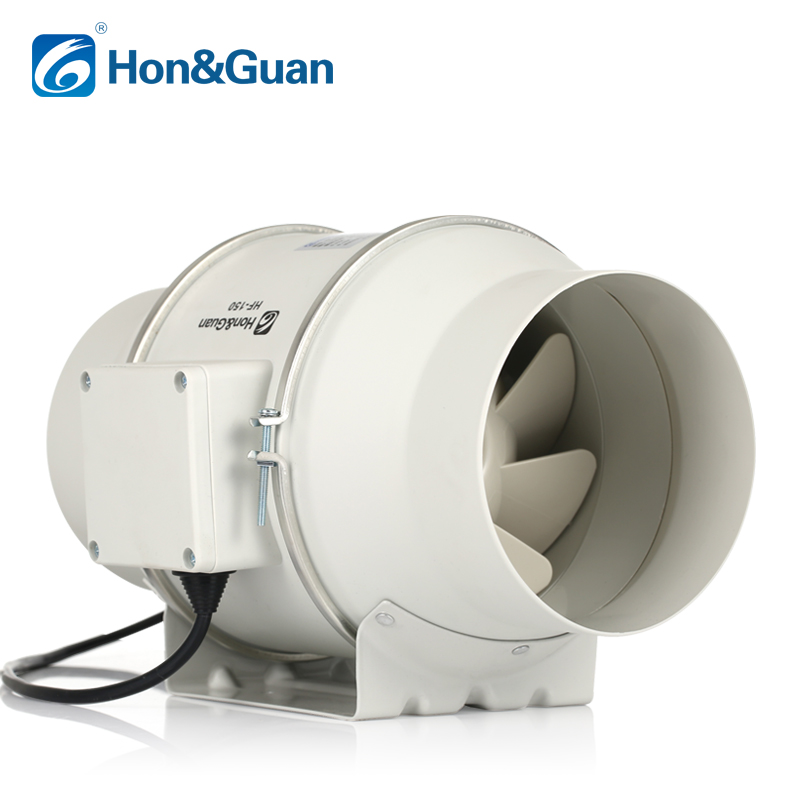

HF-150PE 6 Inch 381.81 CFM ECO-Watt Mixed-Flow Inline Fan

HF-150PE 6 Inch 381.81 CFM ECO-Watt Mixed-Flow Inline Fan

NOVA 24, NOVA 35 ODIN22, and Odin 32 (from container #103 forward) are now are equipped with HF-150PE.

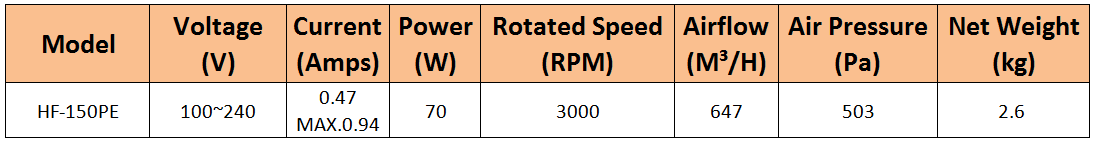

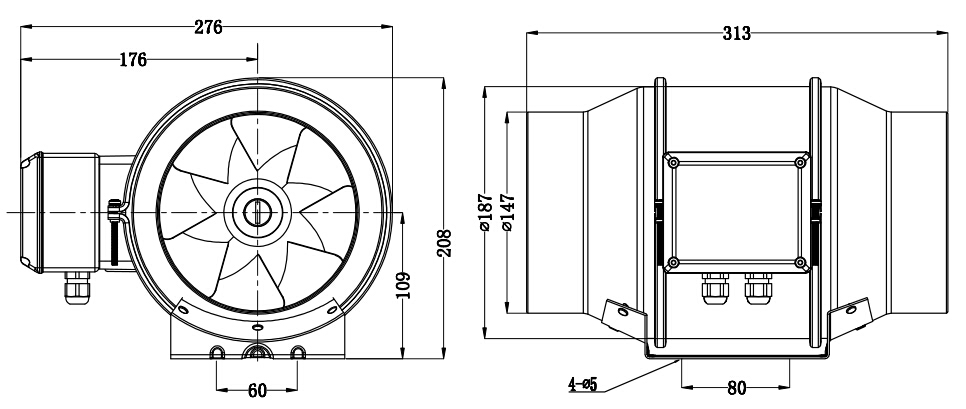

1. 6 inch 150mm
2. EC motor, high air volume, low power.
3. IP44 protection level

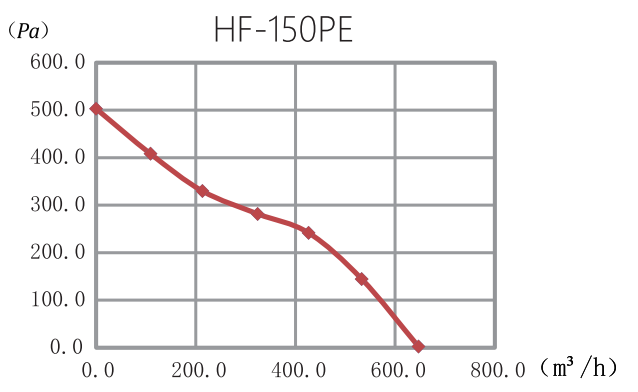

4. 647m³/h (381.81 CFM) airflow, 503 Pa (0.072954 psi) air pressure
5. Using Japan NMB bearing, working life more than 50,000 hours
6. With CE, SAA, UL certification.
