Finding Information About Your Equipment

Finding Information About Your Equipment


Manufacturer's Label

Location Of the OEM Machine Label

The manufacturer's labels can be found as shown below:

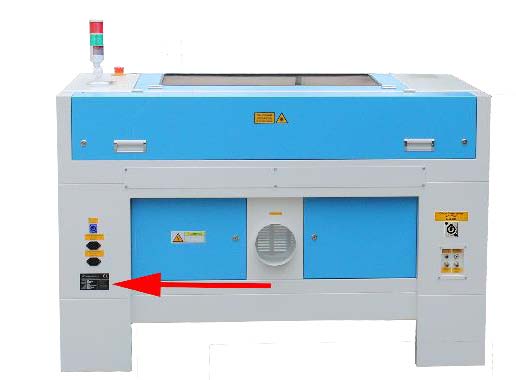

NOVA SERIES MACHINE LABEL LOCATION

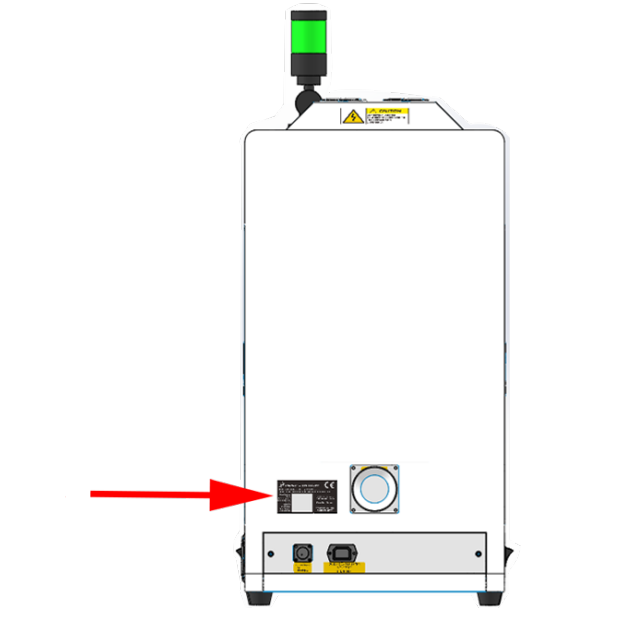

BOLT/ODIN MACHINE LABEL LOCATION
AURORA SERIES MACHINE LABEL LOCATION


Example Machine Label

Here is a close-up of an example tag for your reference:



Tube Labels

DC Tubes

Location Of DC Tube Label

Tube Labels are typically near the center of the tube (green arrow):


Example DC Tube Labels

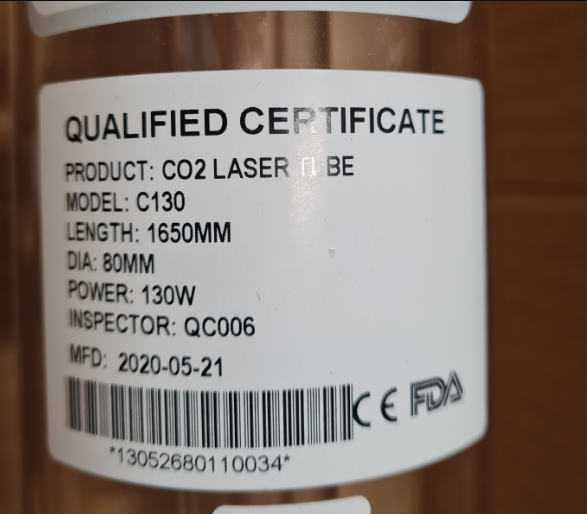

This is an example of an SPT label:

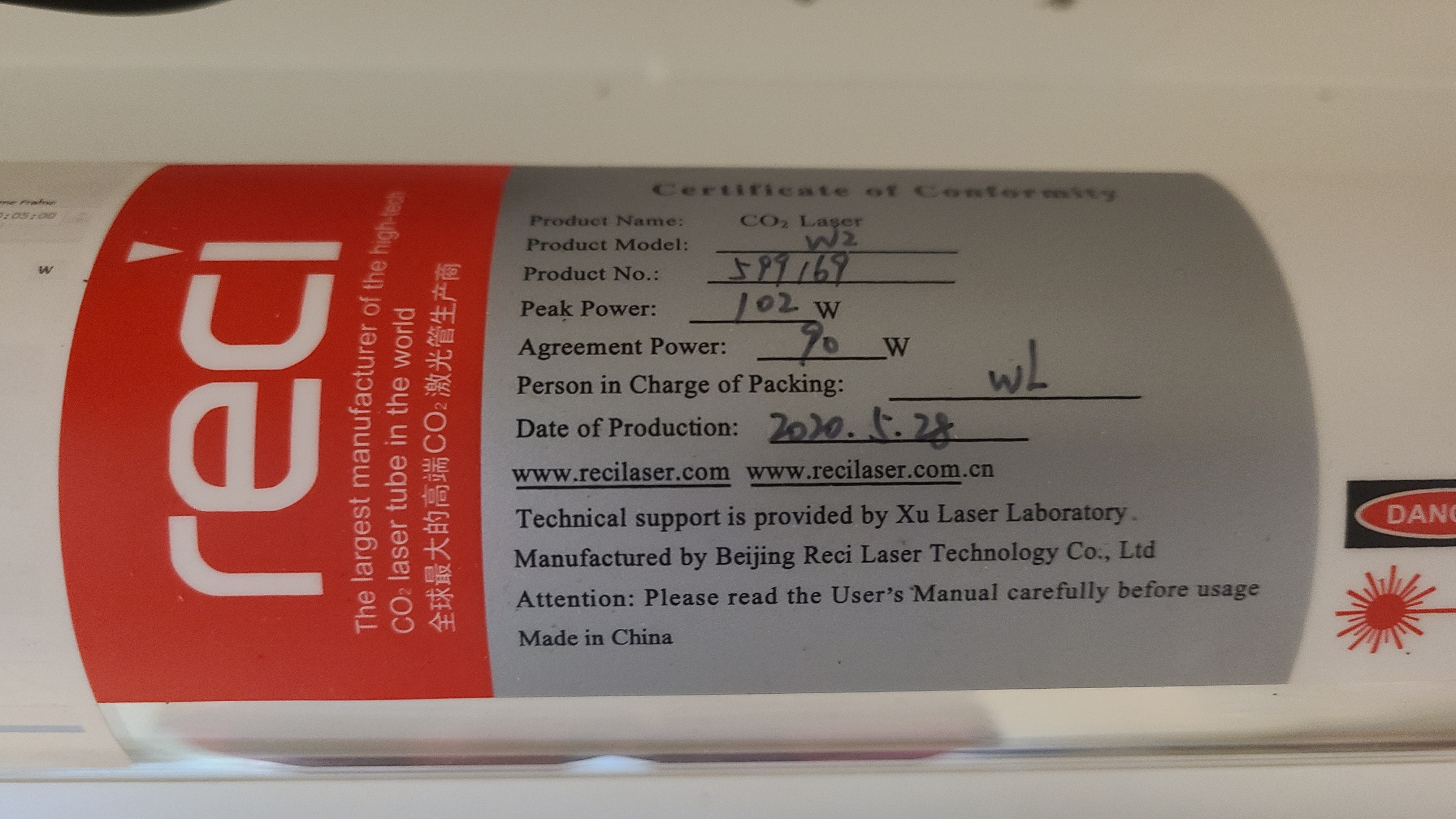

This is an example of a Reci Label:



RF Tubes

Location Of  RF Tube Label

The RF Tube Label may not visible as fitted in the machine. Your Thunder Laser Distributor's Support Team will have access to that information.



Chiller Serial # Label

Teyu Chiller and Thunder Laser require the serial number associated with all failure reports for tracking the part to the assembly line, analyzing failure rates, warranty purposes, etc...

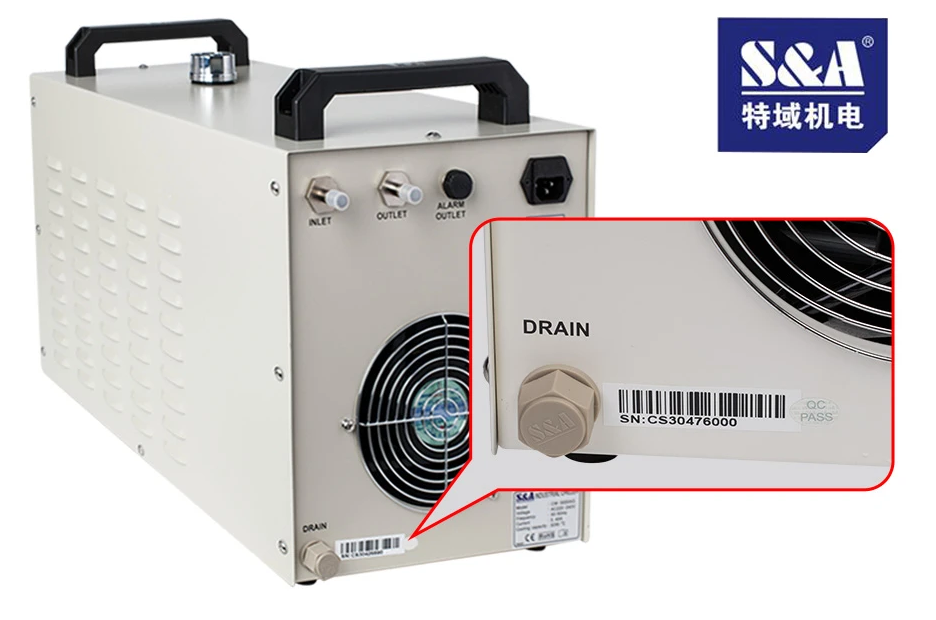

The chiller serial number can be found near the drain port at the bottom rear of the unit:


Controller Info In LightBurn

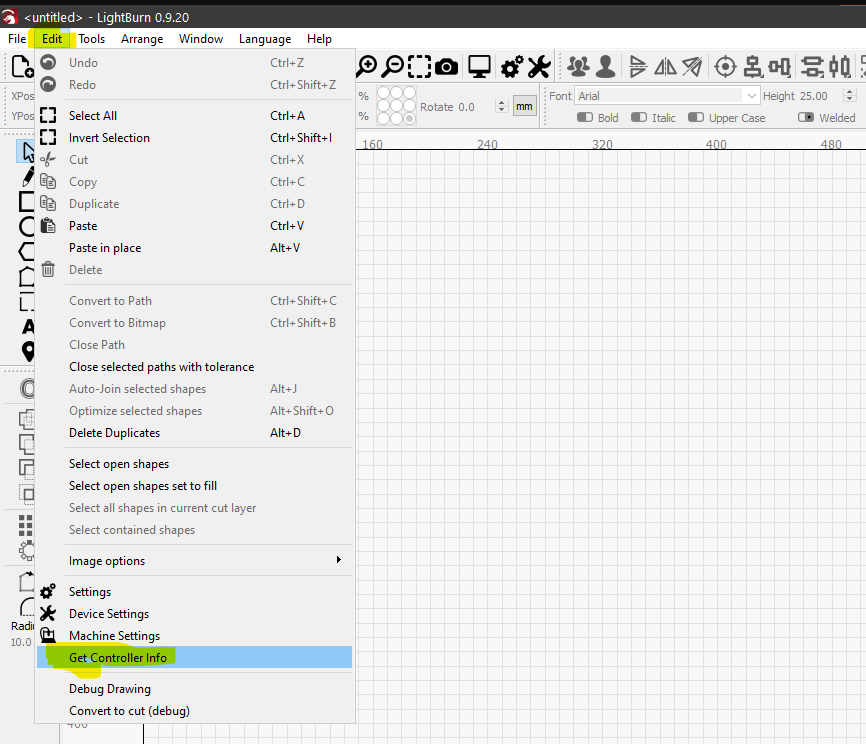

You can go to EDIT > GET CONTROLLER INFO in LightBurn (with the machine connected) to retrieve the counts:

Info
In newer versions of Lightburn, this function may be under the "Laser Tools" option in the toolbar

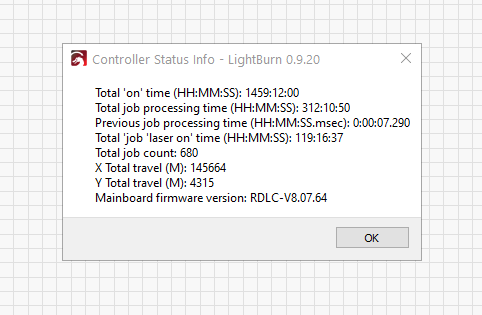

This is what is displayed:




Here is how to get the data:
