Extend Space Required based on Engraving Layer Speed for stock NOVA series Lasers

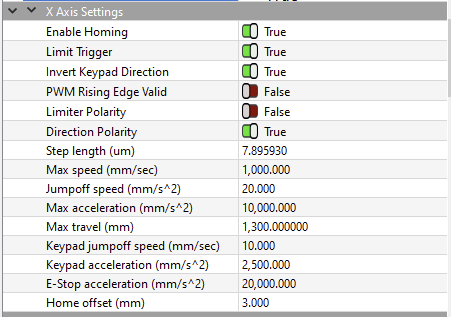

Based on the device settings of:

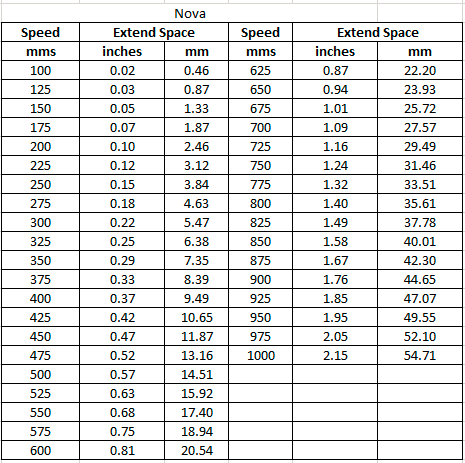

The estimated space needed on both sides of the engraved artwork is as follows:

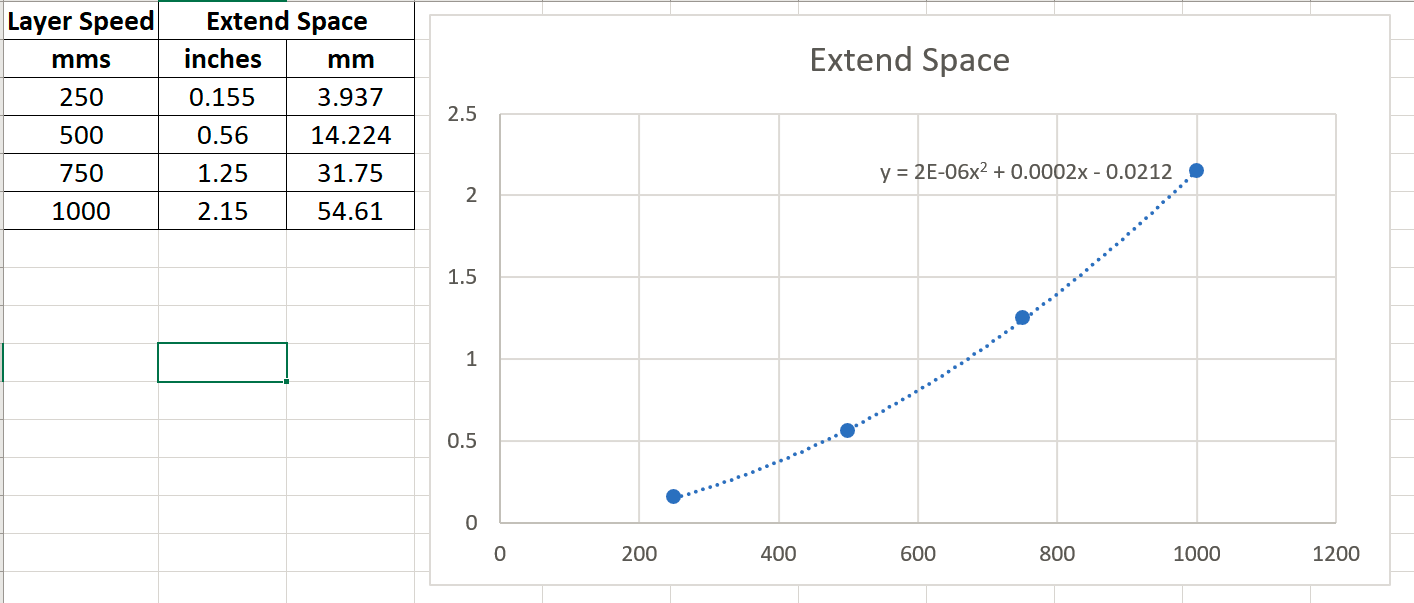

Based off the chart formula derived by Excel:

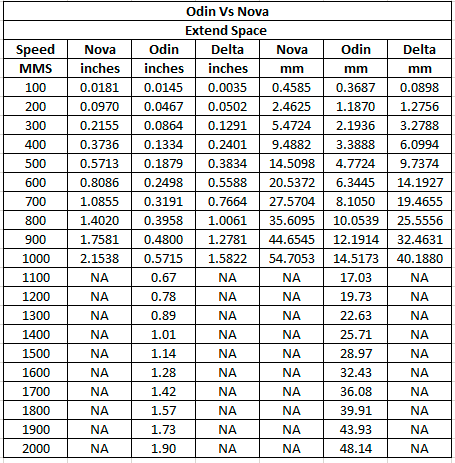

Nova Vs Odin Comparison:

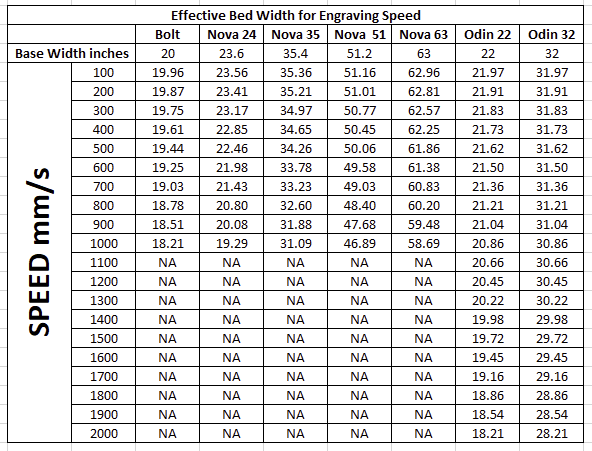

Effective Bed Width Based on Engraving Speed:
*Note that this article is based off of measurements and calculations.
Actual values may vary and there may be errors in the data.
