Extend Space Required based on Engraving Layer Speed for stock Odin Series Machines

Extend Space Required based on Engraving Layer Speed for stock Odin Series Machines

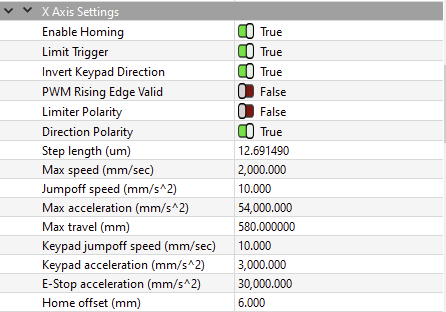

Based on the device settings of:

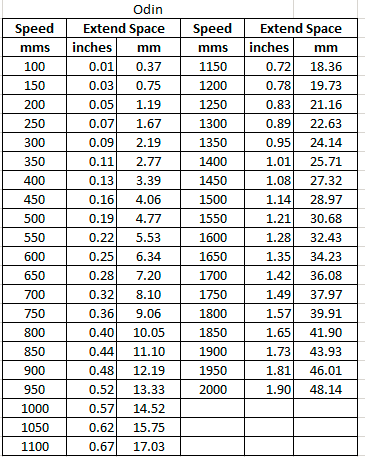

The estimated space needed on both sides of the engraved artwork is as follows:

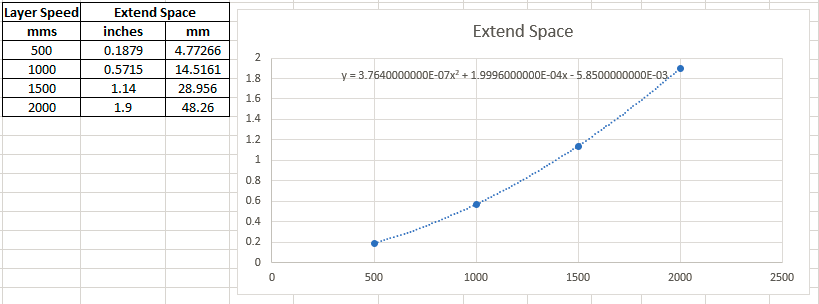

Based off the chart formula derived by Excel:

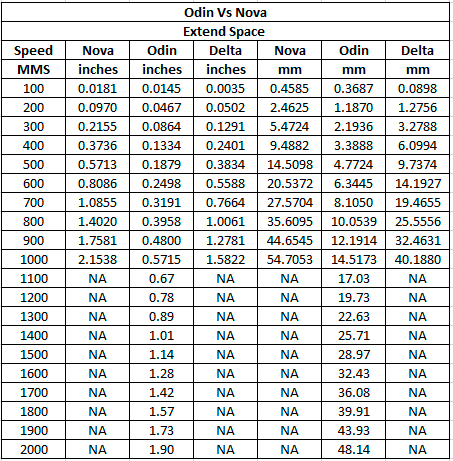

Nova Vs Odin Comparison:

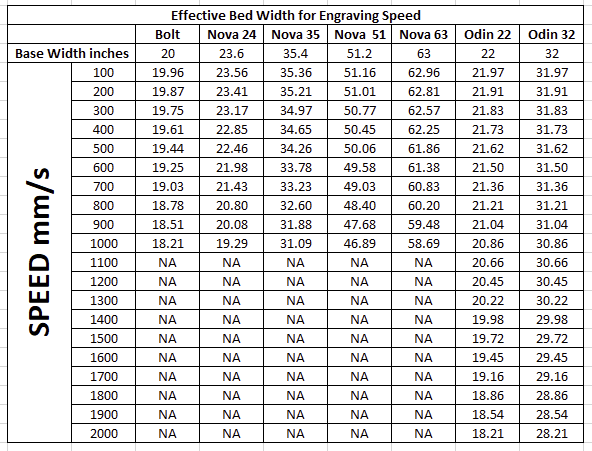

Effective Bed Width Based on Engraving Speed:




*Note that this article is based off of measurements and calculations. Actual values may vary and there may be errors in the data.
