Extend Space Required based on Engraving Layer Speed for stock Bolt Series Machines

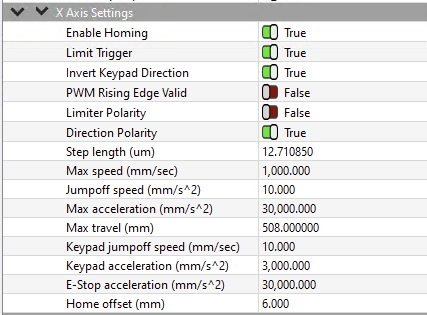

Based on the device settings of:

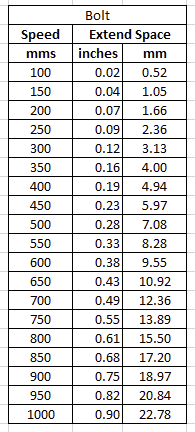

The estimated space needed on both sides of the engraved artwork is as follows:

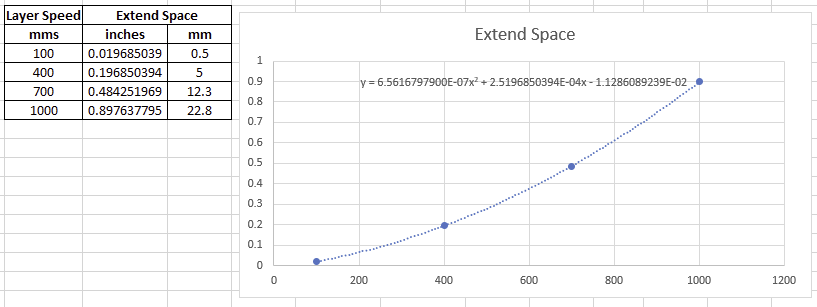

Based off the chart formula derived by Excel:

Nova Vs Bolt Comparison:

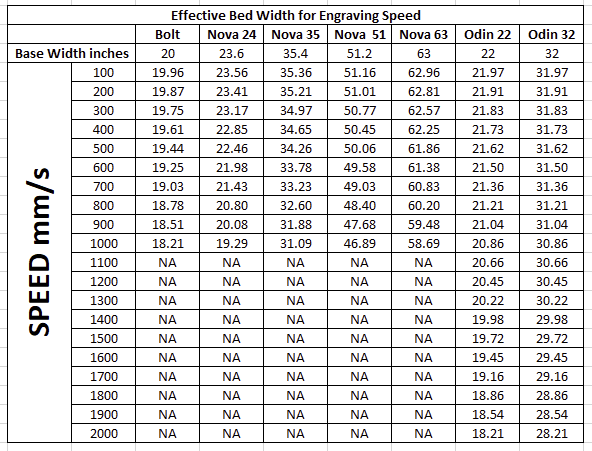

Effective Bed Width Based on Engraving Speed:

*Note that this article is based off of measurements and calculations. Actual values may vary and there may be errors in the data.
