Example Layouts for Work Space Considerations For Titan and Titan Pro Laser Machines
The drawings a done graphically and may not be to scale. Use the measurements accompanied by arrows and devices. You should also allow for working space in front of the machine and for any additional peripherals you add. You should leave room on all sides for access to open the doors and perform work, 3' minimum. None of the recommended distances/clearances supersede any governing bodies' distance requirements (For things like safety, electrical, work area, egress etc)

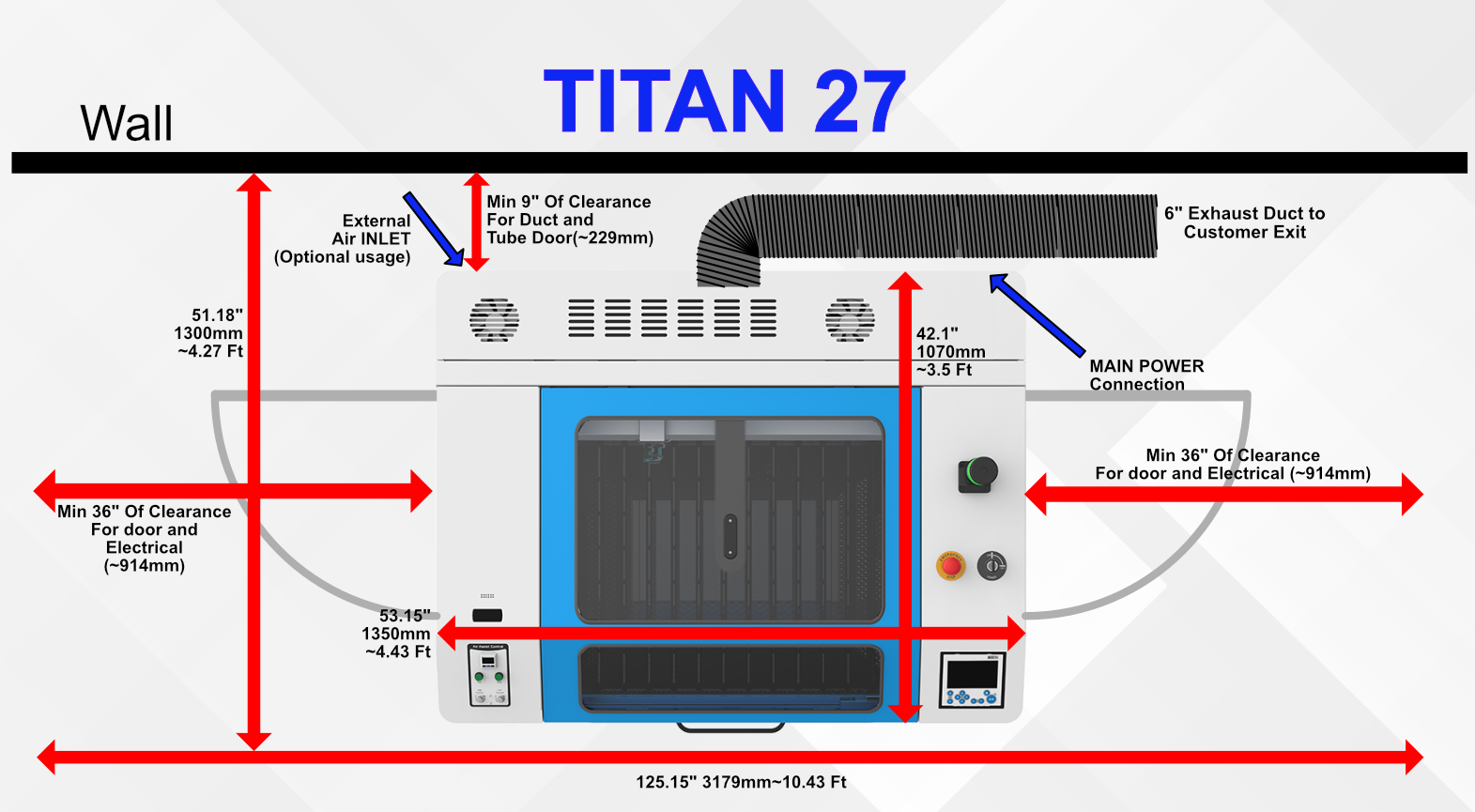

Titan and Titan Pro 27:
Machine minimum space of about 10.43ft x 4.27ft.
Titan and Titan Pro 35:
Machine minimum space of about 11.09ft x 4.6ft.
Titan and Titan Pro 51:
Machine minimum space of about 12.4ft x 5.58ft.
