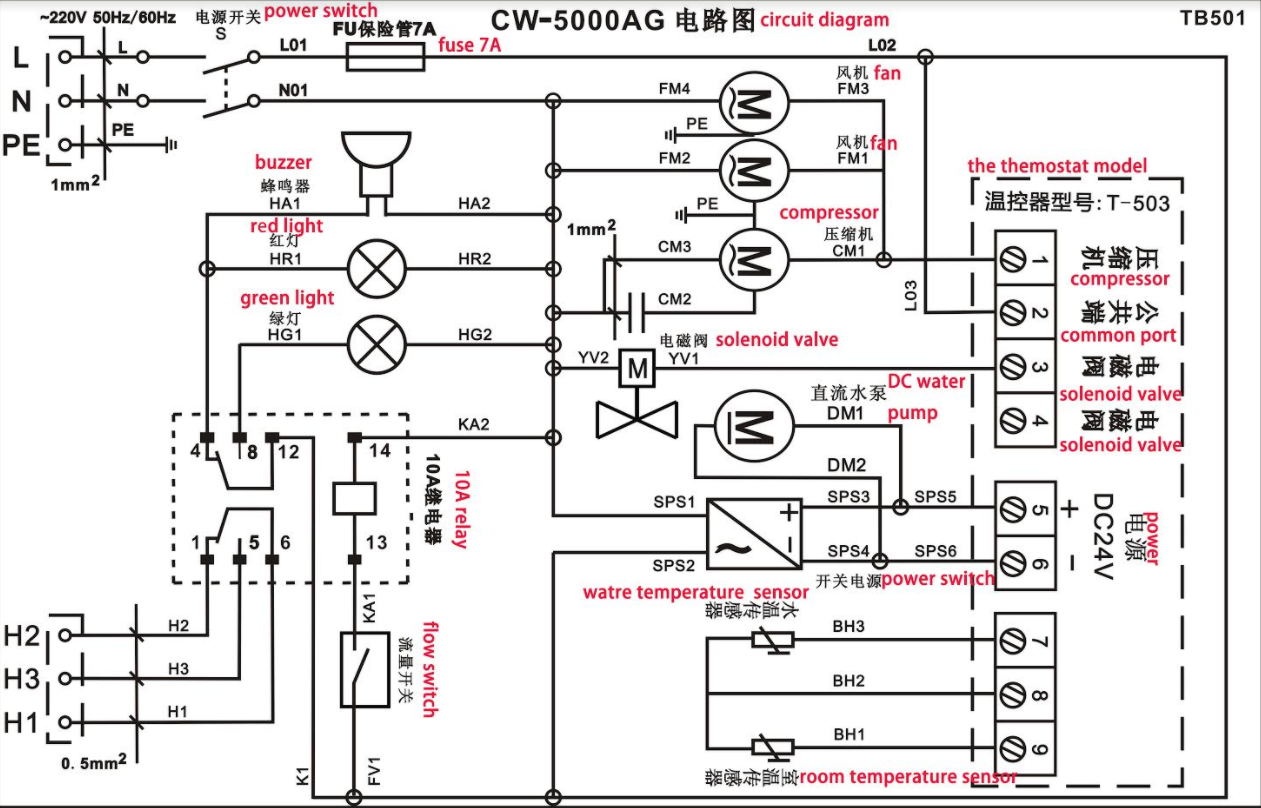

CW-5000AG Wiring Diagram
Here is the wiring diagram for the CW 5000 series chillers. A video overview as well as links to important documentation are below:
Please see the resources below for more info:
