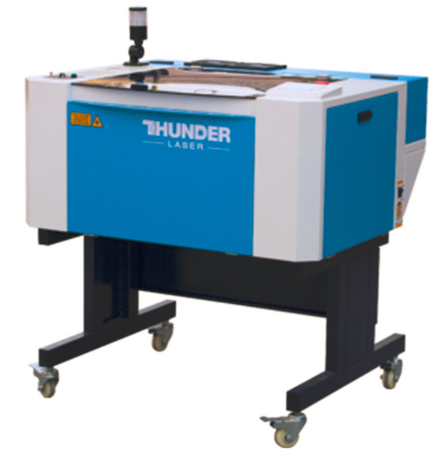

Critical Spare Part Recommendations for Odin Series Machines

Critical Spare Part Recommendations for Odin Series Machines

This article discusses spare parts needs for your Thunder Laser machine, verify all part numbers for your existing part. Links may change, expire outside of our control.




Info
If your laser is your business and down time is not acceptable while you wait on spare parts, then the following are recommended (Below are links to purchase and/or tech articles related to each subject):


OPTICS:

Mirrors:

Mirrors are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the mirrors come pre-set in the aluminum tray for mirror location 1 & 2 and a loose mirror for location 3.

Location
Reference Picture
Mirror 1 & 2 (Qty 2)
Contact for Quote

Mirror 3 (Qty 1)



Lens:

Lens are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the lens come pre-set in the aluminum tray.


Len:
1.5" Lens in Tray*
2" Lens in Tray*
2.5" Lens in Tray*
4" Lens in Tray
*contact for quote




Electrical:


Power Supplies:

The Bolt series has three AC-DC power supplies. One for Tube, One for the Control circuits X/Y Drivers and One for the Z/Rotary Drivers.
Function
Reference Image
48V Tube Power Supply: 30W ,  55W/60W





Motors Drivers:



Sensors and Control Components:

Location
Reference Image
X/Y Endstops (Qty 2)

Z Endstop (Qty 2)



Air Pump for Odin

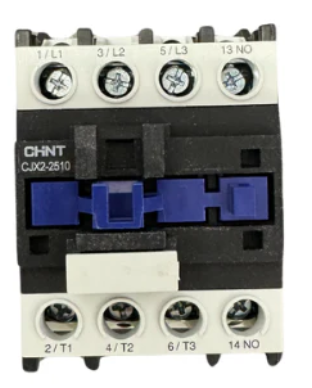

Main Power Contactor Odin 22/32






Mechanical:




Email suppport@thunderlaserusa.com for more information
