Roller Rotary Setup in Lightburn

In Lightburn's top menu options click Laser Tools. The drop down menu will show Rotary Setup. Click this option to expand the Rotary Setup window. Follow the steps to set up your Roller rotary.

1. Select Roller Rotary Type

2. Enable Rotary

3. Steps per rotation should be 4,400 spr

4. Wheel Diameter should be 1.7in
5. y axis will be selected .. ( SEE IMAGE BELOW )
6. The Object Diameter and Circumference will NOT be used for Roller Rotary

7. See below for detailed instructions on Split size and Overlap.

Note the motor speed settings. There should be no reason to adjust these. If the object is moving too fast on the rollers we can slow things down.

Roller Rotary Placement and Alignment

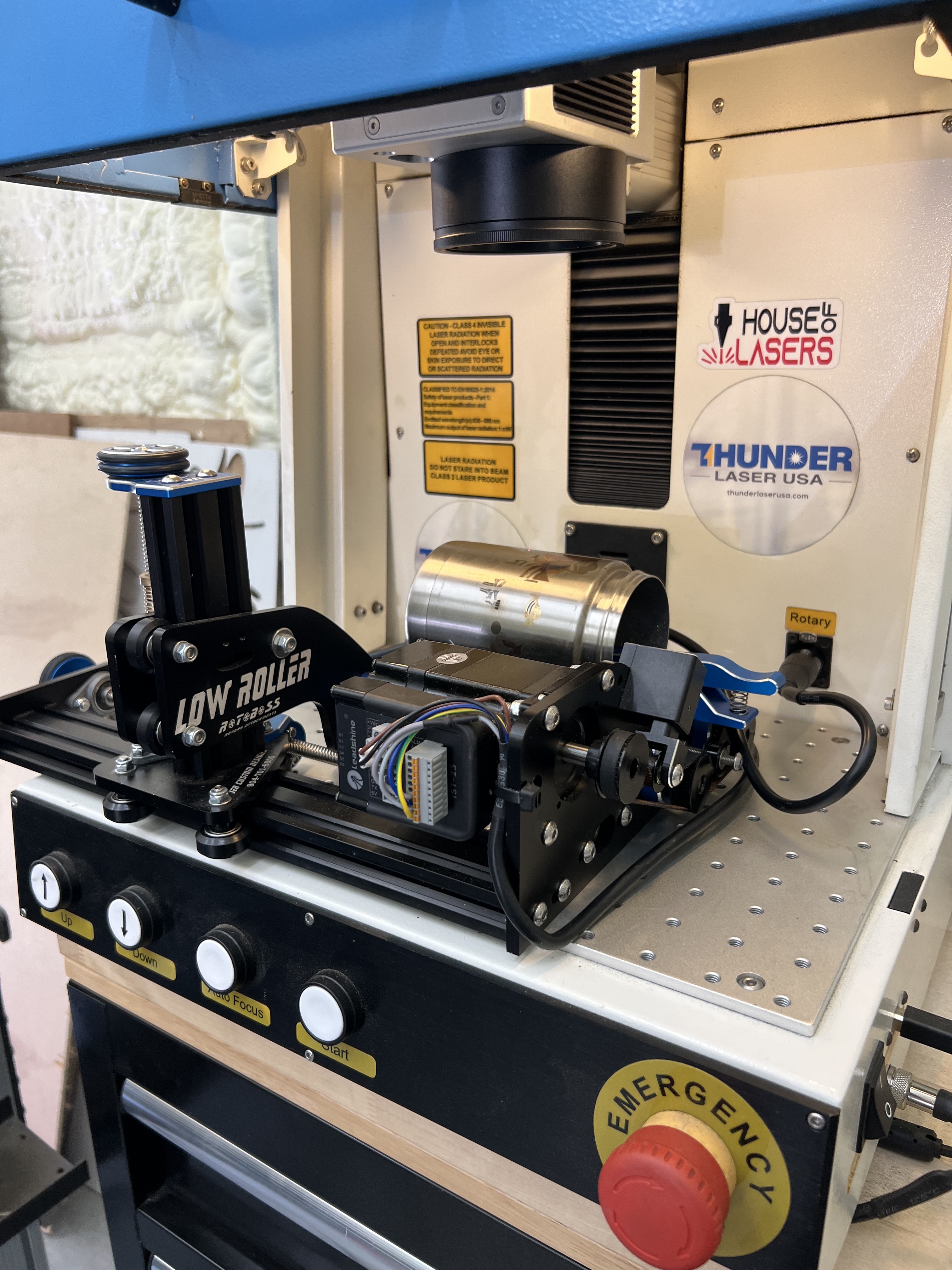

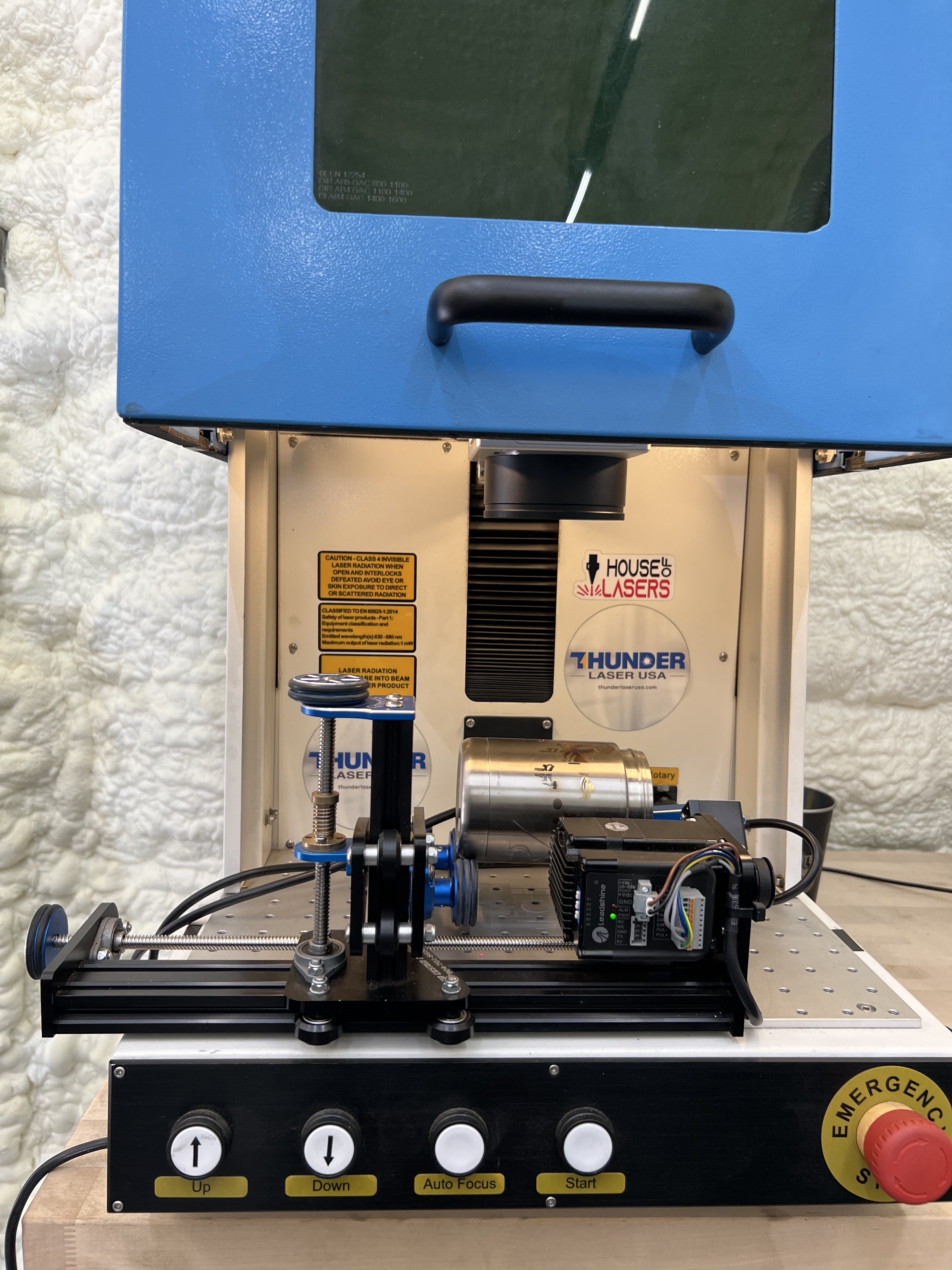

For the Low Roller Rotary Y axis will be utilized. Notice the motor to the right.

Split Setup

Galvo markers will run a portion of the job (a slice), rotate the object, run another slice, and so on. It is a good idea to keep the Split size and your Line interval to maintain your graphic resolution.

Split Size

The size of each slice is called the 'Split Size'. If your object is tapered, irregularly shaped, or not perfectly aligned with the rotary axis, using a small split size can help reduce gaps or misalignment of the splits.

A larger split size will reduce the time spent running the job, but can be harder to dial in the settings such that no overlaps or gaps are visible.

It is a good idea to keep the Split size and your Line interval to maintain your graphic resolution.

Overlap

To help eliminate visible gaps between slices, you can tell LightBurn to overlap them - specifying an overlap of zero means that each slice is run on its own. A non-zero overlap value will produce that much overlap on the ends of each slice, like this:

If you are removing paint, anodizing, or other surface coating, using a small overlap is recommended. If you are annealing or marking the material directly, adding overlaps could produce visible artifacts. See Image below

 Left zero overlap, Center large overlap, Right small overlap

Notice the spacing and overlap of a tapered tumbler. This can be an issue to consider as the diameter at the top is larger than below. Also small changes to the overlap can seem drastic so testing is necessary.

Run Whole Shapes

When 'Run whole shapes, if possible' is turned on, LightBurn will attempt to create splits that keep shapes intact. This can produce a higher quality finish without gaps or misalignment within shapes.

Running the job

When rotary mode is enabled, pressing the   Start   button on the main window will bring up the Rotary Marking window, shown here:

From here you can tune the split size, overlap, and object diameter, as well as jog the rotary, and run the job. When running a rotary job, the center of your page is treated as the current rotary position when you clicked 'Start'.

Output Center

This setting allows you to shift the center position of your rotary output to compensate for the center of the rotary not lining up precisely with the center of the field. This value cannot be negative.

Example

Here is a photo of a SS tumber that was engraved on the Aurora 8 20w, with the Rollerd rotary. Also note the settings of the LPI, Split and overlap. It is very difficult to avoid seeing the split lines, but through some testing and manipulation you can get excellent results.
