Bolt Plus and Bolt Pro 22 30w Coherent Tube Spec Sheet - Diamond C-30

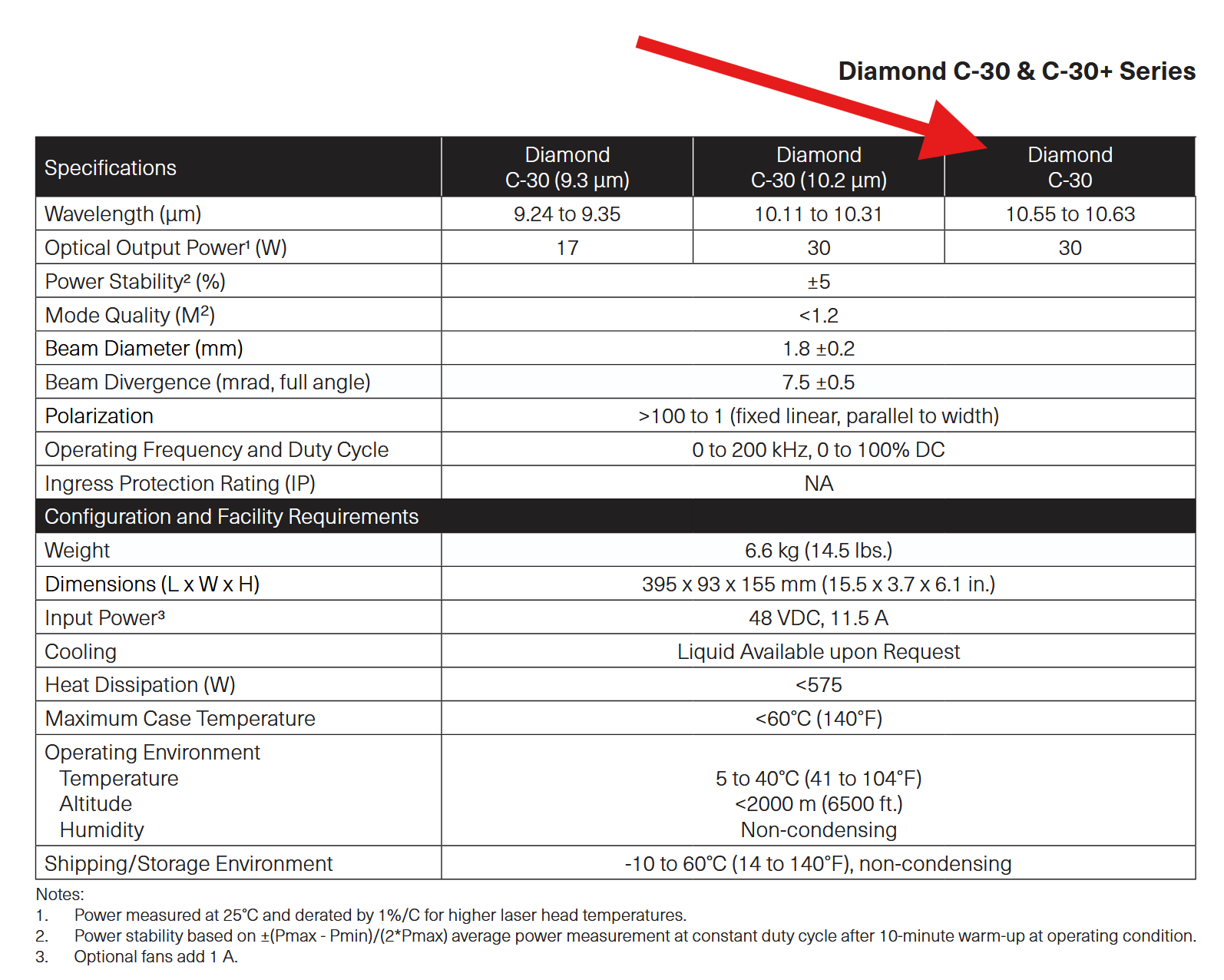

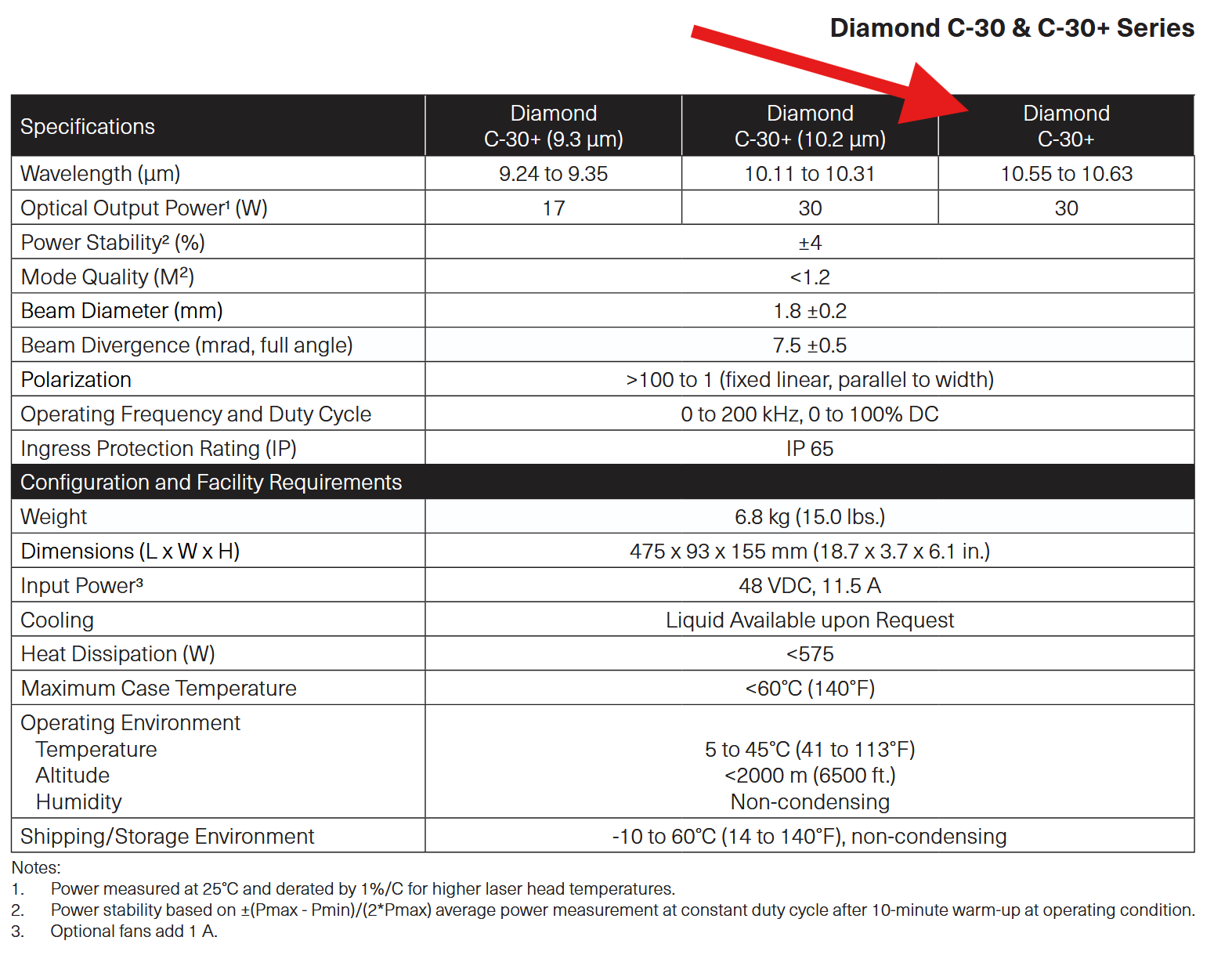

Preface: This article has a spec sheet from the OEM. Your tube should be marked as a C30 model.
