Aurora Feeltek PS10-Lite Scanning Head Technical Information
Starting around February 2025, the Aurora series swapped over from a Sino Galvo with integrated autofocus sensor to a Feeltek with an external autofocus, the technical information for them is below.

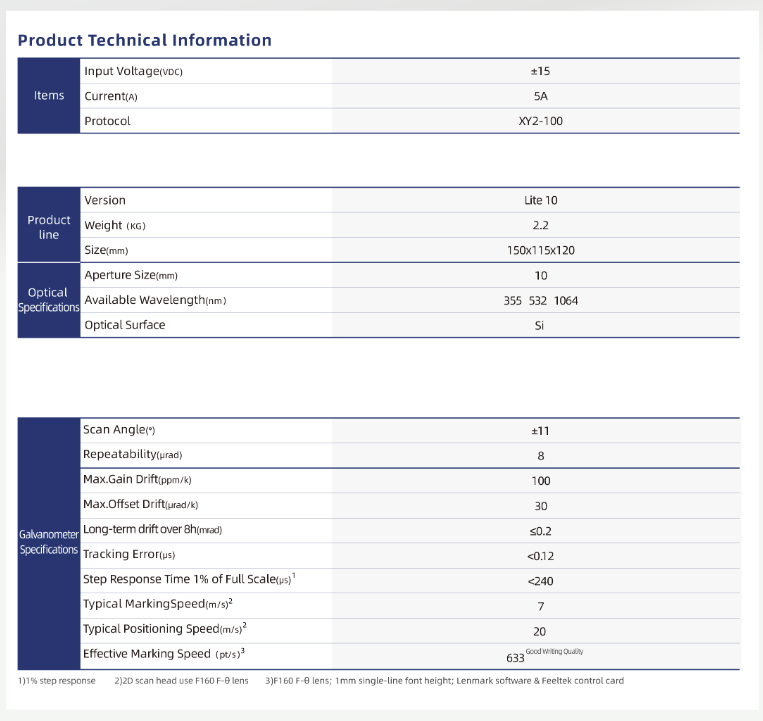

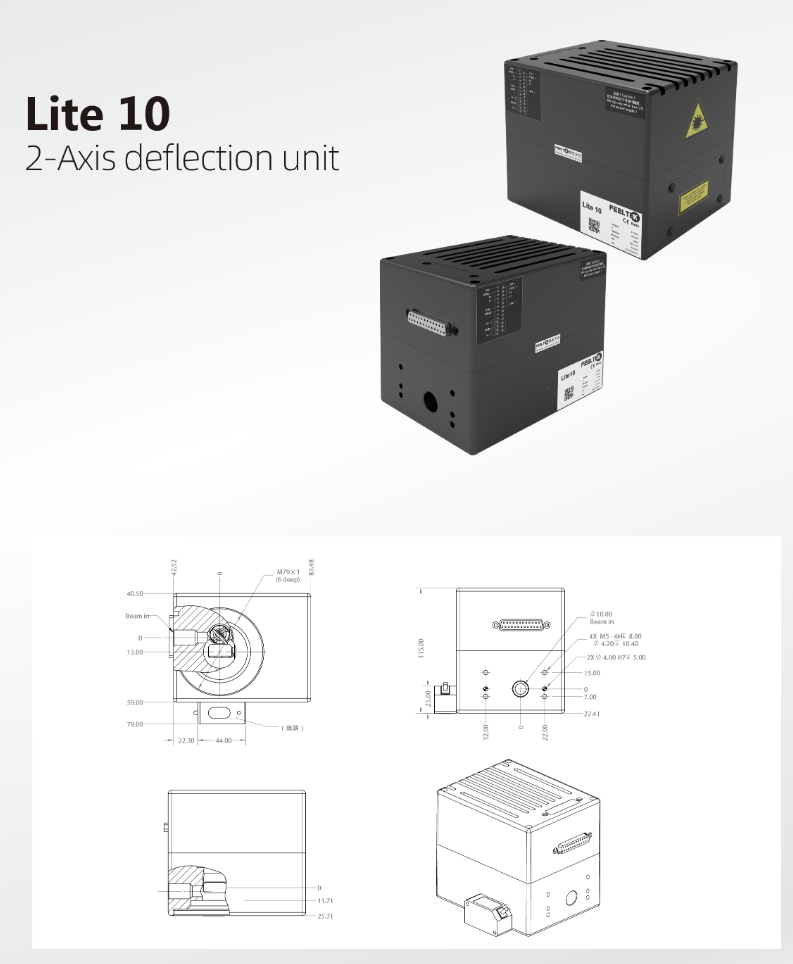

Galvo Scanning Head:

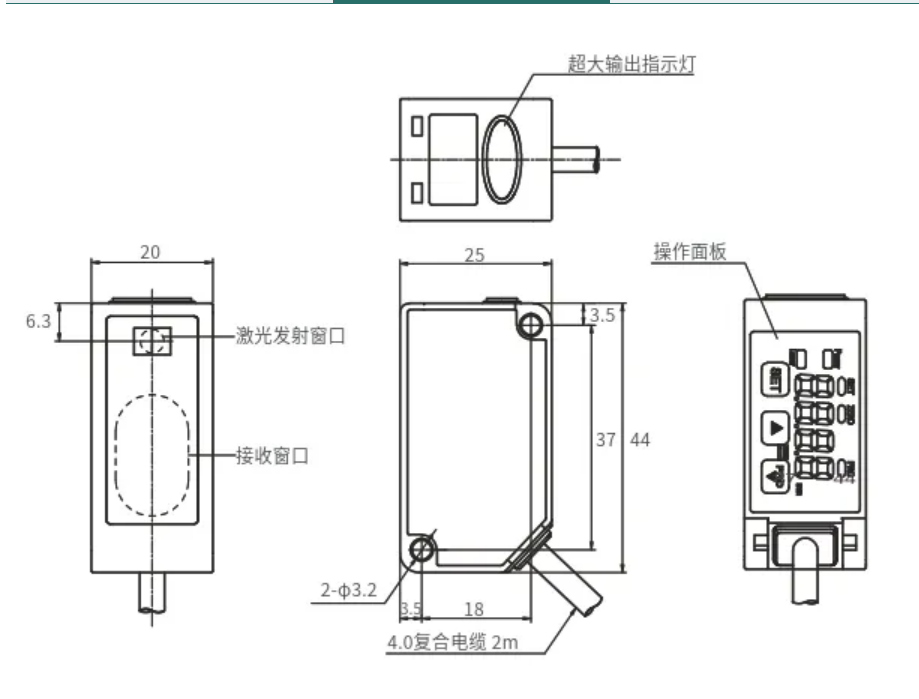

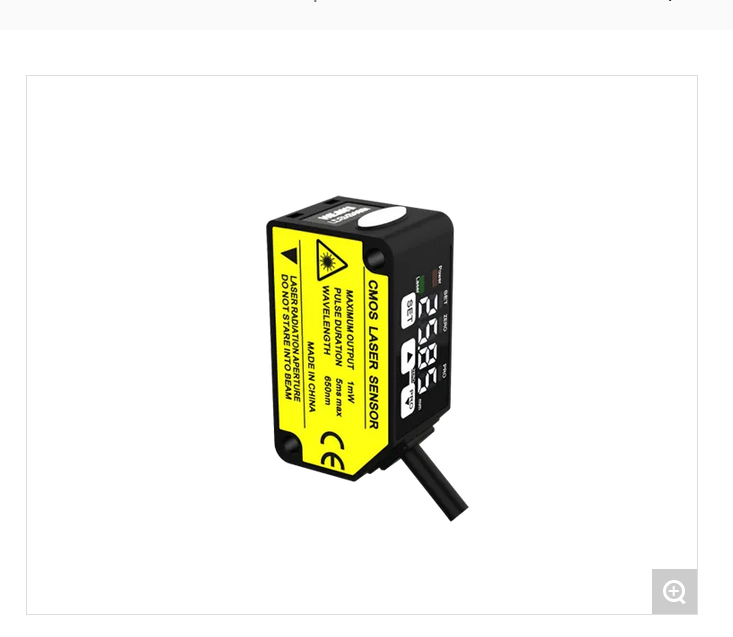

Auto Focus Sensor:

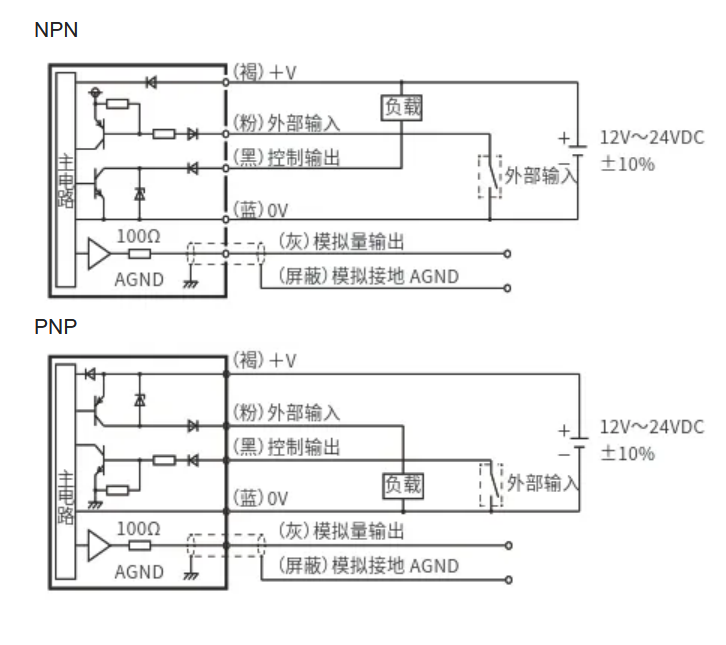

| type | Dual output type |
| Model: NPN output /PNP output | LC-S400MN/LC-S400MP |
| Detection center distance | 400mm |
| Detection range | ±200mm |
| repeatability | 400μm(measuring distance 200mm-400mm) 800μm(measuring distance 400mm-600mm) |
| straightness | ±0.3%F.S.(measuring distance 200mm-400mm) ±0.3%F.S.(measuring distance 400mm-600mm) |
| Temperature characteristic | 0.03%F.S./℃ |
| illuminant | Red semiconductor laser Class 2, maximum output: 1mW, luminous beam wavelength: 655nm |
| Beam diameter | About Φ50μm |
| Supply voltage | 12V-24VDC ±10% Pulsation P-P 10% |
| Current consumption | Less than 40mA (24V DC), less than 60mA (12V DC) |
| Control output |
NPN open circuit collector transistor · Maximum incoming current: 50mA External voltage: below 30V DC (controlled output -0V) · Residual voltage: below 1.5V (incoming current below 50mA) Leakage power supply: below 0.1mA PNP open circuit collector transistor · Maximum source current: 50mA · External voltage: below 30V DC (controlled output -+V) · Residual voltage: below 1.5V (outgoing current below 50mA) Leakage power supply: below 0.1mA |
| Output action | ON in light/ON in non-light can be switched |
| Short circuit protection | Equipped (automatic recovery type) |
| Analog output: Voltage analog output (alarm: +5.2V) | Output range: 0V-5V Output impedance :100Ω |
| Output: Voltage analog output (alarm :0mA) | Output range :4-20mA Load impedance: 300Ω or less |
| Reaction time | 1.5ms/5ms/10ms can be switched |
| Response time external input | NPN/PNP no contact input, effective :0V- +1.2VDC input impedance :10KΩ |
| Class of protection | IP65 |
| Degree of fouling | 2 |
| Operating ambient temperature | -10℃ -+ 40℃(pay attention to no condensation, icing), storage :-20℃ -+ 60℃ |
| Ambient humidity | 35%-85%RH, storage: 35%-85%RH |
| Use ambient light | Incandescent lamp: the illumination degree is less than 3000Lx |
| Service level | Below 2000m |
| cable | With 0.15mm φ5-core composite cable 2m |
| material | Body shell: aluminum casting, front cover plate: acrylic base |
| weight | Approx. 35g(without cable) Approx. 85g(with cable) |
| Applicable specification | Compliance with EMC directive |
