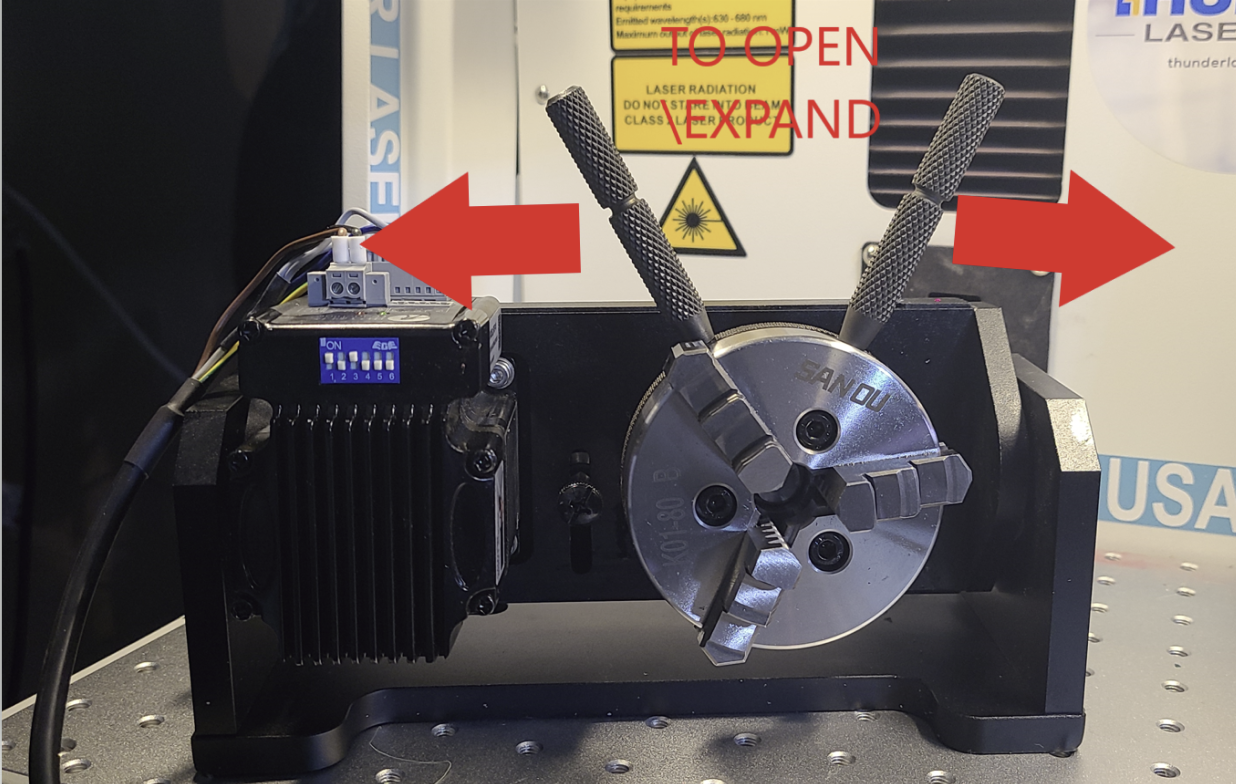

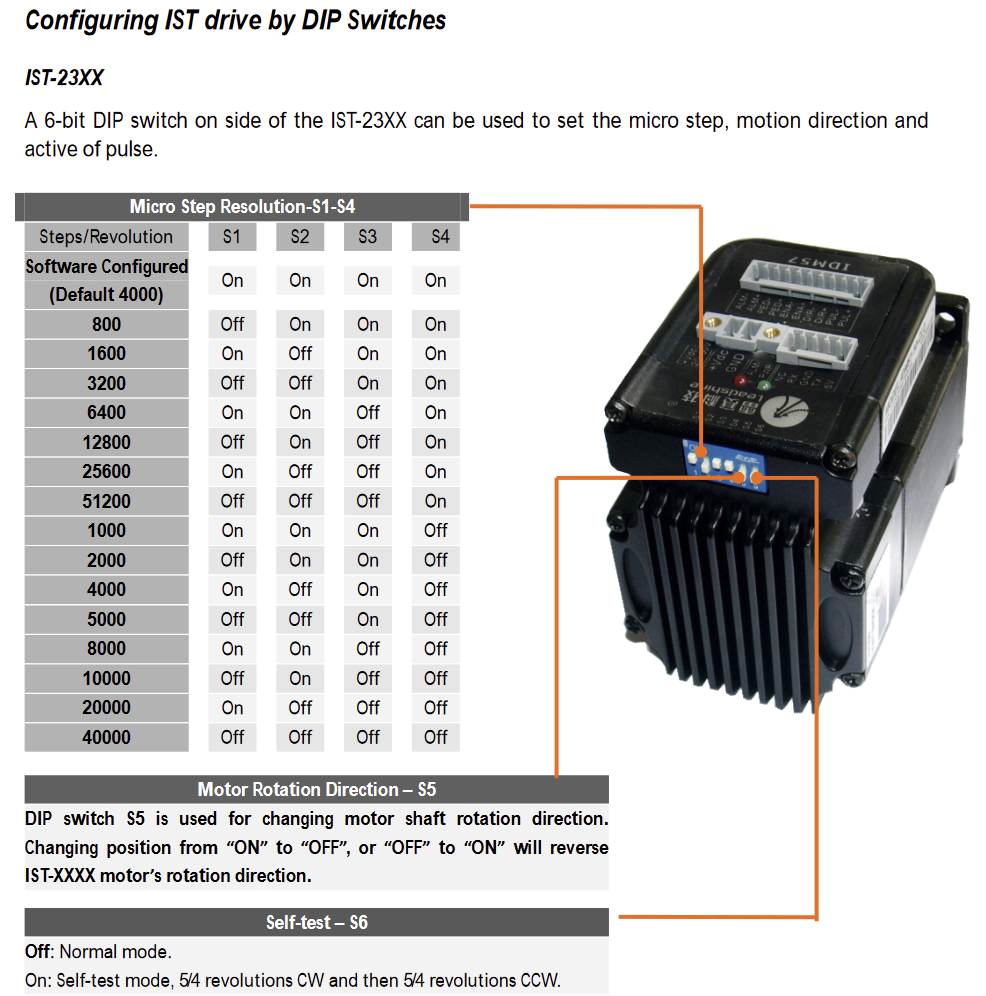

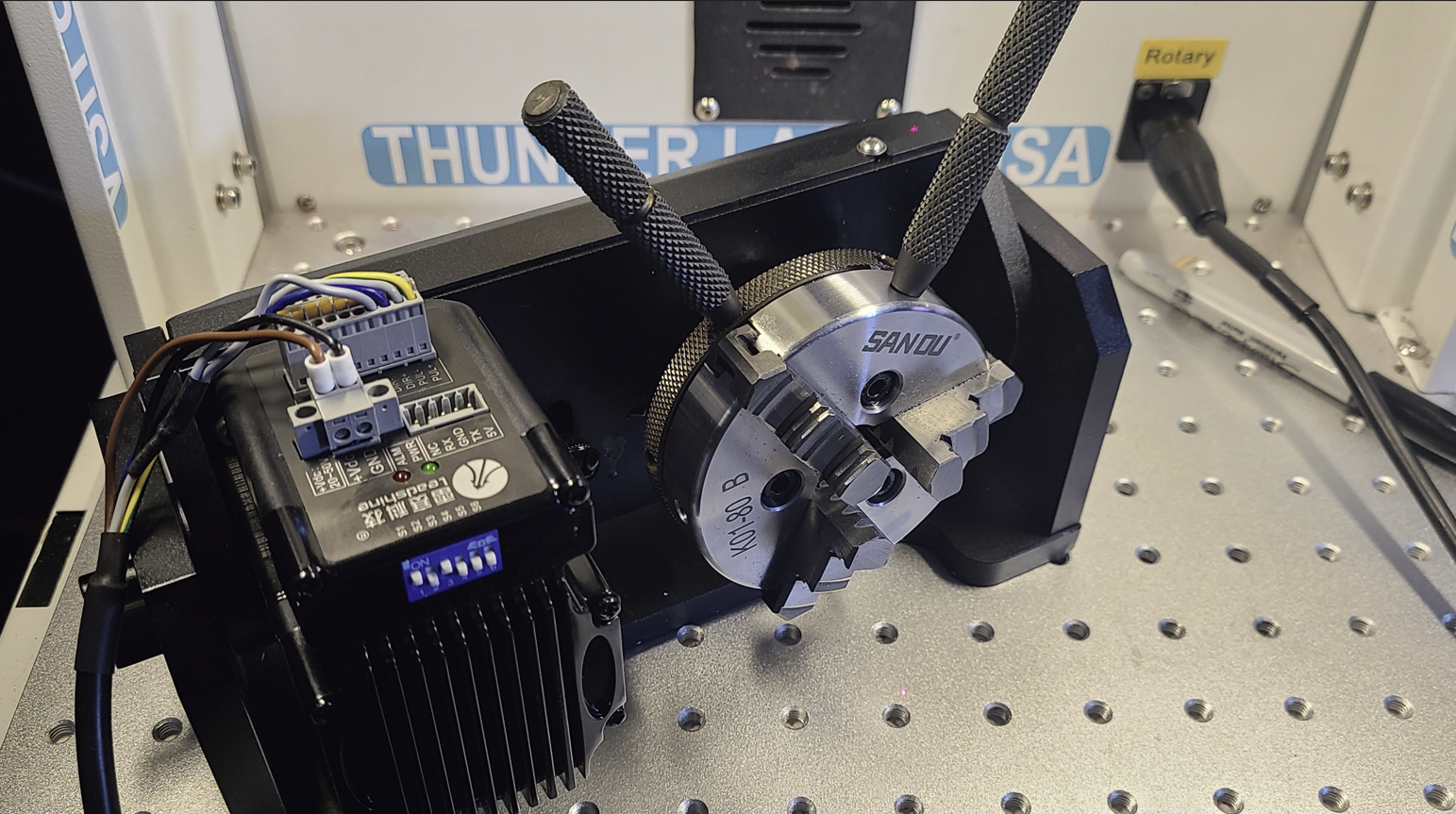

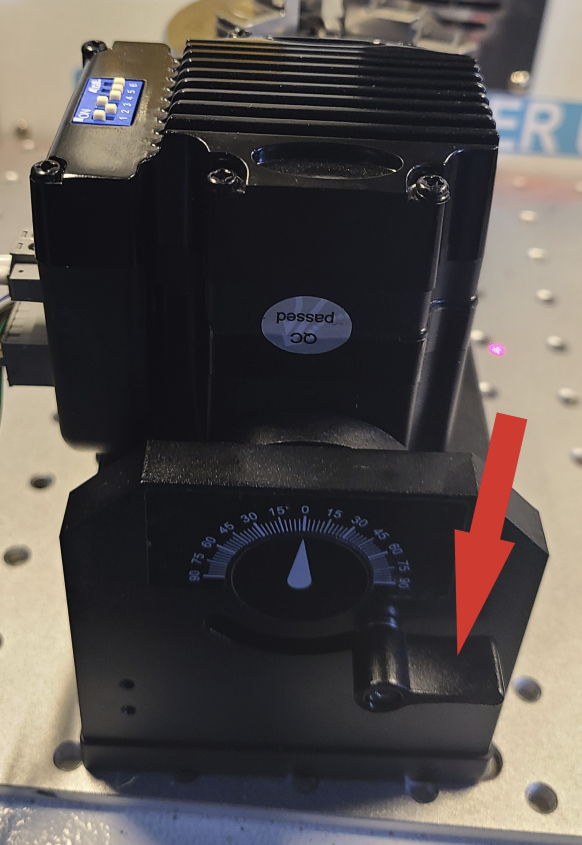

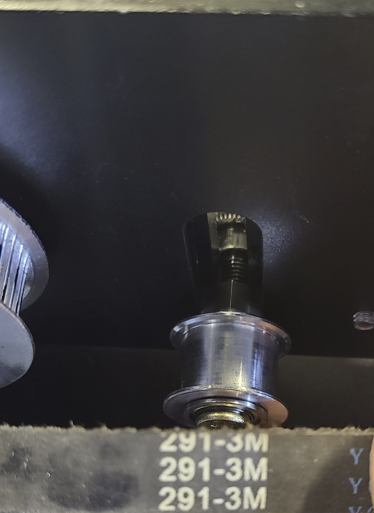

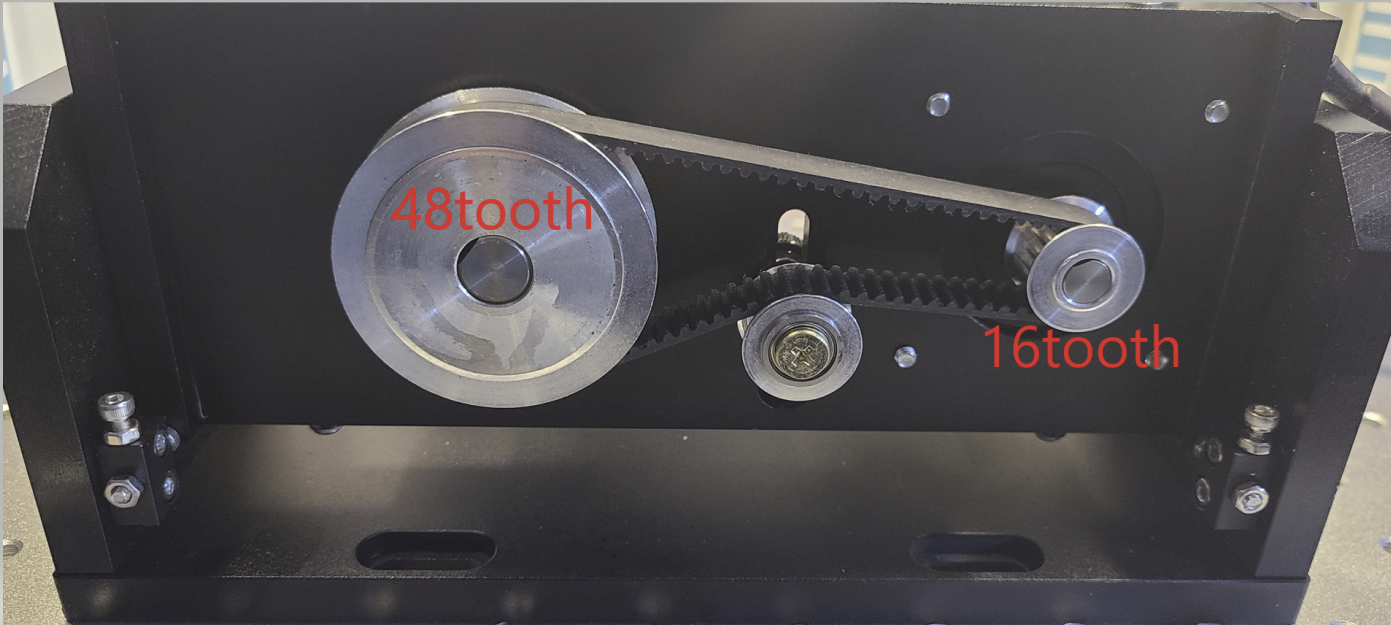

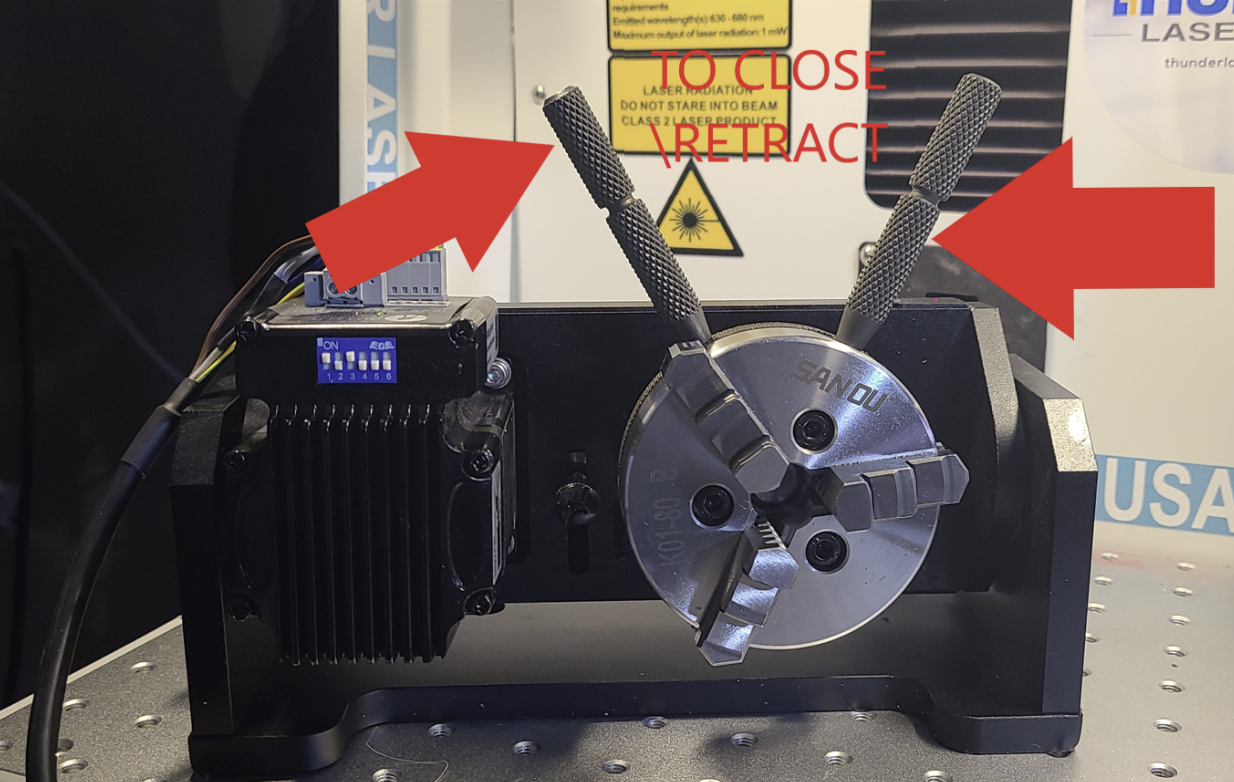

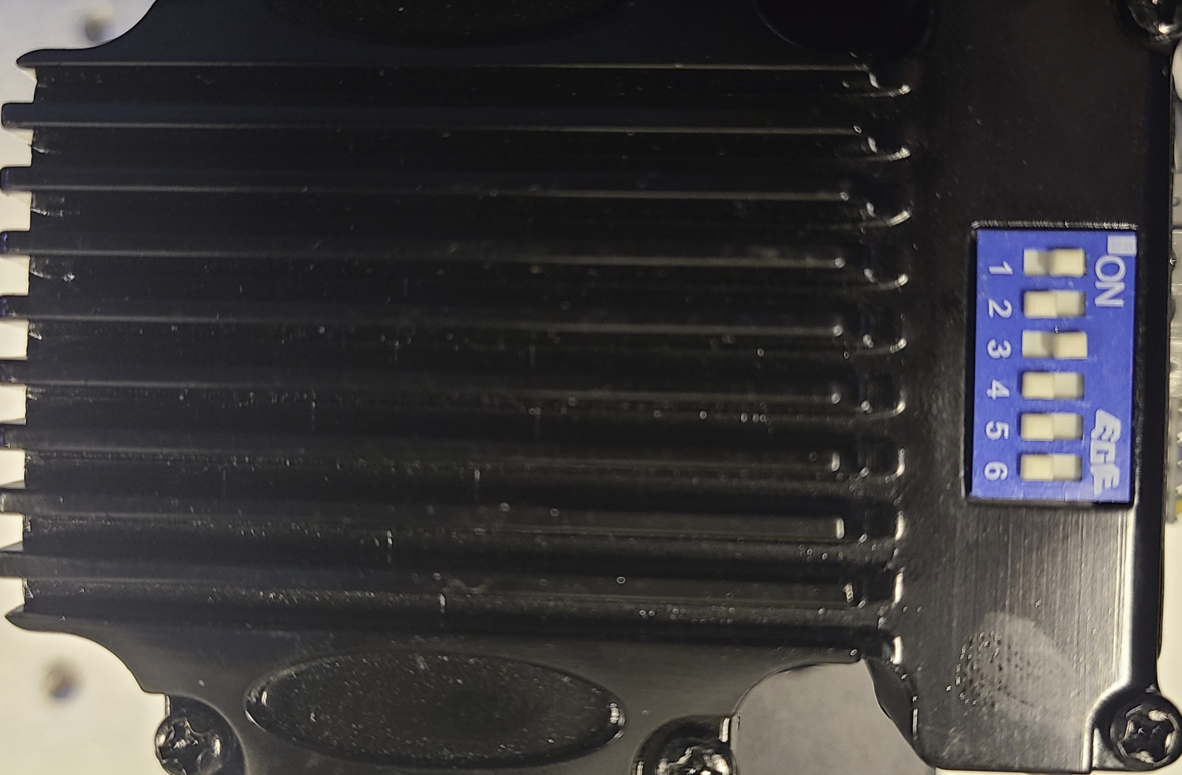

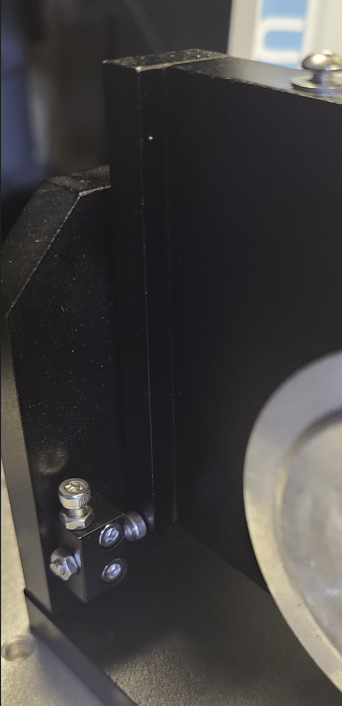

Aurora Chuck Rotary Functions, Tech Information, Default Settings and Adjustments Overview

Aurora Chuck Rotary Functions, Tech Information, Default Settings and Adjustments Overview

Preface: This article covers some of the basics of the Aurora Chuck Rotary



Default Dip Switch Settings:

1 ON (Steps bit 1)
2 OFF (Steps bit 2)
3 ON (Steps bit 3)
4 OFF (Steps bit 4)
5 OFF (CW\CWW)
6 OFF (Test Mode)

           Dip Switch Settings and Steps Table:



Default Steps:

Default Motor Steps is 4000. Due to the Gearing of the pulleys, that yields a 3:1 ratio which means the steps you enter into the software will be 3x the motor steps, so 12000. See the above section for the Dip Switch settings for the required steps.

Gearing:

Motor Drive Pulley - 16 tooth
Chuck Drive Pulley - 48 tooth
Belt - 291-3m 10mm
Results in a 3:1 ratio.


Belt and Tensioner:

Adjust the tensioner so that the cog belt is not loose, it does not have to be banjo tight either. If you are experiencing slip, check the belt tension.

How to Open and Close the Jaws on the Chuck:

Use the adjustment rods. Install one rod into the lock collar, the other into the silverish chuck collar.

Open:

Rotate the lock collar Counter Clockwise



Close:

Rotate the lock collar Clockwise

How to change the Angle of the Chuck:

Loosen the knob shown (There is 1 on each side), adjust the angle to the required position and then tighten the knobs back.

How to Adjust the 90* and 0* stops of the Chuck:

Each side of the chuck has 2 bolts and nuts, commonly known as Jack bolts in this configuration. You can adjust the jack bolts to get the desired position for 0* and 90* to account for any bed level issues etc.


    • Related Articles

    • Aurora Series Unified User's Manual

      Please see the manuals for both Aurora series V1 and Aurora series V2 attached below

    • Roller Rotary Setup and Usage in Lightburn (AURORA)

      Roller Rotary Setup in Lightburn In Lightburn's top menu options click Laser Tools. The drop down menu will show Rotary Setup. Click this option to expand the Rotary Setup window. Follow the steps to set up your Roller rotary. Select Roller Rotary ...

    • Aurora Installing Lightburn (non-Pro)

      Preface: This article covers installing Lightburn for your Thunder Laser Aurora Galvo laser Lightburn Software for Galvo is a powerful design and communication tool for your Thunder Galvo Laser. Following this guide will help you install Lightburn, ...

    • Aurora Chuck Rotary Dimensions

      Preface: This article covers basic dimensions for the Aurora Chuck Rotary. All dimensions are approximate as they were hand measured.

    • Aurora GRT8-M1 Timer Relay Functions, Settings, and Manual

      Preface: This article covers some of the technical details of the GRT8-M1 relay used in the Aurora series Lasers GRT8-M1 located in the top of the Aurora, next to the Main Breaker Part Number Explained: We use the GRT8-M1 with is a SPDT Timer off ...
    If you are a Thunder Laser USA client and still need Technical Support after exhausting the resources in the Knowledge Base, simply email support@thunderlaserusa.com and the Technical Support Team will promptly assist you!
