Aurora Chuck Rotary Dimensions

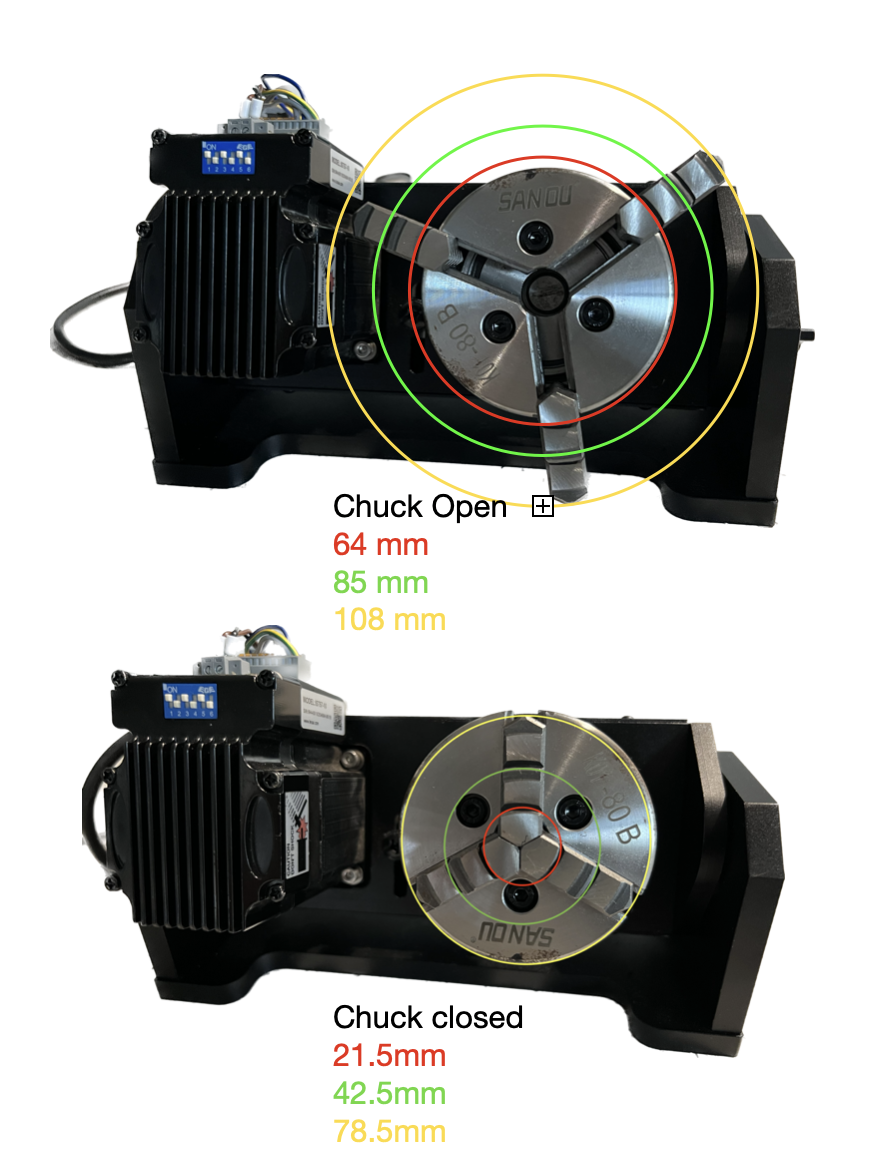

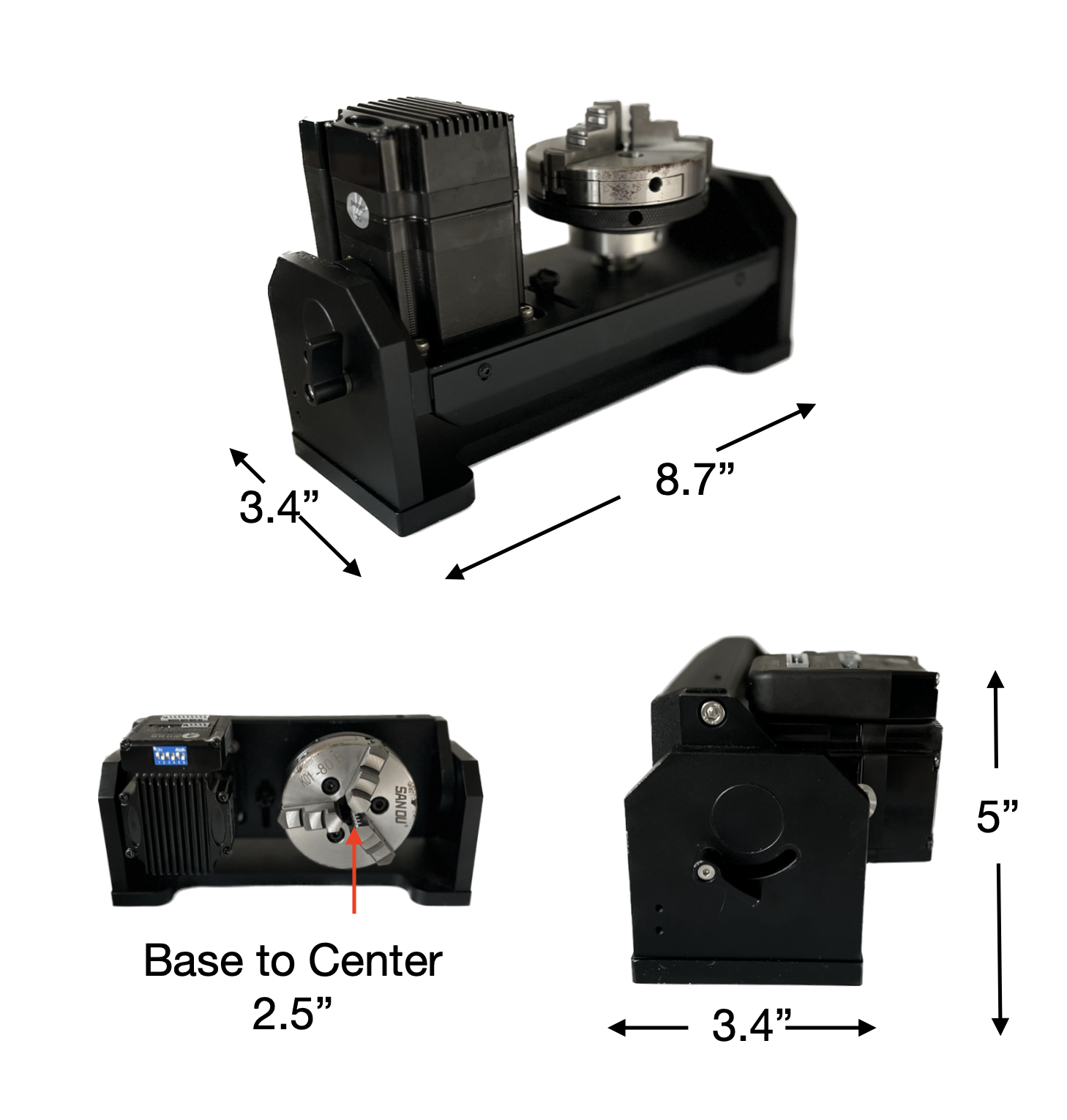

Preface: This article covers basic dimensions for the Aurora Chuck Rotary. All dimensions are approximate as they were hand measured.
