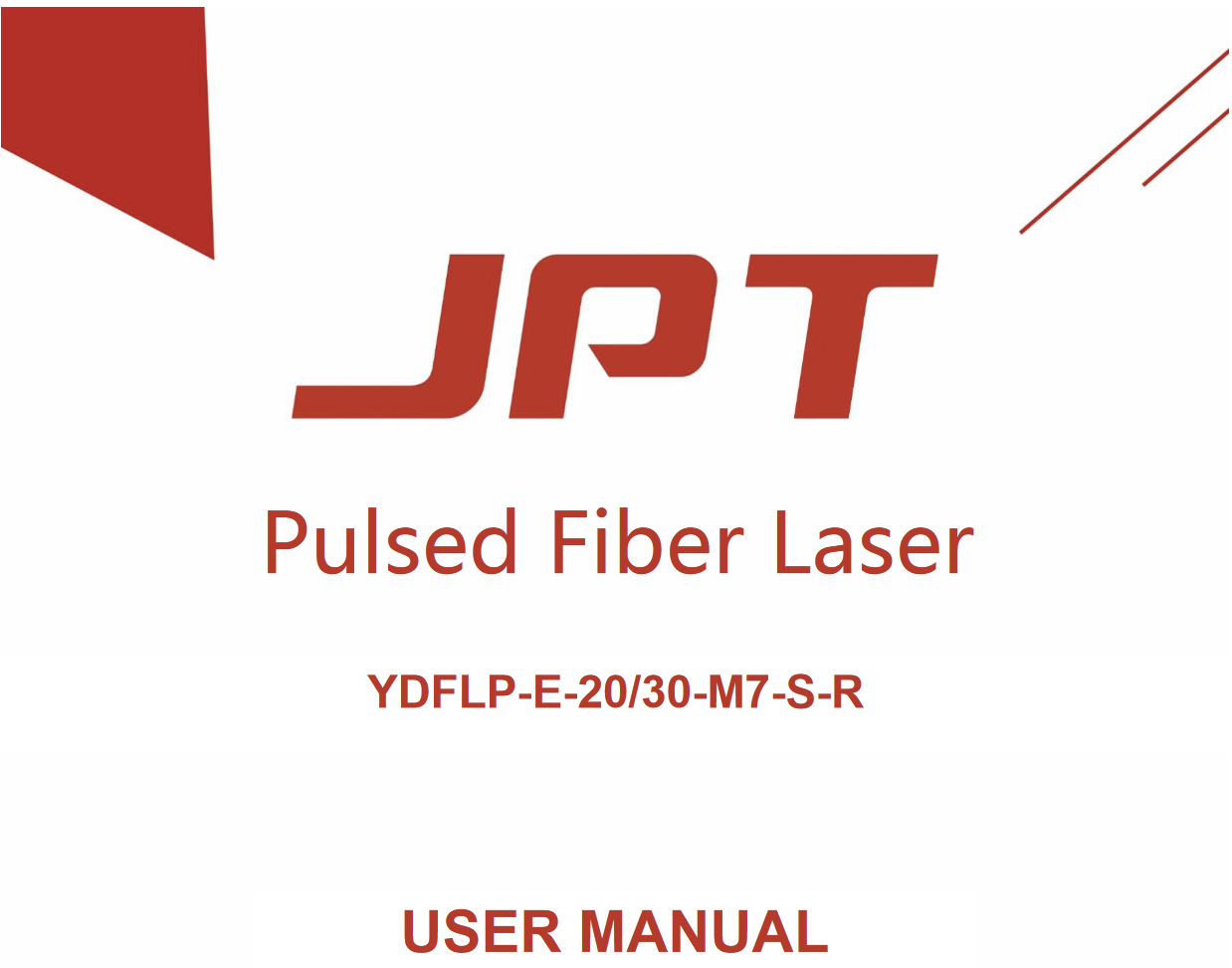

Aurora 8 Pro Fiber 20W Mopa JPT Source User Manual

Preface: This is the OEM manual for the LASER SOURCE only, it is not the manual for the machine itself. Notes contained within this manual are from JPT and should be considered when operating your machine.

Screenshots from the manual:

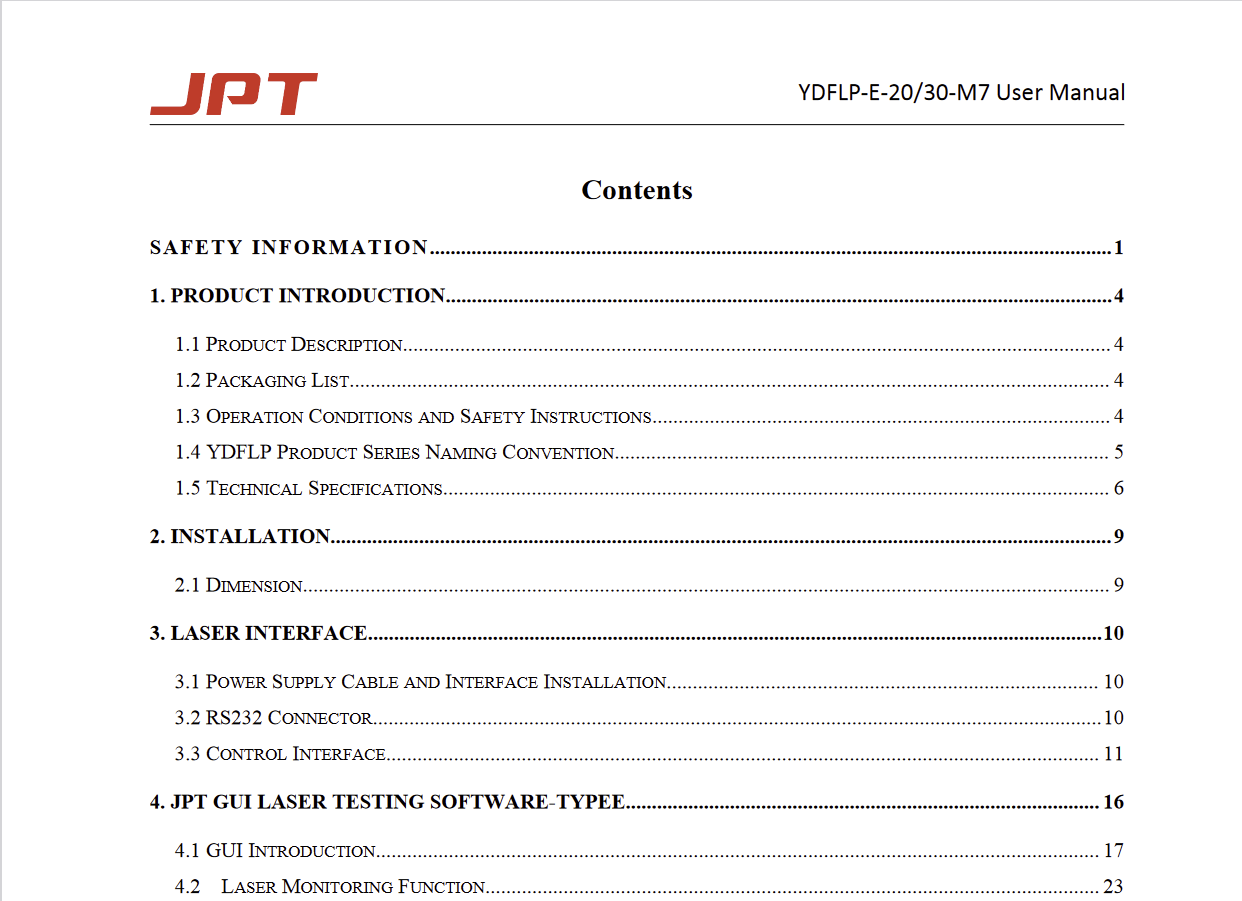

Manual TOC

---

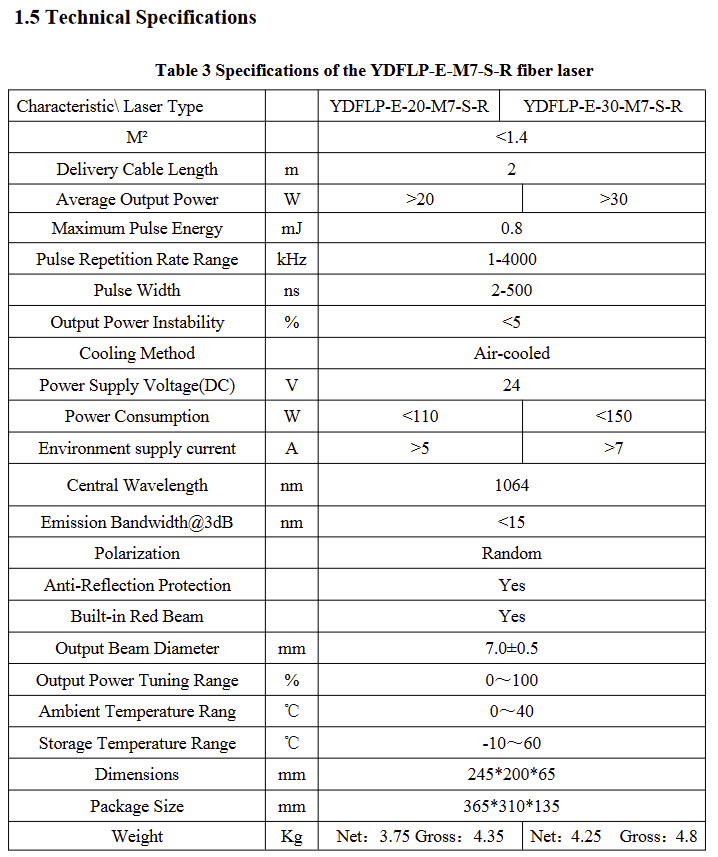

1.5 Technical Specifications:

---

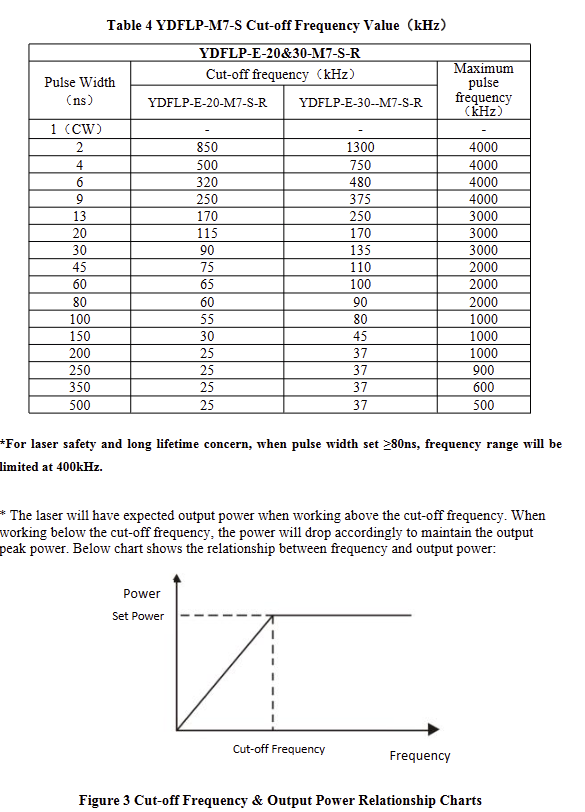

Cut-off Frequency

---

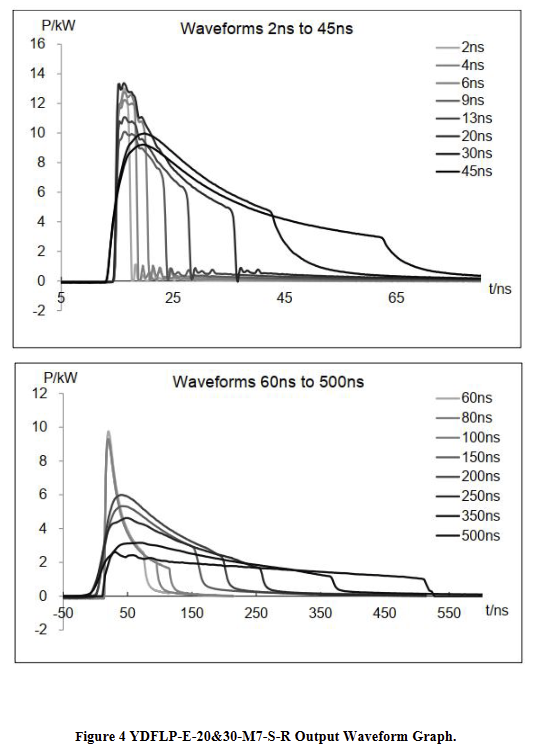

Output Waveforms
