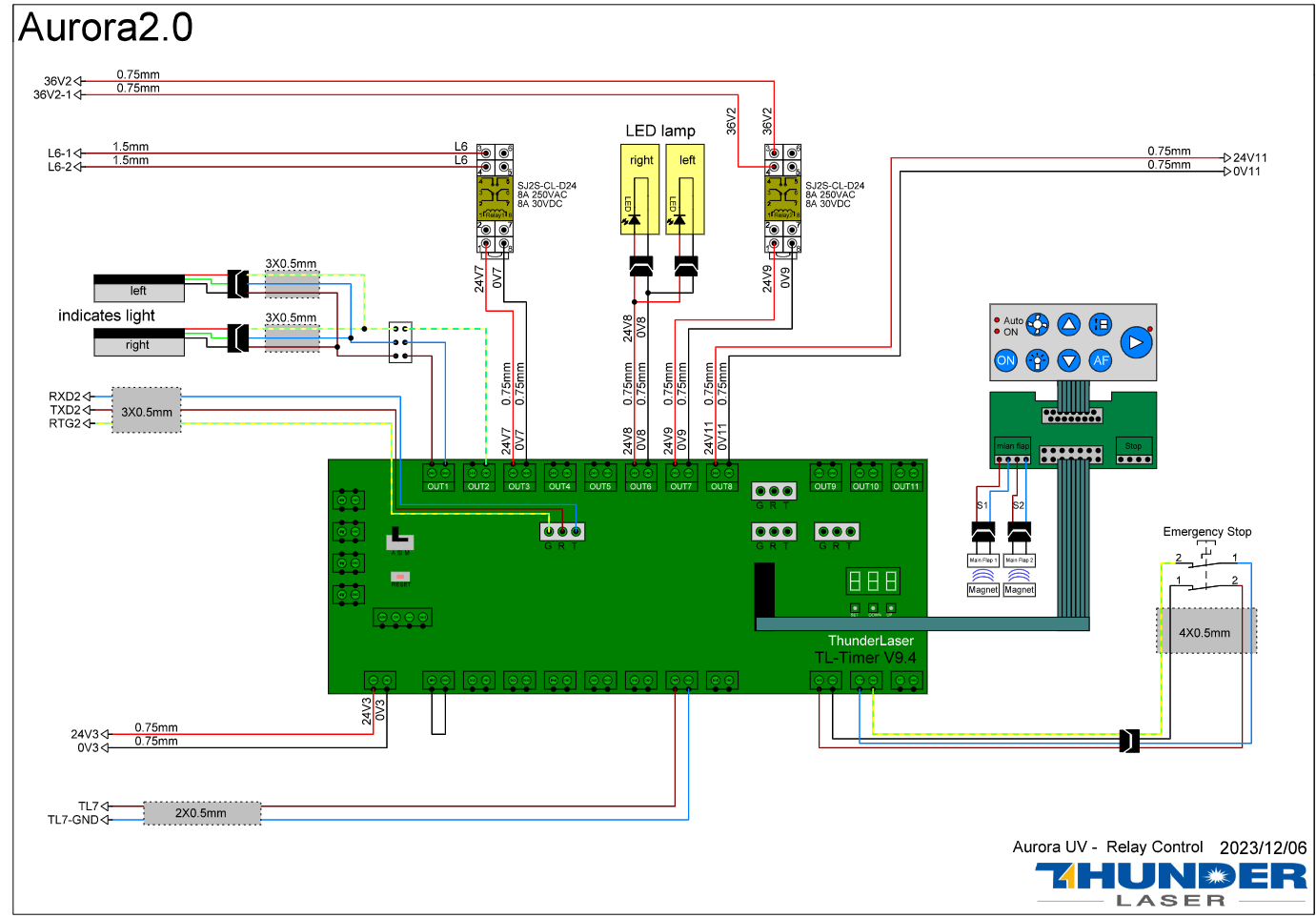

Aurora 2.0 Series Wiring Diagram TL Timer v9.4
Here is what we currently have to the Aurora 2.0 v9.4 machines. As of 7-25-2014, only the schematics for the UV laser are published.
