Aurora 2.0 Series Wiring Diagram TL Timer v9.3
Aurora 2.0 Schematics:
Page 1 Main power layout:

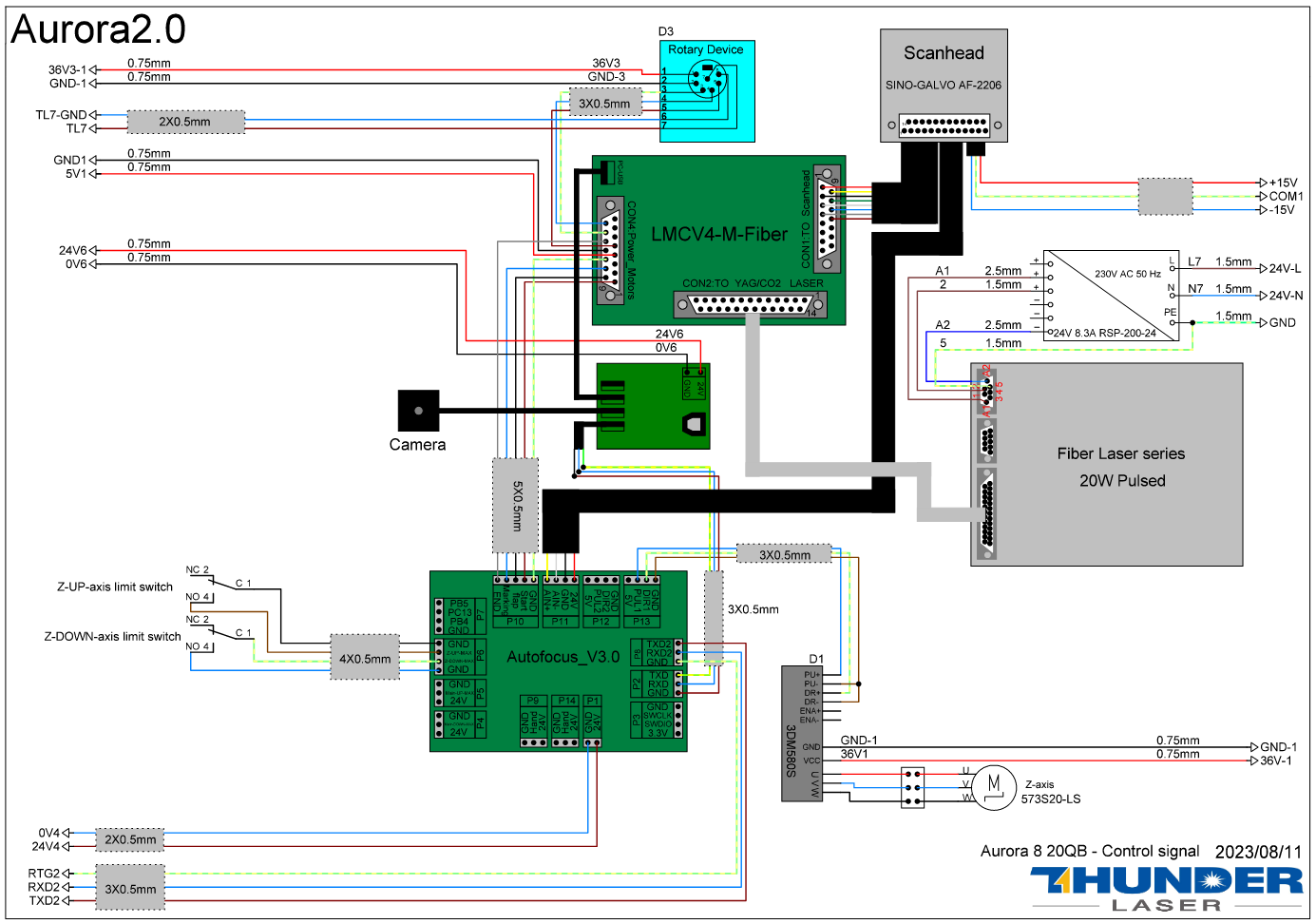

Page 2 Source and AF wiring:

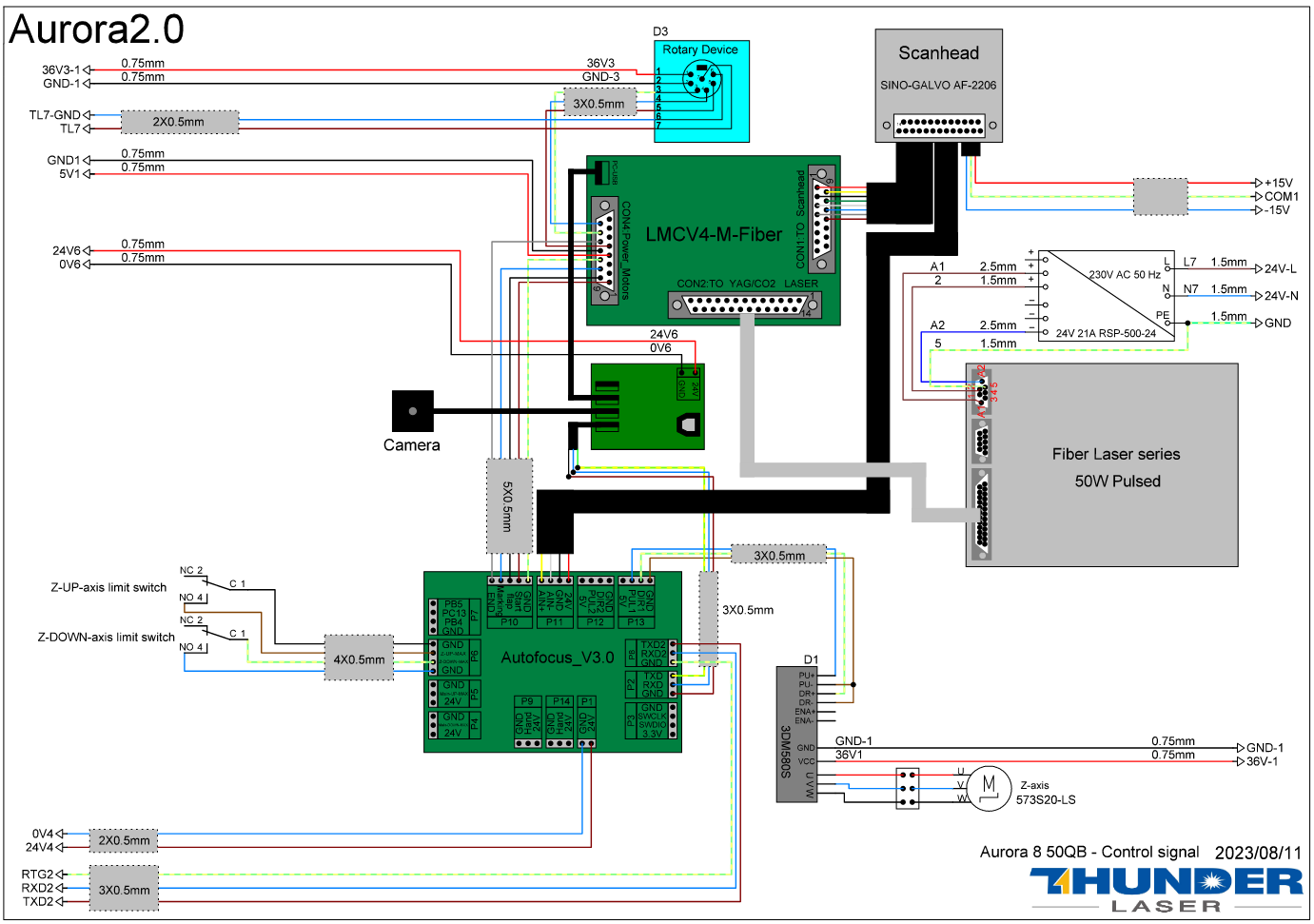

Page 3 Source and AF wiring:

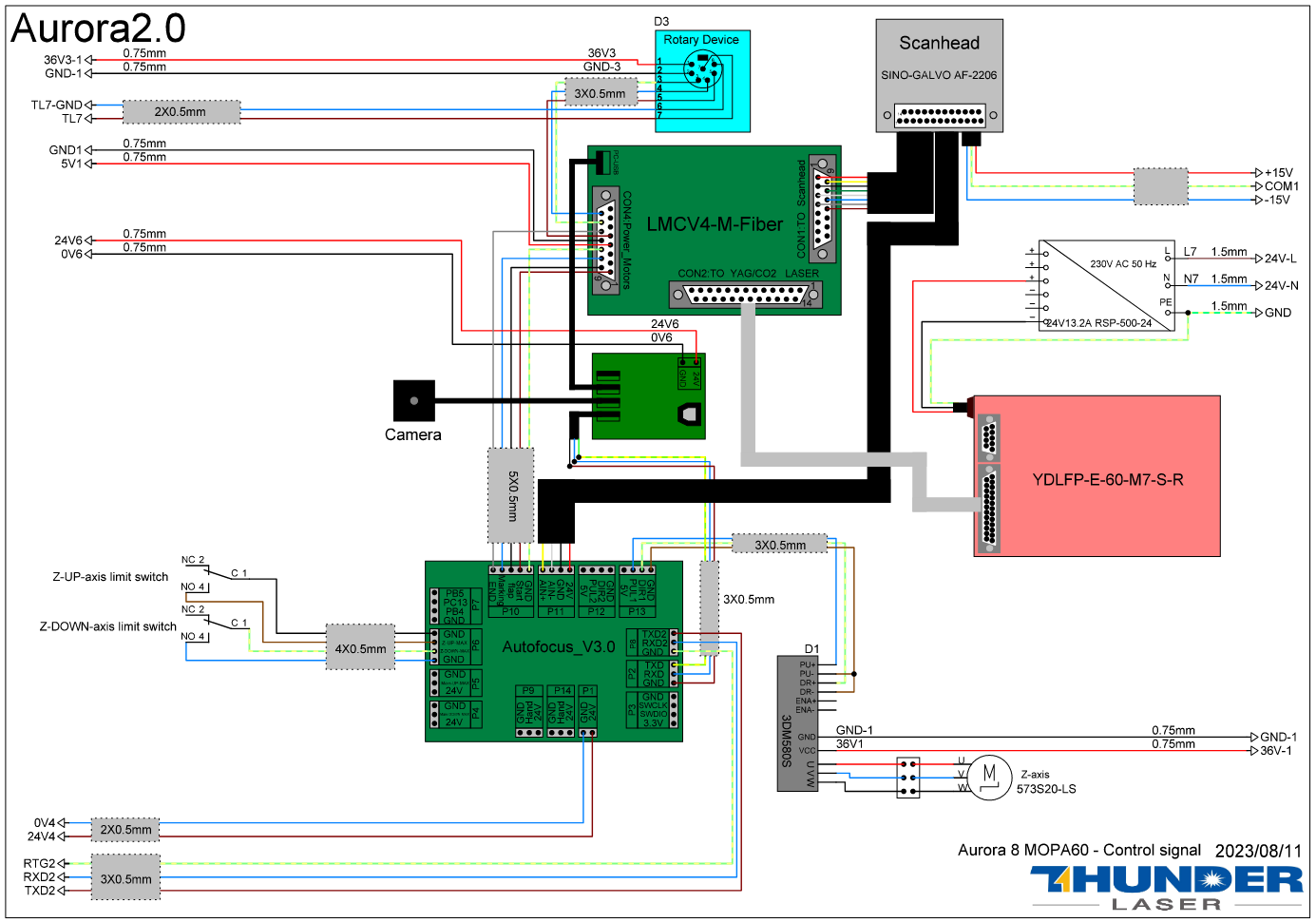

Page 4 Source and AF wiring:

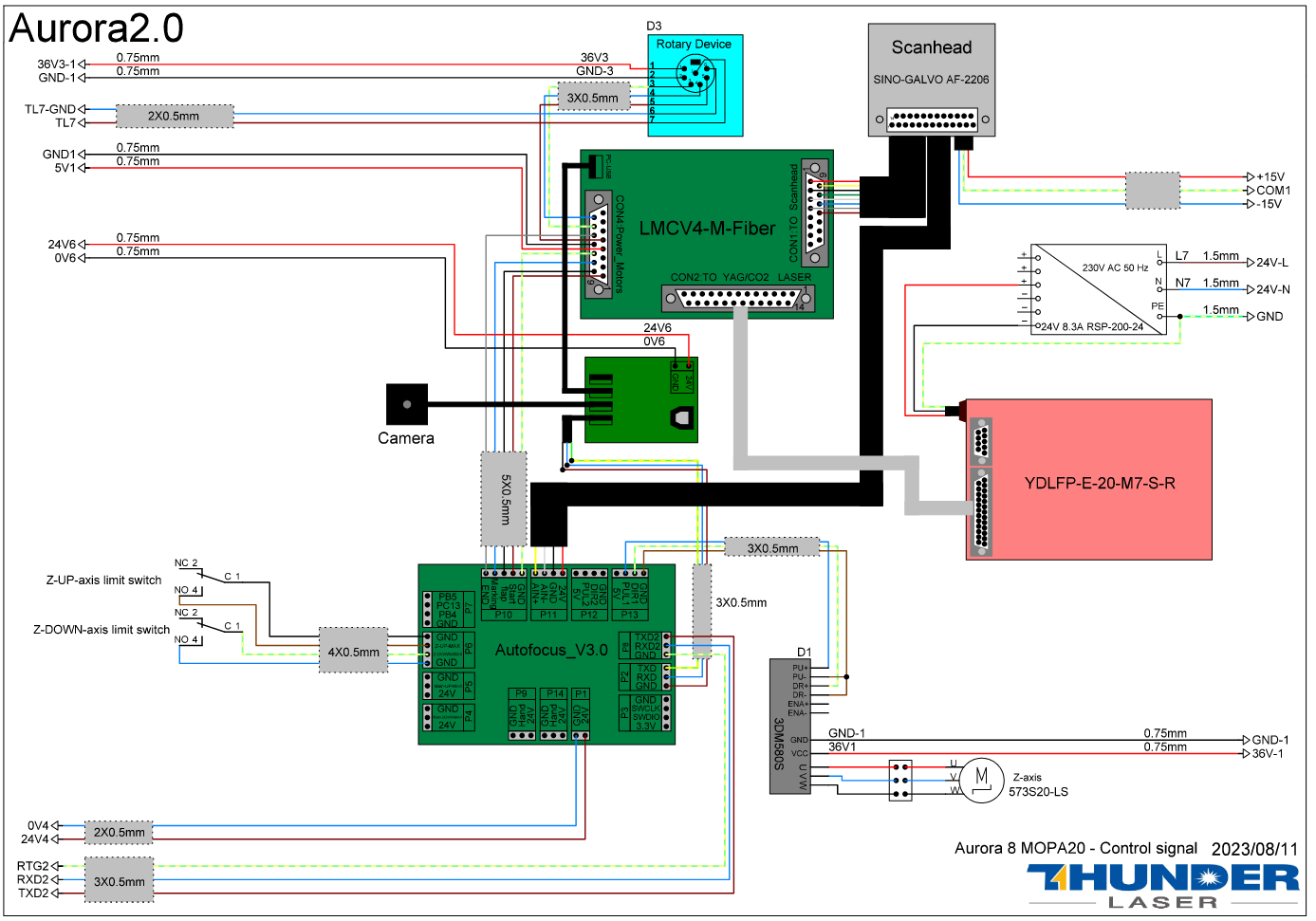

Page 5 Source and AF wiring:

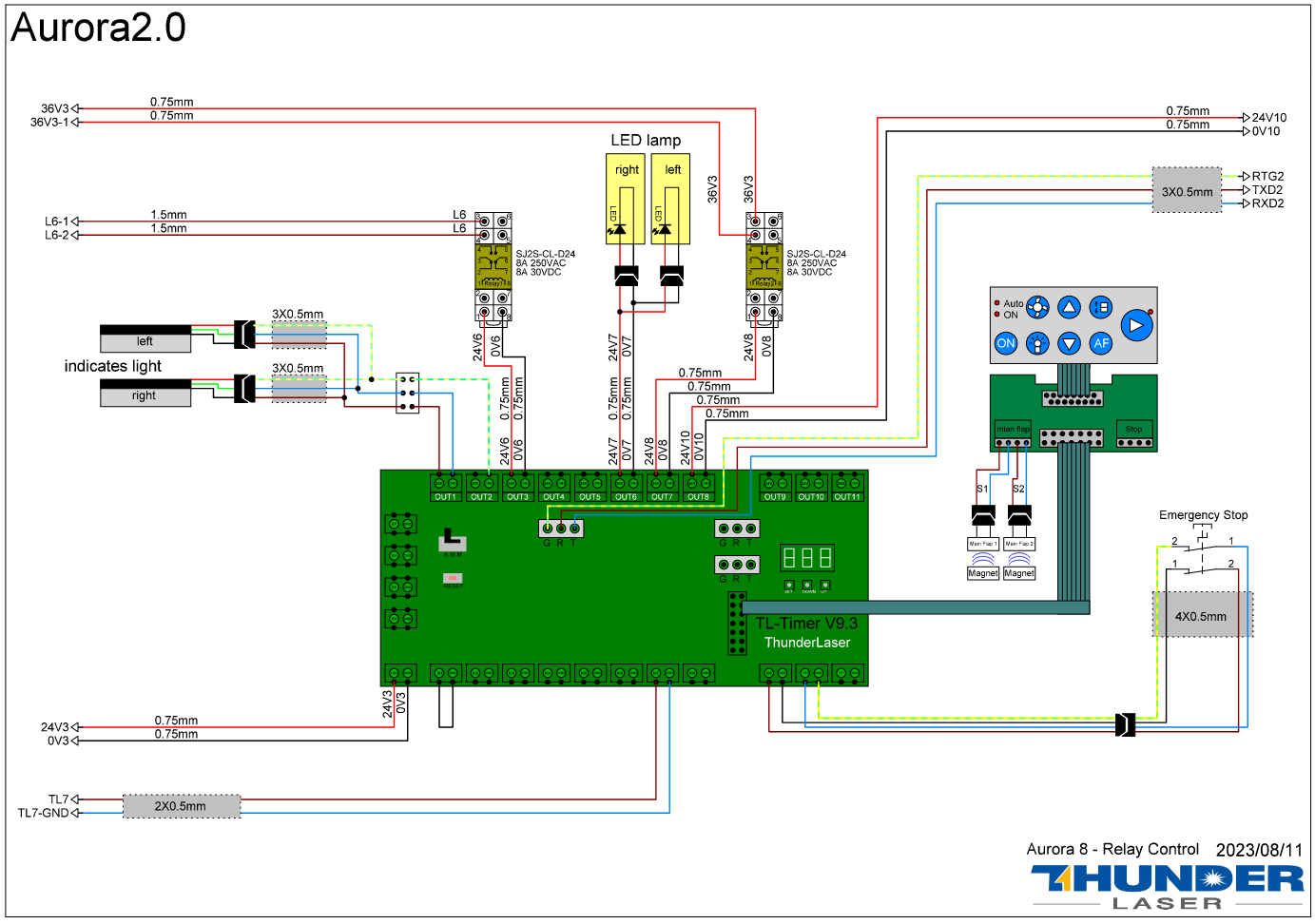

Page 6 TL Timer wiring:
