Air Sensor Signal Interference Re-Programming

This article is a How To: for customers whose air pressure sensor signal was interfering with the controller, causing the Touch Panel to display garbled pop-ups during operation. Changing the following values can effectively avoid this signal interference.

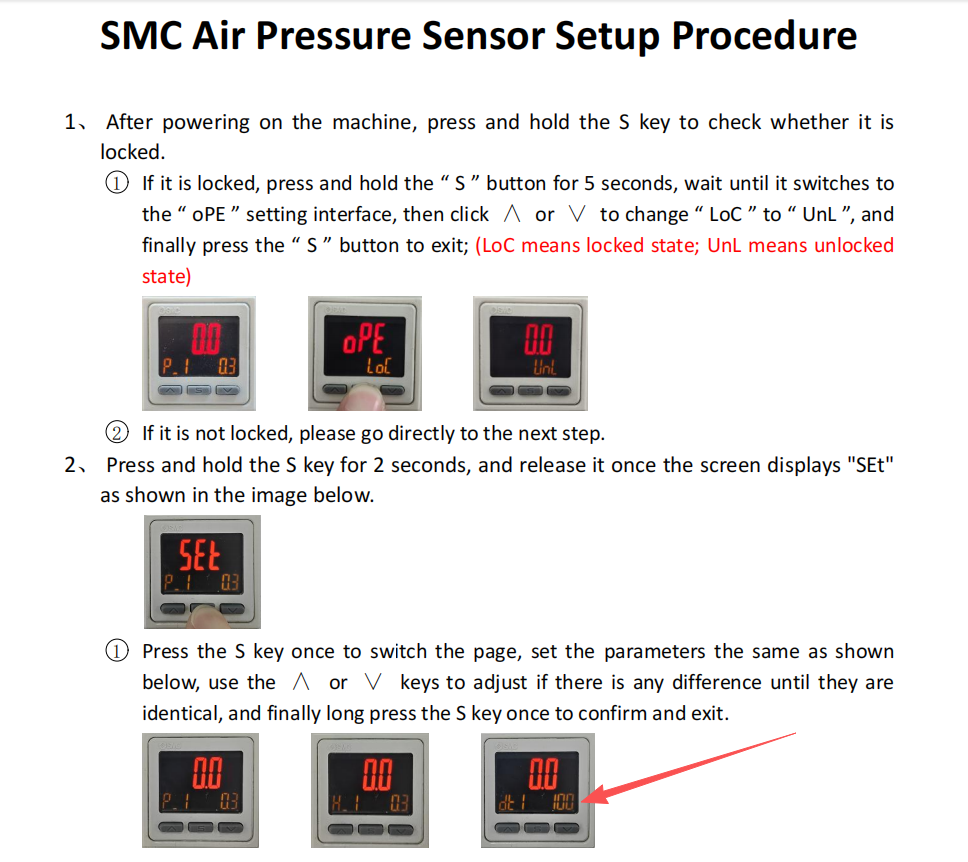

 Please see the two steps in the screenshot; this is the R&D feedback method for setting the barometric pressure sensor's DET detection delay value. Based on R&D's response, we advised SMC's customer to modify the value to 100ms according to the instructions in this document.

See Video and Written Instructions Below
