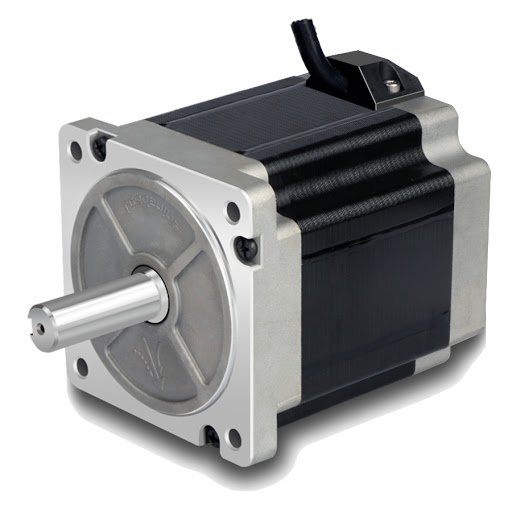

86CM45 Motor

86CM45 Motor


  • 2 phase, NEMA 34 frame size
  • 80 mm (3.15 inch) long
  • 6 A phase current
  • 4.5 N.m (638 oz-in) holding torque
  • 12.7 mm (0.5 inch) shaft size
  • Built with high quality materials including bearings and shaft made by Japanese manufacturers
  • High precision, low motor heating, and low vibration
