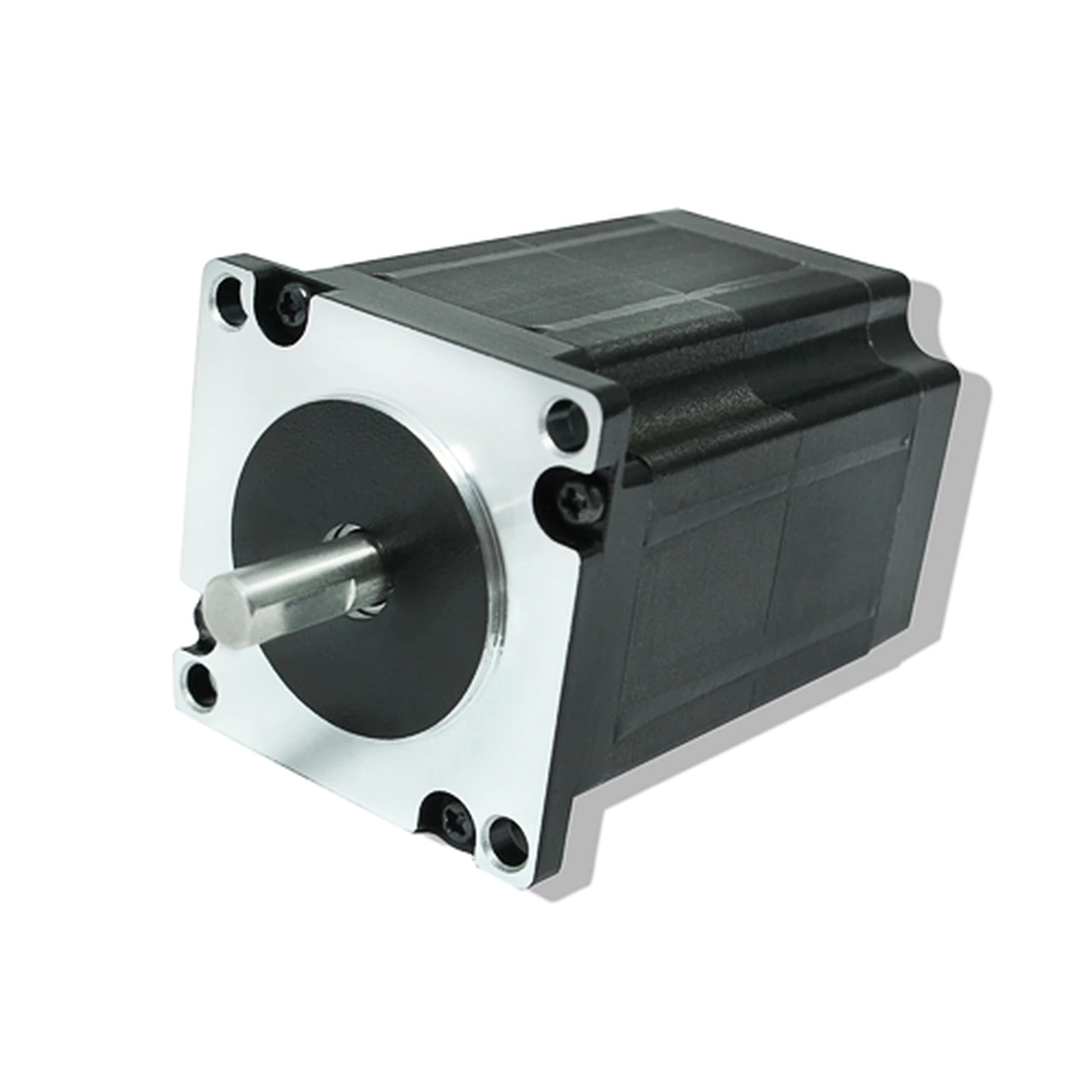

573S20 Motor

573S20 Motor


Features:

  • 3 phase 1.2° stepping angle
  • Standard NEMA 23 dimensions
  • Holding toque of 1.5 Nm (212 oz-in)
  • High precision
  • Smooth movement
  • Low motor heating
  • Low movement noise

Specification:

  • Step angle: 1.2 deg
  • Step per revolution: 300
  • Phases: 3
  • No. wires: 3
  • Length of wire: 6ft
  • Current: 5.8A
  • Holding Torque: 1.5 N*M (212oz-in)
  • Single shaft (dia./length): 8.0mm/19mm
  • Inductance: 1.35 mH
  • Phase resistance: 0.9 ohms
  • Detent torque: 480 g.cm2
  • Rotor Inertia: 480 g-cm
  • Weight: 1.1KG (2.5lb)
  • Overall dimension (LxWxD):81mm x 57mmx57mm
