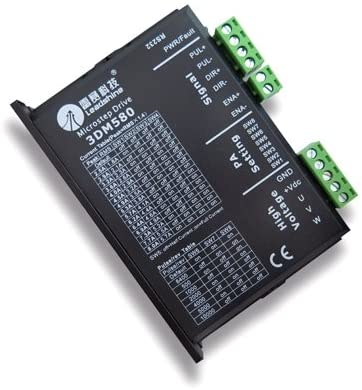

3DM580 Driver

3DM580 Driver


Features:
  • Extra-low motor noise offers excellent quietness
  • Anti-Resonance, provides optimum torque and nulls mid-range instability
  • Self-test and Auto-configuration technology, offers optimum responses with different motors
  • Microstep resolutions programmable, from full-step to 10,000 steps/rev
  • Operating voltage up to +50 VDC
  • Output current programmable, from 2.5A to 8A
  • Pulse input frequency up to 500 KHz
  • Automatic idle-current reduction
  • Supports PUL/DIR and CW/CCW modes
  • Specification:
  • *Current: Min 2.5A, Max 8A (peak current) - 15 settings
  • *Voltage: Min 18V Typical: 36V Max: 50V DC
  • *Logic current: Min 7mA Typical: 10mA Max: 16mA
  • * Input frequency: 0 to 500KHz
  • * Size: 118mm x 76mm x 34mm (4.7" x 3" x 1.4")
