3D Relief Engraving on Acrylic

3D Relief Engraving on Acrylic

Here is a 3D Relief engraving workflow on acrylic.


This is the same file we used on the wood 3d relief engraving:


3D Relief Engraving On Natural Wood

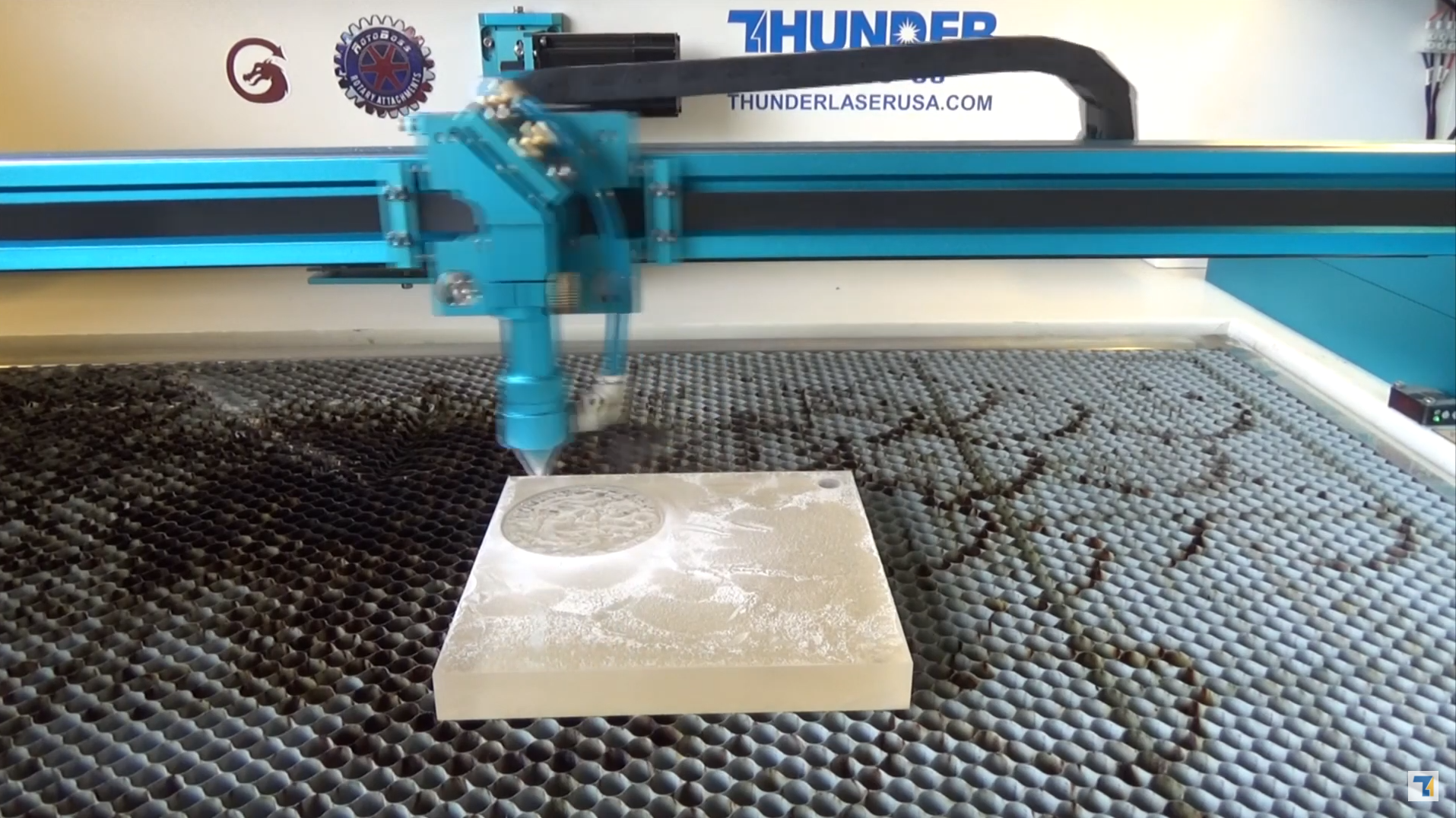

The acrylic is 6"x 6" x0.75" cast. Thunder Nova 35-80, stock 2" lens, standard focus (6mm from nozzle to surface). The LightBurn File Is Attached at the bottom of this article.

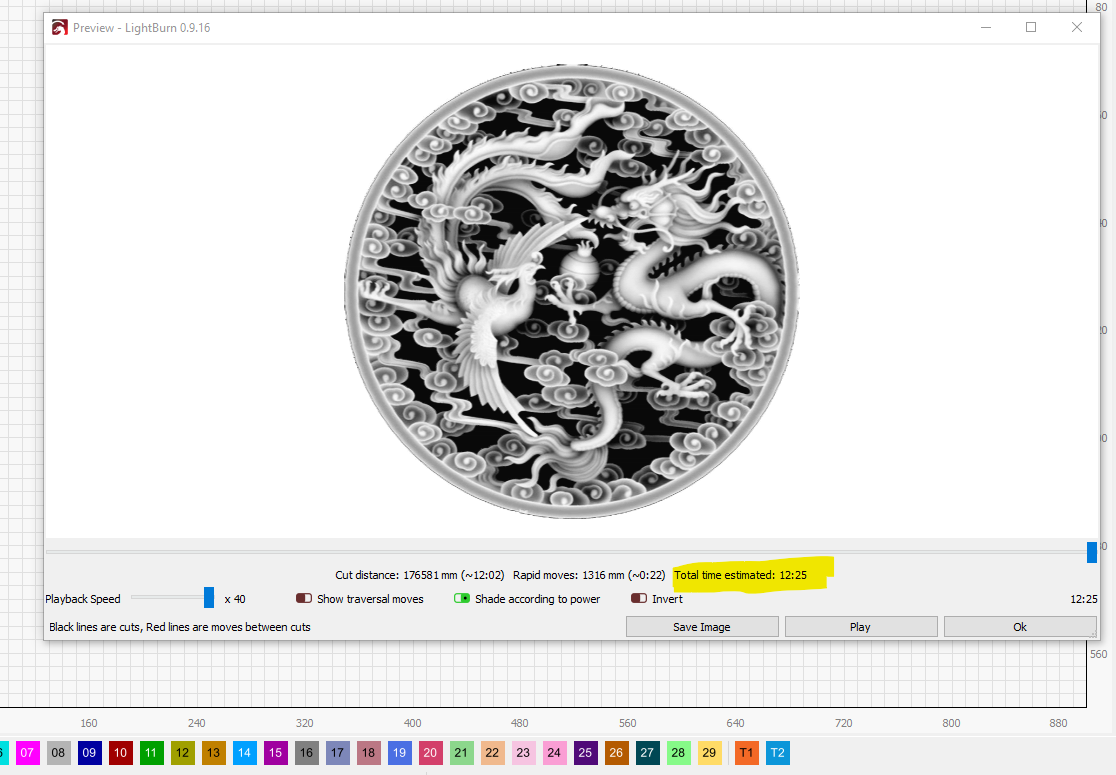

The estimated time is 12:25. This laser config is correct in the estimation settings.




The actual run time was 12 minutes and 5 seconds from beep to beep.
